Extel Emy Wireless Call Button Instruction Manual

1. Pengenalan dan Selesai Produkview

The Extel Emy Wireless Call Button is an IP44 rated, white, waterproof call button designed for use with compatible Extel wireless chime systems. It features a light indicator and an integrated protective visor for enhanced durability. With a radio transmission range of up to 150 meters, this call button is powered by a single CR2032 battery, which is included. It serves as an ideal replacement for a faulty call button or allows for the addition of a second entrance call point.

This call button is compatible with various Extel chime models, including LOOFIN, LOOFIB, LOOCENS, LOOPOG, LOONS, LOOBS, LOOVI, LOONI, LOOFLASH, APPLI, LOOPO, LOOMAX, and LOOKIT.

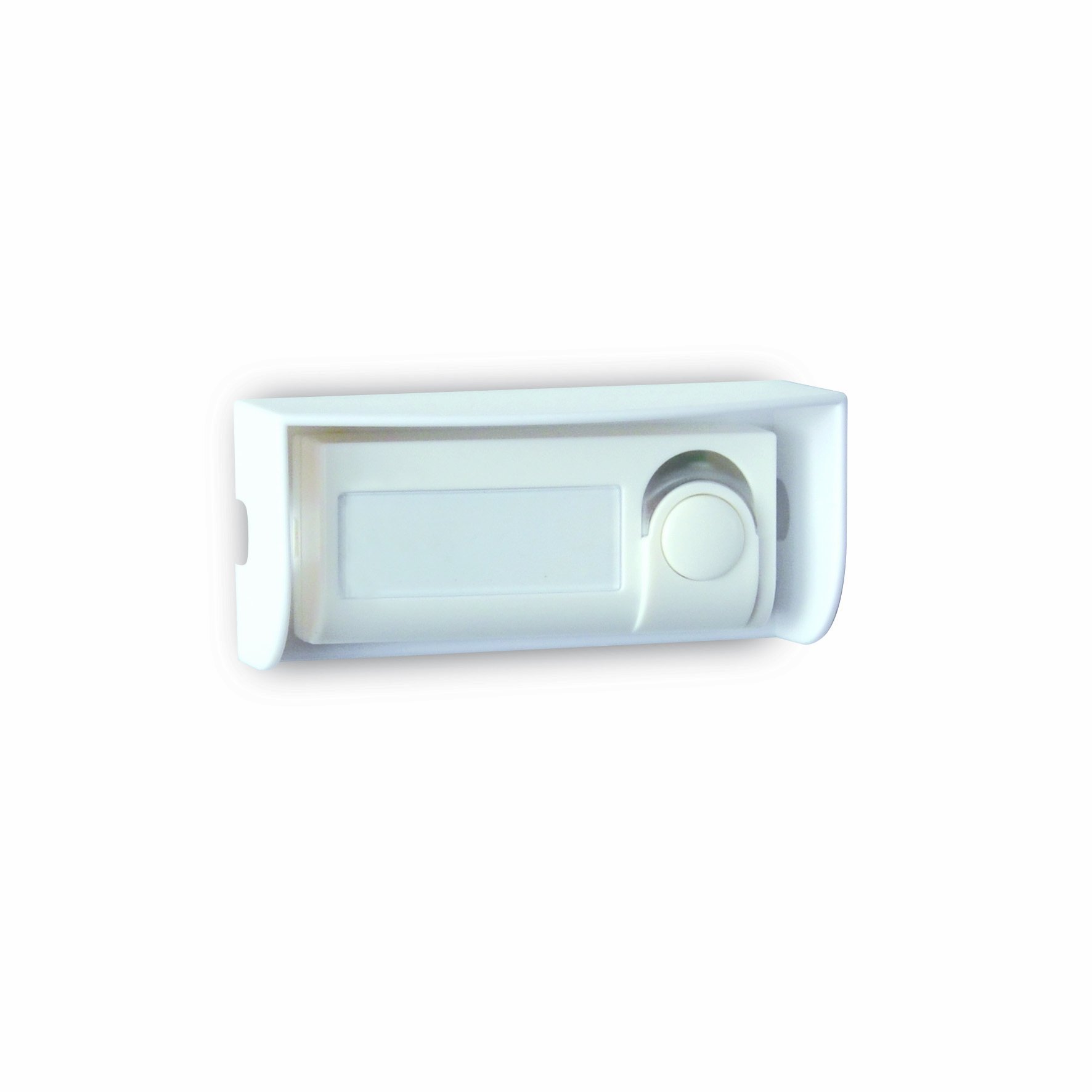

Image showing the white Extel Emy Wireless Call Button with its integrated protective visor.

2. Arahan Keselamatan

• Read all instructions carefully before installing and operating the device.
• Do not expose the call button to extreme temperatures, direct sunlight for prolonged periods, or corrosive substances.
• Ensure correct battery insertion, observing the polarity (+/-) markings. Incorrect insertion can damage the device or cause battery leakage.
• Jauhkan bateri daripada kanak-kanak. Jika tertelan, dapatkan rawatan perubatan segera.
• Dispose of used batteries and the device responsibly, following local regulations for electronic waste.
• Jangan cuba membuka atau membaiki peranti sendiri. Rujuk semua servis kepada kakitangan yang berkelayakan.

3. Kandungan Pakej

Sahkan bahawa semua item terdapat dalam pakej:

• 1 x Extel Emy Wireless Call Button with integrated visor
• 1 x CR2032 Lithium Metal Battery (may be pre-installed)
• Mounting hardware (e.g., screws, wall plugs, or adhesive pad)
• Manual Arahan

4. Persediaan dan Pemasangan

4.1 Pemasangan Bateri

1. Locate the battery compartment on the back of the call button.
2. Buka penutup petak.
3. Insert the included CR2032 lithium metal battery, ensuring the positive (+) side faces upwards as indicated inside the compartment.
4. Tutup penutup petak bateri dengan selamat.

4.2 Mounting the Call Button

Choose a suitable location for your call button, typically near your main entrance or any secondary entrance where you wish to add a call point. The IP44 rating ensures the button is protected against splashing water, making it suitable for outdoor installation.

• Menggunakan Skru: Mark the desired mounting position. Drill pilot holes if necessary, then secure the call button to the surface using the provided screws and wall plugs.
• Using Adhesive Pad (if included): Clean the mounting surface thoroughly to ensure it is dry and free of dust or grease. Peel off the protective film from the adhesive pad and firmly press the call button onto the desired location for at least 30 seconds.

Ensure the integrated protective visor is correctly positioned over the button after mounting.

4.3 Pairing with Your Extel Chime

To enable communication between the Emy call button and your Extel wireless chime, pairing is required. The exact pairing procedure may vary slightly depending on your specific Extel chime model. Please refer to your chime's instruction manual for detailed pairing steps. Generally, the process involves:

1. Placing your Extel chime into pairing mode (often indicated by a flashing light or specific sound).
2. Pressing the Extel Emy Wireless Call Button once to send a pairing signal.
3. The chime should confirm successful pairing (e.g., by ringing or a solid light).

5. Arahan Operasi

Once installed and paired, operating the Extel Emy Wireless Call Button is straightforward:

• Press the call button firmly.
• A light indicator on the button will illuminate briefly, confirming that a signal has been transmitted.
• The wireless signal will be sent to your paired Extel chime, which will then sound the selected melody.

6. Penyelenggaraan

6.1 Pembersihan

To maintain the appearance and functionality of your call button:

• Wipe the surface of the call button with a soft, slightly damp kain.
• Jangan gunakan pembersih yang kasar, pelarut atau bahan kimia yang keras, kerana ini boleh merosakkan kemasan atau komponen dalaman.

6.2 Penggantian Bateri

The CR2032 battery typically lasts for an extended period. However, if you notice the light indicator no longer illuminates when pressed, or if the wireless range significantly decreases, it is likely time to replace the battery.

1. Open the battery compartment cover on the back of the call button.
2. Keluarkan bateri CR2032 lama.
3. Insert a new CR2032 lithium metal battery, ensuring correct polarity (+/-).
4. Tutup penutup petak bateri dengan selamat.

7. Penyelesaian masalah

8. Spesifikasi

• model: EMY
• Jenama: EXTEL
• Sumber Kuasa: 1 x Bateri Litium Logam CR2032 (termasuk)
• Julat Tanpa Wayar: Sehingga 150 meter (padang terbuka)
• Peringkat Perlindungan Ingress (IP): IP44 (Dilindungi daripada objek pepejal melebihi 1mm dan percikan air dari sebarang arah)
• warna: putih
• Dimensi (lebih kurang): 10 x 4.8 x 4.8 cm
• Berat (lebih kurang): 120 gram
• Pensijilan: NF
• Pengeluar: CFIEX

9. Maklumat Waranti

The Extel Emy Wireless Call Button is covered by a Waranti pengilang selama 1 tahun dari tarikh pembelian. Waranti ini meliputi kecacatan bahan dan mutu kerja di bawah penggunaan biasa. Ia tidak meliputi kerosakan yang disebabkan oleh salah guna, kemalangan, pengubahsuaian tanpa kebenaran atau pemasangan yang tidak betul.

To make a warranty claim, please retain your original proof of purchase (receipt or invoice) and contact your retailer or Extel customer support.

10. Sokongan

For further assistance, technical support, or inquiries regarding your Extel Emy Wireless Call Button, please refer to the following resources:

• Official Extel Webtapak: Visit the official Extel website for FAQs, additional product information, and contact details.
• Perkhidmatan Pelanggan: Contact Extel customer service directly for personalized support.
