Classic Cantabile X Keyboard Stand (Model 00032735) Instruction Manual

1. Pengenalan

This manual provides essential information for the safe and efficient use of your Classic Cantabile X Keyboard Stand. Please read these instructions carefully before assembly and operation, and retain them for future reference. This sturdy X-shaped stand is designed to provide secure support for various keyboards, master keyboards, portable keyboards, and synthesizers, suitable for both home and stage persekitaran.

Figure 1: Fully assembled Classic Cantabile X Keyboard Stand in silver finish.

2. Arahan Keselamatan

• Pastikan semua komponen dipasang dengan kukuh sebelum meletakkan sebarang instrumen di atas penyangga.
• Do not exceed the maximum load capacity of 30 kg (6.6 pounds).
• Letakkan penyangga di atas permukaan yang stabil dan rata untuk mengelakkannya daripada terbalik.
• Keep fingers clear of moving parts during height adjustment to avoid pinching.
• Periksa pendirian secara berkala untuk sebarang tanda haus atau kerosakan. Jangan gunakan jika rosak.
• Keep the Allen key and small parts out of reach of children.

3. Kandungan Pakej

Sahkan bahawa semua item berikut disertakan dalam pakej anda:

• 1 x Classic Cantabile X Keyboard Stand (main frame)
• 4 x Non-slip rubber sleeves (pre-installed on feet and support arms)
• 1 x Allen key (for initial assembly/disassembly)
• Cable ties (for integrated cable management)

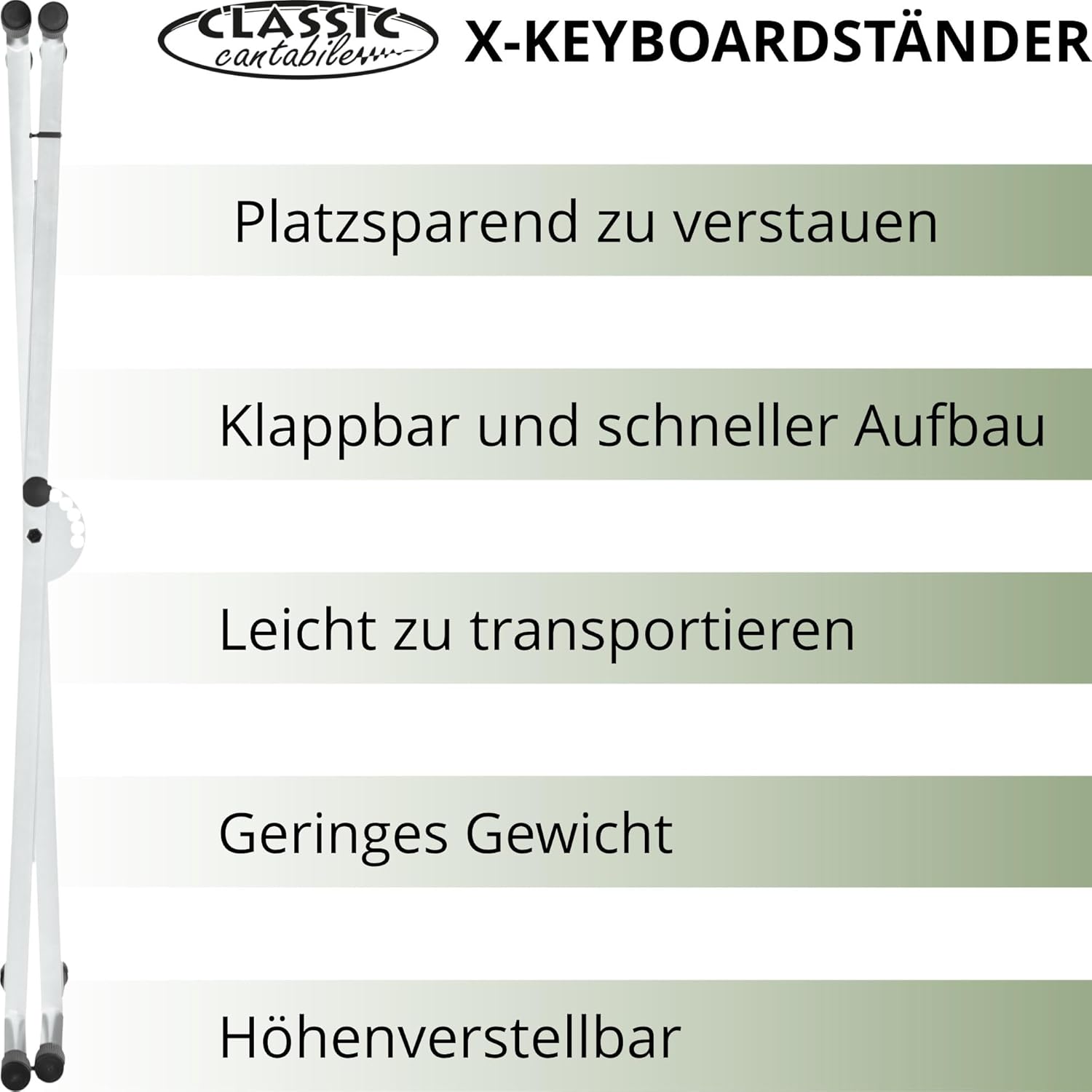

Figure 2: Key features of the stand, including space-saving storage, quick setup, easy transport, low weight, and height adjustability.

4. Arahan Perhimpunan

The Classic Cantabile X Keyboard Stand is designed for quick and easy assembly. The main X-frame is largely pre-assembled. The included Allen key is primarily for initial setup or disassembly for compact storage.

1. Buka Penyangga: Carefully unfold the X-shaped frame until it forms a stable base.
2. Laraskan Ketinggian: Locate the quick-release mechanism at the center joint of the X-frame. Pull the lever or knob to disengage the locking pin.
3. Tetapkan Ketinggian yang Diingini: Adjust the stand to one of the five available height positions. Ensure the locking pin fully engages into a hole for secure positioning.
4. Sahkan Kestabilan: Gently rock the stand to ensure it is stable and all connections are secure before placing your instrument.
5. Pengurusan Kabel: Utilize the integrated cable management feature and included cable ties to organize instrument cables, preventing clutter and trip hazards.

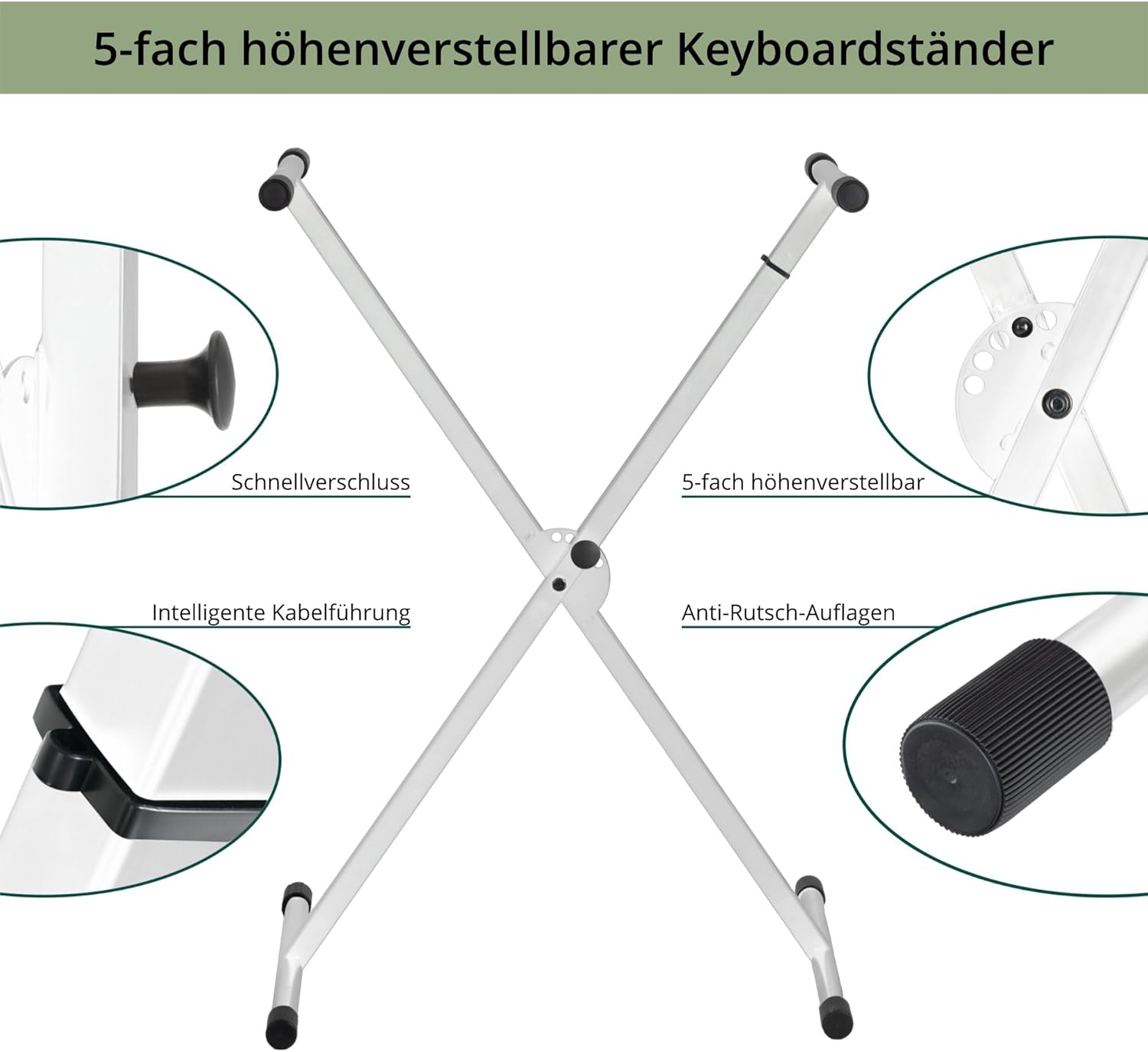

Figure 3: Close-up of the quick release mechanism for height adjustment, 5-way height adjustment points, intelligent cable management, and anti-slip pads.

Rajah 4: Terperinci views showing the 5-way height adjustment mechanism, the stable X-frame design, and the integrated cable management system.

5. Operasi

The Classic Cantabile X Keyboard Stand offers simple and reliable operation for various playing positions.

5.1 Pelarasan Ketinggian

The stand features a 5-position height adjustment system. To change the height:

1. Ensure no instrument is on the stand.
2. Locate the quick-release lever/knob at the central pivot point.
3. Pull the lever/knob outwards to disengage the locking pin.
4. Adjust the stand to the desired height by moving the upper arms up or down.
5. Release the lever/knob, ensuring the locking pin fully engages into one of the five adjustment holes. A distinct click indicates proper engagement.
6. Confirm the stand is stable before placing your keyboard.

5.2 Kedudukan Ergonomik

With a height adjustment range from 62 cm to 100 cm, the stand allows for an ergonomic and comfortable playing position, whether seated or standing. The non-slip rubber sleeves on both the feet and the instrument support arms ensure stability and prevent scratches to your instrument and floor.

Figure 5: The keyboard stand shown in its folded state for transport and storage, and in use at various adjustable heights.

6. Penyelenggaraan

To ensure the longevity and optimal performance of your keyboard stand, follow these simple maintenance guidelines:

• Pembersihan: Lap dirian dengan lembut, damp cloth to remove dust and dirt. Avoid abrasive cleaners or solvents that could damage the powder coating.
• Pemeriksaan: Periodically check all bolts, screws, and the quick-release mechanism for tightness and proper function. Tighten any loose fasteners with the provided Allen key if necessary.
• Komponen Getah: Inspect the non-slip rubber sleeves for wear or damage. Replace if they show signs of deterioration to maintain stability and protection.
• Storan: For space-saving storage, the stand can be folded. Store in a dry environment away from extreme temperatures.

7. Penyelesaian masalah

If you encounter any issues with your keyboard stand, refer to the following common problems and solutions:

8. Spesifikasi

• Nombor Model: 00032735
• Jenama: Cantabile klasik
• bentuk: Bentuk X
• warna: Perak
• Bahan: Metal with durable powder coating, Rubber (sleeves)
• Jenis Selesai: Dilukis
• Pelarasan Ketinggian: 5 positions, from 62 cm (24.4 inches) to 100 cm (39.4 inches)
• Seat Depth (Support Arm Length): 33.5 cm (13.2 inci)
• Base Width (Adjustable): Approximately 30 cm to 80 cm (11.8 inches to 31.5 inches)
• Berat Barang: 3 kg (6.6 paun)
• Kapasiti Muatan: Up to 30 kg (66 pounds)
• Ciri Khas: Lightweight, Non-slip rubber cuffs, Quick release mechanism, Foldable for space-saving transport/storage, Integrated cable management.
• Perhimpunan Diperlukan: Yes (minor assembly/adjustment)

Rajah 6: Dimensi lebihview of the keyboard stand, showing height adjustment from 62-100 cm and base width from 30-80 cm.

9. Waranti dan Sokongan

For warranty information or technical support regarding your Classic Cantabile X Keyboard Stand, please refer to the documentation provided at the point of purchase or contact your retailer. Keep your proof of purchase for any warranty claims.
