1. Pengenalan
This manual provides detailed instructions for the operation and maintenance of your Philips Wake-up Light, model HF3505/60. This device is designed to enhance your sleep and wake-up experience through a unique combination of light and sound, simulating a natural sunrise to gently prepare your body for waking.

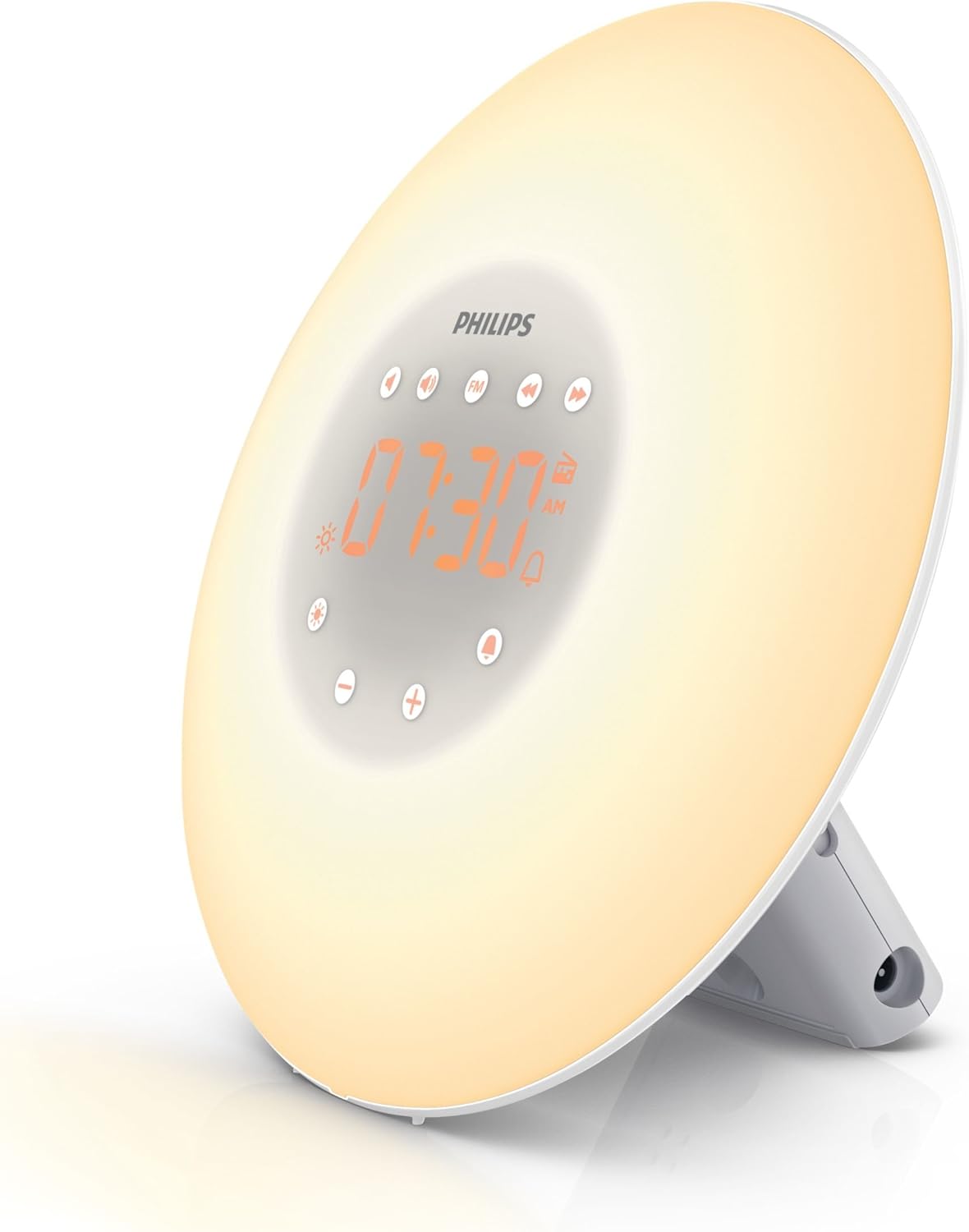

Figure 1: Philips Wake-up Light HF3505/60, angled view. This image displays the light disc, digital time display, and control buttons.
2. Ciri-ciri Utama
- Simulasi Matahari Terbit: Incre secara beransur-ansurasing light intensity over a set period (e.g., 30 minutes) before your alarm time, simulating a natural sunrise.
- Kecerahan boleh laras: Offers 10 different brightness levels for the light, allowing customization for both wake-up and bedside lamp guna.
- Natural Wake-up Sounds: Includes a choice of 2 natural sounds to complement the light simulation, providing a gentle awakening.
- Radio FM: Integrated FM radio for waking up to your favorite station or for general listening.
- Tepi katil Lamp Fungsi: Can be used as a dimmable bedside lamp.
- Fungsi Tunda: Features a tap-to-snooze function for additional sleep time.
3. Persediaan
3.1 Membongkar dan Meletakkan
- Keluarkan semua komponen dari pembungkusan dengan berhati-hati.
- Place the Wake-up Light on a stable surface, such as a bedside table. For optimal effect, position it approximately 16-20 inches (40-50 cm) from your head.
3.2 Sambungan Kuasa
- Connect the power adapter to the device and then plug it into a wall outlet.
- Paparan akan menyala, menunjukkan peranti telah dihidupkan.
3.3 Menetapkan Masa
- Press the 'Time' button (usually indicated by a clock icon or 'SET').
- Use the '+' and '-' buttons to adjust the hour. Press 'Time' again to confirm.
- Use the '+' and '-' buttons to adjust the minutes. Press 'Time' again to confirm.
- Masa kini telah ditetapkan.
4. Arahan Operasi
4.1 Menetapkan Penggera
- Press the 'Alarm' button (bell icon). The alarm time will flash.
- Use the '+' and '-' buttons to set the desired alarm hour. Press 'Alarm' again to confirm.
- Use the '+' and '-' buttons to set the desired alarm minutes. Press 'Alarm' again to confirm.
- The alarm is now set and activated. An alarm icon will appear on the display.
4.2 Sunrise Simulation
The light will gradually increase in brightness 30 minutes before your set alarm time, transitioning from a soft red to a bright white light. This process is designed to gently prepare your body for waking.
4.3 Bunyi Semulajadi
At your set alarm time, one of the 2 natural sounds will begin playing softly and gradually increase in volume. To select a sound:
- Press the 'Sound' button (music note icon).
- Use the '+' and '-' buttons to cycle through the available sounds.
- The selected sound will play briefly as a preview.
4.4 Radio FM
To use the FM radio as your wake-up sound or for general listening:
- Press the 'FM Radio' button.
- Use the '+' and '-' buttons to tune to your desired station.
- To set the radio as your alarm sound, select it while setting the alarm.
4.5 Bahagian Katil Lamp
To use the device as a bedside lamp:
- Press the 'Light' button (sun icon).
- Use the '+' and '-' buttons to adjust the brightness level (1-10).
- Press the 'Light' button again to turn off the lamp.
4.6 Sunset Simulation (Sleep Timer)
The sunset simulation feature allows the light to gradually dim over a set period, helping you wind down for sleep. This feature is often activated via a dedicated 'Sunset' or 'Sleep Timer' button, or by holding the 'Light' button.
4.7 Fungsi Tunda
When the alarm sounds, tap the top of the device to activate the snooze function. The alarm will pause for 9 minutes and then resume.
4.8 Melaraskan Kecerahan Paparan
The brightness of the digital time display can be adjusted. Look for a dedicated 'Dimmer' button or a setting within the menu to cycle through brightness levels or turn it off completely.
Figure 2: Philips Wake-up Light HF3505/60, front view. This image highlights the digital time display and the touch-sensitive control buttons.
4.9 Official Product Video: Philips Wake-Up Light Alarm Clock
Video 1: Seorang pegawai tamatview of the Philips Wake-Up Light Alarm Clock, demonstrating its core functions and design.
4.10 Official Product Video: Natural Sounds Demonstration
Video 2: A demonstration of the various natural sounds available on the Philips Wake-up Light, highlighting their quality and variety.
5. Penyelenggaraan
- Pembersihan: Unplug the device before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use abrasive cleaners or solvents.
- Storan: Store the device in a dry place when not in use for extended periods.
6. Penyelesaian masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Peranti tidak dihidupkan. | Not plugged in correctly or power outage. | Ensure power adapter is securely connected and plugged into a working outlet. Check household circuit breaker. |
| Penggera tidak berbunyi. | Penggera tidak diaktifkan atau kelantangan terlalu rendah. | Verify alarm is set and activated (alarm icon visible). Increase alarm volume. |
| Simulasi matahari terbit tidak berfungsi. | Alarm not set or set for less than 30 minutes before wake-up. | Ensure alarm is set. The light simulation begins 30 minutes prior to the set alarm time. |
| Radio FM statik. | Penerimaan isyarat yang lemah. | Adjust the position of the device or the antenna (if applicable) for better reception. |
7. Spesifikasi
- Nombor Model: HF3505/60
- Pengeluar: Philips
- Dimensi Produk: 5.12 x 7.87 x 7.87 inci (13 x 20 x 20 cm)
- Berat Barang: 1.19 paun (0.54 kg)
- Bahan asas: plastik
- Pangkalan Mentol: E26 Sederhana
- Jenis Selesai: Belum selesai
- Tarikh Mula-mula Tersedia: 24 Ogos 2013
8. Waranti dan Sokongan
The Philips Wake-up Light HF3505/60 comes with a 90-Day No Hassle Money Back Guarantee from Philips. For further support or warranty claims, please refer to the contact information provided in your product packaging or visit the official Philips support webtapak.
