Speco Technologies SPC15 PA Speaker Instruction Manual

1. Pengenalan

This instruction manual provides essential information for the proper installation, operation, and maintenance of your Speco Technologies SPC15 PA Speaker. Please read this manual thoroughly before using the product to ensure optimal performance and safety. Keep this manual for future reference.

2. Maklumat Keselamatan

Observe the following safety precautions to prevent damage to the speaker and ensure user safety:

• Do not expose the speaker to extreme temperatures, humidity, or direct sunlight for extended periods.
• Pastikan semua sambungan selamat sebelum menghidupkan sistem.
• Do not attempt to open or service the speaker yourself. Refer all servicing to qualified personnel.
• Gunakan hanya sumber kuasa dan aksesori yang ditentukan.
• Avoid placing the speaker in locations where it may be subject to strong vibrations or impacts.
• This speaker is designed for Public Address Systems and outdoor use. While it features water-resistant properties, it is not fully waterproof. Avoid submerging the unit.

3. Kandungan Pakej

Sahkan bahawa semua item terdapat dalam pakej:

• Speco Technologies SPC15 PA Speaker
• Pendakap Pelekap Dinding
• Manual Arahan (dokumen ini)

4. Produk Lebihview

The Speco Technologies SPC15 is an 8-inch aluminum PA horn speaker designed for public address systems and outdoor applications. It features a robust construction and delivers clear audio output.

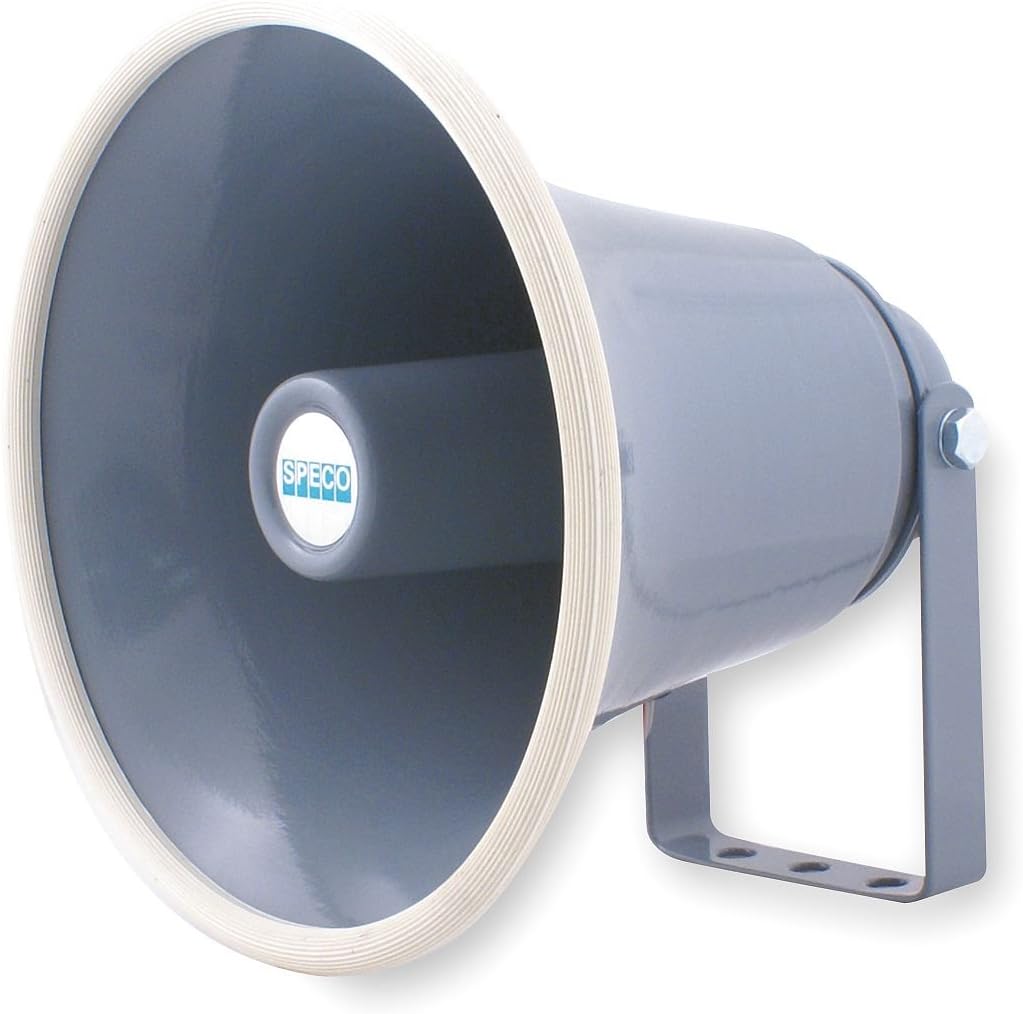

Figure 1: Speco Technologies SPC15 PA Speaker. This image shows a grey, horn-shaped PA speaker with a white rim and the 'SPECO' logo on the center of the horn. A sturdy mounting bracket is attached to its cylindrical body.

5. Persediaan

5.1 Memasang Pembesar Suara

The SPC15 speaker is designed for wall mounting using the included bracket. Choose a suitable location that provides optimal sound dispersion and is structurally sound to support the speaker's weight (approximately 3 pounds).

1. Pilih Lokasi: Identify a wall or sturdy surface for mounting. Consider the speaker's intended coverage area.
2. Tandakan Titik Penggerudian: Use the wall mount bracket as a template to mark the drilling points on the chosen surface.
3. Lubang gerudi: Drill appropriate pilot holes for the mounting screws (not included, select based on wall material).
4. Kurungan Selamat: Attach the wall mount bracket securely to the surface using suitable screws and anchors.
5. Lampirkan Pembesar Suara: Fasten the speaker to the mounted bracket. Adjust the angle for desired sound direction.

5.2 Menyambungkan Pembesar Suara

The SPC15 speaker supports both wired and Bluetooth connectivity.

• Sambungan Berwayar: Connect the speaker to your public address system or amplifier using appropriate speaker wire. Ensure correct polarity (+ to + and - to -) for optimal sound quality. The speaker has an impedance of 8 Ohms.
• Sambungan Bluetooth:
  1. Hidupkan pembesar suara.
  2. Activate Bluetooth pairing mode on the speaker (refer to your specific PA system's instructions if integrated, or the speaker's control interface if standalone).
  3. On your Bluetooth-enabled device (e.g., gaming console, home theater, karaoke machine, projector, television), search for available Bluetooth devices.
  4. Select "SPC15" (or similar identifier) from the list to pair.
  5. Once paired, audio will be routed through the speaker.

6. Arahan Operasi

The SPC15 speaker is primarily designed for public address systems. Operation will largely depend on the connected audio source and control system.

• Hidupkan/Mati Kuasa: Ensure the speaker is connected to a power source. Power on the connected ampsistem penguat atau PA.
• Kawalan Kelantangan: Adjust the volume using the controls on your connected audio source (e.g., amplifier, mixer, Bluetooth device).
• Kawalan Suara: If your connected system supports voice control and is configured to manage the speaker, you may use voice commands to adjust settings or playback. Refer to your system's manual for specific voice control functionalities.
• Pemilihan Sumber Audio: Select the desired audio input (e.g., microphone, music player, Bluetooth) from your connected PA system.

7. Penyelenggaraan

Regular maintenance helps prolong the life and performance of your speaker.

• Pembersihan: Wipe the speaker's exterior with a soft, dry cloth. For stubborn dirt, use a slightly damp cloth and mild detergent, then wipe dry immediately. Do not use abrasive cleaners or solvents.
• Pemeriksaan: Periodically check the mounting bracket and connections for tightness and signs of wear.
• Perlindungan Alam Sekitar: While water-resistant, protect the speaker from heavy rain or direct water jets to prevent internal damage.

8. Penyelesaian masalah

If you encounter issues with your SPC15 speaker, refer to the following common problems and solutions:

If the problem persists, contact Speco Technologies customer support for assistance.

9. Spesifikasi

10. Maklumat Waranti

The Speco Technologies SPC15 PA Speaker comes with a Limited Warranty. For specific terms and conditions, please refer to the warranty card included with your product or visit the official Speco Technologies webtapak. Simpan bukti pembelian anda untuk tuntutan waranti.

11. Sokongan Pelanggan

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Speco Technologies customer support:

• Webtapak: Visit the official Speco Technologies webtapak untuk sumber sokongan, Soalan Lazim dan maklumat hubungan.
• Telefon/E-mel: Refer to the contact details provided on the manufacturer's webtapak atau pembungkusan produk.
