D-Link DGS-1210-08P Smart Switch User Manual

1. Pengenalan

This manual provides comprehensive instructions for the installation, configuration, operation, and maintenance of your D-Link DGS-1210-08P Smart Switch. The DGS-1210 series represents the third generation of D-Link Web Smart Switches, designed to integrate advanced security and management functions for optimal application performance and modularity. Its innovative fanless design ensures silent operation and extended durability, making the DGS-1210 an efficient and cost-effective solution for small and medium-sized businesses (SMBs).

2. Produk Lebihview

2.1 Ciri-ciri Utama

• Features 8 Power over Ethernet (PoE) ports.
• These PoE ports provide up to 15.4 W per port.
• Offers the flexibility to connect 802.3af compatible devices, such as network cameras and IP phones.
• Includes 2 Gigabit SFP ports for fiber optic connections.
• Web-managed interface for advanced configuration.

2.2 Kandungan Pakej

• D-Link DGS-1210-08P Smart Switch Unit
• Penyesuai Kuasa
• Kit Pemasangan Rak (jika berkenaan)

2.3 Produk Views

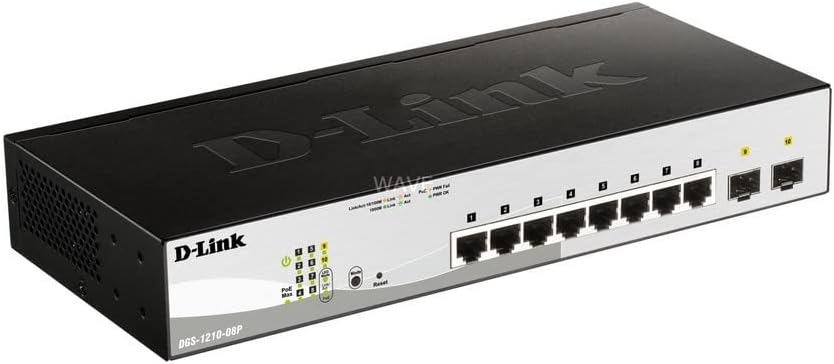

Rajah 1: Bersudut view of the D-Link DGS-1210-08P Smart Switch, showcasing reka bentuk padat dan susun atur pelabuhannya.

Rajah 2: Depan view of the D-Link DGS-1210-08P Smart Switch, highlighting the 8 Gigabit Ethernet ports and 2 SFP ports, along with LED indicators.

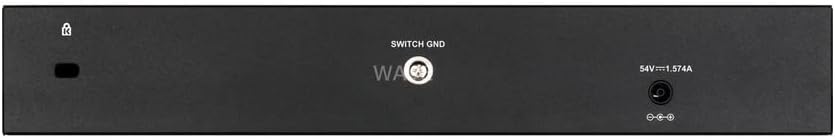

Rajah 3: Belakang view of the D-Link DGS-1210-08P Smart Switch, showing the power input and grounding screw.

Figure 4: D-Link DGS-1210-08P Smart Switch with key dimensions indicated: 28 cm length, 12.6 cm width, and 4.4 cm height.

3. Persediaan

3.1 Pemasangan Fizikal

1. penempatan: Position the switch on a flat, stable surface or mount it in a standard 19-inch equipment rack using the provided rackmount kit. Ensure adequate ventilation around the unit.
2. Persekitaran: Avoid placing the switch in direct sunlight, near heat sources, or in areas with high humidity or dust.

3.2 Sambungan Kuasa

1. Connect the power adapter to the power input port on the rear panel of the switch.
2. Palamkan hujung satu lagi penyesuai kuasa ke dalam salur keluar kuasa yang sesuai.
3. Verify that the Power LED on the front panel illuminates, indicating the switch is receiving power.

3.3 Sambungan Rangkaian

1. Connect your network devices (computers, servers, network cameras, IP phones) to the RJ45 Ethernet ports (1-8) on the front panel using standard Ethernet cables.
2. For fiber optic connections, insert SFP transceivers into the SFP ports (9-10) and connect fiber optic cables.
3. For PoE-powered devices, connect them to any of the 8 PoE-enabled ports. The switch will automatically detect and provide power to compatible devices.

3.4 Tatarajah Awal

The DGS-1210-08P is a managed switch, allowing for advanced configuration via a web-based graphical user interface (GUI). Refer to the detailed D-Link documentation for specific instructions on accessing and configuring the web interface, including default IP addresses and login credentials.

4. Arahan Operasi

4.1 Fungsi Kuasa ke atas Ethernet (PoE)

The switch's 8 PoE ports automatically detect and supply power to IEEE 802.3af compliant devices. This eliminates the need for separate power cables for devices like IP cameras or VoIP phones, simplifying deployment and reducing cable clutter.

4.2 Pemindahan Data

The Gigabit Ethernet ports support high-speed data transfer up to 1000 Mbps, while the SFP ports provide flexible uplink options. The switch operates automatically to forward data packets between connected devices.

5. Penyelenggaraan

5.1 Pembersihan

Bersihkan bahagian luar suis secara berkala dengan kain lembut dan kering. Jangan gunakan pembersih cecair atau aerosol. Pastikan bukaan pengudaraan bebas daripada habuk dan halangan.

5.2 Kemas Kini Perisian Tegar

Periksa sokongan D-Link secara berkala website for firmware updates. Keeping the switch's firmware up-to-date ensures optimal performance, security, and access to new features.

6. Penyelesaian masalah

6.1 Isu Kuasa

• If the Power LED is off, ensure the power adapter is securely connected to both the switch and a working power outlet.
• Uji soket kuasa dengan peranti lain untuk mengesahkan ia berfungsi.

6.2 Isu Ketersambungan

• Check that Ethernet cables are securely connected to both the switch and the network device.
• Verify that the Link/Act LED for the connected port is illuminated or blinking, indicating a valid connection and activity.
• Pastikan peranti yang disambungkan dihidupkan dan dikonfigurasikan dengan betul.

6.3 Isu PoE

• Confirm that the connected device is IEEE 802.3af compliant.
• Check the PoE status LEDs on the switch for any error indications.
• Ensure the total power budget (65W) is not exceeded by all connected PoE devices.

7. Spesifikasi

8. Waranti dan Sokongan

8.1 Maklumat Waranti

This product originates from and is shipped within the European Economic Area (EEA). It is an original product from manufacturer-authorized distributors. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official D-Link webtapak.

8.2 Sokongan Teknikal

Untuk bantuan lanjut, sokongan teknikal atau untuk memuat turun pemacu dan firmware terkini, sila lawati sokongan rasmi D-Link. webtapak: www.dlink.com/support.
