FERM Precision Belt Sander 400W Instruction Manual

1. Pengenalan

Thank you for choosing the FERM Precision Belt Sander EFM1001. This powerful 400W electric file is designed for fast and precise sanding tasks on various materials. To ensure safe and efficient operation, please read this instruction manual thoroughly before first use and keep it for future reference.

2. Arahan Keselamatan

Sentiasa patuhi langkah keselamatan berikut untuk mengurangkan risiko kejutan elektrik, kebakaran dan kecederaan serius.

• Keselamatan Kawasan Kerja: Pastikan kawasan kerja bersih dan terang. Jangan kendalikan alatan kuasa dalam atmosfera yang mudah meletup, seperti di hadapan cecair mudah terbakar, gas atau habuk.
• Keselamatan Elektrik: Palam alat kuasa mesti sepadan dengan alur keluar. Jangan sekali-kali mengubah suai palam dalam apa jua cara. Elakkan sentuhan badan dengan permukaan yang dibumikan atau dibumikan. Jangan dedahkan alatan kuasa kepada hujan atau keadaan basah.
• Keselamatan Diri: Always wear eye protection, dust mask, non-skid safety shoes, hard hat, or hearing protection when operating power tools. Dress properly; avoid loose clothing or jewelry.
• Penggunaan dan Penjagaan Alat: Jangan paksa alat kuasa. Gunakan alat kuasa yang betul untuk aplikasi anda. Putuskan sambungan palam daripada sumber kuasa sebelum membuat sebarang pelarasan, menukar aksesori atau menyimpan alatan kuasa.
• Specific Sander Safety:
  • Pastikan bahan kerja berada dalam keadaan selamatamped atau diadakan.
  • Always use the dust collection bag or connect to a vacuum cleaner to minimize dust exposure.
  • Do not sand materials containing asbestos.
  • Benarkan alat mencapai kelajuan penuh sebelum meletakkannya pada bahan kerja.

3. Produk Lebihview dan Komponen

The FERM EFM1001 Precision Belt Sander comes with several accessories to enhance its versatility.

Rajah 3.1: The FERM EFM1001 Precision Belt Sander displayed with its complete set of accessories, including the main unit, various sanding arms, abrasive belts, dust bag, and storage case.

Rajah 3.2: A terperinci view of the sander's front section, showing the belt mechanism and the attachment point for the sanding arms.

Rajah 3.3: This image highlights the variable speed control dial located on the top of the sander's handle, allowing for precise speed adjustments.

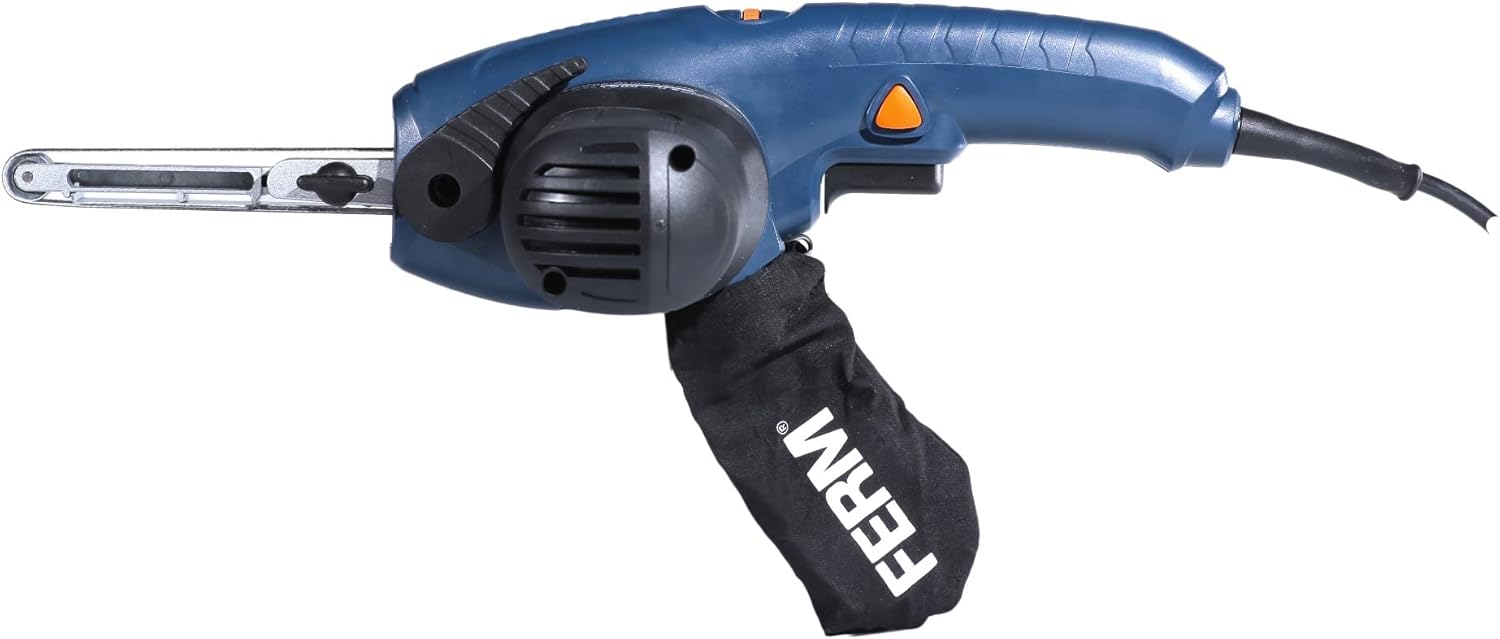

Rajah 3.4: The sander is shown with the included dust collection bag securely attached, demonstrating its dust management feature.

Rajah 3.5: The robust plastic storage case provided with the sander, designed for convenient transport and protection of the tool and its accessories.

Komponen yang Disertakan:

• FERM Electric File (Unit utama)
• 12 Abrasive Belts (P40, P80, P120 grits)
• 8 mm Narrow Sanding Arm
• 13 mm Wide Sanding Arm
• 13 mm Curved Sanding Arm
• Beg Pengumpul Habuk
• Sarung Penyimpanan

4. Persediaan dan Pemasangan

Before operating the sander, ensure all components are correctly assembled.

1. Attaching a Sanding Arm:
   • Select the appropriate sanding arm (8mm narrow, 13mm wide, or 13mm curved) for your task.
   • Align the arm with the mounting slot on the front of the sander.
   • Slide the arm into place until it clicks securely. Ensure it is firmly seated and does not wobble.
2. Installing Abrasive Belts:
   • Pastikan sander dicabut dari sumber kuasa.
   • Release the belt tension lever (refer to your tool's specific design for location, usually near the sanding arm).
   • Slide the abrasive belt over the rollers of the sanding arm, ensuring the arrow on the belt (if present) matches the direction of rotation indicated on the tool.
   • Re-engage the belt tension lever to secure the belt. The belt should be taut and centered on the rollers.
3. Attaching the Dust Collection Bag:
   • Cari port pengekstrakan habuk pada sander.
   • Slide the dust collection bag onto the port until it is securely attached. Ensure a tight fit to maximize dust collection efficiency.

5. Arahan Operasi

Follow these steps for effective and safe operation of your FERM Precision Belt Sander.

1. Sambungan Kuasa: Plug the sander into a suitable 230V power outlet. The 3-meter cable provides ample freedom of movement.
2. Kawalan Kelajuan Boleh Ubah: The sander features a variable speed control dial. Rotate the dial to adjust the sanding speed according to the material and desired finish. Lower speeds are suitable for delicate work or heat-sensitive materials, while higher speeds are for rapid material removal.
3. Bermula dan Berhenti:
   • To start the sander, press the ON/OFF switch.
   • To stop the sander, release or press the ON/OFF switch again (depending on switch type).
4. Sanding Techniques:
   • Umum: Apply light, even pressure. Let the tool do the work. Move the sander smoothly and consistently across the surface.
   • kayu: Sand along the grain for best results. Start with a coarser grit (P40, P80) for material removal and finish with a finer grit (P120) for a smooth surface.
   • logam: Use appropriate abrasive belts for metal. Be aware of heat buildup; take breaks to allow the material and tool to cool.
   • Ceramic, Plaster, Plastic: Use suitable abrasive belts and adjust speed as necessary. For plastics, lower speeds can prevent melting.

Rajah 5.1: Demonstrates the FERM Precision Belt Sander in use, highlighting its ability to reach into narrow spaces, such as sanding a door frame.

6. Penyelenggaraan

Penyelenggaraan yang kerap memastikan ketahanan dan prestasi optimum mesin sander anda.

• Pembersihan: After each use, unplug the tool and clean it with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners. Clear any dust or debris from ventilation openings.
• Penggantian Tali Pinggang: Replace abrasive belts when they become worn or lose their effectiveness. Follow the "Installing Abrasive Belts" steps in Section 4.
• Beg Habuk: Empty the dust collection bag regularly to maintain efficient dust extraction and prevent clogging.
• Storan: Store the sander and its accessories in the provided storage case in a dry, secure place, out of reach of children.

7. Penyelesaian masalah

If you encounter issues with your sander, refer to the following common problems and solutions.

8. Spesifikasi Teknikal

9. Maklumat Waranti

This FERM Precision Belt Sander EFM1001 comes with a Waranti pengilang selama 3 tahun. Please retain your proof of purchase for warranty claims. The warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, abuse, unauthorized repairs, or normal wear and tear.

10. Sokongan dan Hubungan

For further assistance, technical support, or spare parts, please visit the official FERM website or contact their customer service department. Refer to the contact information provided on the product packaging or the official FERM webtapak untuk wilayah anda.

Anda juga boleh melawat Ferm Brand Store on Amazon untuk mendapatkan lebih banyak maklumat produk dan sumber sokongan.
