Motorola Defy XT535 User Manual

pengenalan

This manual provides detailed instructions for the safe and efficient use of your Motorola Defy XT535 smartphone. Please read this manual thoroughly before operating your device to ensure proper functionality and to prevent damage.

Persediaan

Kandungan Pakej

Sahkan bahawa pakej anda mengandungi item berikut:

• Motorola Defy XT535 Phone
• Pengecas
• Manual Pengguna (dokumen ini)

Identifying Phone Components

Familiarize yourself with the key components of your Motorola Defy XT535.

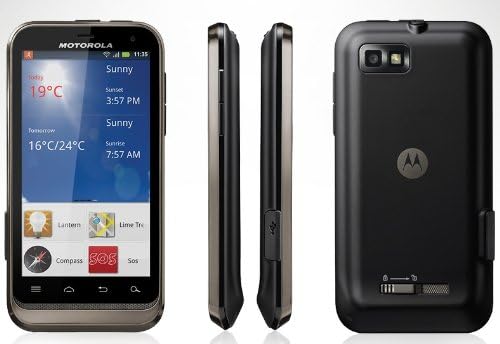

Imej: Motorola Defy XT535 showing front, side, and back views. This image helps identify the location of the display, buttons, ports, and camera.

• Depan: 3.7-inch touchscreen display, front camera, earpiece.
• Sebelah Kanan: Volume buttons, power/lock button.
• Bahagian Kiri: Port USB mikro.
• Atas: Bicu fon kepala 3.5mm.
• Belakang: 5MP camera, LED flash, speaker, battery cover.

Installing the SIM Card and Battery

1. Pastikan telefon dimatikan.
2. Remove the back cover by gently prying it from the notch located at the bottom or side of the phone.
3. If the battery is already installed, remove it by lifting it from the bottom edge.
4. Insert the SIM card into the SIM card slot with the gold contacts facing down and the cut corner aligned correctly. Push until it clicks into place.
5. Insert the microSD card (optional) into its designated slot, ensuring proper orientation.
6. Insert the battery, aligning the gold contacts on the battery with the contacts in the phone. Press down gently until it is secure.
7. Replace the back cover, pressing firmly around the edges until it snaps into place.

Mengecas Bateri

Sebelum penggunaan pertama, cas sepenuhnya bateri telefon.

1. Connect the charger to the micro USB port on the phone.
2. Palamkan pengecas ke salur keluar kuasa.
3. Penunjuk pengecasan akan muncul pada skrin.
4. Setelah dicas sepenuhnya, cabut pengecas.

Menghidupkan dan Mematikan

• Untuk Menghidupkan: Tekan dan tahan butang Kuasa sehingga logo Motorola muncul.
• Untuk Mematikan: Press and hold the Power button until the phone options menu appears. Select "Power off" and confirm.

Arahan Operasi

Navigasi Asas

Your Motorola Defy XT535 features a capacitive touchscreen for interaction.

• Ketik: Touch the screen once to open applications, select items, or press buttons.
• Sentuh & Tahan: Touch and hold an item to access context-sensitive menus or move items.
• Leret: Drag your finger across the screen to scroll through lists or switch between home screen panels.
• Cubit: Gunakan dua jari untuk mengezum masuk atau keluar web pages, photos, and maps.

Imej: Depan view of the Motorola Defy XT535 displaying the home screen with various icons and widgets. This illustrates the primary user interface.

Membuat dan Menerima Panggilan

• Untuk Membuat Panggilan: Tap the Phone icon, enter the number using the dial pad, and tap the Call button.
• Untuk Menjawab Panggilan: When the phone rings, swipe the green phone icon to the right.
• Untuk Menolak Panggilan: Swipe the red phone icon to the left.

Menghantar dan Menerima Mesej

• To Send a Message: Tap the Messaging icon, then tap "New message". Enter the recipient's number or select from contacts, type your message, and tap Send.
• To Read a Message: Tap the Messaging icon. Unread messages will be highlighted.

Menyambung ke Wi-Fi

1. Pergi ke tetapan > Wayarles & rangkaian > Tetapan Wi-Fi.
2. Turn Wi-Fi on. The phone will scan for available networks.
3. Tap on the desired network. If it is secured, enter the password and tap Connect.

Menggunakan Kamera

1. Ketik ikon Kamera untuk membuka aplikasi kamera.
2. Bingkaikan tangkapan anda menggunakan skrin sebagai viewpencari.
3. Ketik butang Pengatup untuk mengambil foto.
4. To switch to video mode, tap the video icon. Tap the Record button to start/stop recording.

Penyelenggaraan

Membersihkan Peranti Anda

• Gunakan kain lembut dan tidak berbulu untuk membersihkan skrin dan badan telefon.
• Elakkan menggunakan pembersih yang melelas, pelarut, atau semburan aerosol.
• Do not expose the phone to excessive moisture while cleaning.

Penjagaan Bateri

• Elakkan suhu yang melampau, kerana ia boleh menjejaskan hayat bateri.
• Do not leave the phone connected to the charger for extended periods after it is fully charged.
• If the battery is removable, ensure it is properly seated.

Kemas Kini Perisian

Semak kemas kini perisian secara berkala untuk memastikan prestasi dan keselamatan yang optimum.

1. Pergi ke tetapan > Mengenai telefon > Kemas kini sistem.
2. Ikut arahan pada skrin untuk menyemak dan memasang sebarang kemas kini yang tersedia.

Menyelesaikan masalah

Isu dan Penyelesaian Biasa

• Telefon tidak dihidupkan: Pastikan bateri dicas. Sambungkan pengecas dan tunggu beberapa minit sebelum cuba menghidupkan.
• Phone freezing or unresponsive: Perform a soft reset by pressing and holding the Power button for about 10-15 seconds until the phone restarts. If this does not work, remove and reinsert the battery (if applicable), then power on.
• Isyarat lemah atau tiada rangkaian: Periksa sama ada kad SIM telah dimasukkan dengan betul. Beralih ke kawasan yang mempunyai liputan rangkaian yang lebih baik. Mulakan semula telefon.
• Isu sambungan Wi-Fi: Ensure Wi-Fi is enabled on the phone and the router is working. Try forgetting the network and reconnecting.
• Bateri cepat habis: Reduce screen brightness, close unused applications, turn off Wi-Fi/Bluetooth/GPS when not in use.

Tetapan Semula Kilang

A factory reset will erase all data from your phone's internal storage, including app data, photos, and settings. Back up important data before proceeding.

1. Pergi ke tetapan > Privasi > Tetapan semula data kilang.
2. Ketik Tetapkan semula telefon.
3. Confirm by tapping Padamkan semuanya.

Spesifikasi

Waranti dan Sokongan

For detailed warranty information, please refer to the separate warranty booklet included with your product or visit the official Motorola support webtapak. Untuk bantuan teknikal atau pertanyaan lanjut, sila hubungi sokongan pelanggan Motorola.

Sokongan Motorola: www.motorola.com/us/support
