1. Produk Lebihview
The REV Ritter Trunk/Cabinet Door Switch, Model 0509007555, is a surface-mounted electrical switch designed to control lighting or other electrical devices based on the opening and closing of a cabinet or trunk door. It features a normally open contact type, meaning the circuit is open (off) when the door is closed and closes (on) when the door is opened. The switch is housed in a white plastic casing, ensuring durability and integration into various environments.

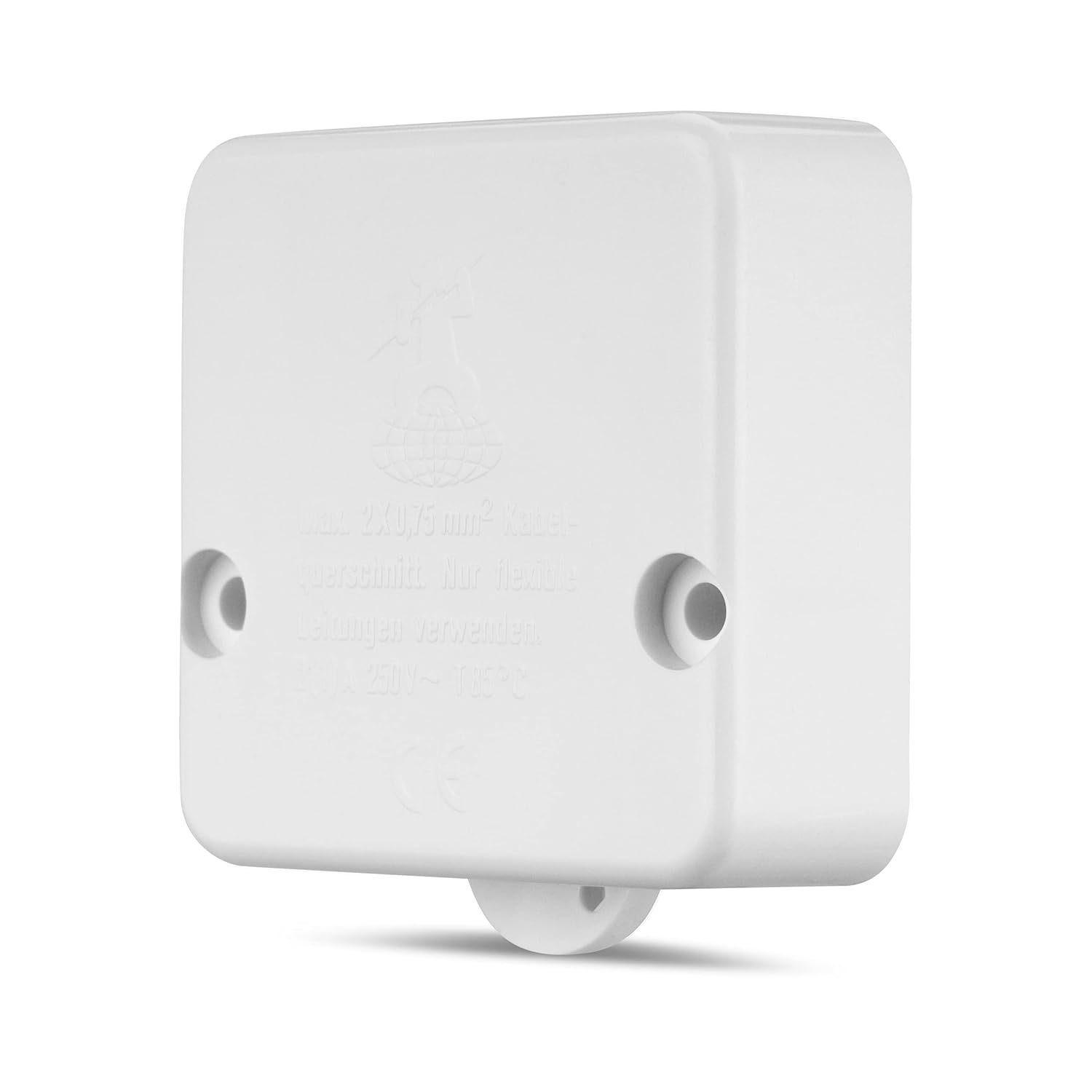

Rajah 1: Luaran view of the REV Ritter Trunk/Cabinet Door Switch. This image shows the compact white plastic housing with mounting holes visible on the sides and the plunger mechanism at the bottom.
2. Maklumat Keselamatan
Sila baca dan fahami semua arahan keselamatan sebelum memasang atau mengendalikan produk ini. Kegagalan mematuhi arahan ini boleh mengakibatkan renjatan elektrik, kebakaran atau kecederaan serius.
- Bahaya Elektrik: Installation should only be performed by a qualified electrician or competent person. Always disconnect power at the main circuit breaker or fuse box before beginning any electrical work.
- Voltage dan Semasa: Ensure the switch's electrical ratings (250V, 10A) are compatible with your application. Do not exceed the maximum rated voltage atau semasa.
- Pendawaian: Use appropriate wiring for the intended load. The switch supports a maximum cable cross-section of 2x0.75 mm². Ensure all connections are secure and properly insulated.
- Persekitaran: This product has an IP20 rating, meaning it is protected against solid objects larger than 12.5mm but has no protection against water. Do not install in wet or damp lokasi.
- Penggunaan yang Dimaksudkan: This switch is designed for controlling circuits based on door movement in dry indoor environments. Do not use for purposes other than its intended design.
3. Persediaan dan Pemasangan
This section outlines the steps for installing your REV Ritter Trunk/Cabinet Door Switch. Ensure all safety precautions from Section 2 are followed.
- Sediakan Kawasan Pemasangan:
- Identify a suitable, dry location on the cabinet or trunk frame where the switch can be surface-mounted. The plunger mechanism should align with the door's closing path.
- Ensure there is sufficient space for wiring and that the door can fully close without obstruction.
- Putuskan Kuasa: Turn off the power supply to the circuit at the main breaker or fuse box before proceeding. Verify that the power is off using a voltage penguji.
- Open the Switch Casing: Carefully open the switch casing to access the internal terminals. This typically involves unscrewing or unclipping the cover.
- Wayar Suis:
- Route the electrical cables (max. 2x0.75 mm² cross-section) into the switch casing through the designated entry points.
- Connect the live (phase) wire to one terminal and the load wire (to the light fixture or device) to the other terminal. This switch operates as a single-pole, normally open contact.
- Ensure all wire connections are tight and secure under the screw terminals. Avoid loose strands.
- Pasang Suis:
- Position the switch on the desired surface. Use the provided mounting holes and screws to securely fasten the switch to the cabinet or trunk frame.
- Ensure the plunger mechanism is positioned to be depressed by the door when closed and released when opened.
- Close the Casing: Once wiring and mounting are complete, carefully reattach the switch cover, ensuring no wires are pinched.
- Pulihkan Kuasa: Turn the power supply back on at the main circuit breaker.
Rajah 2: Dalaman view of the switch, showing the two screw terminals for electrical connections. The plunger mechanism is visible at the bottom.
4. Arahan Operasi
The REV Ritter Trunk/Cabinet Door Switch operates automatically based on the position of the door it is installed with.
- Pintu Ditutup: When the cabinet or trunk door is closed, it presses against the switch's plunger. This action keeps the internal contact open, interrupting the electrical circuit. Any connected device (e.g., a light) will be off.
- Door Opened: When the cabinet or trunk door is opened, the pressure on the switch's plunger is released. This allows the internal contact to close, completing the electrical circuit. Any connected device (e.g., a light) will turn on.
The switch is designed for reliable ON-OFF-ON operation, providing immediate response to door movement.
5. Penyelenggaraan
The REV Ritter Trunk/Cabinet Door Switch requires minimal maintenance to ensure long-term performance.
- Pembersihan: Periodically wipe the exterior of the switch with a dry, soft cloth to remove dust and dirt. Do not use abrasive cleaners or solvents. Ensure no liquids enter the switch casing.
- Pemeriksaan: Regularly inspect the switch for any signs of physical damage, loose connections, or wear. If any damage is observed, disconnect power immediately and replace the switch.
- Keadaan Persekitaran: Ensure the switch remains in a dry, indoor environment, consistent with its IP20 rating.
6. Penyelesaian masalah
If you encounter issues with your REV Ritter Trunk/Cabinet Door Switch, refer to the following troubleshooting guide:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Device (e.g., light) does not turn on when door is opened. |
|
|
| Device remains on when door is closed. |
|
|
If problems persist after following these steps, consult a qualified electrician.
7. Spesifikasi
| Ciri | Perincian |
|---|---|
| Jenama | Kesatria REV |
| Nombor Model | 0509007555 |
| Dimensi Produk (L x W x H) | 50 x 54 x 21 mm (5 x 5.4 x 2.1 cm) |
| Berat badan | 26 gram |
| bahan | Plastic (Housing), Copper (Contact) |
| Jenis Suis | Trunk/Cabinet Door Switch |
| Jenis Kenalan | Biasa Terbuka |
| Mod Pengendalian | ON-OFF-ON (Activated by door movement) |
| Max. Cable Cross-Section | 2x0.75 mm² |
| Voltage Peringkat | 250V |
| Penilaian Semasa | 10A |
| Fixation Type | Pemasangan Permukaan |
| International Protection Rating (IP) | IP20 |
| Negara Asal | Jerman |
8. Waranti dan Sokongan
Specific warranty information for the REV Ritter Trunk/Cabinet Door Switch (Model 0509007555) is not provided in this manual. For details regarding warranty coverage, please refer to the purchase documentation or contact your retailer.
For technical support or further inquiries, please contact REV Ritter customer service through their official website or the retailer from whom the product was purchased. When contacting support, please have your product model number (0509007555) available.
