PORTER-CABLE FR350B Framing Nailer Instruction Manual

1. Pengenalan

Thank you for choosing the PORTER-CABLE FR350B Full Round Framing Nailer. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your tool. Please read this manual thoroughly before operating the nailer and keep it for future reference.

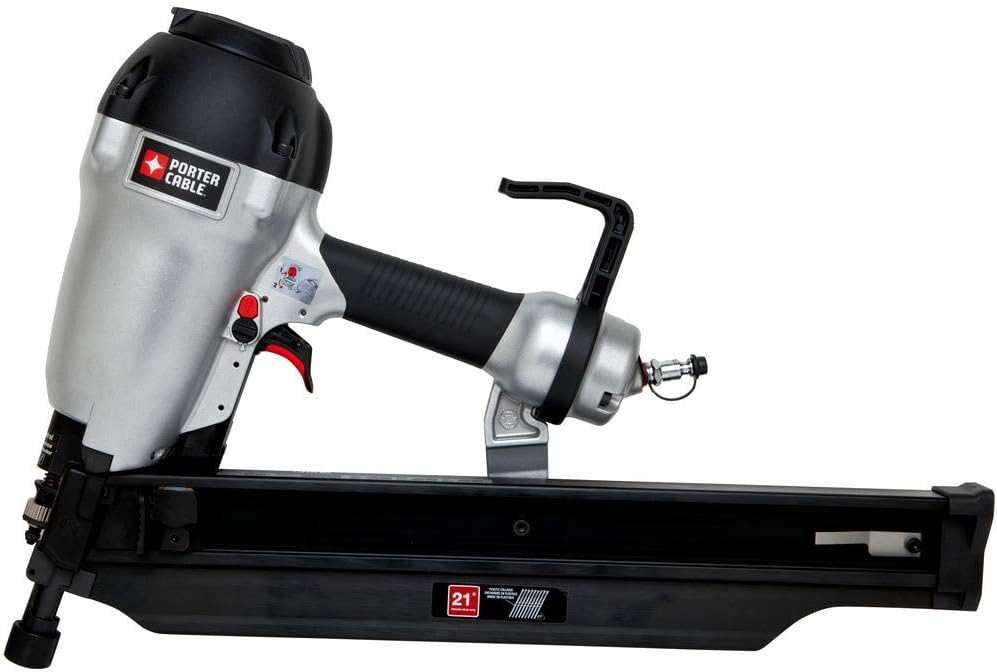

Figure 1: PORTER-CABLE FR350B Framing Nailer. This image shows the overall design of the nailer, including the handle, magazine, and air inlet.

2. Maklumat Keselamatan Am

Always observe basic safety precautions to reduce the risk of personal injury and damage to the tool. This tool is designed for driving full round head, plastic collated nails.

2.1 Keselamatan Diri

• Perlindungan Mata: Sentiasa pakai cermin mata keselamatan yang diluluskan ANSI Z87.1 dengan pelindung sisi.
• Perlindungan Pendengaran: Pakai pelindung pendengaran semasa operasi untuk mengelakkan kehilangan pendengaran akibat bunyi.
• Perlindungan Tangan: Wear gloves to protect hands from splinters and debris.
• Perlindungan Kaki: Wear non-skid safety footwear.
• pakaian: Jangan pakai pakaian longgar atau barang kemas yang boleh tersangkut di bahagian yang bergerak.
• Kekal Makluman: Do not operate the tool when tired or under the influence of drugs, alcohol, or medication.

2.2 Tool Safety

• Tekanan Udara: Do not exceed the maximum recommended air pressure for the tool. Refer to the specifications section.
• Putuskan Sambungan Bekalan Udara: Sentiasa putuskan sambungan bekalan udara sebelum membuat pelarasan, menyelesaikan kesesakan, menservis atau apabila alat tidak digunakan.
• Never Point at Others: Never point the tool at yourself or others, even if it is not loaded.
• Penggunaan yang betul: Use the tool only for its intended purpose. Do not modify the tool.
• Bahan Kerja Selamat: Ensure the workpiece is stable and secure before nailing.
• Elakkan Tembakan Tidak Sengaja: Keep fingers off the trigger when not actively driving a nail.
• Kosongkan Kawasan Kerja: Pastikan kawasan kerja bersih dan terang. Kawasan bersepah atau gelap mengundang kemalangan.

3. Produk Lebihview

The PORTER-CABLE FR350B is a lightweight (7.3 lbs) 22-degree framing nailer designed to drive 3-1/2-inch x .131-inch full round, plastic collated nails into engineered lumber. Key features include:

• Selectable Trigger: Allows for restrictive (sequential) or contact (bump) actuation mode with a trigger lockout feature.
• Tool-Free Adjustable Depth of Drive: For precise setting of nail heads.
• Penguncian Kuku Rendah: Indicates when the magazine needs reloading and prevents dry firing.
• Over-Molded Grip: Enhances comfort and control during extended use.
• Reversible Rafter Hook: For convenient hanging on either the left or right side.
• Tool-Free Adjustable Exhaust: Directs air away from the user.

4. Persediaan

4.1 Menyambung ke Bekalan Udara

1. Pastikan pemampat udara dimatikan dan hos udara dinyahtekanan.
2. Sapukan beberapa titis minyak alat pneumatik ke dalam saluran masuk udara pemaku.
3. Connect the air hose to the nailer's air inlet. Ensure a secure connection.
4. Set the air compressor pressure to the recommended operating range (typically 70-120 PSI, refer to specifications). Do not exceed 120 PSI.

4.2 Memuatkan Paku

1. Putuskan sambungan bekalan udara daripada pemaku.
2. Pull back the pusher assembly until it locks into place.
3. Insert a strip of full round, plastic collated nails into the magazine, ensuring the nail heads are properly seated in the channel.
4. Release the pusher assembly, allowing it to push the nails forward until they are against the nosepiece.

Figure 2: Magazine and Depth Adjustment. This image highlights the nail magazine for loading and the tool-free depth adjustment knob.

4.3 Melaraskan Kedalaman Pemacu

The tool features a tool-free adjustable depth of drive for precise nail placement.

• Locate the depth adjustment knob near the nosepiece.
• Rotate the knob to increase or decrease the nail driving depth. Test on a scrap piece of material to achieve the desired depth.

4.4 Selecting Actuation Mode

The FR350B offers two actuation modes: restrictive (sequential) and contact (bump) actuation.

• Restrictive Actuation: For precise nail placement. The trigger must be pulled after the nosepiece is pressed against the workpiece.
• Contact Actuation: For rapid firing. The trigger can be held, and nails are driven each time the nosepiece contacts the workpiece.

To switch modes, locate the selector switch near the trigger. Refer to the markings on the tool for the correct setting.

Figure 3: Trigger and Actuation Selector. This image shows the trigger mechanism and the switch for selecting between restrictive and contact actuation modes.

5. Arahan Operasi

5.1 Sebelum Operasi

• Pastikan semua langkah keselamatan dipatuhi.
• Verify the air pressure is within the recommended range.
• Check that the magazine is loaded correctly.
• Confirm the desired depth of drive and actuation mode are set.

5.2 Driving Nails

1. Pegang alat dengan kuat dengan kedua-dua belah tangan.
2. Place the nosepiece squarely against the workpiece where the nail is to be driven.
3. For Restrictive Actuation: Press the nosepiece firmly against the workpiece, then pull the trigger.
4. For Contact Actuation: Pull and hold the trigger, then press the nosepiece firmly against the workpiece to drive a nail. Lift and repeat for subsequent nails.
5. The low nail lockout feature will prevent the tool from firing when the magazine is nearly empty, indicating it's time to reload.

5.3 Using the Rafter Hook

The reversible rafter hook allows for convenient temporary storage of the tool.

• To reverse the hook, loosen the screw holding it in place, flip the hook to the desired side, and re-tighten the screw.
• Hang the tool securely on a rafter, joist, or belt when not in immediate use.

Figure 4: Reversible Rafter Hook. This image shows the rafter hook, which can be adjusted for left or right-handed use.

6. Penyelenggaraan

Penyelenggaraan tetap memastikan prestasi optimum dan memanjangkan hayat alat anda.

6.1 Penyelenggaraan Harian

• Pelinciran: Apply 5-10 drops of pneumatic tool oil into the air inlet at the beginning of each workday or every few hours of continuous use. Do not over-oil.
• Periksa Hos Udara: Check the air hose for wear, cuts, or leaks. Replace damaged hoses immediately.
• Alat Bersih: Wipe down the tool with a clean, dry cloth to remove dust and debris.

6.2 Penyelenggaraan Berkala

• Periksa Pengikat: Periksa semua skru dan pengikat secara berkala untuk kekejangan. Ketatkan jika perlu.
• Inspect Nosepiece and Driver Blade: Check for wear or damage. Replace if necessary.
• Penapis Udara: If your air compressor has an inline air filter, clean or replace it regularly according to the compressor manufacturer's instructions.

7. Penyelesaian masalah

Bahagian ini menangani isu biasa yang mungkin anda hadapi dengan pembingkaian nailer anda.

8. Spesifikasi

9. Waranti dan Sokongan

For detailed warranty information and customer support, please refer to the official documentation included with your product or visit the PORTER-CABLE website. Do not attempt to repair the tool yourself beyond the maintenance steps outlined in this manual, as this may void your warranty and pose safety risks. For service or parts, contact an authorized service center.
