Classic Cantabile Keyboard Stand and Bench Set Instruction Manual

pengenalan

This manual provides detailed instructions for the assembly, operation, and maintenance of your Classic Cantabile Keyboard Stand and Bench Set. Please read this manual thoroughly before use to ensure proper setup and safe operation.

Figure 1: Classic Cantabile Keyboard Stand and Bench Set. This image shows the assembled X-style keyboard stand and the matching X-style bench with a padded seat.

Maklumat Keselamatan

• Ensure all components are securely fastened before placing a keyboard on the stand or sitting on the bench.
• Do not exceed the maximum load capacity of the bench (100 kg).
• Keep fingers clear of moving parts during adjustment to prevent pinching.
• Place the stand and bench on a stable, level surface to prevent tipping.
• Regularly inspect the stand and bench for any signs of wear or damage. Do not use if damaged.

Kandungan Pakej

• 1 x Classic Cantabile X-Style Keyboard Stand
• 1 x Classic Cantabile X-Style Keyboard Bench
• 1 x Allen Wrench (untuk pemasangan)

Arahan Persediaan

1. Perhimpunan Penyangga Papan Kekunci

1. Unfold the X-style keyboard stand to its open position.
2. Locate the quick-release mechanism for height adjustment.
3. Adjust the stand to your desired height by pulling the quick-release lever, moving the upper arms, and re-engaging the lever into one of the five height settings. Ensure the lever is fully engaged.
4. Place your keyboard securely on the non-slip rubber sleeves of the stand.

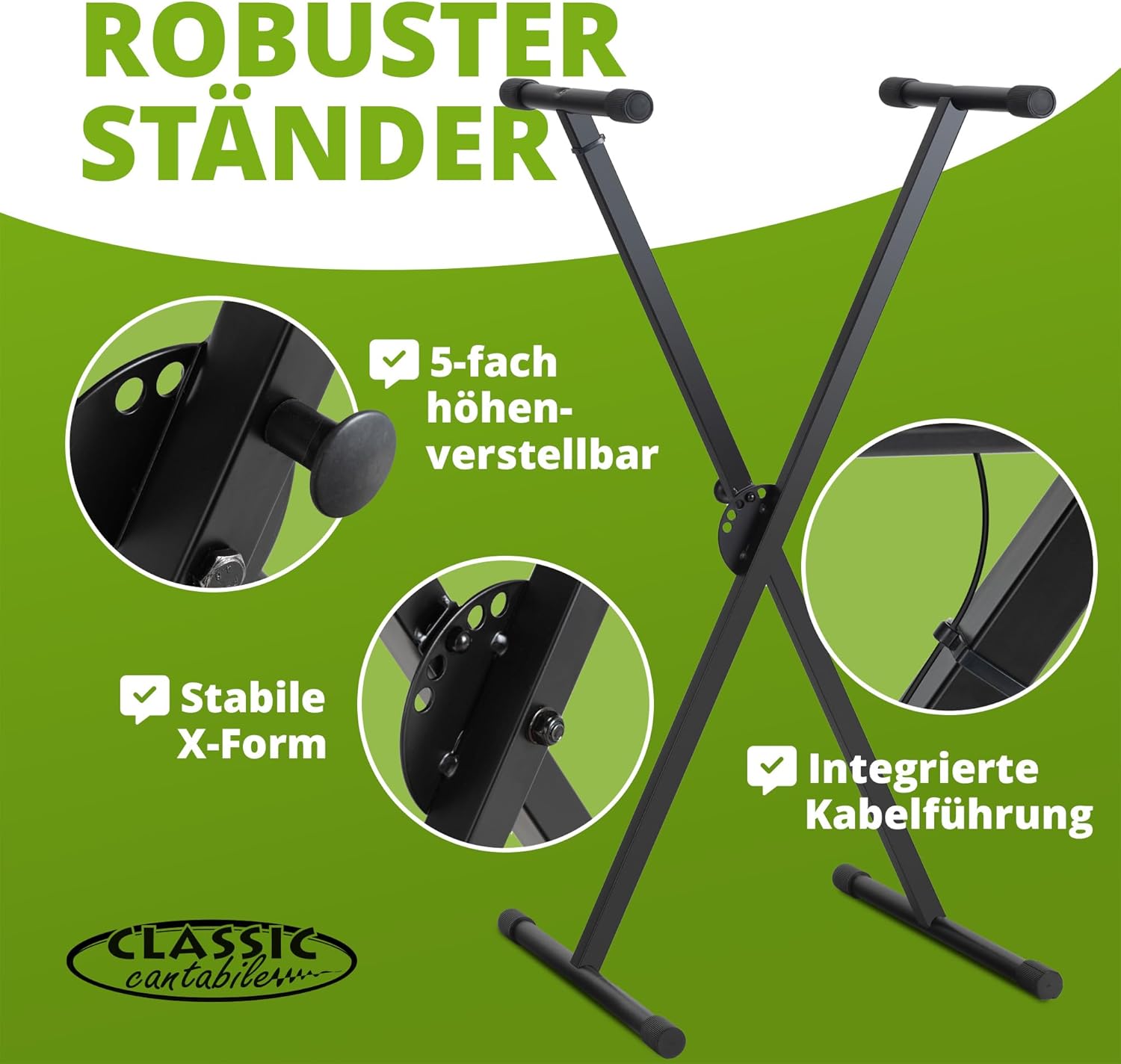

Figure 2: Robust Keyboard Stand Features. This image highlights the 5-way height adjustment mechanism, stable X-form design, and integrated cable management of the keyboard stand.

2. Keyboard Bench Assembly

1. Unfold the X-style keyboard bench.
2. Identify the height adjustment screw on the X-frame.
3. To adjust the height, loosen the screw, select one of the three height positions, and then hook one of the legs under the seat. Secure it with the two screws provided (use the Allen wrench if necessary).
4. Ensure the bench is stable and all screws are tightened before use.

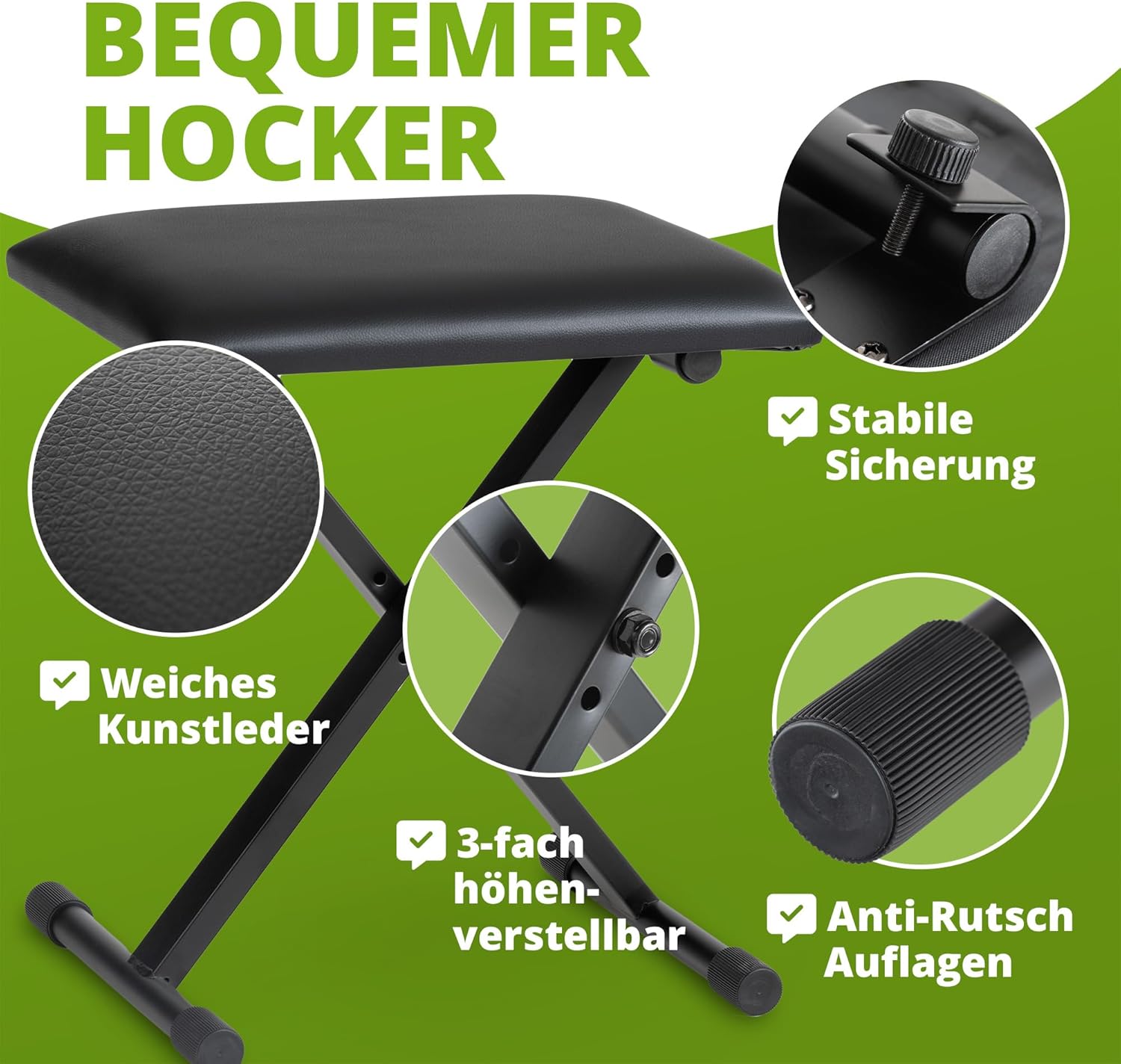

Figure 3: Comfortable Keyboard Bench Features. This image details the soft synthetic leather seat, stable locking mechanism, 3-way height adjustment, and anti-slip feet of the keyboard bench.

Figure 4: Keyboard Stand and Bench Dimensions. This diagram illustrates the adjustable height range of the stand (62-100 cm) and the bench (42-47 cm), along with other key measurements for compatibility.

Arahan Operasi

Once assembled, the Classic Cantabile Keyboard Stand and Bench Set is ready for use. Ensure the keyboard is centered and stable on the stand's support arms. Adjust the stand and bench heights to achieve a comfortable and ergonomic playing position. The non-slip rubber sleeves on the stand and rubber feet on the bench provide stability during use.

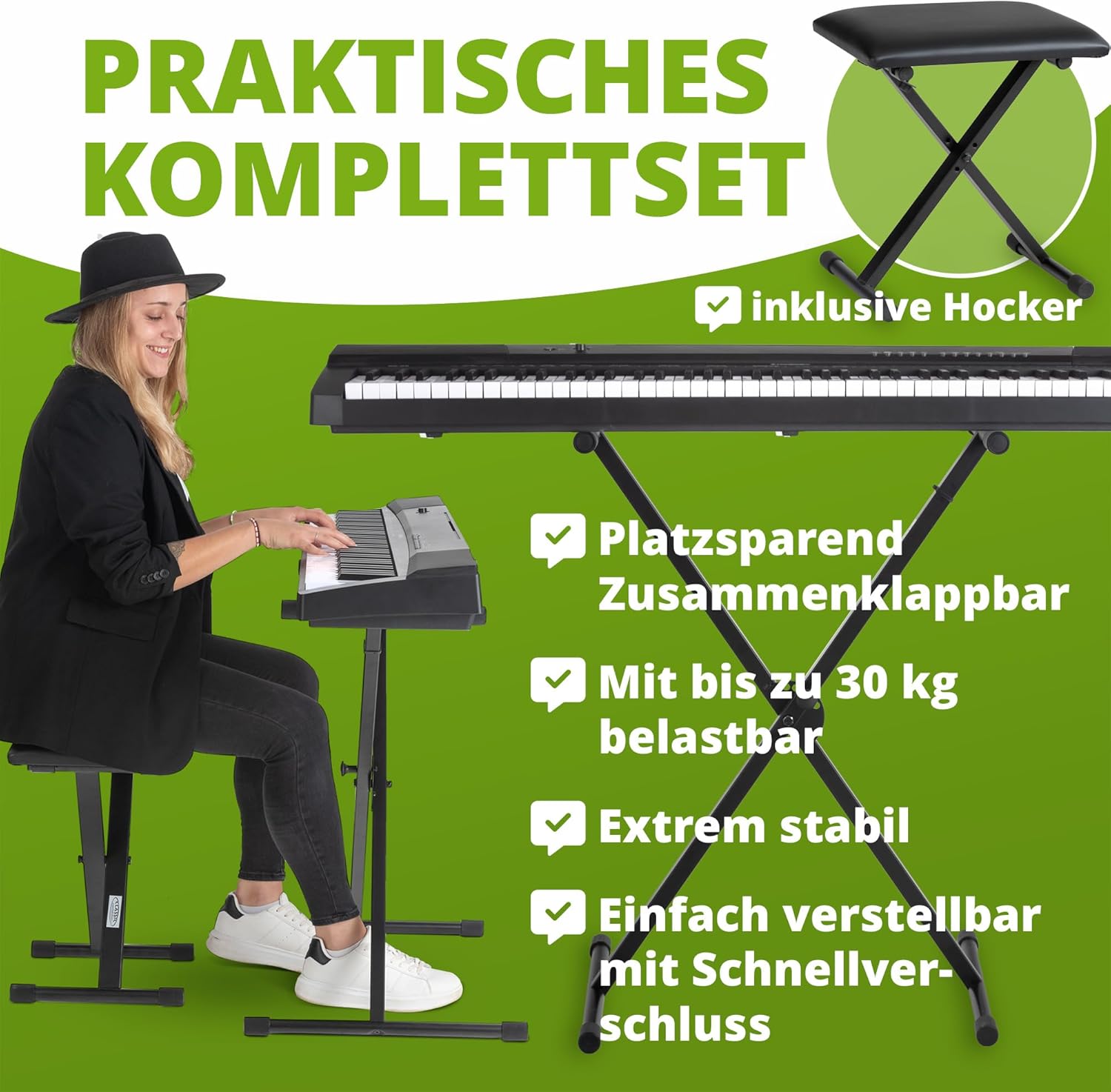

Figure 5: Practical Complete Set. This image shows a person comfortably playing a keyboard while seated on the Classic Cantabile bench, demonstrating the set's practical use and features like space-saving foldability and stability.

Penyelenggaraan

• Pembersihan: Wipe down metal parts with a soft, damp cloth. The faux leather seat of the bench can be cleaned with a mild soap solution and a soft cloth. Avoid abrasive cleaners.
• Pemeriksaan: Periksa semua skru dan pengikat secara berkala untuk memastikan ia ketat. Ketatkan semula jika perlu.
• Storan: For space-saving storage or transport, the stand and bench can be easily folded.

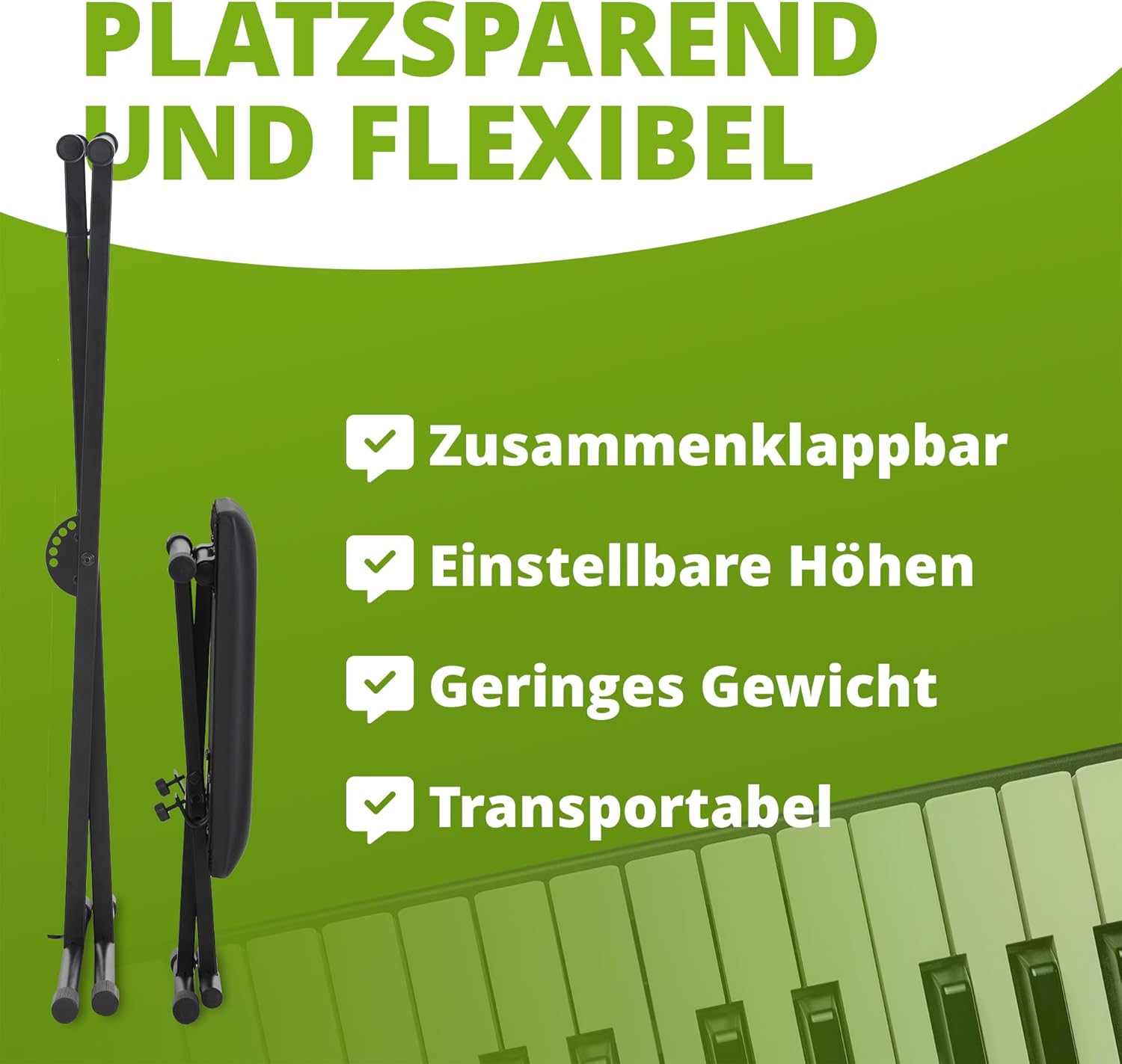

Figure 6: Space-saving and Flexible Design. This image illustrates the folded keyboard stand and bench, highlighting their compact nature for easy storage and transport.

Menyelesaikan masalah

• Stand/Bench is wobbly:
  • Ensure the stand and bench are placed on a flat, level surface.
  • Check that all quick-release mechanisms and screws are fully engaged and tightened.
• Kesukaran melaraskan ketinggian:
  • For the stand, ensure the quick-release lever is fully disengaged before attempting to move the arms.
  • For the bench, ensure the adjustment screw is sufficiently loosened.

Spesifikasi

Waranti dan Sokongan

For warranty information or technical support, please refer to the documentation provided at the time of purchase or contact your retailer. Keep your proof of purchase for warranty claims.
