pengenalan
This instruction manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your DEWALT D26414-QS 2000W Heat Gun. Please read this manual thoroughly before using the tool and keep it for future reference.
Arahan Keselamatan Am
AMARAN: Baca semua amaran dan arahan keselamatan. Kegagalan mematuhi amaran dan arahan boleh mengakibatkan renjatan elektrik, kebakaran dan/atau kecederaan serius.
- Keselamatan Kawasan Kerja: Pastikan kawasan kerja bersih dan terang. Kawasan bersepah atau gelap mengundang kemalangan. Jangan kendalikan alatan kuasa dalam atmosfera yang mudah meletup, seperti di hadapan cecair mudah terbakar, gas atau habuk.
- Keselamatan Elektrik: Palam alat kuasa mesti sepadan dengan alur keluar. Jangan sekali-kali mengubah suai palam dalam apa jua cara. Elakkan sentuhan badan dengan permukaan yang dibumikan atau dibumikan. Jangan dedahkan alatan kuasa kepada hujan atau keadaan basah.
- Keselamatan Diri: Sentiasa pakai pelindung mata. Gunakan peralatan pelindung diri seperti topeng habuk, kasut keselamatan tidak tergelincir, topi keras, atau perlindungan pendengaran apabila sesuai. Sentiasa berwaspada, perhatikan perkara yang anda lakukan dan gunakan akal semasa mengendalikan alat kuasa.
- Heat Gun Specific Safety:
- Jangan halakan aliran udara panas kepada orang atau haiwan.
- Jangan gunakan pistol haba berhampiran bahan atau gas mudah terbakar.
- Benarkan alat sejuk sepenuhnya sebelum disimpan.
- Ensure adequate ventilation when working, especially when stripping paint, as toxic fumes may be produced.
- Jangan sekat muncung masuk atau keluar udara.
Persediaan
Membongkar
Carefully remove the heat gun and all accessories from the packaging. Inspect the tool for any damage that may have occurred during shipping. Do not discard packaging materials until you have confirmed all components are present and undamaged.
Memasang Nozel
Your DEWALT D26414-QS heat gun comes with various nozzles for different applications, such as a conical nozzle and a fishtail nozzle. To attach a nozzle:
- Ensure the heat gun is unplugged and cool.
- Align the desired nozzle with the heat gun's outlet.
- Push the nozzle firmly onto the outlet until it is securely seated. Do not force it.
Image: The DEWALT heat gun with a fishtail nozzle, demonstrating its use for surface treatment. This nozzle helps distribute heat evenly over wider areas.
Sambungan Kuasa
Connect the heat gun's power cord to a suitable 230V AC power outlet. Ensure the outlet is properly grounded and capable of supplying the required 2000W power.
Arahan Operasi
Menghidupkan/Mematikan
To turn the heat gun on, slide the power switch to the desired airflow speed setting. To turn it off, slide the switch back to the '0' (off) position.
Temperature and Airflow Control
The DEWALT D26414-QS features a digital display for precise temperature control and two airflow speed settings.
Image: The digital display and control buttons on the heat gun. The display shows the current temperature, and the up/down arrows allow for precise adjustments.
- Pelarasan Suhu: Use the '+' and '-' buttons located near the digital display to set the desired temperature. The temperature can be adjusted in 10°C increments, ranging from 50°C to 600°C. The display will show the set temperature and then the actual temperature as it heats up.
- Kelajuan Aliran Udara: The power switch typically has two positions for airflow speed (e.g., I and II). Position I provides lower airflow, and Position II provides higher airflow. Select the appropriate speed for your application.
- Fungsi Memori: The heat gun can store your last used temperature setting for repetitive tasks.
Aplikasi
The DEWALT D26414-QS heat gun is suitable for a variety of professional applications, including:
- Paint and varnish stripping.
- Bending and forming plastics.
- Shrinking heat-shrink tubing.
- Mencairkan paip beku.
- Softening adhesives.
- Drying materials.
Image: A user applying heat with the DEWALT heat gun to an automotive part, highlighting its utility in detailed work.
Image: The DEWALT heat gun being used to heat a rusted metal part, illustrating its effectiveness in loosening seized components.
Cool-Down Procedure
Unlike some other heat guns, the DEWALT D26414-QS is designed for professional use and does not typically require a prolonged cool-down period by running it at a low setting. However, for optimal tool longevity and safety, always ensure the tool is switched off and unplugged after use. Allow it to cool naturally in a safe, non-flammable area before storing.

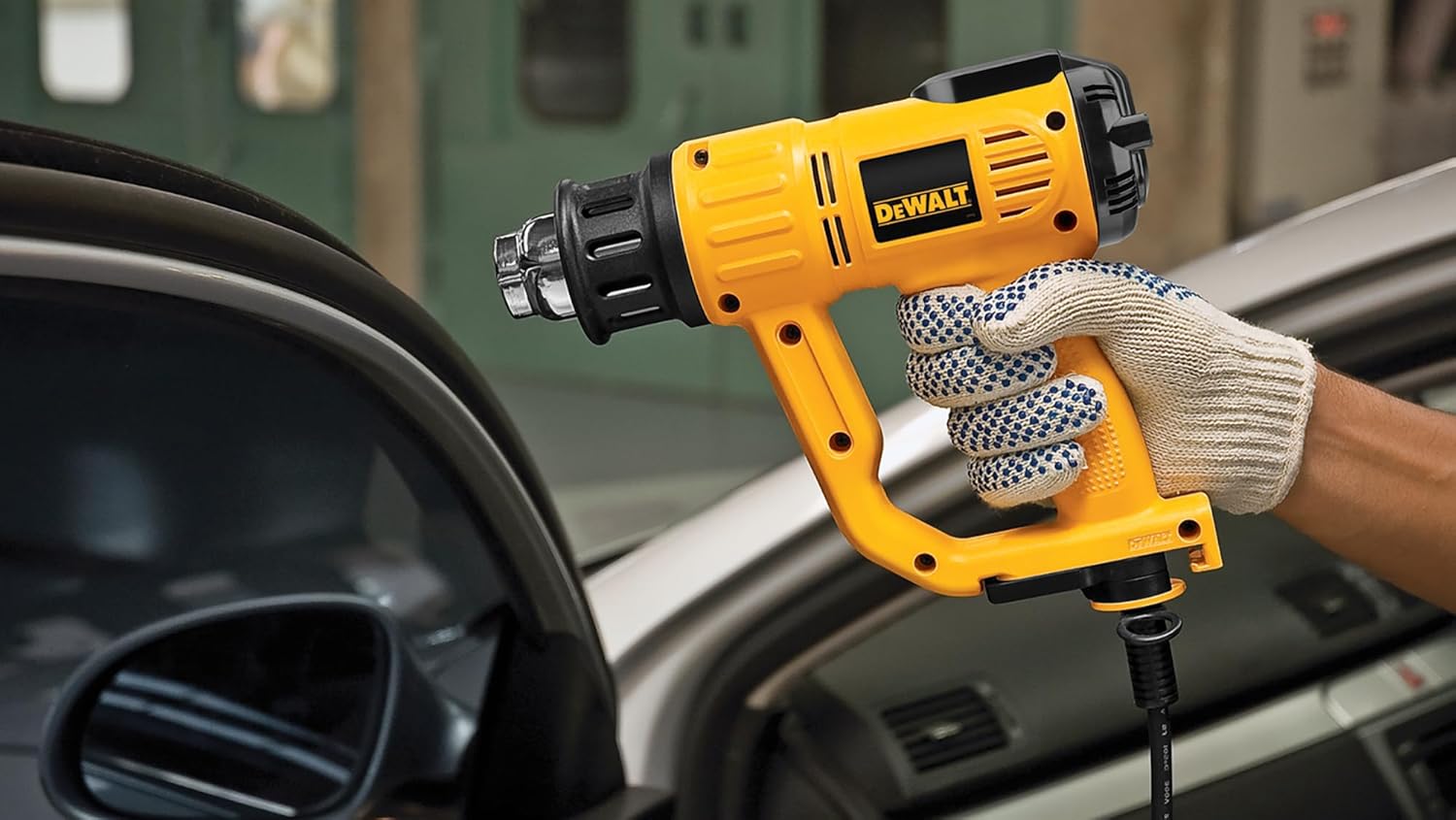

Image: The DEWALT heat gun held in a gloved hand, showcasing its comfortable grip and robust construction.
Penyelenggaraan
Penyelenggaraan berkala memastikan jangka hayat dan operasi pistol haba anda yang selamat.
- Pembersihan: Keep the air inlet and outlet vents clean and free from obstructions. Use a soft, dry cloth to wipe down the exterior of the tool. Do not use harsh chemicals or abrasive cleaners.
- Pemeriksaan: Periodically inspect the power cord for any signs of damage, cuts, or fraying. Check the nozzles for any deformation or blockages. If any damage is found, discontinue use and have the tool serviced by qualified personnel.
- Storan: Store the heat gun in a dry, secure location out of reach of children and away from extreme temperatures. Ensure the tool is completely cool before storing.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Pistol haba tidak dihidupkan. | No power supply; Faulty power cord/plug; Internal fault. | Check power outlet and circuit breaker. Inspect power cord for damage. If problem persists, seek professional service. |
| Tiada haba atau haba tidak mencukupi. | Temperature setting too low; Blocked air vents; Heating element fault. | Increase temperature setting. Clear any obstructions from air vents. If problem persists, seek professional service. |
| Pengurangan aliran udara. | Blocked air inlet/outlet; Motor issue. | Clear any obstructions from air vents. Ensure the fan is not blocked. If problem persists, seek professional service. |
For issues not listed above or if troubleshooting steps do not resolve the problem, please contact DEWALT customer support or an authorized service center.
Spesifikasi
| Ciri | Perincian |
|---|---|
| Nombor Model | D26414-QS |
| Input Kuasa | 2000W |
| Voltage | 230V |
| Julat Suhu | 50°C - 600°C |
| Kelajuan Aliran Udara | 2 |
| Dimensi Produk (L x W x H) | 25 x 6.3 x 15 cm (lebih kurang) |
| Berat badan | 700 g |
| Komponen yang Disertakan | Heat gun, Conical nozzle, Fishtail nozzle |
Waranti dan Sokongan
Maklumat Waranti
DEWALT products are manufactured to high quality standards and are guaranteed for a professional lifetime against manufacturing defects. For detailed warranty terms and conditions, please refer to the warranty card included with your product or visit the official DEWALT webtapak. Simpan bukti pembelian anda untuk tuntutan waranti.
Sokongan Pelanggan
If you have any questions, require technical assistance, or need to arrange for service, please contact DEWALT customer support. Contact details can typically be found on the official DEWALT webtapak atau dalam dokumentasi yang disediakan bersama produk anda.
You can also visit the official DEWALT store for more information: Kedai DEWALT
