Powell Heavy Metal Twin-Over-Twin Bunk Bed Instruction Manual

pengenalan

This manual provides detailed instructions for the assembly, use, and maintenance of your Powell Heavy Metal Twin-Over-Twin Bunk Bed. Please read all instructions carefully before assembly and retain this manual for future reference. The bunk bed is designed for durability and versatility, offering two twin-sized sleeping spaces within a compact footprint, or convertible into two separate twin beds.

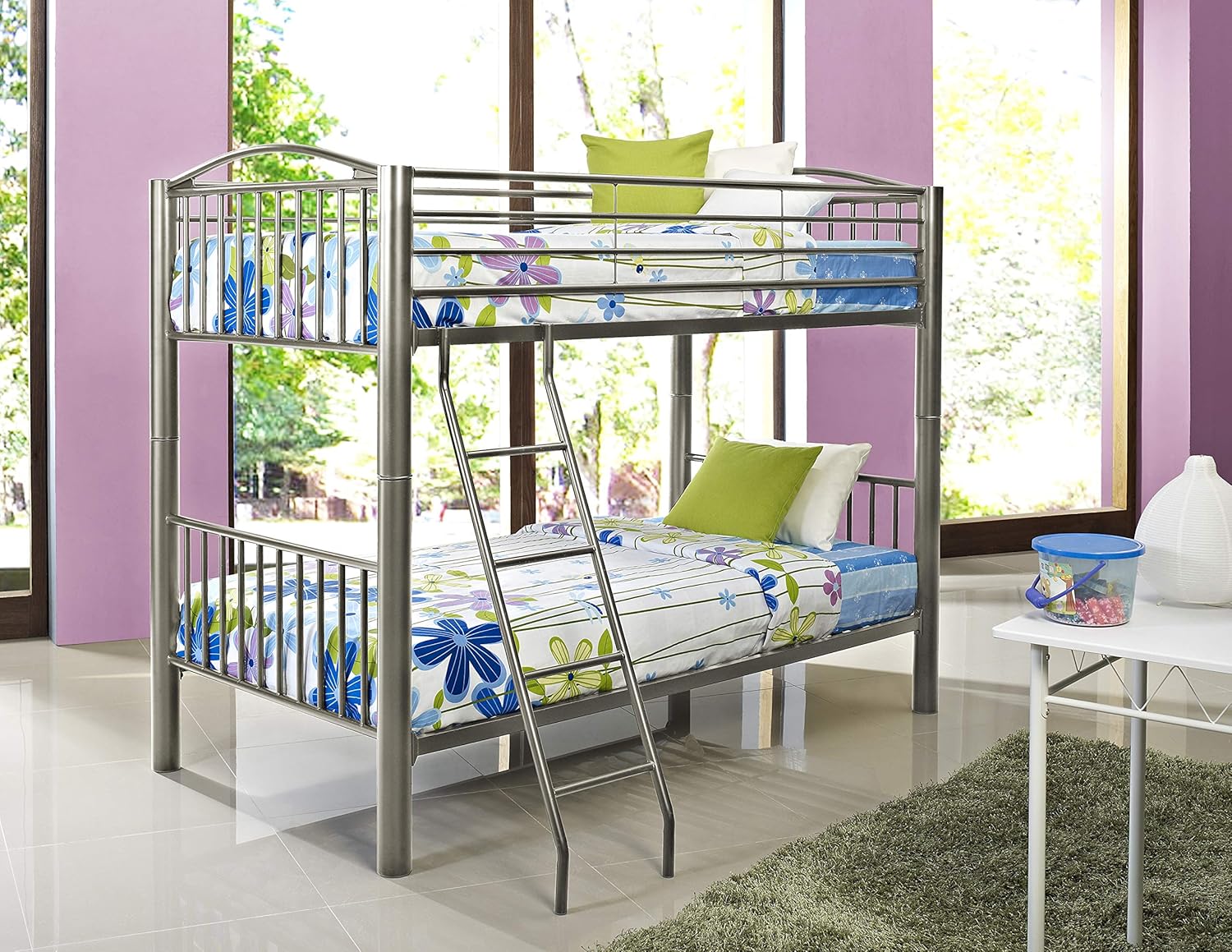

Figure 1: Assembled Powell Heavy Metal Twin-Over-Twin Bunk Bed.

Maklumat Keselamatan Penting

AMARAN: Untuk membantu mengelakkan kecederaan serius atau maut daripada terperangkap atau terjatuh:

• Ikuti maklumat mengenai amaran yang terdapat pada struktur hujung dua tingkat atas dan pada karton. Jangan keluarkan label amaran dari katil.
• Never allow a child under 6 years old on the upper bunk.
• Sentiasa gunakan tilam saiz yang disyorkan atau sokongan tilam, atau kedua-duanya, untuk membantu mengelakkan kemungkinan terperangkap atau terjatuh.
• Use only a mattress which is 74"- 75" long and 37-1/2"- 38-1/2" wide on the bunk.
• Ensure thickness of mattress does not exceed 8" and surface of mattress is at least 5" below upper edge of guardrails.
• Sentiasa gunakan pagar pada kedua-dua sisi panjang tingkat atas.
• If bunk bed will be placed next to a wall, the guardrail that runs the full length of the bed should be placed against the wall to prevent entrapment between the bed and the wall.
• Prohibit horseplay on or under bed(s) and prohibit jumping on the bed.
• Larang lebih daripada seorang di tingkat atas.
• Use ladder for entering and leaving upper bunk.
• Maximum total weight is not to exceed 300 lbs. on the upper bunk.
• Periksa secara berkala dan pastikan bahawa pagar, tangga dan komponen lain berada dalam kedudukan yang betul, bebas daripada kerosakan, dan semua penyambung adalah ketat.
• Do not use substitute parts. Replacement parts, including additional guardrails, may be obtained from our customer service department.
• Use of water or sleep flotation mattresses is prohibited.
• Penggunaan lampu malam dapat memberikan pencegahan keselamatan tambahan kepada anak yang menggunakan tempat tidur atas.

BAHAYA TERcekik: Jangan sekali-kali melekatkan atau menggantung barang ke mana-mana bahagian tempat tidur yang tidak dirancang untuk digunakan dengan katil; untuk bekasample, tetapi tidak terhad kepada, cangkuk, tali pinggang dan lompat tali.

DO NOT REMOVE THIS LABEL. KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.

Senarai Komponen

Before beginning assembly, ensure all parts are present and undamaged. Refer to the diagram below for identification.

Figure 2: Assembled bunk bed for component reference. Individual parts are detailed in assembly steps.

• Upper Panels (2)
• Lower Panels (2)
• Lower Bed Frame (1)
• Upper Bed Frame (1)
• Guardrails (2)
• Ladder (1)
• Connection Posts (4)
• Tudung (8)

Hardware (screws, washers, nuts, Allen wrench) will be included in a separate package. Please verify all hardware is present before starting assembly.

Arahan Persediaan

Assembly requires at least two adults. Do not overtighten screws during initial assembly; tighten all fasteners securely once the bed is fully assembled.

Step 1: Assemble the Lower Bed Frame

Attach the Lower Panels (B) to the Lower Bed Frame (C) using the provided bolts, washers, and nuts (L+K+J). Ensure all connections are secure but do not fully tighten yet. Use the Allen wrench (M).

Figure 3: Step 1 - Assembling the lower bed frame.

Step 2: Attach Connection Posts

Insert the four Connection Posts (G) into the top of the posts of the assembled Lower Bed Frame (B).

Figure 4: Step 2 - Attaching connection posts.

Step 3: Attach Upper Panels

Place the Upper Panels (A) onto the Connection Posts (G) on the Lower Bed Frame. Ensure they are seated correctly.

Figure 5: Step 3 - Attaching upper panels.

Step 4: Assemble the Upper Bed Frame

Attach the Upper Bed Frame (D) to the Upper Panels (A) using the remaining bolts, washers, and nuts (L+K+J). Fully tighten all fasteners from Step 1 and Step 4 now. Use the Allen wrench (M).

Figure 6: Step 4 - Assembling the upper bed frame.

Step 5: Install Guardrails and Ladder

Attach the Guardrails (E) to the Upper Panels (A) using the designated screws (I) and the Allen wrench (M). Ensure they are securely fastened on both long sides of the upper bunk. Hook the Ladder (F) onto the side of the Upper Bed Frame (D). Ensure the hooks are fully engaged and the ladder is stable. Some models may include additional fasteners (H) to secure the ladder to the upper bed frame (D) using screws (M). Refer to the detailed diagram for proper placement and tightening with the Allen wrench (O).

Figure 7: Steps 5-7 - Installing guardrails and attaching/securing the ladder.

Langkah 6: Pasang Caps

Place the plastic Caps (N) onto any exposed posts for a finished look and added safety.

Figure 8: Step 8 - Installing caps.

Conversion to Two Free-Standing Beds

Your bunk bed can be converted into two separate twin beds. Follow these instructions carefully:

1. Remove the Ladder (F) and Guardrails (E).
2. Carefully lift the Upper Bed Frame (D) off the Connection Posts (G).
3. Remove the Connection Posts (G) from the Lower Bed Frame (B).
4. Attach the Upper Panels (A) to the Upper Bed Frame (D) using the appropriate hardware (L+K+J) to form the second twin bed.
5. Install Caps (N) on any exposed posts of both new twin beds.

Figure 9: Diagram illustrating the conversion of the bunk bed into two separate twin beds.

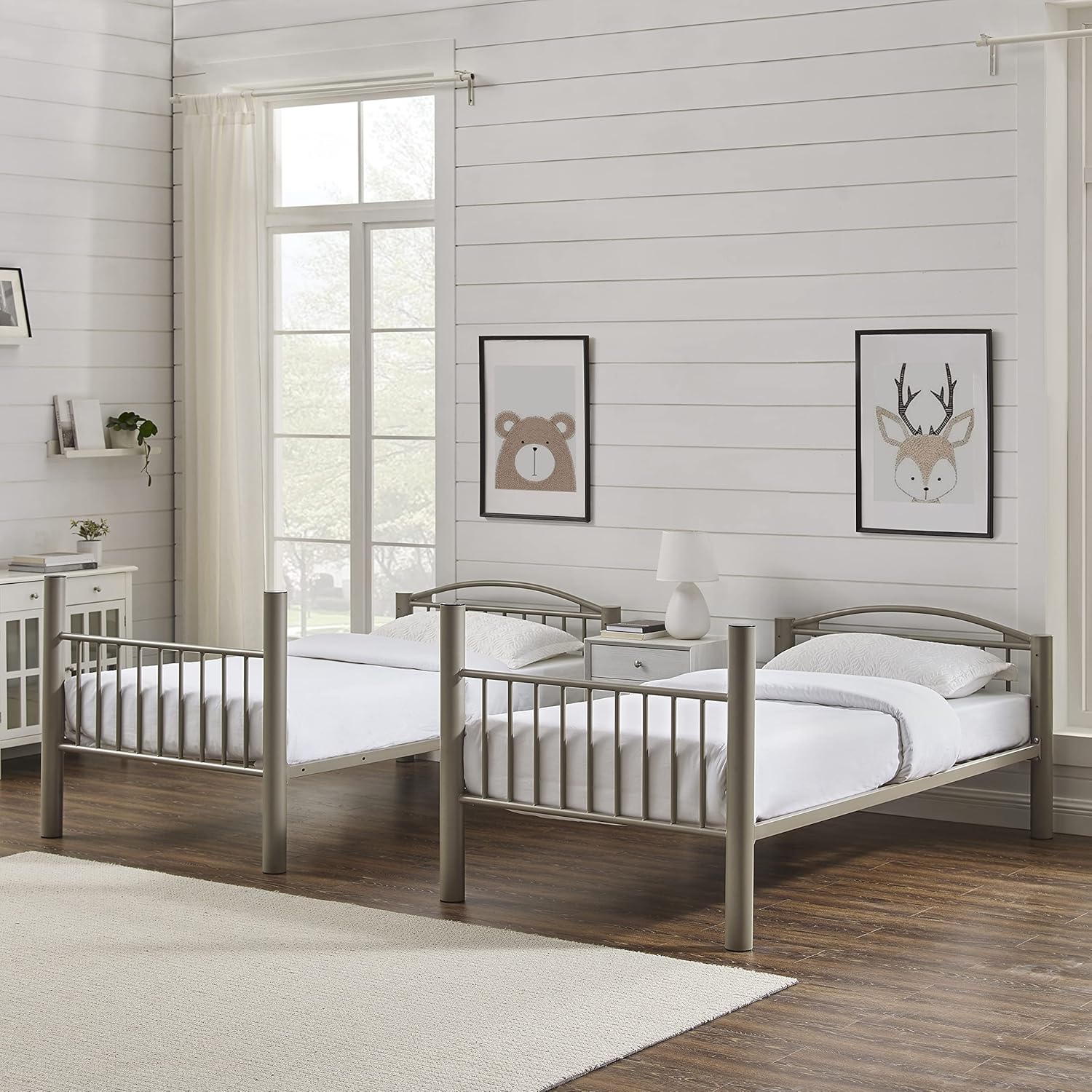

Figure 10: The Powell Heavy Metal Twin-Over-Twin Bunk Bed configured as two individual twin beds.

Penyelenggaraan

• Regularly inspect all bolts and connections to ensure they remain tight. Retighten as necessary to maintain structural integrity.
• Clean the metal surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the pewter powder-coated finish.
• Check the ladder for any signs of wear or damage. Replace any worn or broken parts immediately.
• Ensure mattresses meet the recommended dimensions and thickness to maintain safety standards.

Menyelesaikan masalah

Spesifikasi

• Nombor Model: 941-138
• Saiz: Twin-Over-Twin
• Dimensi Produk: 79.33"L x 43"W x 65"H
• warna: Pewter
• Bahan: Heavy Gauge Tubular Steel
• Jenis Selesai: Bersalut Serbuk
• Maximum Weight Recommendation (Upper Bunk): 300 lbs.
• Saiz Tilam Serasi: Twin (74"-75"L x 37-1/2"-38-1/2"W)
• Maximum Mattress Thickness (Upper Bunk): 8"
• Perhimpunan Diperlukan: ya
• Berat Barang: 109.8 paun

Rajah 11: Dimensi Produk.

Waranti & Sokongan

Maklumat Waranti: This product is covered by a limited manufacturer's warranty against defects in materials and workmanship. For specific warranty details and duration, please refer to the product's original purchase documentation or contact Powell customer service. Keep your proof of purchase for warranty claims.

Sokongan Pelanggan: If you have any questions regarding assembly, missing parts, or product operation, please contact Powell customer service. Contact information can typically be found on the product packaging or the retailer's webtapak di mana produk itu dibeli.

Alat Ganti: For replacement parts, including additional guardrails, please contact our customer service department. Do not use substitute parts not approved by the manufacturer.
