Bernstein Design 1521 Freestanding Bathtub Faucet Instruction Manual

1. Produk Lebihview

The Bernstein Design 1521 is a high-quality freestanding bathtub faucet designed for modern bathrooms. It features a sleek chrome finish and is constructed from durable brass. This faucet includes a single-lever mixer and an integrated hand shower for versatile use.

Ciri-ciri Utama:

• Bahan: Chromed brass for durability and aesthetic appeal.
• Julat Operasi: Suitable for water pressure from 0.5 bar to 8 bar, with a maximum temperature of 90°C.
• Berat: Approximately 5500 g, ensuring stability.
• Sambungan: Standard DIN connectors for easy integration.
• Mandian Tangan: Includes a 1.50 m shower hose (plastic with highly flexible metallic effect) and a square hand shower.
• Kartrij: High-quality, replaceable ceramic cartridge for smooth operation and longevity.
• Keserasian: Also suitable for gas water heaters.
• Pemasangan: Designed for easy installation as a freestanding unit.

Image: The Bernstein Design 1521 freestanding bathtub faucet in operation, showing water flowing from the main spout and the attached hand shower.

2. Arahan Keselamatan

• Always turn off the main water supply before attempting any installation or maintenance.
• Ensure all connections are properly sealed to prevent leaks.
• Do not use abrasive cleaners or harsh chemicals on the chrome finish, as this can cause damage.
• Jika anda tidak pasti tentang sebarang langkah pemasangan, rujuk tukang paip yang berkelayakan.
• Jauhkan bahagian kecil daripada kanak-kanak.
• Verify that the water pressure and temperature in your system are within the specified operating range (0.5-8 bar, max 90°C).

3. Panduan Pemasangan

This section provides general guidelines for installing the Bernstein Design 1521 freestanding bathtub faucet. Professional installation is recommended.

3.1. Membongkar dan Pemeriksaan

• Carefully unpack all components and check for any damage during transit.
• Sahkan bahawa semua bahagian yang disenaraikan dalam senarai pembungkusan ada.

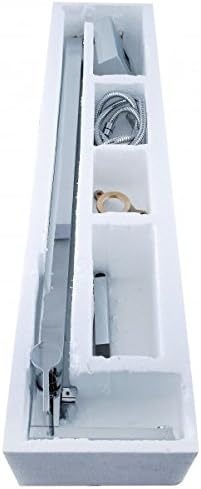

Image: The faucet components are securely packaged in foam for protection during shipping.

3.2. Komponen Selesaiview

Familiarize yourself with the various parts of the faucet before beginning installation.

Image: All parts of the faucet system, including the main column, spout, hand shower, flexible hoses, mounting plate, and fasteners.

3.3. Langkah Pra-Pemasangan

• Matikan bekalan air utama ke bilik mandi.
• Siram saluran air untuk membuang sebarang serpihan.
• Prepare the floor area where the faucet will be installed, ensuring it is clean and level.

3.4. Memasang Faucet

1. Position the mounting base on the floor at the desired location. Mark the drilling points.
2. Drill holes according to the markings and insert appropriate anchors (if required for your flooring type).
3. Secure the mounting base to the floor using the provided screws.
4. Connect the hot and cold water supply lines to the flexible hoses extending from the faucet column. Ensure proper sealing with plumber's tape or thread sealant.
5. Carefully place the faucet column onto the mounting base, aligning the connections. Secure the faucet column to the base.
6. Attach the hand shower hose to the designated outlet on the faucet body.

Image: The complete freestanding faucet unit, illustrating its overall design and the 21 cm spout length.

3.5. Semakan Selepas Pemasangan

• Hidupkan bekalan air utama secara perlahan.
• Check all connections for leaks. Tighten any leaking connections immediately.
• Test the faucet and hand shower for proper water flow and temperature control.

4. Arahan Operasi

4.1. Pengaliran Air dan Kawalan Suhu

The faucet features a single lever for controlling both water flow and temperature.

• To turn on the water, lift the lever.
• To increase water flow, lift the lever further.
• To adjust temperature, move the lever left for hot water and right for cold water.
• To turn off the water, push the lever down.

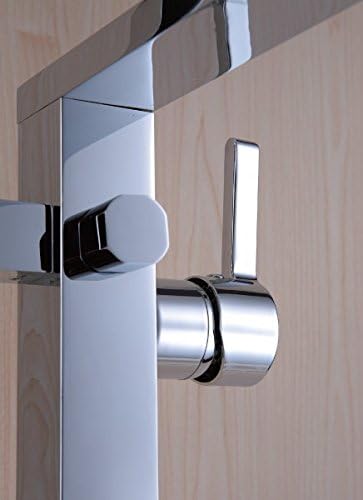

Image: Detail of the single lever handle for precise control of water flow and temperature.

4.2. Using the Hand Shower

• To activate the hand shower, pull the diverter knob located on the faucet body.
• Water will divert from the main spout to the hand shower.
• After use, push the diverter knob back in to return water flow to the main spout.

Image: The integrated square hand shower with its flexible hose, ready for use.

5. Penyelenggaraan dan Penjagaan

5.1. Membersihkan Paip

• Clean the faucet regularly with a soft cloth and mild soap or a non-abrasive cleaner specifically designed for chrome finishes.
• Bilas dengan air bersih dan keringkan dengan kain lembut untuk mengelakkan bintik air.
• Jangan gunakan span kasar, pad penggosok atau pembersih yang mengandungi alkohol, ammonia, peluntur atau asid fosforik, kerana ini boleh merosakkan kemasan krom.

5.2. Penyelenggaraan Aerator

Periodically unscrew the aerator at the end of the spout to clean out any mineral deposits or debris that may affect water flow.

Image: Detail of the faucet spout and aerator, which can be removed for cleaning.

5.3. Kartrij Seramik

The faucet is equipped with a high-quality, replaceable ceramic cartridge. If you experience persistent dripping or difficulty controlling water flow/temperature, the cartridge may need to be replaced. Consult a professional plumber for cartridge replacement.

6. Penyelesaian masalah

7. Spesifikasi

8. Waranti dan Sokongan

Bernstein products are manufactured to high-quality standards. For specific warranty information, please refer to the documentation included with your purchase or visit the official Bernstein website. For technical support or spare parts, please contact Bernstein customer service.
