1. Pengenalan
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Goodman GMH80604BN Gas Furnace. This unit is a two-stage, multi-speed, multi-position gas furnace designed for residential heating applications, offering up to 80% AFUE (Annual Fuel Utilization Efficiency).
Key features include a patented TuffTube™ dual-diameter tubular heat exchanger, a two-stage gas valve with Dual$aver control technology, a Silicon Nitride igniter, and an energy-saving, quiet four-speed direct-drive circulator blower motor. The integrated electronic furnace control board provides self-diagnostics for easier troubleshooting.

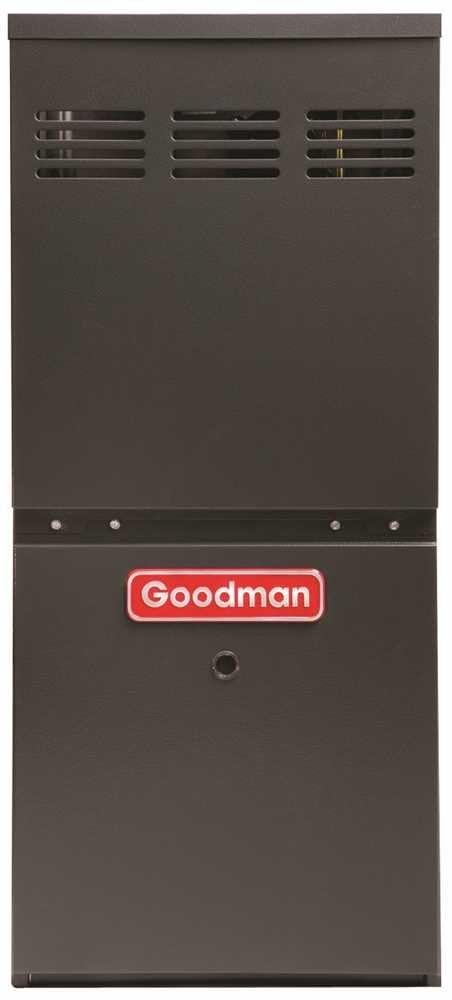

Figure 1: Goodman GMH80604BN Gas Furnace. This image displays the exterior of the Goodman GMH80604BN gas furnace, highlighting its compact design and durable finish.
2. Maklumat Keselamatan
AMARAN: Improper installation, adjustment, alteration, service, or maintenance can cause property damage, personal injury, or death. Read these instructions thoroughly before installing or servicing this equipment.
Produk ini boleh mendedahkan anda kepada bahan kimia termasuk plumbum, yang diketahui oleh Negeri California boleh menyebabkan kanser dan kecacatan kelahiran atau bahaya pembiakan lain. Untuk maklumat lanjut pergi ke www.P65Warnings.ca.gov.
- Sentiasa putuskan kuasa sebelum diservis.
- Pastikan pengudaraan dan bekalan udara pembakaran yang betul.
- Do not store flammable materials near the furnace.
- Only qualified personnel should install, service, or repair this appliance.
- Regularly check for gas leaks.
3. Persediaan dan Pemasangan
The Goodman GMH80604BN furnace is designed for multi-position installation, supporting upflow or horizontal left/right configurations. Due to the complexity and safety requirements, installation must be performed by a qualified HVAC technician.
3.1 Pemeriksaan Pra-Pemasangan
- Verify that the furnace model matches the installation requirements.
- Periksa unit tersebut untuk sebarang kerosakan penghantaran.
- Ensure adequate space for service and maintenance.
- Confirm proper gas and electrical supply are available and meet local codes.
3.2 Positioning and Venting
The furnace can be installed in various orientations. Refer to the detailed installation guide provided with the unit for specific instructions on ductwork connections, gas piping, electrical wiring, and venting. Proper venting is critical for safety and efficiency.
4. Arahan Operasi
This furnace features a two-stage burner and a multi-speed blower for optimized comfort and efficiency. Operation is primarily controlled by your thermostat.
4.1 Permulaan Awal
- Ensure all gas and electrical connections are secure and verified by a technician.
- Hidupkan bekalan gas ke relau.
- Pulihkan kuasa elektrik ke relau.
- Tetapkan termostat anda kepada mod dan suhu pemanasan yang diingini.
- The furnace will initiate its startup sequence, including ignition and blower operation.
4.2 Dua-Stage Operasi
The furnace automatically adjusts between low-stage and high-stage heating based on the heating demand from the thermostat and outdoor temperatures. This feature, controlled by the Dual$aver technology, provides more consistent temperatures and energy savings.
4.3 Continuous Fan Operation
Your thermostat may have a "Fan ON" setting. Using this setting will run the blower continuously at a low speed, which can improve air circulation and filtration throughout your home, even when heating is not required.
5. Penyelenggaraan
Regular maintenance is crucial for the longevity, efficiency, and safe operation of your Goodman GMH80604BN gas furnace. It is recommended to have a qualified HVAC technician perform annual professional maintenance.
5.1 Penyelenggaraan Pengguna
- Penggantian Penapis Udara: Periksa dan gantikan penapis udara setiap bulan, atau lebih kerap jika anda mempunyai haiwan peliharaan atau alahan. Penapis yang kotor menyekat aliran udara dan mengurangkan kecekapan.
- Kawasan Kosong di Sekeliling Relau: Ensure the area around the furnace is clear of obstructions, flammable materials, and debris to allow for proper airflow and safe operation.
5.2 Penyelenggaraan Profesional (Tahunan)
An annual inspection by a certified technician should include:
- Checking and cleaning the heat exchanger.
- Inspecting the burner and ignition system.
- Verifying gas pressure and connections.
- Testing safety controls.
- Melincirkan bahagian yang bergerak (jika berkenaan).
- Checking electrical connections and components.
- Memeriksa sistem serombong dan pengudaraan.
6. Penyelesaian masalah
The GMH80604BN features a self-diagnosing control board that saves the last five diagnostic codes in memory. These codes can assist a qualified technician in quickly identifying and resolving issues.
6.1 Isu dan Penyelesaian Biasa
- Tiada haba:
- Check thermostat setting.
- Ensure furnace power switch is ON.
- Sahkan bekalan gas dibuka.
- Periksa pemutus litar.
- Replace dirty air filter.
- Haba yang tidak mencukupi:
- Periksa penapis udara.
- Ensure vents are open and not blocked.
- Thermostat may need calibration or replacement.
- Bunyi Luar Biasa:
- Blower motor may need cleaning or lubrication (professional service).
- Masalah kerja saluran.
If these basic steps do not resolve the issue, or if you observe any error codes on the control board, contact a qualified HVAC technician for diagnosis and repair.
7. Spesifikasi
| Ciri | Perincian |
|---|---|
| Nombor Model | GMH80604BN |
| Jenama | Goodman |
| Kapasiti Pemanasan | 60,000 BTU |
| Penilaian AFUE | Sehingga 80% |
| Pembakar Stages | Dua-Stage |
| Jenis Blower | Multi-Speed Direct-Drive |
| Igniter Type | Silikon Nitrida |
| Jawatan Pemasangan | Upflow, Horizontal Left/Right |
| Berat Barang | 150 paun |
| Nombor Bahagian | GMH80604BN |
| UPC | 663051487840 |

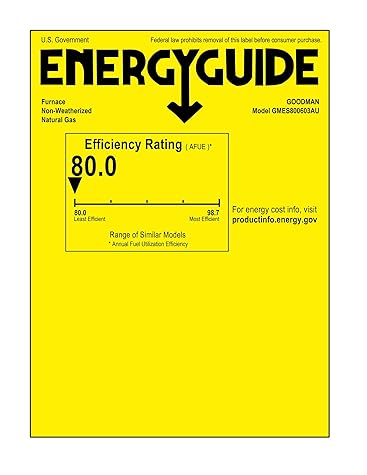

Figure 2: Energy Efficiency Fiche. This image displays the energy efficiency label, indicating the furnace's AFUE rating and other energy-related information.
8. Maklumat Waranti
Goodman provides a limited warranty for its products. Specific warranty terms and conditions, including coverage duration and registration requirements, are typically provided with the product documentation at the time of purchase. Please refer to your warranty certificate for complete details.
To ensure warranty validity, it is essential to have the unit installed by a qualified professional and to perform regular maintenance as outlined in this manual and the full installation guide.
9. Sokongan dan Perkhidmatan
For technical assistance, service, or to locate a qualified Goodman dealer or service provider, please visit the official Goodman website or contact their customer support. When contacting support, please have your model number (GMH80604BN) and serial number readily available.
Pegawai Goodman Webtapak: www.goodmanmfg.com
