Manual Arahan Viessmann 7820148 Sensor Luar #1
pengenalan
This manual provides essential information for the proper installation, operation, and maintenance of the Viessmann 7820148 Outdoor Sensor #1. Please read these instructions carefully before proceeding with any installation or service. This sensor is designed to provide accurate outdoor temperature readings to compatible Viessmann heating systems, optimizing their performance and efficiency.

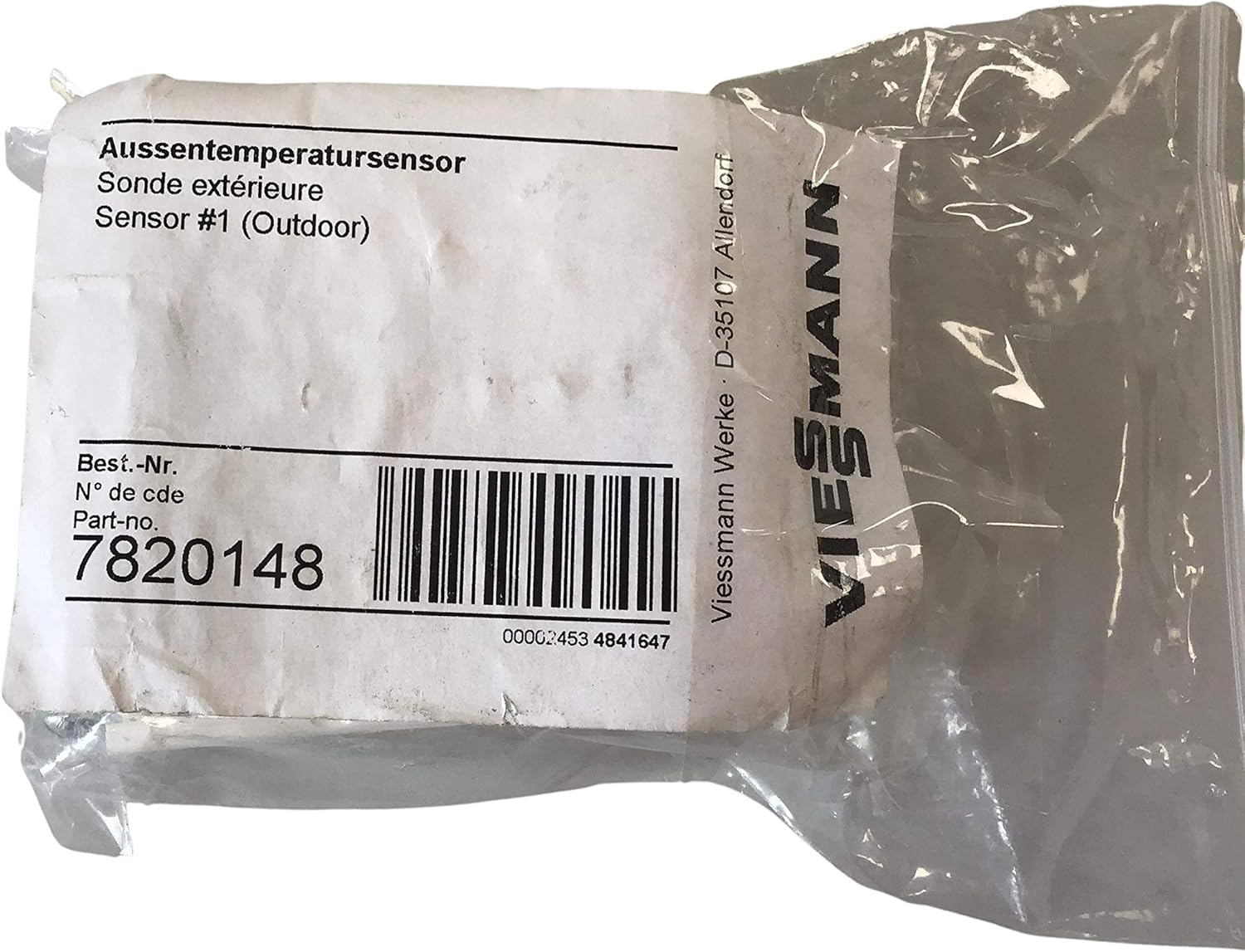

Image: Viessmann 7820148 Outdoor Sensor #1 in its original packaging, showing the part number and brand logo.
Maklumat Keselamatan Penting
WARNING: Installation, adjustments, service, or maintenance of this product must be performed by a licensed professional heating contractor qualified to work with hot water boilers and associated controls. Failure to follow these instructions could result in property damage, personal injury, or death.
- Always disconnect power to the heating system before performing any work.
- Ensure all local codes and regulations are followed during installation.
- Do not modify the sensor or its components.
- Protect the sensor from physical damage and extreme weather conditions beyond its operating range.
Sistem yang Serasi
The Viessmann 7820148 Outdoor Sensor #1 is compatible with the following Viessmann heating systems and controls:
Boiler Models:
- Vitodens 200 WB2A (6-24C/6-24/8-32)
- Vitodens 200 WB2 (6-24C/6-24/8-32/11-44/15-60)
- Vitodens 200-W WB2B (19/26/35/45/60/80/105) Series Residential Gas Condensing Boilers
Control Models:
- Vitotronic 200 (KW2)
- Vitotronic 300 (KW3 & GW2)
- Vitotronic 300-K (MW1W, MW1S, & MW2S)
- Vitotronic 200-H HK1M
- Dekamatik-HK1
- Vitocontrol-S WB2B (MW2)
Persediaan dan Pemasangan
Proper placement and wiring are crucial for accurate temperature readings and optimal system performance. Consult your heating system's specific installation manual for detailed wiring diagrams and placement recommendations.
Penempatan Disyorkan:
- Mount the sensor on an exterior wall, preferably on the north or northwest side of the building, to avoid direct sunlight.
- Ensure the sensor is not obstructed by eaves, overhangs, or other structures that could affect air circulation or expose it to radiant heat.
- Avoid mounting near windows, doors, or exhaust vents.
- Mount at a height that is representative of the general outdoor temperature, typically 6-10 feet above ground level.
Langkah Pemasangan:
- Sediakan Lokasi Pemasangan: Select a suitable outdoor location as described above. Ensure the surface is clean and stable.
- Open Sensor Housing: Carefully open the sensor housing. The cover typically snaps open or is secured by small screws.
Image: Viessmann 7820148 Outdoor Sensor #1 with its cover open, revealing the green circuit board and wiring terminals. Two mounting screws and anchors are visible below the open housing.
- Lekapkan Pangkalan: Use the provided screws and anchors (if necessary) to securely mount the back plate of the sensor housing to the chosen wall.
Imej: Belakang view of the Viessmann 7820148 Outdoor Sensor #1 housing, showing mounting holes and a barcode sticker with numbers 41547 and 22616.
- Dawai Sensor: Route the low-voltage wiring from the heating system control to the sensor location. Connect the wires to the terminals labeled '1' and '2' on the sensor's circuit board. Polarity is typically not critical for this type of sensor, but refer to your boiler's wiring diagram for confirmation.
Imej: Jarak dekat view of the Viessmann 7820148 Outdoor Sensor #1's internal circuit board. The green board has 'VIESSMANN' printed on it, along with 'HND 02/14' and terminals labeled '1' and '2' for wiring connections.
- Pendawaian Selamat: Ensure wiring is properly secured and protected from weather and physical damage.
- Tutup Perumahan: Once wiring is complete and verified, carefully close the sensor cover, ensuring it snaps securely into place or is fastened with screws.
Image: Viessmann 7820148 Outdoor Sensor #1 with its cover closed, showing the compact, white, rectangular housing.
- Konfigurasi Sistem: After physical installation, the heating system control may need to be configured to recognize and utilize the outdoor sensor. Refer to your boiler or control unit's instruction manual for specific programming steps.
Operasi
The Viessmann 7820148 Outdoor Sensor #1 operates passively by continuously measuring the ambient outdoor temperature. It transmits this data to the connected Viessmann heating system control. The control unit then uses this information to adjust the boiler's output, optimizing heating curve settings and ensuring efficient and comfortable indoor temperatures based on outdoor conditions. No direct user interaction is required for the sensor's operation once installed and configured.
Penyelenggaraan
The Viessmann 7820148 Outdoor Sensor #1 is designed for minimal maintenance. Periodically, it is recommended to:
- Pemeriksaan Visual: Check the sensor housing for any signs of physical damage, cracks, or loose connections.
- Kebersihan: Ensure the sensor's exterior is free from dirt, debris, spiderwebs, or insect nests that could obstruct airflow or affect temperature readings. Use a soft, damp kain untuk pembersihan; jangan gunakan pembersih atau pelarut yang kasar.
- Pemeriksaan halangan: Verify that no new obstructions (e.g., growing vegetation, new construction) are affecting the sensor's exposure to ambient air.
Any internal inspection or repair should only be performed by a qualified service technician.
Menyelesaikan masalah
If your heating system is not responding correctly to outdoor temperatures or displaying an error related to the outdoor sensor, consider the following:
- Semak Pendawaian: Ensure all wiring connections at both the sensor and the control unit are secure and free from corrosion. Verify continuity if possible.
- Peletakan Sensor: Re-evaluate the sensor's placement. Is it exposed to direct sunlight, heat sources, or obstructions? Relocate if necessary.
- Kerosakan Fizikal: Inspect the sensor housing for any visible damage that might compromise its function.
- Control Unit Error Codes: Consult your boiler or control unit's manual for specific error codes related to the outdoor sensor and their recommended solutions.
- Bantuan Profesional: If the issue persists after basic checks, contact a licensed professional heating contractor for diagnosis and repair. They can test the sensor's resistance values and system configuration.
Spesifikasi
| Ciri | Perincian |
|---|---|
| Nombor Model | 7820148 |
| Jenama | Viessmann |
| bahan | Tembaga |
| Ketepatan Pengukuran | ±1.5°C |
| Julat Pengukuran | 6 - 24 °C |
| Jenis Pemasangan | Pelekap Bebibir |
| Jenis Output | digital |
| Berat Barang | 3.13 auns |
| Dimensi Pakej | 5.55 x 4.72 x 1.89 inci |
| UPC | 653958692898 |
| Nombor Bahagian Pengilang | 7820148 |
| Internal Barcode Reference | 4154722616 (from product label) |
Note: Specifications are subject to change without notice. Always refer to the product packaging or manufacturer's official documentation for the most current information.
Waranti dan Sokongan Teknikal
For specific warranty information regarding the Viessmann 7820148 Outdoor Sensor #1, please refer to the documentation included with your original heating system or contact Viessmann directly. Warranty terms typically vary based on the region and purchase date.
For technical support, replacement parts, or service inquiries, it is recommended to contact a licensed Viessmann heating contractor or Viessmann customer service. When contacting, please provide the 16-digit boiler serial number or the 12-digit ASME/NB serial number of your heating system to ensure accurate assistance and proper part identification.
Anda boleh mendapatkan maklumat lanjut mengenai Viessmann rasmi webtapak: www.viessmann.com
