1. Pengenalan
This manual provides detailed instructions for the installation, operation, and maintenance of your Bio Bidet ELITE3 Freshwater Spray Bidet Attachment. Please read this manual thoroughly before installation and use to ensure proper function and safety. The ELITE3 is designed to provide a comfortable and hygienic personal wash experience with adjustable water pressure and dual nozzles.
Image 1.1: Bio Bidet ELITE3 Bidet Attachment installed on a toilet.
2. Maklumat Keselamatan
- Ensure all connections are tightened properly to prevent leaks. Do not overtighten.
- Use only cold water supply. This unit is not designed for hot water connection.
- Do not use abrasive cleaners or harsh chemicals on the bidet attachment, as this may damage the finish or internal components.
- Jauhkan daripada kanak-kanak.
- If any part is damaged or missing, do not attempt to install or operate the unit. Contact customer support.
3. Kandungan Pakej
Sahkan bahawa semua komponen hadir sebelum memulakan pemasangan:
- Bio Bidet ELITE3 Bidet Attachment
- Metal Braided Water Supply Hose
- T-Adapter Valve
- Mounting Plates and Bolts
- Pencuci Getah
- Manual Pemasangan (dokumen ini)

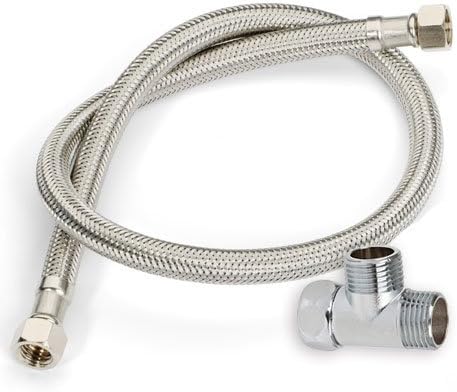

Image 3.1: Included metal braided water supply hose and T-adapter valve.
4. Panduan Pemasangan
Installation typically takes about 15 minutes and requires no special tools or electricity. You may need a wrench for tightening connections.
4.1. Persediaan
- Turn off the water supply valve to your toilet.
- Flush the toilet to drain the tank completely.
- Disconnect the existing water supply hose from the toilet tank. Have a small towel ready to catch any residual water.
4.2. Attaching the T-Adapter
- Install the T-adapter valve to the fill valve on the bottom of your toilet tank. Ensure the rubber washer is properly seated.
- Connect your toilet's original water supply hose to the bottom of the T-adapter.
4.3. Installing the Bidet Attachment
- Remove your toilet seat. Place the bidet attachment on the toilet rim, aligning the mounting holes with those on your toilet.
- Place your toilet seat back on top of the bidet attachment and secure it using the original toilet seat bolts. Adjust the bidet attachment forward or backward as needed for optimal fit.
- Connect one end of the provided metal braided water supply hose to the side of the T-adapter.
- Connect the other end of the metal braided water supply hose to the water inlet on the bidet attachment.
Image 4.1: Connecting the water supply hose to the bidet attachment.
4.4. Langkah Akhir
- Slowly turn on the main water supply valve to your toilet.
- Periksa semua sambungan untuk kebocoran. Jika berlaku kebocoran, ketatkan sambungan sedikit. Jangan terlalu ketatkan.
Your Bio Bidet ELITE3 is now ready for use.
Video Pemasangan
Video 4.1: General installation guide for bidet attachments. This video demonstrates the typical steps for installing a bidet attachment to a toilet.
5. Arahan Operasi
The ELITE3 features two control knobs for easy operation.
Image 5.1: Control panel with water pressure and nozzle selection knobs.
5.1. Water Pressure Control
- The top knob controls the water pressure. Turn it clockwise to increase pressure and counter-clockwise to decrease pressure.
- Start with the lowest pressure setting and gradually increase to your desired comfort level.
- Turn the knob to the 'OFF' position to stop the water flow.
5.2. Nozzle Selection and Cleaning
- The bottom knob allows you to select the desired wash function: Basuh Posterior (for rear cleansing) or Pencuci Wanita (for front cleansing).
- To activate the self-cleaning function for the nozzles, turn the knob to the 'NOZZLE CLEANING' position. Water will spray to rinse the nozzles.
Image 5.2: Dual retractable nozzles for posterior and feminine wash.
Video Operasi
Video 5.1: Demonstration of bidet attachment features and operation. This video illustrates how to use the control knobs for different wash functions.
6. Penyelenggaraan
6.1. Cleaning the Bidet
- Regularly wipe down the exterior of the bidet attachment with a soft, damp kain dan sabun lembut.
- Do not use harsh detergents, abrasive cleaners, or brushes, as these can scratch the surface.
6.2. Pembersihan muncung
- Use the built-in 'NOZZLE CLEANING' function on the control knob for a quick rinse of the nozzles.
- For a more thorough cleaning, gently pull out the nozzles and clean them with a soft brush and mild soap. Ensure they retract properly after cleaning.
7. Penyelesaian masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Air bocor dari sambungan | Loose connections, missing or improperly seated washers | Ensure all connections are hand-tightened, then use a wrench for a quarter turn. Check that rubber washers are correctly placed. Do not overtighten. |
| No water spray or weak spray | Water supply valve closed, low water pressure, clogged nozzle | Ensure the toilet's water supply valve is fully open. Check household water pressure. Clean the nozzles using the self-cleaning function or manually. |
| Nozzles do not retract | Debris, obstruction, or damage | Check for any visible obstructions around the nozzles. Clean the nozzles thoroughly. If the issue persists, contact customer support. |
| Toilet seat is not level | Bidet attachment not properly aligned | Adjust the bidet attachment's position on the toilet rim and ensure the toilet seat bolts are tightened evenly. |
8. Spesifikasi
- model: Elit3
- Dimensi: 9 x 19 x 4 inches (Product), 17 1/4 x 8 inches (Size)
- Berat Barang: 2.89 paun
- Bahan: Brass (valve), Quality ABS Resin
- warna: putih
- Sumber Kuasa: Non-electric (operates on water pressure)
- muncung: Dual, Retractable, Self-cleaning
- Kawalan Tekanan Air: Tombol boleh laras
Image 8.1: Dimensional drawing of the Bio Bidet ELITE3.

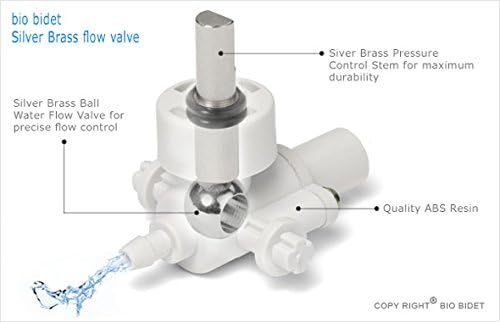

Image 8.2: Diagram illustrating the internal brass flow valve for durability and precise flow control.
9. Waranti & Sokongan
9.1. Maklumat Waranti
The manufacturer warranty covers customer purchases in the USA and Canada for 1 tahun dari tarikh pembelian. Waranti ini melindungi kecacatan pada bahan dan mutu kerja di bawah penggunaan biasa. Sila simpan bukti pembelian anda untuk tuntutan waranti.
9.2. Sokongan Pelanggan
For technical assistance, warranty claims, or any questions regarding your Bio Bidet ELITE3, please contact our customer care:
Nombor Khidmat Pelanggan: 877.339.5214
Please have your model number (Elite3) and date of purchase available when contacting support.
