pengenalan
Thank you for choosing the Hudson Valley Lighting 5508-HN Altamont 1 Light Pendant. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. Please read these instructions thoroughly before beginning installation and retain them for future reference.
The Altamont pendant features a conical metal shade with unique ring-and-rod chains, finished in Historic Nickel. Its design offers versatile ambient illumination suitable for various indoor settings.
Maklumat Keselamatan
AMARAN: Risk of electric shock. Always turn off the main power supply at the circuit breaker or fuse box before installing, servicing, or cleaning this fixture.
- Semua sambungan elektrik mestilah mengikut kod tempatan, ordinan atau Kod Elektrik Kebangsaan (NEC). Rujuk juruelektrik bertauliah jika anda tidak biasa dengan sambungan pendawaian elektrik yang betul.
- Produk ini mesti dipasang oleh orang yang biasa dengan pembinaan dan pengendalian produk serta bahaya yang terlibat.
- Jangan sambungkan lekapan ini kepada sistem elektrik yang tidak dibumikan.
- Never use a bulb exceeding the maximum wattage specified for this fixture.
- Amaran Proposisi 65: Produk ini mungkin mengandungi bahan kimia yang diketahui oleh Negeri California untuk menyebabkan kanser dan kecacatan kelahiran atau bahaya pembiakan lain. Basuh tangan selepas mengendalikan.
Kandungan Pakej
Carefully unpack your fixture and check that all parts are included. If any parts are missing or damaged, do not attempt to assemble or install the fixture. Contact customer service for assistance.
- Pendant Fixture (Shade, Socket Assembly)
- Canopy Assembly (Mounting Plate, Canopy, Collar Ring)
- Mounting Hardware (Mounting Screws, Wire Nuts)
- Manual Arahan
Arahan Pemasangan
Alat Diperlukan (Tidak Termasuk):
- Pemutar Skru Kepala Phillips
- Pemutar Skru Flathead
- Pelucut Kawat
- Pita Elektrik
- Cermin Mata Keselamatan
Pra-Pemasangan:
- Ensure the power is turned off at the circuit breaker before starting.
- Clear the work area and gather all necessary tools and components.
- Review the wiring diagram and instructions carefully.
Memasang Lekapan:
- Carefully remove the old fixture (if applicable) and disconnect all wiring.
- Attach the mounting plate to the junction box using the provided mounting screws. Ensure it is securely fastened.
- Adjust the length of the pendant chain/rod as desired.
- Connect the fixture's ground wire (bare copper or green) to the house ground wire (bare copper or green) using a wire nut.
- Sambungkan wayar neutral lekapan (putih) ke wayar neutral rumah (putih) menggunakan nat wayar.
- Connect the fixture's hot wire (black or smooth) to the house hot wire (black or smooth) using a wire nut.
- Berhati-hati masukkan semua wayar ke dalam kotak simpang.
- Position the canopy over the mounting plate and secure it with the collar ring or screws.
- Install the appropriate light bulb (see Operating Instructions for bulb type).

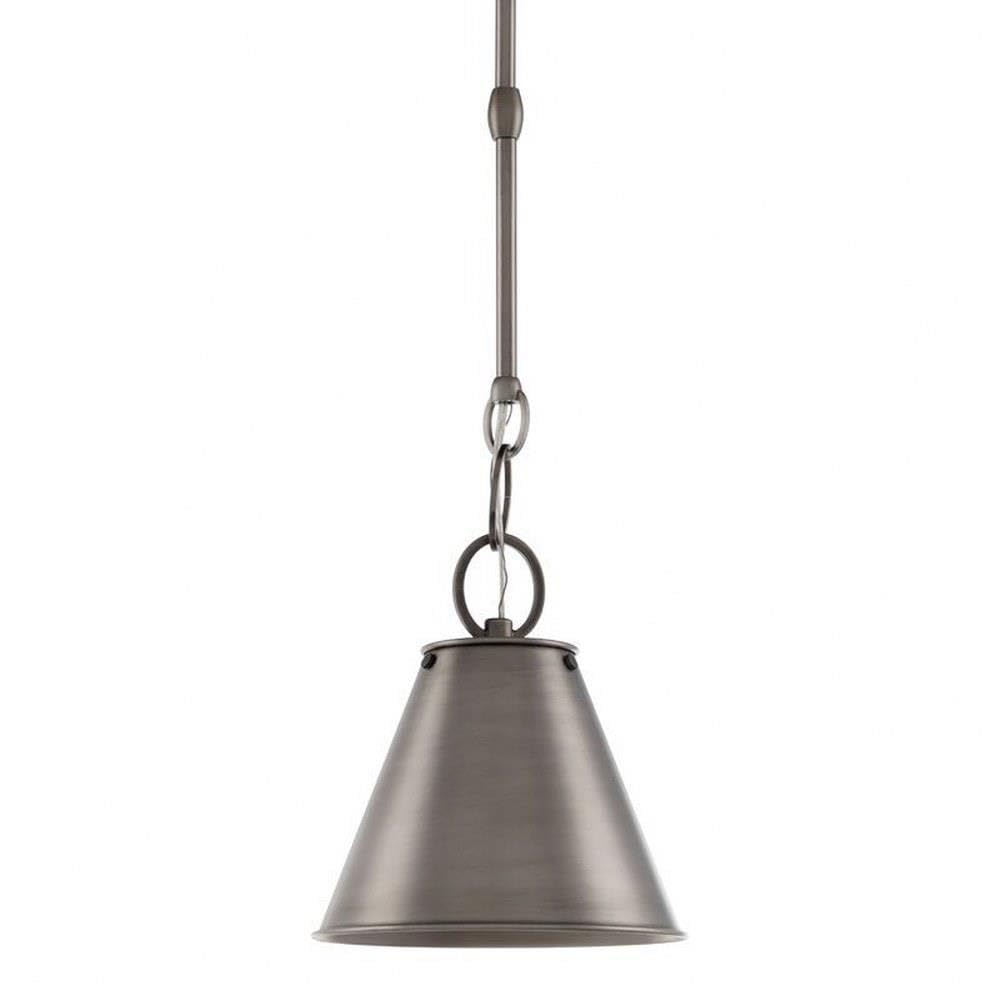

Image: The Altamont pendant light fixture, showcasing its conical shade and Historic Nickel finish, suspended by its rod and chain assembly.
Arahan Operasi
Once the fixture is securely installed and the bulb is in place, restore power at the circuit breaker. The pendant light can then be operated using your wall switch (if connected) or the integrated pull chain switch, if present.
Maklumat Mentol:
- Jenis Mentol: pijar
- Pangkalan Mentol: E26 (Asas Sederhana)
- Wat Maksimumtage: 75 Watt
- Ensure the bulb is fully screwed into the socket. Do not overtighten.
Penyelenggaraan
Pembersihan:
- Always turn off power and allow the fixture to cool before cleaning.
- Lap lekapan dengan kain lembut dan kering.
- Jangan gunakan pembersih, pelarut atau pengilat yang melelas kerana ia boleh merosakkan kemasan.
Penggantian mentol:
- Matikan kuasa pada pemutus litar.
- Benarkan mentol sejuk sepenuhnya sebelum menyentuhnya.
- Carefully unscrew the old bulb and replace it with a new E26 incandescent bulb, not exceeding 75 watts.
- Pulihkan kuasa.
Menyelesaikan masalah
If your fixture is not functioning correctly, refer to the table below for common issues and solutions.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Cahaya tidak menyala. | Tidak ada kekuatan untuk perlawanan. | Check circuit breaker or fuse. Ensure wall switch is on. |
| Mentol longgar atau terbakar. | Ketatkan atau gantikan mentol. | |
| Pendawaian yang tidak betul. | Turn off power and recheck wiring connections. Consult an electrician if needed. | |
| Cahaya berkelip-kelip. | Loose bulb or wiring connection. | Turn off power, tighten bulb, and check wiring connections. |
If these steps do not resolve the issue, contact a qualified electrician or Hudson Valley Lighting customer service.
Spesifikasi
| Jenama: | Pencahayaan Lembah Hudson |
| model: | 5508-HN Altamont |
| Selesai: | Historic Nickel |
| Bahan: | Logam (Lekapan), Kaca (Teduhan) |
| Dimensi Produk: | 8"L x 8"W x 9"H |
| Jenis Sumber Cahaya: | pijar |
| Bilangan Sumber Cahaya: | 1 |
| Pangkalan Mentol: | E26 |
| Max Wattage: | 75 Watt |
| Voltage: | 120 Volt |
| Jenis Pemasangan: | Pemasangan Siling |
| Perhimpunan Diperlukan: | ya |
| Berat Barang: | 3 paun |
Waranti dan Sokongan
Waranti:
This Hudson Valley Lighting fixture is covered by a Waranti terhad pengeluar 1 tahun from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, accident, misuse, abuse, or normal wear and tear.
Sokongan Pelanggan:
For technical assistance, missing parts, or warranty claims, please contact Hudson Valley Lighting customer service. Have your model number (5508-HN) and proof of purchase available when contacting support.
You can find contact information on the official Hudson Valley Lighting webtapak atau melalui peruncit anda.
