Wera 05073990001 1/4" Hex Drive Impaktor Bit Holder with Ringmagnet Instruction Manual

1. Produk Lebihview

The Wera 05073990001 1/4" Hex Drive Impaktor Bit Holder with Ringmagnet is a professional-grade accessory designed for use with impact drivers. Constructed from durable alloy steel, this bit holder is engineered for demanding tasks, offering secure bit and screw retention.

Figure 1: Wera 05073990001 Impaktor Bit Holder in its retail packaging.

Ciri-ciri Utama:

• Bahan: Made of high-quality alloy steel for enhanced durability.
• Ringmagnet: Equipped with a powerful ring magnet for secure holding of screws and bits.
• Impact Compatibility: Specifically designed for use with impact drivers, providing robust performance.
• Asal: Manufactured in Germany, ensuring precision engineering.

2. Persediaan dan Pemasangan

Proper installation ensures optimal performance and safety. Follow these steps to set up your Wera Impaktor Bit Holder:

1. Insert Bit Holder into Driver: Ensure your impact driver or drill is powered off and the chuck is open. Insert the 1/4" hex shank of the Impaktor bit holder firmly into the chuck. Tighten the chuck securely to prevent slippage during operation.
2. Insert Drive Bit: Select the appropriate 1/4" hex drive bit for your application. Push the drive bit into the front opening of the Impaktor bit holder until it clicks into place. The internal retaining ring and ring magnet will secure the bit.
3. Attach Screw (Optional): For enhanced stability and one-handed operation, place the screw onto the inserted drive bit. The powerful ring magnet will hold the screw firmly in position, preventing it from falling off during positioning and driving.

Figure 2: A drive bit securely inserted into the Impaktor bit holder.

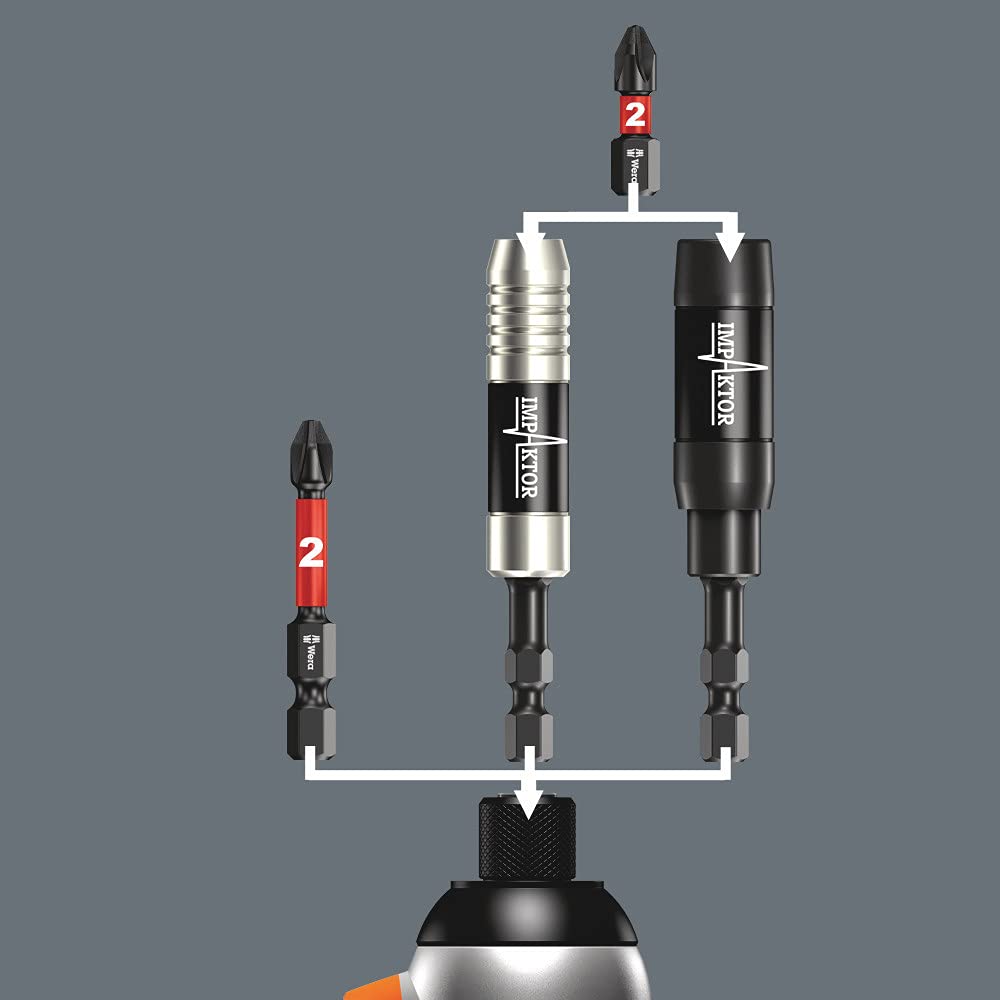

Figure 3: Visual representation of the bit holder assembly with a drive bit and impact driver.

3. Arahan Operasi

The Wera Impaktor Bit Holder is designed to withstand extreme loads and provide superior performance in demanding applications, particularly with impact drivers.

Faedah Operasi Utama:

• TriTorsion Technology: The Impaktor technology incorporates a TriTorsion zone that absorbs peak torque loads, significantly extending the lifespan of the bit holder and the inserted drive bit. This reduces premature wear and breakage.
• Ringmagnet Functionality: The integrated ring magnet provides exceptional holding power for screws, allowing for precise positioning and one-handed driving, especially in overhead or awkward positions.
• Reduced Cam-Out: The combination of the secure bit fit and the magnetic screw retention minimizes cam-out, protecting both the screw head and the drive bit.

Figure 4: The ring magnet securely holds the screw for easy driving.

Figure 5: TriTorsion technology for enhanced durability under impact.

Figure 6: The Impaktor bit holder in action during a construction task.

Official Product Video: Wera Impaktor Animation

Video 1: An animated demonstration of the Wera Impaktor bit holder's features, including its TriTorsion technology and magnetic capabilities, showcasing its resilience and efficiency in impact driving applications.

4. Penjagaan dan Penyelenggaraan

To ensure the longevity and optimal performance of your Wera Impaktor Bit Holder, follow these maintenance guidelines:

• Pembersihan: After each use, wipe down the bit holder with a clean, dry cloth to remove any dust, debris, or metal shavings. For stubborn grime, a slightly damp kain boleh digunakan, diikuti dengan pengeringan menyeluruh.
• Pelinciran: Periodically apply a small amount of light machine oil to the internal mechanisms, particularly the retaining ring, to ensure smooth operation and prevent corrosion.
• Storan: Store the bit holder in a dry environment, away from excessive moisture and corrosive materials. Using a tool box or organizer will protect it from damage and loss.
• Pemeriksaan: Regularly inspect the bit holder for any signs of wear, damage, or deformation. If any significant damage is observed, discontinue use and replace the unit.

5. Menyelesaikan masalah Isu Biasa

If you encounter any issues with your Wera Impaktor Bit Holder, consider the following common solutions:

• Gelinciran Bit: Ensure the drive bit is fully inserted and clicked into place. Verify that the chuck of your impact driver is securely tightened around the bit holder's hex shank. Inspect the drive bit and bit holder for excessive wear that might prevent a secure fit.
• Pegangan Magnetik Lemah: Clean the ring magnet area to remove any accumulated metal particles or debris that might interfere with its magnetic force. Ensure the screw being used is ferromagnetic.
• Difficulty Inserting/Removing Bits: Apply a small amount of lubricant to the internal mechanism of the bit holder. Check for any foreign objects obstructing the bit insertion point.
• Excessive Wobble: Confirm that both the bit holder is properly seated in the driver's chuck and the drive bit is correctly inserted into the bit holder. Excessive wear on either component or the driver's chuck can cause wobble.

If problems persist after attempting these solutions, contact Wera customer support for further assistance.

6. Spesifikasi Teknikal

7. Maklumat dan Sokongan Waranti

Wera products are manufactured to high-quality standards. For specific warranty details, terms, and conditions, please refer to the official Wera website or the documentation included with your purchase. Warranty coverage typically addresses manufacturing defects under normal use.

Sokongan Pelanggan:

If you require technical assistance, have questions about product usage, or need to initiate a warranty claim, please contact Wera customer support through their official channels:

• Webtapak: Lawati pegawai Wera Tools webtapak for contact information, FAQs, and product resources.
• Maklumat Hubungan: Refer to the product packaging or the Wera website for specific phone numbers or email addresses for your region.

Please have your product model number (05073990001) and purchase date available when contacting support.
