Craftmade LK406-BN-LED Universal 4-Light Kit Instruction Manual

Maklumat Keselamatan Penting

Sila baca dan fahami semua arahan sebelum memulakan pemasangan. Kegagalan mematuhi arahan ini boleh mengakibatkan renjatan elektrik, kebakaran atau bahaya lain yang boleh menyebabkan kecederaan atau kerosakan harta benda.

• AMARAN: To avoid possible electric shock, before installing your light kit, disconnect power by turning off the circuit breakers to the outlet box associated with the wall switch location.
• Produk ini mesti dipasang mengikut kod pemasangan yang berkenaan oleh orang yang biasa dengan pembinaan dan pengendalian produk serta bahaya yang terlibat.
• Use only with ceiling fans approved for light kit installation.
• Pastikan semua sambungan elektrik selamat dan mematuhi kod dan peraturan tempatan.
• Do not install this light kit in wet or damp locations. This product is rated for dry locations only.
• Amaran Proposisi 65: Sila semak undang-undang tempatan anda sebelum membeliasing produk ini.

Produk Selesaiview

The Craftmade LK406-BN-LED is a universal 4-light kit designed to enhance your ceiling fan with efficient LED lighting. Featuring a brushed satin nickel finish and alabaster glass shades, this kit provides a transitional style suitable for various home interiors. It includes four LED light sources, offering a total of 36 watts of illumination.

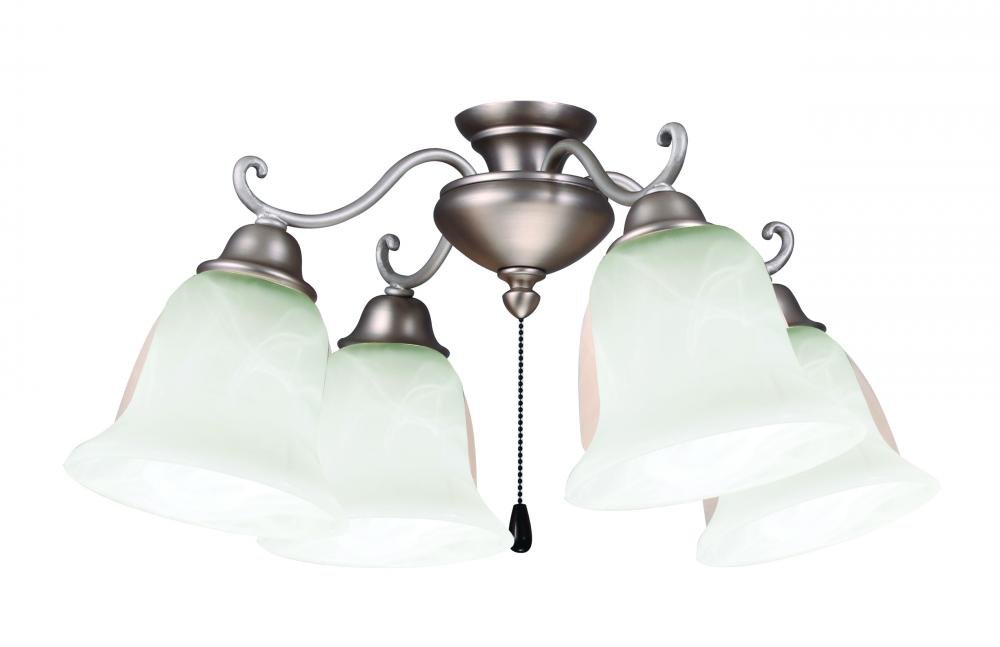

Image: Craftmade LK406-BN-LED Universal 4-Light Kit. This image displays the light kit featuring a brushed satin nickel base, four arms extending outwards, each holding an alabaster glass shade. The overall design is round and transitional.

Ciri-ciri Utama:

• Universal design for compatibility with various ceiling fans.
• Four integrated LED light sources for energy-efficient illumination.
• Brushed Satin Nickel finish for a modern, elegant appearance.
• Alabaster glass shades provide diffused, warm light.
• Designed for indoor, dry location use.
• Remote control compatibility for convenient operation.

Kandungan Pakej

Verify that all components are present before beginning installation. If any parts are missing or damaged, do not attempt to install the product. Contact customer support for assistance.

• Light Kit Assembly (LK406-BN-LED)
• Alabaster Glass Shades (4 pieces)
• Perkakasan Pemasangan (skru, pencuci, nat dawai)
• Arahan Pemasangan (manual ini)

Spesifikasi

Arahan Pemasangan

This light kit is designed for universal compatibility with most ceiling fans. Specific installation steps may vary slightly depending on your ceiling fan model. Always refer to your ceiling fan's instruction manual for specific wiring and mounting details.

1. Sediakan untuk Pemasangan:
   • Turn off power at the circuit breaker to avoid electrical shock.
   • Ensure the ceiling fan is securely mounted and capable of supporting the additional weight of the light kit.
2. Remove Existing Light Kit (if applicable):
   • Carefully disconnect any existing light kit from the ceiling fan.
   • Remove any mounting brackets or hardware associated with the old light kit.
3. Sambungan Pendawaian:
   • Identify the light kit wires (typically white for neutral, black for hot, and green/bare copper for ground).
   • Connect the light kit wires to the corresponding wires from the ceiling fan using the provided wire nuts. Ensure all connections are tight and secure.
   • Refer to your ceiling fan's manual for specific wiring color codes if unsure.
4. Mount the Light Kit:
   • Align the light kit with the mounting holes on the bottom of your ceiling fan.
   • Secure the light kit to the fan using the screws provided. Do not overtighten.
5. Pasang Lorek Kaca:
   • Carefully attach each alabaster glass shade to its respective light socket.
   • Ensure shades are securely fastened but do not overtighten to prevent cracking.
6. Pulihkan Kuasa:
   • Setelah pemasangan selesai dan semua sambungan diperiksa, pulihkan kuasa pada pemutus litar.
   • Test the light kit to ensure proper operation.

Arahan Operasi

The Craftmade LK406-BN-LED light kit is designed for simple operation, typically controlled via a wall switch or a compatible ceiling fan remote control.

• Operasi Suis Dinding: If connected to a dedicated wall switch, simply toggle the switch to turn the lights ON or OFF.
• Operasi Kawalan Jauh: If your ceiling fan system includes a remote control with light functions, use the designated light button(s) to control the light kit. Refer to your ceiling fan's remote control manual for specific button functions.

The integrated LED lights are not dimmable unless explicitly stated by your ceiling fan's control system and compatible dimmer. Using an incompatible dimmer may damage the LED components.

Penyelenggaraan

Regular maintenance ensures the longevity and optimal performance of your light kit.

• Pembersihan:
  • Before cleaning, ensure the power to the light kit is turned off at the circuit breaker.
  • Wipe the metal finish with a soft, dry cloth. Do not use abrasive cleaners or polishes, as they may damage the finish.
  • Clean glass shades with a mild glass cleaner and a soft cloth.
• Penggantian mentol:
  • This light kit features integrated LED light sources. These are designed for long operational life and are generally not user-replaceable.
  • If an LED light source fails prematurely, contact Craftmade customer support for assistance. Do not attempt to replace integrated LEDs yourself.

Menyelesaikan masalah

If you experience issues with your Craftmade LK406-BN-LED light kit, refer to the following common problems and solutions:

Maklumat Waranti

Semua produk yang dibeli mempunyai polisi alat ganti selama 30 hari untuk memastikan barang berfungsi sepenuhnya. Semua produk dilindungi di bawah jaminan 1 tahun apabila dibeli di Amazon. Tempoh jaminan bermula pada hari produk dihantar pada asalnya. Jaminan ini merangkumi semua barang dan syarat yang dikenal pasti dalam jaminan pengeluar asal. Antara barang yang tidak dilindungi secara khusus oleh jaminan adalah kehilangan dan kecurian, kerosakan air, penderaan pelanggan dan kemerosotan kemasan akibat pendedahan UV atau pantai.

Sokongan Pelanggan

For further assistance, missing parts, or warranty claims, please contact Craftmade customer support. Keep your purchase receipt and model number (LK406-BN-LED) readily available when contacting support.

Anda biasanya boleh mendapatkan maklumat hubungan pada pegawai pengilang webtapak atau melalui peruncit anda.
