Bio Bidet BB1000 Electric Bidet Toilet Seat User Manual

1. Produk Lebihview

The Bio Bidet BB1000 Electric Bidet Toilet Seat is designed to provide an enhanced personal hygiene experience. This elongated model features warm water washing, a warm air dryer, a heated seat, and a slow-closing lid. It is operated via a wireless remote control, offering customizable settings for water temperature, pressure, and nozzle position.

Key features include a 3-in-1 self-cleaning nozzle for various wash modes, a built-in deodorizer, and an energy-saving mode. The unit requires an electrical outlet for full functionality and is designed for easy, DIY installation.

2. Ciri-ciri

• Tekanan Air Boleh Laras: Equipped with an adjustable nozzle for personalized front and back wash.
• Unlimited Warm Water: Features adjustable temperature and an integrated warm air dryer for comfort.
• Luxury Amenities: Includes a heated, slow-close toilet seat, easy-to-use wireless remote control, and built-in bathroom deodorizer.
• Pemasangan Mudah: Requires electricity, can be DIY installed without a plumber, and includes all necessary parts and instructions.
• Versatile Cleansing: Ideal for various needs, including postpartum care, surgery recovery, and for seniors.
• 3-in-1 Nozzle: Provides Rear Wash, Front Wash, and Vortex Wash functions.
• Mod Penjimatan Tenaga: Helps reduce electricity consumption.
• Smart Seat Sensor: Bidet functions only activate when a user is seated.

Imej: Selesaiview of the Bio Bidet BB1000 features and remote control functions, including stop, rear wash, front wash, vortex wash, dry, pulse, move, and eco mode, along with water and seat temperature adjustments.

Image: The Bio Bidet BB1000 Smart Bidet installed on a toilet, emphasizing its heated seat, heated water, and warm air dryer capabilities.

3. Persediaan dan Pemasangan

The Bio Bidet BB1000 is designed for straightforward installation, typically not requiring a professional plumber. Ensure you have a 3-prong electrical outlet (GFCI recommended) in close proximity to the toilet. The power cord is approximately 3 feet in length and extends from the right rear of the unit when facing the toilet.

Langkah Pemasangan:

1. Turn off the water shut-off valve: Locate and close the water supply valve to your toilet.
2. Remove your existing toilet seat: Detach the current toilet seat and lid from the toilet bowl.
3. Install the catch plate: Secure the provided catch plate to the toilet using the bolts, washers, and nuts. Ensure it is properly aligned.
4. Slide the bidet seat on: Carefully slide the BB1000 bidet seat onto the installed catch plate until it clicks into place.
5. Connect the toilet and bidet hoses: Use the provided T-valve to connect the bidet hose to the toilet's water supply line. Ensure all connections are hand-tightened, then gently tighten with a wrench, being careful not to overtighten plastic components.
6. Plug the power cord: Connect the bidet's power cord into a GFCI electrical outlet.
7. Turn on the water supply: Slowly open the water shut-off valve to restore water flow to the toilet and bidet. Check for any leaks.

Nota Penting: The water feed on the unit is made of plastic. Exercise caution when connecting the metal threaded T-valve to avoid cross-threading or overtightening, which can cause damage.

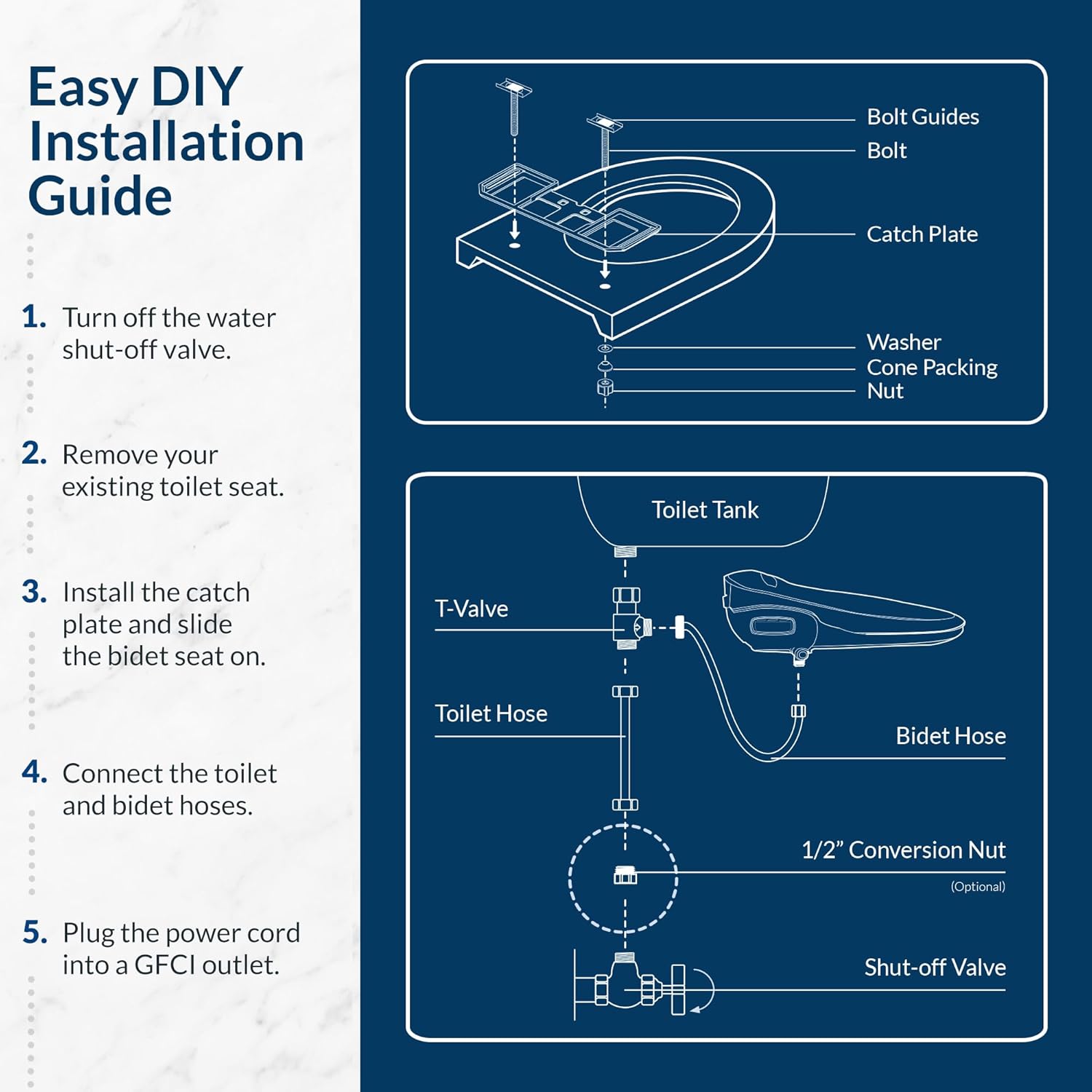

Image: An illustrated guide detailing the DIY installation process for the Bio Bidet BB1000, including attaching the catch plate, connecting water hoses with a T-valve, and plugging into an electrical outlet.

Image: Product dimensions for the elongated Bio Bidet BB1000, indicating it fits all elongated toilets, and a reminder that an electrical outlet is required for operation.

4. Operasi

The Bio Bidet BB1000 is operated using its wireless remote control. Ensure the remote has fresh batteries (2 AA batteries required, not included) and is within effective range of the bidet unit (typically within 20 inches of the unit's left side when facing the toilet).

Fungsi Kawalan Jauh:

• BERHENTI: Halts all active functions.
• BELAKANG: Initiates the rear wash function.
• DEPAN: Initiates the feminine wash function.
• VORTEX: Activates the high-pressure vortex wash.
• KERING: Starts the warm air drying cycle.
• nadi: Provides a pulsating water stream for massage.
• BERGERAK: Activates nozzle oscillation for a wider cleaning area.
• ECO: Engages the energy-saving mode.
• WATER TEMP: Melaraskan suhu air.
• SEAT TEMP: Adjusts the heated seat temperature (low, medium, high presets).
• WATER PRESSURE (+/-): Meningkatkan atau mengurangkan keamatan semburan air.
• NOZZLE POSITION (arrows): Adjusts the nozzle's forward or backward position.

The bidet functions are activated only when the seat sensor detects a user is seated. This ensures safe and efficient operation.

Image: Close-up of the Bio Bidet BB1000 wireless remote control, showing buttons for various wash modes, drying, temperature, pressure, and nozzle position adjustments.

5. Penyelenggaraan

Regular cleaning and proper care will ensure the longevity and optimal performance of your Bio Bidet BB1000.

Membersihkan Unit:

• Pembersihan Luaran: Lap permukaan luar dengan lembut, damp cloth. For stubborn spots, use a mild, non-abrasive cleaner.
• Pembersihan muncung: The 3-in-1 nozzle is self-cleaning. However, if manual cleaning is required, gently extend the nozzle and wipe it with a soft cloth or brush. Avoid harsh chemicals.
• Elakkan Bahan Kimia Keras: Do not use strong chemical cleaners, abrasive pads, or solvents (e.g., bleach, alcohol-based cleaners) on any part of the bidet seat, as these can damage the plastic and finish. Standard bathroom cleaners like Lysol or Clorox sprays can be used, but ensure surfaces are wiped dry immediately to prevent residue buildup.
• Removing the Seat for Cleaning: To remove the bidet seat for thorough cleaning, locate the tab on the right side bottom of the unit. Push this tab in and slide the BB1000 off the attachment point.

Penjagaan Am:

• Penjagaan Tudung: The lid is not designed to bear weight. Avoid sitting or standing on the lid to prevent damage and ensure safety.
• Penapis Air (jika berkenaan): Periodically check and clean or replace any inline water filters if your installation includes one.

6. Penyelesaian masalah

If you encounter issues with your Bio Bidet BB1000, refer to the following common troubleshooting tips:

• Tiada Kuasa/Unit Tidak Menghidupkan:
  • Ensure the power cord is securely plugged into a functional GFCI outlet.
  • Check your home's circuit breaker if the outlet is not receiving power.
  • Sahkan saluran keluar GFCI tidak tersandung. Tetapkan semula jika perlu.
• No Water Spray/Weak Water Pressure:
  • Confirm the toilet's water shut-off valve is fully open.
  • Check that the T-valve connection to the bidet hose is not kinked or obstructed.
  • Ensure the water supply to your home is active and at normal pressure.
• Alat Kawalan Jauh Tidak Menjawab:
  • Replace the AA batteries in the remote control.
  • Ensure the remote is held within approximately 20 inches of the bidet unit's left side (when facing the toilet) for optimal signal reception.
  • Remove any obstructions between the remote and the bidet unit.
• Kebocoran air:
  • Matikan bekalan air dengan segera.
  • Check all water connections (T-valve, bidet hose) for proper tightening. Ensure they are snug but not overtightened, especially plastic components.
  • Verify that all washers and seals are correctly in place.
• Heated Seat/Warm Water Not Working:
  • Ensure the unit is powered on and the seat sensor is engaged (you must be seated).
  • Check the temperature settings on the remote control.
  • Allow a few minutes for the water and seat to heat up after initial power-on or temperature adjustment.

7. Spesifikasi

8. Waranti dan Sokongan

The Bio Bidet BB1000 Electric Bidet Toilet Seat comes with a manufacturer limited warranty. This warranty covers purchases made by customers in the US and Canada for a period of 3 tahun dari tarikh pembelian.

For warranty claims, technical support, or further assistance, please contact Bio Bidet customer service. Refer to the official Bio Bidet webtapak atau pembungkusan untuk maklumat hubungan terkini.
