1. Pengenalan
This manual provides detailed instructions for the proper installation and use of the Green Valley 156209 Montage Kit. This kit is designed to securely attach Green Valley Original base supports (sold separately) to the designated mounting points on compatible vehicles. Please read these instructions carefully before proceeding with installation to ensure safety and correct assembly.
2. Kandungan Pakej
Before beginning installation, verify that all components listed below are present in your package:
- Mounting brackets (various shapes and sizes as shown in product image)
- Fasteners (screws/bolts)
- Matching Allen keys for fasteners
- Detailed assembly instructions (this document)
Rajah 1: Berakhirview of the Green Valley 156209 Montage Kit components. This image displays all the various brackets, clips, and fasteners included in the kit, laid out against a white background. The components are black plastic and metal, designed for securing roof rack base supports.
3. Kenderaan yang Serasi
This Green Valley 156209 Montage Kit is specifically designed for the following vehicle models:
- PEUGEOT Partner: 06/1996 - 12/2007
- Citroen Xsara Picasso I: from 12/1999 onwards
- Citroen Berlingo: 07/1996 - 06/2008
Ensure your vehicle has the designated mounting options on the roof as depicted in the installation diagrams.
4. Persediaan dan Pemasangan
The mounting kit is required to attach the Green Valley Original base support (e.g., 156512 steel or 156612 aluminum, sold separately) to your vehicle's roof. Follow these steps carefully:
- Kenal pasti Titik Pelekap: Locate the designated mounting points on your vehicle's roof. These are typically covered by small flaps or covers.
- Prepare Mounting Point: Open or remove the cover from the vehicle's mounting point.
- Install Kit Bracket: Place the appropriate mounting bracket from the 156209 kit onto the vehicle's mounting point. Ensure it sits flush and securely.
- Attach Base Support Foot: Position the foot of your Green Valley Original base support over the installed kit bracket. Align the holes.
- Secure Base Support: Use the provided fasteners and Allen keys to securely attach the base support foot to the kit bracket and the vehicle's mounting point. Tighten all fasteners firmly, but do not overtighten.
- Repeat for all Mounting Points: Repeat steps 1-5 for all four mounting points on your vehicle's roof to ensure the base supports are evenly and securely installed.

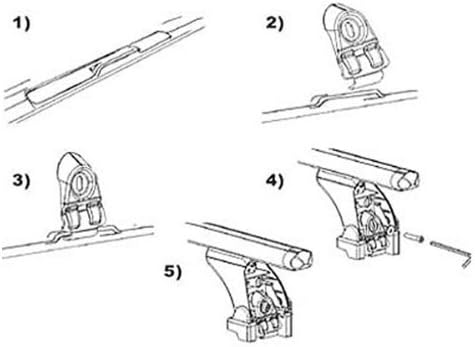

Rajah 2: Step-by-step installation diagram for the mounting kit. This diagram illustrates the process of attaching the mounting kit to the vehicle's roof and subsequently securing the roof rack base support. It shows the roof channel (1), the kit bracket being inserted (2, 3), and the base support foot being attached and fastened (4, 5).
Nota Penting: This kit is an intermediary component. It requires a separate Green Valley Original base support (e.g., model 156512 or 156612) to form a complete roof rack system. This kit cannot be used independently as a roof rack.
5. Pertimbangan Penggunaan
Once the Green Valley 156209 Montage Kit and the corresponding Green Valley Original base supports are correctly installed, observe the following:
- Kapasiti Muatan: Always adhere to the maximum load capacity specified by your vehicle manufacturer and the Green Valley base support manual. Do not exceed these limits.
- Pengagihan Berat: Distribute any load evenly across the base supports to maintain vehicle stability.
- Muatan Selamat: Ensure all items placed on the roof rack are securely fastened to prevent movement during transit.
- Kelakuan Memandu: Adjust your driving speed and style, especially when carrying loads, as the vehicle's center of gravity and aerodynamics will change.
6. Penyelenggaraan
Regular maintenance helps ensure the longevity and safety of your Green Valley 156209 Montage Kit and roof rack system:
- Pemeriksaan Berkala: Regularly check all fasteners and mounting points for tightness. Retighten if necessary.
- Kebersihan: Keep the components clean from dirt, road salt, and debris. Use mild soap and water for cleaning.
- Semakan Kerosakan: Inspect all components for signs of wear, corrosion, or damage. Replace any damaged parts immediately.
- Penyingkiran Bermusim: If the roof rack is not in use for extended periods, consider removing it to reduce wind noise and improve fuel efficiency.
7. Penyelesaian masalah
Jika anda menghadapi masalah semasa pemasangan atau penggunaan, pertimbangkan perkara berikut:
- Loose Fit: If the kit components or base supports feel loose after installation, re-check all fasteners to ensure they are tightened correctly. Refer to the installation steps.
- Incorrect Alignment: If the base supports do not align properly, verify that the correct kit brackets are used for each specific mounting point and that they are oriented correctly.
- Bahagian yang hilang: If any parts are missing from the package, contact your retailer or Green Valley customer support.
- Isu Keserasian: Double-check that your vehicle model and year are listed in the compatible vehicles section of this manual. This kit is not universal.
8. Spesifikasi
| Atribut | Perincian |
|---|---|
| Nombor Model | 156209 |
| Jenama | Lembah Hijau |
| Pengeluar | Aurilis Group |
| Berat Barang | 1.94 paun (0.88 kg) |
| Dimensi Produk | 3.15 x 7.87 x 7.87 inci (8 x 20 x 20 cm) |
| Keserasian | Citroen Berlingo (07/1996-06/2008), Citroen Xsara Picasso I (from 12/1999), Peugeot Partner (06/1996-12/2007) |
9. Maklumat Waranti
Warranty details for the Green Valley 156209 Montage Kit are not provided within this instruction manual. Please refer to the original product packaging, the Green Valley official website, or contact your point of purchase for specific warranty terms and conditions.
10. Sokongan Pelanggan
For technical assistance, missing parts, or further inquiries regarding the Green Valley 156209 Montage Kit, please contact the retailer where the product was purchased or refer to the official Green Valley website for customer service contact information. This manual does not contain direct customer support contact details.
