1. Arahan Keselamatan
Please read all safety instructions carefully before using the projector screen. Retain this manual for future reference.
- Do not expose the screen to direct sunlight for extended periods, as this may cause damage to the screen material.
- Keep the screen away from heat sources, open flames, and excessive moisture.
- Avoid contact with sharp objects to prevent punctures or tears in the screen surface.
- Handle the screen with care during setup and transport to prevent accidental damage.
- Ensure the screen is placed on a stable, flat surface to prevent tipping.
- Do not attempt to disassemble or modify the screen mechanism. Refer to qualified personnel for repairs.
2. Kandungan Pakej
Sahkan bahawa semua komponen ada dan tidak rosak semasa membongkar.
- celexon 50" Tabletop Projector Screen Unit
- Manual Pengguna
3. Arahan Persediaan
Follow these steps to set up your celexon tabletop projector screen:
- Letakkan Unit: Position the compact screen casing on a stable, flat surface such as a table or desk. Ensure there is enough clear space for the screen to extend.
- Extend the Feet: Locate the retractable feet at the bottom of the screen casing. Gently pull them out to provide a stable base for the screen.
- Open the Latch: Find the latch mechanism on the top of the casing. Release it to allow the screen to be pulled upwards.
- Raise the Screen: Carefully pull the screen upwards from the casing. The screen will automatically lock into position at the desired height. The internal scissor mechanism (visible from the back) provides support.
- Laraskan Viewing Angle (Optional): Ensure the screen is perpendicular to the projector for optimal image quality.
Imej: Belakang view of the screen showing the extended support mechanism. This mechanism ensures stability when the screen is fully deployed.
Image: Dimensional diagram of the screen, indicating a 40x30 inch viewing area and a 50-inch diagonal. The overall height is 33 inches.
4. Operating the Projector Screen
Once set up, the screen is ready for use with your projector.
- Unjuran: Position your projector to cast the image onto the screen. Adjust the projector's focus and keystone correction for a clear, rectangular image.
- Viewsudut: The screen is designed for front projection. Optimal viewing is achieved when seated directly in front of the screen.
- Retracting the Screen: To retract, gently press the release button (if present) or slightly pull the screen further up to disengage the locking mechanism, then slowly guide it back into the casing. Ensure it retracts smoothly to prevent damage.
5. Penyelenggaraan dan Penjagaan
Proper maintenance ensures the longevity and performance of your projector screen.
- Cleaning the Screen Surface: Gunakan yang lembut, damp cloth with mild soap and water to gently wipe the screen surface. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the screen material. Allow the screen to air dry completely before retracting.
- Membersihkan Casing: Lap penutup aluminiumasing dengan kering atau sedikit damp kain.
- Storan: When not in use, retract the screen fully into its casing. Store the screen in a dry, cool place, away from direct sunlight and extreme temperatures.
- Pengangkutan: Utilize the integrated handle for easy and secure transport.

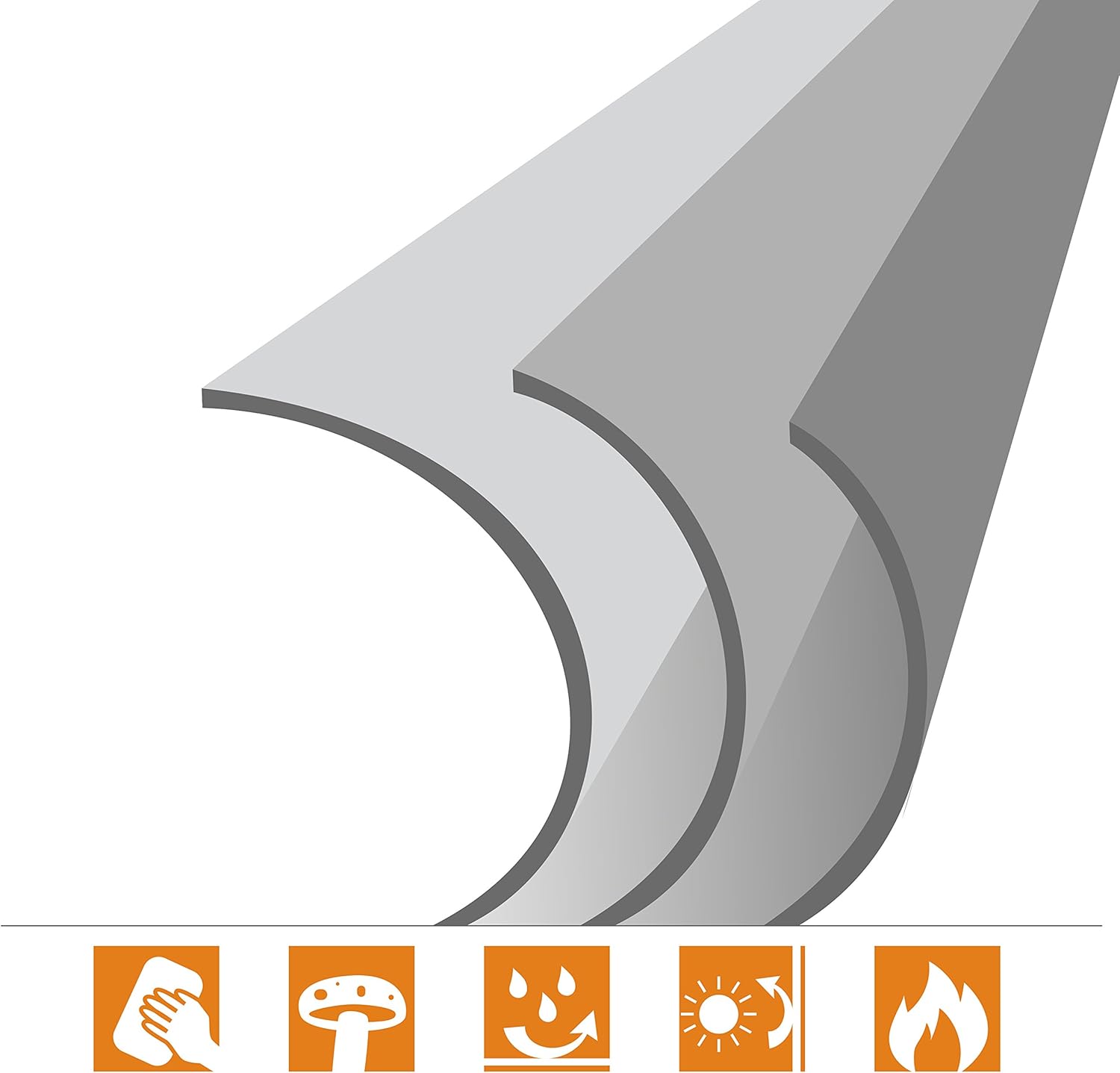

Image: Icons illustrating key features of the screen material, including easy cleaning, mold resistance, water resistance, light resistance, and fire resistance.
Image: The compact casing of the projector screen, highlighting the integrated carrying handle and the secure latch mechanism for transport.
6. Penyelesaian masalah
Rujuk bahagian ini untuk penyelesaian kepada isu biasa.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Screen does not extend or retract smoothly. | Mechanism obstruction or improper handling. | Ensure no objects are blocking the mechanism. Gently pull or push the screen. Do not force it. If the issue persists, contact support. |
| Image appears distorted or blurry. | Projector settings or screen positioning. | Adjust your projector's focus, keystone correction, and zoom settings. Ensure the projector is aligned squarely with the screen. |
| Screen surface has minor wrinkles or creases. | Improper storage or manufacturing variation. | Minor creases often smooth out with use. Ensure proper storage. Avoid folding or creasing the screen material. |
7. Spesifikasi Produk
| Ciri | Perincian |
|---|---|
| Nombor Model | 1090377 |
| Pepenjuru Skrin | 50 inci (127 cm) |
| Viewing Area (W x H) | 40 x 30 inci (102 x 76 cm) |
| Nisbah Aspek | 4:3 |
| Bahan Skrin | Matte white with black border and black back |
| Casing Bahan | aluminium |
| Berat Barang | 6.61 paun (3.5 kg) |
| Dimensi Produk (dilipat) | 33.07 x 1.77 x 3.54 inci (84 x 4.5 x 9 cm) |
| Jenis Pemasangan | Lekap Meja |
8. Waranti dan Sokongan
This celexon projector screen is covered by a standard manufacturer's warranty against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the documentation provided at the time of purchase or contact celexon customer support.
For technical assistance, troubleshooting, or warranty claims, please visit the official celexon webtapak atau hubungi bahagian perkhidmatan pelanggan mereka. Maklumat hubungan biasanya boleh didapati pada pembungkusan produk atau rasmi jenama webtapak.
