Classic Cantabile TT-500 Pocket Trumpet

pengenalan

The Classic Cantabile TT-500 Pocket Trumpet is a compact brass instrument designed for portability and ease of use, suitable for beginners and experienced musicians alike. Its unique design allows for a full trumpet sound in a smaller form factor. This manual provides essential information for the proper setup, operation, maintenance, and care of your instrument.

Imej: Depan view of the Classic Cantabile TT-500 Pocket Trumpet, showcasing its compact design and gold finish.

Persediaan

1. Membongkar dan Pemeriksaan Awal

Upon receiving your Classic Cantabile TT-500 Pocket Trumpet, carefully unpack all components. The package should include:

• One (1) Classic Cantabile TT-500 Pocket Trumpet
• One (1) Mouthpiece
• One (1) Hard Case

Inspect the instrument for any visible damage that may have occurred during shipping. Ensure all valves move freely and slides can be pulled out smoothly. If any issues are found, contact your retailer immediately.

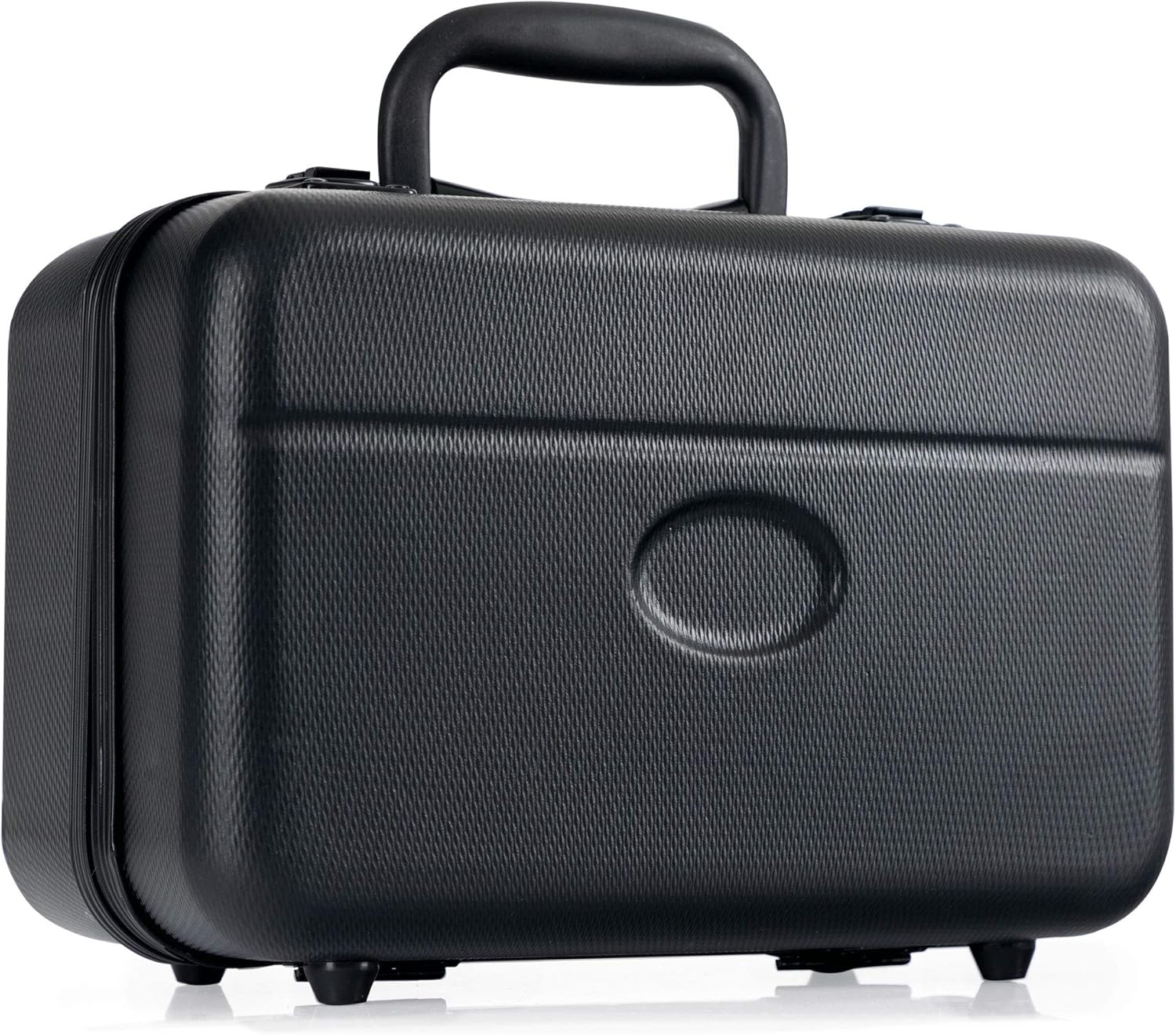

Image: The rugged hard case provided for safe transport and storage of the pocket trumpet.

2. Memasang Corong Mulut

Gently insert the mouthpiece into the receiver at the end of the leadpipe. Do not force it. A slight twist while pushing will help secure it without getting stuck.

3. Initial Lubrication

Before first use, it is crucial to lubricate the valves and slides:

1. Injap: Unscrew each valve cap and carefully pull out the valve. Apply a few drops of high-quality valve oil evenly around the valve casing. Reinsert the valve, aligning the guide key with the slot in the casing, and screw the cap back on. Depress the valve a few times to distribute the oil.
2. Slaid: Pull out each tuning slide and valve slide. Apply a thin layer of slide grease to the inner tubes of the slides. Reinsert the slides, twisting slightly to ensure even distribution and an airtight seal.

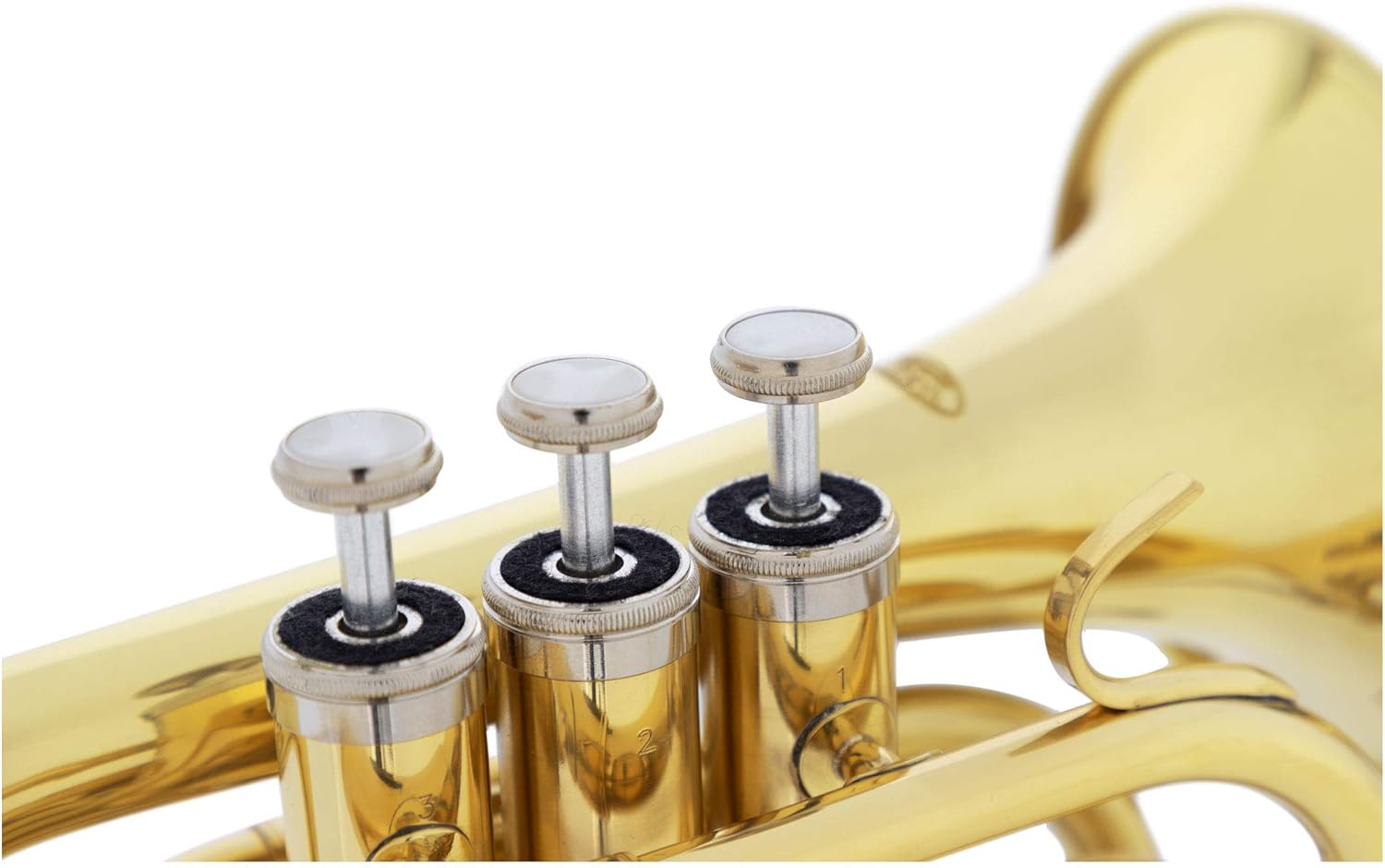

Imej: Jarak dekat view of the three valves on the pocket trumpet, showing the valve caps and pistons.

Beroperasi

1. Holding the Instrument

Pegang trompet dengan tangan kiri anda yang menyokong injap casing and the first valve slide. Your right hand should rest gently on the valve caps, with your fingertips positioned over the center of each valve button.

2. Embouchure and Sound Production

Form a firm but relaxed embouchure by buzzing your lips into the mouthpiece. Take a deep breath and blow air through the mouthpiece, allowing your lips to vibrate. Experiment with lip tension and air speed to produce different pitches.

3. Kendalian Injap

The three valves are used to change the length of the air column, thereby altering the pitch. Depressing a valve opens an additional length of tubing. Combinations of valves produce different notes. Refer to standard trumpet fingering charts for specific notes.

Penjagaan dan Penyelenggaraan

Regular maintenance is essential to ensure the longevity and optimal performance of your trumpet.

1. Daily Care

• After each playing session, remove the mouthpiece and wipe it clean.
• Empty any condensation (water) from the water keys.
• Wipe down the exterior of the trumpet with a soft, lint-free cloth to remove fingerprints and moisture.

2. Penyelenggaraan Mingguan

• Injap: Re-oil the valves as described in the Setup section. Ensure they move freely and quietly.
• Slaid: Re-grease the tuning and valve slides to maintain smooth movement and an airtight seal.

3. Monthly Cleaning (or as needed)

A more thorough cleaning helps prevent buildup and ensures proper function.

1. Disassemble all slides and valves.
2. Using a trumpet snake brush and mild soap (e.g., dish soap) with lukewarm water, clean the inside of all tubing and valve casings. Rinse thoroughly.
3. Clean the mouthpiece with a mouthpiece brush.
4. Dry all parts completely before reassembling. Use a soft cloth for the exterior and allow interior parts to air dry.
5. Re-lubricate valves and slides before reassembly.

Image: Close-up of the trumpet's bell and the intricate tubing of the tuning slides, highlighting the brass finish.

Menyelesaikan masalah

• Sticking Valves:
  Penyelesaian: This is usually caused by insufficient lubrication or dirt buildup. Remove the valve, clean it and its casing thoroughly, then re-oil generously. Ensure the valve is inserted correctly, aligning the guide key.
• Slides are Difficult to Move:
  Penyelesaian: The slides may be dry or have old grease buildup. Pull out the slide, wipe off old grease, clean the inner and outer tubes, then apply fresh slide grease.
• Difficulty Producing Sound:
  Penyelesaian: Check your embouchure and air support. Ensure the mouthpiece is clean and free of obstructions. Verify that no water is trapped in the tubing by emptying the water keys.
• Intonasi yang lemah:
  Penyelesaian: Intonation can be affected by many factors, including embouchure, air support, and the instrument's temperature. Use the main tuning slide to adjust the overall pitch. For individual notes, adjust valve slides as needed. Regular practice helps develop consistent intonation.

Spesifikasi

Penyimpanan

When not in use, always store your Classic Cantabile TT-500 Pocket Trumpet in its provided hard case. This protects the instrument from dust, damage, and temperature fluctuations. Ensure the instrument is clean and dry before placing it in the case.

Waranti dan Sokongan

For information regarding warranty coverage, terms, and conditions, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support or service inquiries, please consult the manufacturer's official webtapak atau hubungi bahagian perkhidmatan pelanggan mereka.
