Manual Pengguna Jam Tangan Kronograf Fossil CH2652

1. Pengenalan

Thank you for choosing the Fossil CH2652 Chronograph Watch. This manual provides detailed instructions to help you understand the features, set up, operate, and maintain your timepiece. Please read this manual carefully to ensure proper use and longevity of your watch.

2. Produk Lebihview

The Fossil CH2652 is a men's chronograph watch featuring a black dial, a durable black leather strap, and a robust stainless steel case. It is designed for both style and functionality, incorporating a precise quartz movement and chronograph capabilities.

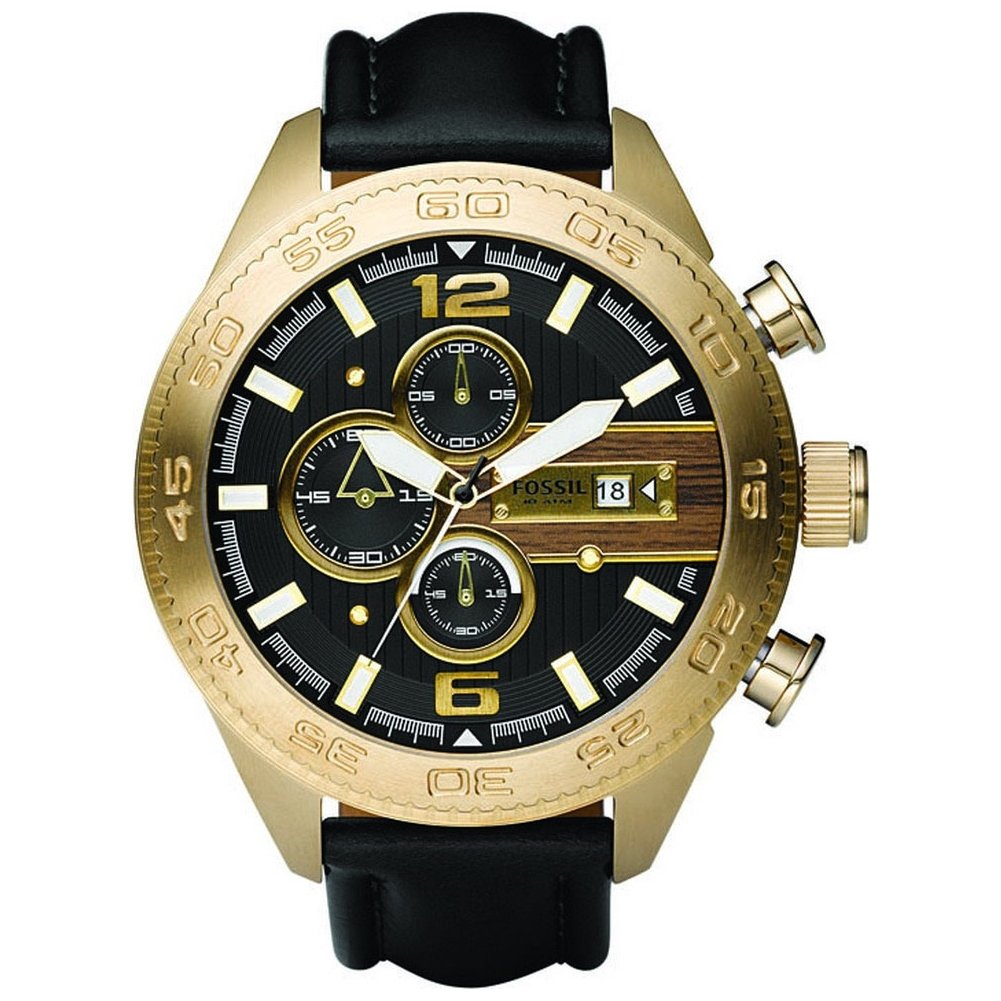

Imej yang menunjukkan bahagian hadapan view of the Fossil CH2652 chronograph watch with a black dial and black leather strap.

Komponen Utama:

• Mahkota: Digunakan untuk menetapkan masa dan tarikh.
• Penolak (A & B): Mengendalikan fungsi kronograf.
• Jam, Minit, Jarum Saat: Indicate current time.
• Sub-dail Kronograf: Ukur masa berlalu.
• Tetingkap Tarikh: Memaparkan tarikh semasa.

3. Persediaan

3.1. Menetapkan Masa

1. Pull the crown out to position 2 (farthest out). The second hand will stop.
2. Turn the crown clockwise or counter-clockwise to set the hour and minute hands to the desired time. Ensure the AM/PM is correctly set if your watch has a 24-hour indicator or date change mechanism.
3. Push the crown back into position 0 (normal position). The second hand will resume movement.

3.2. Menetapkan Tarikh

1. Tarik mahkota keluar ke kedudukan 1 (kedudukan tengah).
2. Turn the crown clockwise to set the date. Avoid setting the date between 9 PM and 3 AM, as this may damage the date mechanism.
3. Setelah tarikh yang betul dipaparkan, tolak mahkota kembali ke kedudukan 0.

3.3. Melaraskan Tali

The leather strap features a buckle closure. Adjust the strap by inserting the pin into the appropriate hole for a comfortable and secure fit on your wrist. The watch should be snug but not overly tight.

4. Arahan Operasi

4.1. Basic Timekeeping

Once the time and date are set, the watch will continuously display the current time. The quartz movement ensures accurate timekeeping.

4.2. Using the Chronograph Function

Fungsi kronograf membolehkan anda mengukur masa berlalu secara bebas daripada paparan masa utama.

1. Mulakan: Press pusher A (top pusher) to start the chronograph. The chronograph second hand and sub-dials will begin to move.
2. Berhenti: Press pusher A again to stop the chronograph. The elapsed time will be indicated by the chronograph hands on the sub-dials.
3. Tetapkan semula: After stopping the chronograph, press pusher B (bottom pusher) to reset all chronograph hands to their zero positions.
4. Masa Pemisahan (jika berkenaan): Some chronographs allow for split time measurement. Consult specific model details if this feature is present.

5. Penyelenggaraan

5.1. Membersihkan Jam Tangan Anda

• Lap bekas jam tangan dan kristal dengan kain lembut dan kering.
• Untuk tali kulit, elakkan pendedahan berpanjangan kepada air, cahaya matahari langsung dan bahan kimia yang keras untuk mengelakkan kerosakan dan perubahan warna. Bersihkan dengan sedikit cecair.amp kain dan biarkan kering.
• Do not use chemical cleaners or abrasive materials, as these can damage the watch's finish.

5.2. Tahan Air

The Fossil CH2652 watch has a water resistance depth of 100 meters (10 ATM). This means it is suitable for showering, swimming, and snorkeling. However, it is bukan suitable for high-impact water sports or diving.

• Ensure the crown is fully pushed in before any contact with water.
• Do not operate the pushers or crown while the watch is wet or submerged.
• Selepas terdedah kepada air masin, bilas jam tangan dengan air tawar dan keringkannya dengan teliti.

5.3. Penggantian Bateri

The watch is powered by a quartz battery. When the watch stops or the second hand begins to skip, it indicates a low battery. Battery replacement should be performed by a qualified watch technician to ensure proper sealing and water resistance.

6. Penyelesaian masalah

6.1. Watch Not Running

• Check Crown: Ensure the crown is fully pushed into position 0.
• Bateri: The battery may be depleted. Refer to section 5.3 for battery replacement.
• Kesan: If the watch has sustained a significant impact, internal components may be damaged. Seek professional service.

6.2. Time Inaccurate

• Bateri: A low battery can affect accuracy. Replace the battery if needed.
• Kemagnetan: Exposure to strong magnetic fields can affect quartz watch accuracy. If suspected, demagnetization by a professional may be required.
• Ralat Tetapan: Re-set the time carefully as per section 3.1.

6.3. Chronograph Hands Not Resetting to Zero

If the chronograph hands do not return to their zero position after pressing pusher B, they may need calibration. This usually involves pulling the crown out to position 2 and using the pushers to manually adjust the chronograph hands back to zero. Consult a professional if you are unsure.

7. Spesifikasi

8. Maklumat Waranti

This Fossil CH2652 watch comes with a Manufacturer's Warranty. The warranty typically covers manufacturing defects in materials and workmanship under normal use. It generally does not cover:

• Battery, crystal, strap, or case.
• Kerosakan yang disebabkan oleh pengendalian yang tidak betul, kekurangan penjagaan, kemalangan, atau keausan normal.
• Water damage if the watch was not used according to the water resistance guidelines.

For specific terms and conditions of your warranty, please refer to the warranty card included with your purchase or visit the official Fossil webtapak.

9. Sokongan

Should you require further assistance, service, or have questions not covered in this manual, please contact Fossil customer support. You can find contact information on the official Fossil webtapak atau melalui peruncit sah anda.

Pengeluar: FOSSIL INDIA PVT LTD

Webtapak: www.fossil.com (Sila semak untuk wilayah anda website for specific support details).
