Ives WS11 Heavy Duty Cast Brass Rigid Wall Door Stop User Manual

pengenalan

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Ives WS11 Heavy Duty Cast Brass Rigid Wall Door Stop. Designed for durability and effective door protection, this wall-mounted door stop is suitable for various residential and commercial applications. Please read all instructions carefully before installation and use.

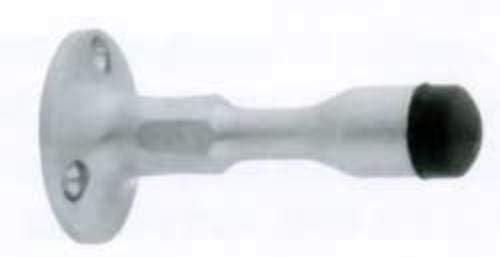

Image: The Ives WS11 Heavy Duty Cast Brass Rigid Wall Door Stop, featuring a satin chrome finish. The door stop consists of a circular mounting base with two screw holes, a rigid cylindrical shaft, and a black rubber bumper at the end designed to absorb impact from a door.

Persediaan dan Pemasangan

The Ives WS11 door stop is designed for drywall mounting. Proper installation is crucial for its effectiveness and longevity.

Alat yang Diperlukan:

• Pensel
• Pita Pengukur
• Drill with appropriate drill bit (size depends on anchor/screw type)
• Screwdriver (Phillips or flathead, depending on screw type)
• Wall Anchors (if not included and mounting into drywall)
• Level (optional, for precise alignment)

Langkah Pemasangan:

1. Tentukan Lokasi Pemasangan: Identify the point on the wall where the door handle or door edge will make contact when fully open. Ensure the door stop will prevent the door from hitting any obstacles or damaging the wall.
2. Tandai Lubang Gerudi: Hold the door stop's mounting base against the wall at the desired location. Use a pencil to mark the positions of the two screw holes.
3. Gerudi Lubang Juruterbang: Using the appropriate drill bit for your wall anchors (if used) or screws, carefully drill pilot holes at the marked locations. For drywall, it is highly recommended to use suitable drywall anchors for secure mounting.
4. Masukkan Sauh Dinding (jika berkenaan): If using wall anchors, insert them into the drilled pilot holes according to the anchor manufacturer's instructions.
5. Mount the Door Stop: Align the door stop's mounting base with the pilot holes (or anchors). Insert the screws through the mounting holes and tighten them securely with a screwdriver. Do not overtighten, as this can damage the wall or the door stop.
6. Kefungsian Ujian: Gently open the door to ensure it makes proper contact with the rubber bumper of the door stop and is prevented from hitting the wall.

Arahan Operasi

The Ives WS11 door stop operates passively. Its function is to provide a fixed point of contact to prevent a door from opening beyond a desired limit, protecting both the door and the wall from impact damage. No active user interaction is required for its operation once installed.

Penyelenggaraan

Regular maintenance will ensure the longevity and continued effectiveness of your door stop.

• Pembersihan: Periodically wipe the door stop with a soft, damp cloth to remove dust and grime. For the satin chrome finish, avoid abrasive cleaners or harsh chemicals that could damage the surface.
• Periksa Keketatan: Occasionally check the mounting screws to ensure they remain tight. If the door stop feels loose, gently tighten the screws. Do not overtighten.
• Inspect Bumper: Inspect the rubber bumper for any signs of wear, cracking, or damage. While designed for durability, extreme impact or age may cause degradation.

Menyelesaikan masalah

If you encounter issues with your door stop, consider the following:

• Door Stop is Loose:
  • Check if the mounting screws are loose. Tighten them carefully.
  • If the screws are stripped or the wall anchors are failing, you may need to replace the anchors with larger ones or relocate the door stop slightly.
• Door Still Hits Wall/Obstacle:
  • The door stop may be installed in the wrong location. Re-evaluate the optimal placement to ensure it intercepts the door effectively before impact.
  • Ensure the rubber bumper is intact and providing sufficient cushioning.

Spesifikasi

Maklumat Waranti

Specific warranty terms and conditions for the Ives WS11 door stop are provided by the manufacturer. Please refer to the product packaging or contact Ives customer support directly for detailed warranty information.

Sokongan Pelanggan

For further assistance, technical support, or inquiries regarding your Ives WS11 door stop, please contact the manufacturer, Ives, through their official website or customer service channels. Always provide your product model number (WS1126D) when seeking support.
