Kraus KBU23

Kraus KBU23 32-Inch Undermount 70/30 Double Bowl 16 Gauge Stainless Steel Kitchen Sink

Manual Arahan

1. Produk Lebihview

The Kraus KBU23 is a 32-inch undermount kitchen sink featuring a 70/30 double bowl configuration. Constructed from durable 16-gauge T304 stainless steel, this sink is designed for longevity and resistance to daily wear. It includes sound-absorbing pads to minimize noise and vibration, and a commercial-grade satin finish for a sleek appearance.

Kraus KBU23 32-inch undermount 70/30 double bowl stainless steel kitchen sink installed in a countertop.
Figure 1: Kraus KBU23 Double Bowl Stainless Steel Sink

Key features of the KBU23 sink include:

Diagram illustrating Kraus KBU23 sink features: 16 gauge steel, sound dampening, T304 stainless steel, and rear-set drain.
Figure 2: KBU23 Sink Quality Features
Diagram showing the gently sloped bottom of the Kraus KBU23 sink for superior drainage.
Figure 3: Engineered for Easy Draining

2. Pemasangan dan Persediaan

2.1 Keperluan Kabinet

For proper undermount installation, the minimum interior cabinet width must be equal to or greater than the sink rim edge width plus 3 inches. The KBU23 sink requires a minimum cabinet size of 36 inches.

Guide on how to measure cabinet for undermount sink installation, showing interior cabinet width, sink rim edge, and standard cabinet depth.
Figure 4: Cabinet Measurement for Undermount Sink

2.2 Komponen yang Disertakan

The Kraus KBU23 sink package includes the following items necessary for installation and use:

Note: Garbage disposal flange and stopper kit must be purchased separately.

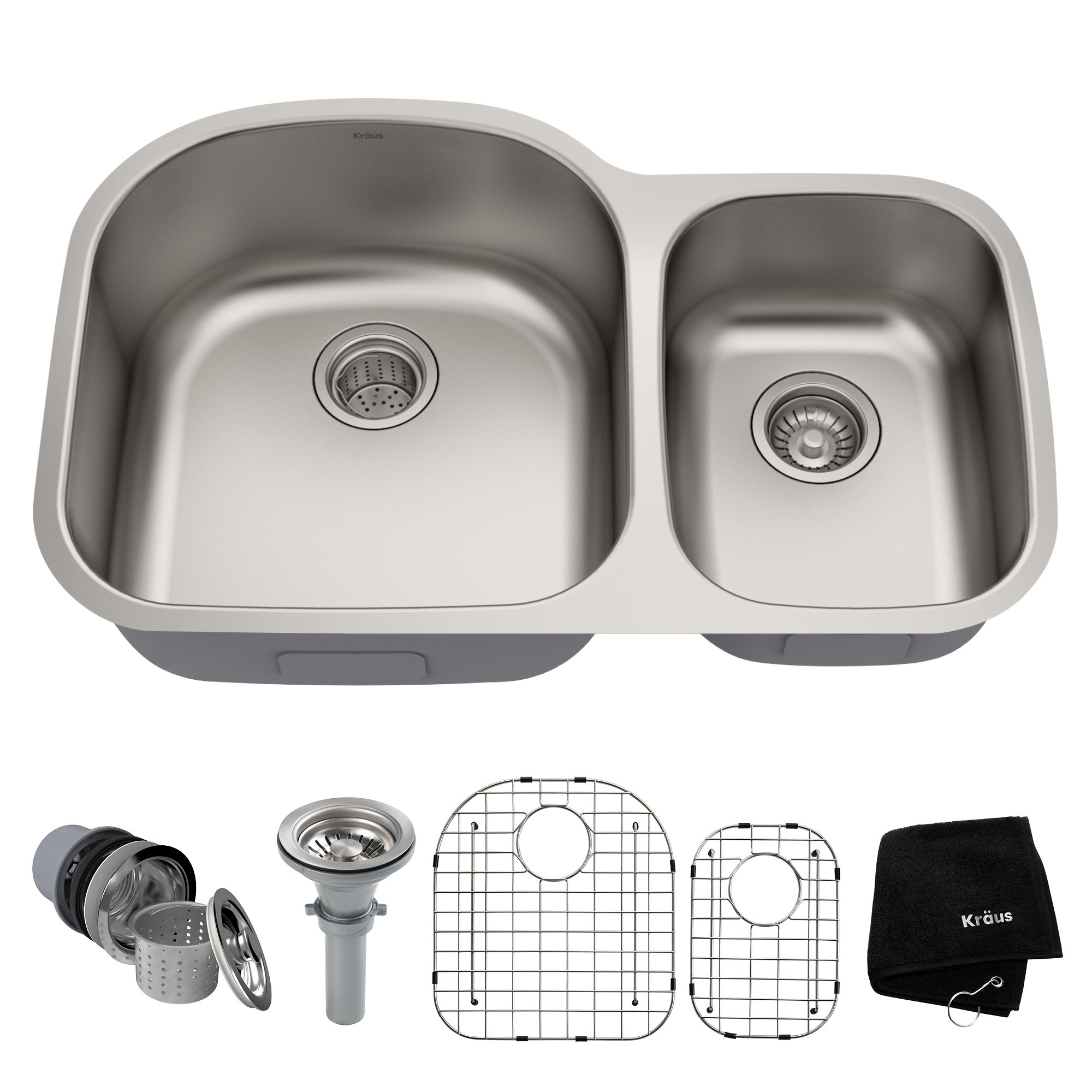

Image showing included kitchen accessories: two bottom grids, basket strainer, standard strainer, Kraus towel, and mounting hardware.
Figure 5: Included Kitchen Accessories

3. Mengendalikan Singki Anda

The KBU23 features a 70/30 double bowl design, offering versatile workspace for various kitchen tasks. The larger bowl is ideal for washing larger pots and pans, while the smaller bowl can be used for food preparation or as a dedicated space for utensils. The deep bowls provide ample capacity for stacking dishes.

Technical drawing of Kraus KBU23 sink dimensions, including length 32 3/8 inches, width 20 1/2 inches, depth 9 inches, and minimum cabinet size 36 inches.
Figure 6: Sink Dimensions and Capacity

The included bottom grids protect the sink's surface from scratches and allow water to drain freely, preventing items from sitting directly in standing water. The basket strainer and standard strainer effectively catch food debris, preventing clogs in your plumbing system.

4. Penjagaan dan Penyelenggaraan

Proper care and maintenance will help preserve the appearance and longevity of your Kraus stainless steel sink.

4.1 Penjagaan Harian

4.2 Deeper Cleaning

Instructions for daily care and deeper cleaning of the Kraus stainless steel sink, recommending mild detergents and avoiding abrasive cleaners.
Figure 7: Care & Maintenance Guidelines

5. Penyelesaian masalah

This section addresses common issues you might encounter with your kitchen sink. For more complex problems, please contact Kraus customer support.

5.1 Water Spots or Stains

5.2 Scratches

5.3 Saliran Perlahan

6. Spesifikasi

CiriPerincian
Nombor ModelKBU23
Dimensi Keseluruhan (L x W x H)32.37" x 20.5" x 10"
Large Bowl Dimensions (L x W x H)17.75" x 18.5" x 9"
Small Bowl Dimensions (L x W x H)10.5" x 16" x 7"
Saiz Kabinet Minimum36 inci
bahanKeluli Tahan Karat T304
TolokTolok 16
Jenis PemasanganKekurangan
Jenis SelesaiSatin
Bilangan Basins2 (70/30 Split)
Berat Barang17.4 paun
PensijilanUPC, cUPC, CSA, IAPMO, ANSI, SCC

7. Maklumat Waranti

The Kraus KBU23 kitchen sink is covered by a Waranti Seumur Hidup Terhad. This warranty covers defects in material and manufacturing under normal use. For specific terms, conditions, and to make a warranty claim, please refer to the official Kraus warranty documentation or contact Kraus customer service directly.

8. Sokongan Pelanggan

Should you have any questions, require technical assistance, or need to report an issue with your Kraus KBU23 sink, please contact Kraus customer support. You can typically find contact information on the official Kraus website or within the packaging materials provided with your product.

For the most up-to-date support resources, visit the official Kraus webtapak: www.kraususa.com
