La Pavoni Pub 1V-B Electronic Programmable Dosing Espresso Machine

pengenalan

This manual provides detailed instructions for the installation, operation, and maintenance of your La Pavoni Pub 1V-B Electronic Programmable Dosing Espresso Machine. Please read all instructions carefully before using the appliance to ensure safe and efficient operation.

The La Pavoni Pub 1V-B is a 1-group volumetric espresso machine designed for consistent performance, featuring a digital control pad and microprocessor for precise dosing. It incorporates thermal stability for consistent brewing temperatures and a pre-infusion system for balanced espresso shots.

Persediaan

1. Membongkar dan Meletakkan

Carefully remove the espresso machine from its packaging. Ensure all packing materials are removed. Place the machine on a stable, level surface capable of supporting its weight (Net 88lb / Gross 110lb). Allow adequate space around the machine for ventilation and access for operation and maintenance.

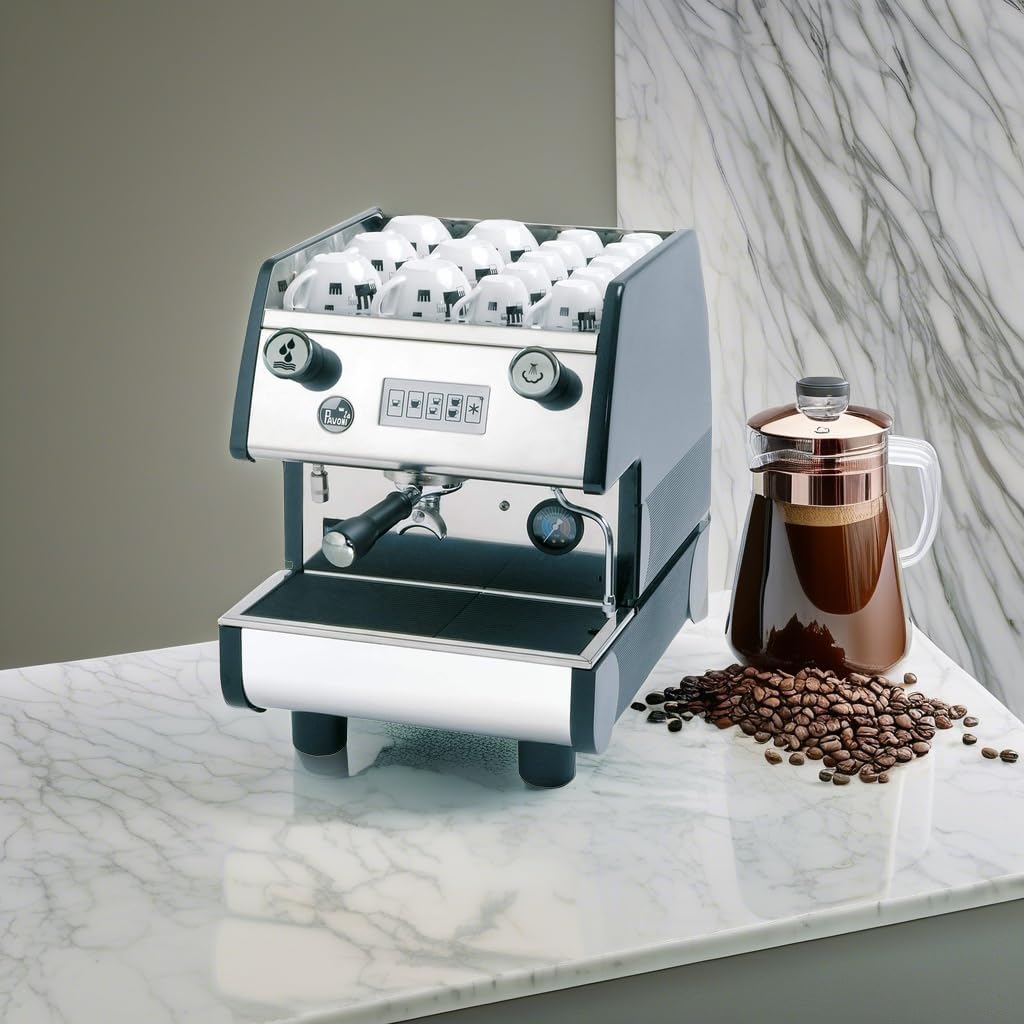

Image: The La Pavoni Pub 1V-B espresso machine, showcasing its compact design and polished finish, positioned on a marble countertop next to a French press and scattered coffee beans. This image illustrates the machine's overall appearance and typical setup environment.

2. Sambungan Air

The machine requires a direct water connection. Use the provided installation kit (fittings and hoses) to connect the machine to a potable water supply. It is recommended to install the included 8-liter water softener to protect the machine from scale buildup and ensure optimal water quality for espresso extraction. Ensure all connections are secure and leak-free.

3. Sambungan Kuasa

Connect the power cord to a grounded 120V / 60Hz / 13Amp electrical outlet. Ensure the electrical supply meets the machine's requirements to prevent damage or malfunction.

Arahan Operasi

1. Permulaan Permulaan

1. Ensure the water supply is open and the machine is connected to power.
2. Turn on the main power switch. The boiler will begin to fill and heat. Monitor the boiler pressure gauge.
3. Once the machine reaches operating temperature and pressure, purge the group head by running a small amount of water through it without a portafilter.

2. Programming Dosing

The digital control pad allows for programmable dosing for four cup sizes, continuous brewing, and a stop button. Refer to the specific programming instructions provided with your machine for detailed steps on setting desired volumetric doses for single and double shots.

Imej: A terperinci view of the La Pavoni Pub 1V-B's control panel, showing the programmable dosing buttons, the La Pavoni logo, and the group head with its portafilter. This highlights the user interface for operating the machine.

3. Membuat Espresso

1. Insert the desired coffee basket into the portafilter.
2. Grind fresh coffee beans and fill the basket, tamping evenly.
3. Attach the portafilter securely to the group head.
4. Letakkan cawan anda di bawah muncung penapis porta.
5. Select the desired programmed dose button on the digital control pad. The machine will automatically dispense the programmed volume of espresso. Use the stop button for manual control if needed.

4. Using the Steam Wand

The machine is equipped with one steam wand for frothing milk. Open the steam valve slowly to release steam into a pitcher of cold milk. Close the valve when finished.

5. Pengeluaran Air Panas

To dispense hot water, turn the hot water tap knob. Close the knob to stop the flow.

Penyelenggaraan

1. Pembersihan Harian

• Ketua Kumpulan: Backflush the group head daily using a blind filter and espresso machine cleaner.
• Portafilters and Baskets: Clean portafilters and coffee baskets thoroughly after each use to remove coffee residue.
• Tongkat Stim: Purge and wipe the steam wand immediately after each use to prevent milk buildup.
• Dulang Drip: Kosongkan dan bersihkan dulang titisan dengan kerap.
• Luaran: Lap bahagian luar mesin dengan iklanamp kain. Jangan gunakan pembersih yang kasar.

2. Penyahkelasan

Regular descaling is crucial, especially if the water softener is not maintained or if hard water is used. Follow the descaling instructions provided with your descaling solution. Frequency depends on water hardness and usage.

3. Water Softener Maintenance

The included 8-liter water softener requires periodic regeneration or replacement. Refer to the water softener's specific instructions for maintenance to ensure its effectiveness in preventing scale buildup in the machine's boiler and pipes.

Menyelesaikan masalah

• Tiada Kuasa: Check power cord connection, wall outlet, and circuit breaker.
• Tiada Aliran Air: Ensure water supply is open, check for kinks in hoses, and verify water softener is functioning correctly.
• Espresso Lemah/Tiada Krim: Check coffee grind size, tamping pressure, and ensure machine is at operating temperature.
• Steam Wand Not Producing Steam: Ensure boiler pressure is adequate and the steam wand is not clogged.

Untuk isu yang tidak diselesaikan dengan langkah ini, hubungi juruteknik perkhidmatan yang berkelayakan.
