Winco TD-220 Double Roll Jumbo Toilet Paper Dispenser - Instruction Manual

1. Produk Lebihview

The Winco TD-220 Double Roll Jumbo Toilet Paper Dispenser in black is designed for commercial and high-traffic environments, offering a reliable solution for restroom maintenance. This durable dispenser accommodates two jumbo-sized toilet paper rolls, ensuring extended service intervals and reducing the frequency of refills. Its thoughtful design includes features for efficient paper dispensing and easy monitoring of paper levels.

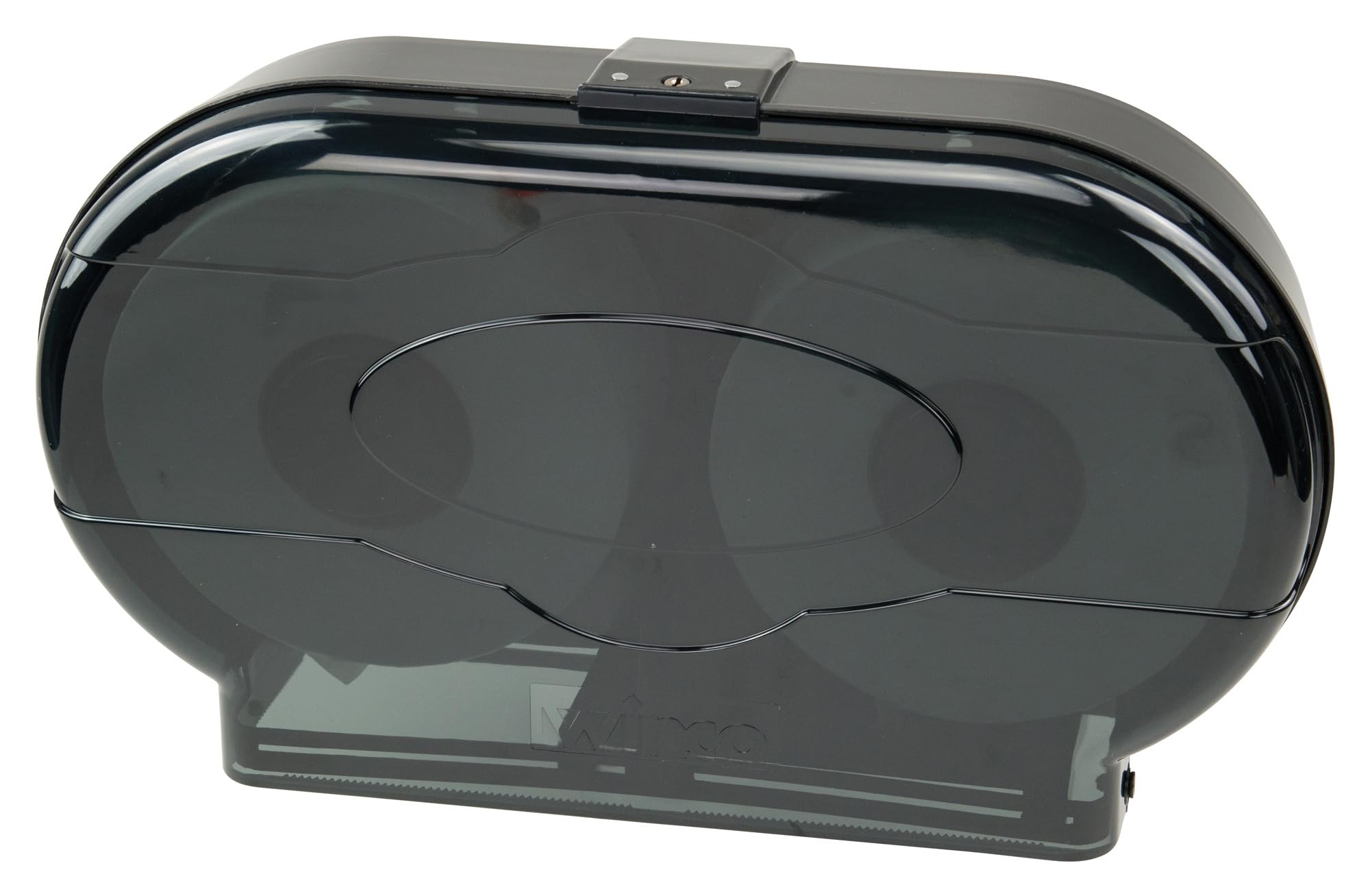

Imej 1: Depan view of the Winco TD-220 Double Roll Jumbo Toilet Paper Dispenser.

2. Kandungan Pakej

Sila pastikan semua item ada sebelum memulakan pemasangan:

• 1 x Winco TD-220 Double Roll Jumbo Toilet Paper Dispenser Unit
• 1 x Set of Mounting Hardware (screws, wall anchors)
• 1 x Set of Keys for locking mechanism

3. Persediaan dan Pemasangan

Follow these steps to properly install your toilet paper dispenser:

1. Penyediaan: Choose a suitable wall location. Ensure the wall surface is clean and dry.
2. Buka kunci dan Buka: Use one of the provided keys to unlock the dispenser. Insert the key into the lock at the top of the unit and turn it to release the front cover. Open the front cover to expose the back mounting plate.
3. Tandai Lubang Pemasangan: Hold the dispenser's back plate against the desired wall location. Use a pencil to mark the positions for the mounting screws through the designated holes on the back plate.
4. Lubang gerudi: Using an appropriate drill bit for your wall type (e.g., 1/4 inch for drywall anchors), drill pilot holes at the marked locations.
5. Masukkan Sauh: If installing into drywall or other hollow surfaces, insert the provided wall anchors into the drilled holes. Tap them gently with a hammer until flush with the wall surface.
6. Secure Dispenser: Align the dispenser's back plate with the drilled holes/anchors. Insert and tighten the screws to firmly secure the dispenser to the wall. Do not overtighten.
7. Pasang Semula Penutup Depan: Close the front cover and ensure it clicks into place. Lock it with the key to prevent tampering.

Imej 2: Belakang view of the dispenser, highlighting the mounting points for installation.

Panduan Video Pemasangan

Video 1: Satu kajian terperinciview and installation guide for the Winco TD-220 Double Roll Tissue Dispenser, demonstrating the unboxing and mounting process.

4. Arahan Operasi

1. Loading Rolls: Unlock the dispenser with the key and open the front cover. Place two jumbo toilet paper rolls onto the internal spindles. Ensure the paper feeds from the bottom of the rolls. Close and lock the front cover.
2. Dispensing Paper: The dispenser is designed to allow access to one roll at a time. When the first roll is depleted, a sliding mechanism will automatically allow the second roll to become accessible.
3. Kertas Koyak: Pull the desired amount of paper downwards against the serrated edge located at the bottom of the dispenser to tear it cleanly.

Image 3: The dispenser shown open with two jumbo toilet paper rolls correctly loaded onto the spindles.

5. Penyelenggaraan

• Pembersihan: To maintain hygiene and appearance, regularly wipe the exterior of the dispenser with a damp cloth and a mild, non-abrasive cleaning solution. Avoid harsh chemicals or abrasive scrubbers that could scratch the surface.
• Pengisian semula: The dispenser features visible windows on the front cover, allowing you to monitor the paper levels of both rolls. When a roll is low or empty, unlock the dispenser, remove the empty core, and replace it with a new jumbo roll. Ensure the new roll is properly seated on the spindle before closing and locking the cover.

6. Penyelesaian masalah

• Paper Not Dispensing Smoothly:
  • Check if the paper roll is correctly seated on the spindle.
  • Ensure the paper is feeding from the bottom of the roll.
  • Verify that the paper is not jammed or caught within the dispenser mechanism.
• Dispenser Not Locking:
  • Ensure the front cover is fully closed and aligned before attempting to lock.
  • Periksa sama ada kunci telah dimasukkan sepenuhnya dan dipusing dengan betul.
• Dispenser Feels Loose on Wall:
  • Re-tighten the mounting screws.
  • If the issue persists, the wall anchors may need to be replaced or stronger mounting hardware used, depending on the wall material.

7. Spesifikasi

8. Waranti dan Sokongan

For warranty information or technical support regarding your Winco TD-220 Double Roll Jumbo Toilet Paper Dispenser, please contact Winco customer service. Refer to your purchase documentation or the official Winco weblaman web untuk terma jaminan khusus dan butiran perhubungan.
