Raypak 006736F Transformer 115/230v-kit

Produk Selesaiview

The Raypak 006736F Transformer 115/230v-kit is designed to provide the necessary voltage conversion for compatible Raypak pool and spa heating systems. This kit includes the transformer unit and associated wiring components for installation.

It is crucial to ensure this transformer is compatible with your specific Raypak heater model before installation. Refer to your heater's documentation for compatibility requirements.

Maklumat Keselamatan

AMARAN: Electrical shock hazard. Installation and servicing of this product must be performed by a qualified service technician. Failure to follow these instructions could result in serious injury or death.

• Always disconnect power to the heating unit at the main circuit breaker before attempting any installation, maintenance, or troubleshooting.
• Sahkan voltage (115V or 230V) is selected and wired according to your system's requirements.
• Pastikan semua sambungan pendawaian selamat dan terlindung dengan betul.
• Do not operate the transformer if it appears damaged.
• Jauhkan kanak-kanak dan haiwan peliharaan dari kawasan pemasangan.

Kandungan Pakej

The Raypak 006736F Transformer kit typically includes the following components:

• 1 x Raypak 006736F Transformer unit
• Assorted wiring, spade connectors, and grounding lugs (as supplied by manufacturer)

Image: The main Raypak 006736F transformer unit with its pre-attached primary and secondary wires, including blue, yellow, red, white, black, and green wires.

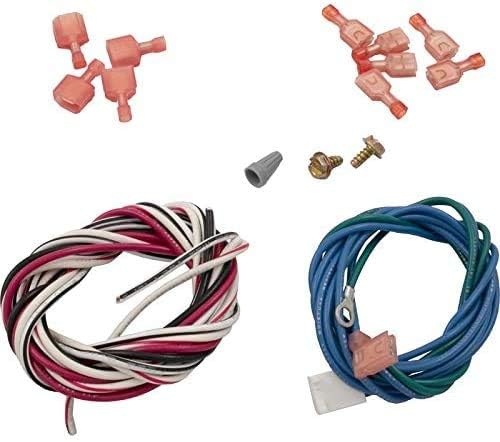

Image: Various components of the kit, including bundles of multi-colored wires, several orange spade connectors, a grey wire nut, and two small screws, likely for grounding or mounting.

Persediaan dan Pemasangan

1. Pemutusan Kuasa: Locate the main circuit breaker for your pool/spa heater and turn off the power completely. Verify power is off using a voltage penguji.
2. Kompartmen Pemanas Akses: Open the control panel or access compartment of your Raypak heater where the existing transformer is located.
3. Kenal pasti Pendawaian Sedia Ada: Carefully note or photograph the wiring connections of the old transformer. Pay close attention to which wires connect to the 115V input, 230V input, and the low voltage terminal keluaran.
4. Remove Old Transformer: Disconnect all wires from the old transformer and unmount it from its position.
5. Pasang Pengubah Baharu: Securely mount the new Raypak 006736F transformer in the same location as the old one.
6. Sambungan Wayar:
   • Primary (Input) Wiring: Connect the appropriate primary wires (typically black, white, and red) to the 115V or 230V input terminals on your heater's control board.
     • For 115V operation: Connect the 115V input wires as per your heater's wiring diagram.
     • For 230V operation: Connect the 230V input wires as per your heater's wiring diagram.
     Refer to your heater's specific wiring diagram for exact connections. The kit includes various connectors to facilitate these connections.
   • Secondary (Output) Wiring: Connect the secondary wires (typically blue and yellow) to the low voltage output terminals on your heater's control board. These wires supply power to the heater's control circuit.
   • Pembumian: Ensure the transformer is properly grounded. Use the green wire and any supplied grounding lugs to connect to an appropriate ground point within the heater's chassis.
7. Sambungan Selamat: Periksa semula semua sambungan untuk memastikan keketatan dan penebat yang betul. Pastikan tiada wayar terdedah.
8. Tutup Petak: Close and secure the heater's control panel or access compartment.
9. Pulihkan Kuasa: Turn on the main circuit breaker for your pool/spa heater.
10. Operasi Ujian: Verify that the heater powers on and functions correctly.

Prinsip Operasi

The Raypak 006736F transformer is a passive electrical component designed to convert higher input voltage (115V or 230V AC) to a lower output voltage (typically 24V AC) required for the control circuits of your Raypak pool or spa heater. It does not have user-adjustable settings or operational controls. Its function is to continuously supply the correct low voltage power to the heater's control board when the main power is supplied to the heater.

Penyelenggaraan

The transformer itself requires minimal maintenance. However, periodic inspection of the wiring and connections is recommended:

• Pemeriksaan Tahunan: During routine heater maintenance, visually inspect the transformer and its wiring for any signs of wear, corrosion, or damage.
• Kebersihan: Ensure the area around the transformer is free from dust, debris, or insect nests, which could impede heat dissipation or cause short circuits.
• Integriti Sambungan: Check that all wire connections remain tight and secure. Loose connections can lead to overheating or intermittent operation.

If any damage is observed, disconnect power immediately and contact a qualified service technician for repair or replacement.

Menyelesaikan masalah

If your Raypak heater is not powering on or experiencing control issues after transformer replacement, consider the following:

For complex issues or if you are unsure about any step, it is highly recommended to contact a qualified pool/spa service technician.

Spesifikasi

Maklumat Waranti

Specific warranty terms for the Raypak 006736F Transformer 115/230v-kit are provided by Raypak. Please refer to the warranty documentation included with your original Raypak heater or visit the official Raypak weblaman web untuk maklumat jaminan terperinci dan prosedur pendaftaran. Simpan bukti pembelian anda untuk tuntutan jaminan.

Sokongan Pelanggan

For technical assistance, troubleshooting beyond this manual, or inquiries regarding parts and service, please contact Raypak customer support directly. Contact information can typically be found on the Raypak official website or in your original heater's documentation.

When contacting support, please have your heater's model and serial number, as well as the transformer's model number (006736F), readily available.
