Multipure Aquaversa Model MP750 Drinking Water System User Manual

pengenalan

This manual provides detailed instructions for the installation, operation, and maintenance of the Multipure Aquaversa Model MP750 Drinking Water System. This system is designed to provide cleaner, healthier drinking water for your home or office and includes a below-sink kit and a chrome faucet for convenient access.

The Aquaversa features a durable stainless-steel housing and utilizes advanced filtration technology to reduce a wide range of contaminants from your tap water.

Ciri-ciri Produk

• NSF Certified Contaminant Reduction: Certified by NSF to standards 42 (Aesthetic Concerns), 53 (Health Concerns), and 401 (Emerging Contaminants/Incidental Compounds) for comprehensive water purification.
• Pembinaan Tahan Lama: Features a robust stainless-steel housing for longevity and reliability.
• Cost-Effective Water Solution: Provides an economical alternative to purchasing bottled water.
• Prestasi Boleh Dipercayai: Designed for long-term use, ensuring consistent water quality.
• Enhanced Water Quality: Delivers cleaner, healthier drinking water by reducing harmful contaminants.
• Improved Taste and Convenience: Enhances the flavor of drinking water and beverages, offering on-demand access to filtered water directly from your sink.

Kandungan Pakej

Sahkan bahawa semua komponen hadir sebelum memulakan pemasangan:

• Multipure Aquaversa Model MP750 Filter Unit (Stainless Steel)
• Below Sink Installation Kit
• Faucet Chrome
• Installation Hardware and Tubing
• Manual Pengguna (dokumen ini)

Persediaan dan Pemasangan

The Multipure Aquaversa MP750 is designed for under-sink installation. It is recommended to have basic plumbing knowledge or consult a professional plumber for installation to ensure proper setup and prevent leaks.

Pemasangan Selesaiview

1. Sediakan Kawasan Pemasangan: Ensure sufficient space under the sink for the filter unit and access to water supply lines. Turn off the main water supply before starting.
2. Pasang Faucet: Mount the chrome faucet in a suitable location on your sink or countertop. If replacing an existing sprayer, use that opening. Secure the faucet according to the included instructions.
3. Pasang Unit Penapis: Securely mount the Aquaversa filter unit under the sink using the provided bracket and hardware. Ensure it is easily accessible for future filter changes.
4. Sambung Talian Air: Connect the cold water supply line to the filter inlet and the filtered water outlet to the new chrome faucet using the provided tubing and connectors. Ensure all connections are tight to prevent leaks.
5. Siram Sistem: Once all connections are secure and the water supply is turned back on, open the new faucet and allow water to run for several minutes (e.g., 10-15 minutes) to flush out any carbon fines and air from the system.
6. Semak Kebocoran: Carefully inspect all connections for any signs of leaks.

Image: The Multipure Aquaversa MP750 filter unit (stainless steel cylinder) shown with its accompanying chrome faucet, ready for installation.

Imej: Dari dekat view of the Multipure Aquaversa MP750 filter unit, highlighting the inlet and outlet connections for water tubing.

Arahan Operasi

Once installed and flushed, your Multipure Aquaversa MP750 system is ready for use.

• Mendispens Air: To obtain filtered water, simply lift the handle or turn the knob on your chrome faucet.
• Penggunaan Awal: For the first few uses, you may notice a slight discoloration or air bubbles in the water. This is normal and will clear up after a few minutes of continuous flow.
• Kadar Aliran: The system is designed to provide a steady flow of filtered water. A maximum flow rate of 0.75 gallons per minute is typical.

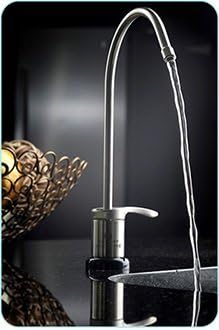

Image: The chrome faucet, part of the Aquaversa system, shown actively dispensing a stream of filtered water into a sink.

Penyelenggaraan

Regular maintenance ensures optimal performance and water quality from your Aquaversa system.

Penggantian Penapis

• The filter cartridge (Model CB6) should be replaced approximately once per year, or after filtering 750 gallons, whichever comes first.
• To replace the filter, turn off the water supply to the unit.
• Carefully open the filter housing, remove the old cartridge, and insert the new one.
• Close the housing securely and slowly turn the water supply back on.
• Flush the new filter as described in the "Setup and Installation" section.

Pembersihan

• Wipe the exterior of the stainless-steel housing and faucet with a soft, damp kain mengikut keperluan untuk memastikan ia bersih.
• Elakkan menggunakan pembersih atau pelarut yang kasar, kerana ini boleh merosakkan kemasan.

Menyelesaikan masalah

If you encounter issues with your Aquaversa system, refer to the following common problems and solutions:

If problems persist after attempting these solutions, please contact Multipure customer support.

Spesifikasi

Waranti dan Sokongan

Polisi Pemulangan: This product is eligible for a refund or replacement within 30 days of purchase, subject to the retailer's return policy.

For specific warranty details, technical assistance, or to purchase replacement parts, please contact Multipure customer support directly. Refer to the product packaging or the official Multipure webtapak untuk maklumat hubungan semasa.
