Chieftec Mesh MidiTower LCX-01SL-SL-B PC Case User Manual

1. Pengenalan

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Chieftec Mesh MidiTower LCX-01SL-SL-B PC case. Please read this manual thoroughly before beginning any installation to ensure proper setup and safe handling of your components.

2. Produk Lebihview

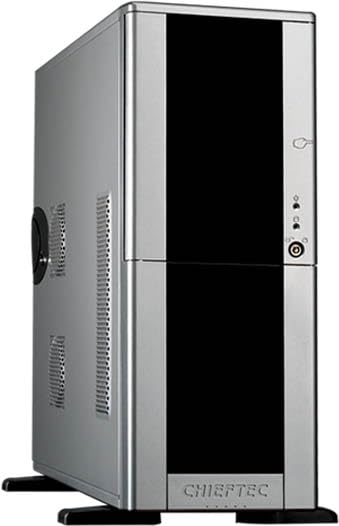

The Chieftec Mesh MidiTower LCX-01SL-SL-B is a versatile computer chassis designed for ATX 2.0 power supplies and Micro ATX motherboards. It features a mesh design for optimal airflow and includes multiple drive bays for storage and optical devices. The case provides convenient front panel connectivity with two USB 2.0 ports and two USB 3.0 ports.

Imej: Dalaman view of the Chieftec Mesh MidiTower LCX-01SL-SL-B PC case, highlighting the drive bays and general layout.

3. Persediaan dan Pemasangan

3.1 Langkah Keselamatan

• Sentiasa putuskan sambungan bekalan kuasa daripada soket dinding sebelum memasang atau menanggalkan sebarang komponen.
• Pakai tali pergelangan tangan anti-statik untuk mengelakkan kerosakan nyahcas elektrostatik (ESD) pada komponen sensitif.
• Handle components carefully to avoid physical damage.

3.2 Membuka Kes

1. Letakkan bekas di atas permukaan yang rata dan stabil.
2. Locate and remove the thumbscrews or standard screws securing the side panel(s) at the rear of the case.
3. Gently slide the side panel(s) backward and lift them away from the chassis.

3.3 Pemasangan Motherboard

1. Install the I/O shield into the opening at the rear of the case.
2. Align the motherboard with the pre-installed standoffs. If necessary, install additional standoffs according to your motherboard's form factor.
3. Carefully place the motherboard onto the standoffs, ensuring the I/O ports align with the I/O shield.
4. Pasangkan papan induk dengan skru yang disediakan. Jangan terlalu ketatkan.

3.4 Pemasangan Bekalan Kuasa

1. Position the ATX 2.0 power supply unit (PSU) in the designated bottom-mount bay.
2. Align the screw holes on the PSU with those on the case's rear panel.
3. Secure the PSU with the provided screws.

3.5 Pemasangan Cakera Keras

The Chieftec Mesh MidiTower features tool-less drive trays for easy installation of 3.5-inch hard drives.

Image: Installation of a 3.5-inch hard drive into a tool-less drive bay.

1. Gently pull out an empty drive tray from the drive cage.
2. Flex the sides of the tray to fit the 3.5-inch hard drive, aligning the screw holes on the drive with the pins on the tray.
3. Once the drive is secured in the tray, slide the tray back into the drive cage until it clicks into place.
4. Connect the SATA data and power cables to the installed hard drive.

3.6 Optical Drive Installation (5.25-inch bays)

1. Remove the desired 5.25-inch bay cover from the front panel.
2. Slide the optical drive into the bay from the front of the case until it is flush with the front panel.
3. Secure the drive using the provided tool-less clips or screws on both sides.
4. Connect the SATA data and power cables to the optical drive.

3.7 Pemasangan Kad Pengembangan

1. Remove the appropriate expansion slot cover(s) from the rear of the case.
2. Insert the expansion card (e.g., graphics card, sound card) into the corresponding PCIe slot on the motherboard.
3. Secure the card with a screw or the case's retention mechanism.

3.8 Pengurusan Kabel

Gunakan potongan penghalaan kabel dan titik ikat di belakang dulang papan induk untuk menyusun kabel. Ini meningkatkan aliran udara dan estetika.

3.9 Menutup Kes

1. Pastikan semua komponen dipasang dengan selamat dan semua kabel yang diperlukan disambungkan.
2. Slide the side panel(s) back into place and secure them with the thumbscrews or standard screws.

4. Beroperasi

Once all internal components are installed and the case is closed, connect your monitor, keyboard, mouse, and other peripherals to the appropriate ports on your motherboard's I/O panel. Connect the power cable to the power supply unit and then to a wall outlet. Press the power button on the front of the case to start your system.

5. Penyelenggaraan

5.1 Pembersihan

• Regularly clean dust filters (if present) to maintain optimal airflow.
• Use compressed air to remove dust from inside the case and components. Ensure the system is powered off and unplugged before cleaning.
• Lap bahagian luar bekas dengan lembut, damp kain. Elakkan bahan kimia yang keras.

5.2 Aliran Udara

Ensure the case has adequate clearance around its intake and exhaust vents to allow for proper airflow and cooling of internal components.

6. Penyelesaian masalah

6.1 Sistem Tidak Dihidupkan

• Verify that the power cable is securely connected to both the power supply and the wall outlet.
• Ensure the power switch on the back of the power supply is in the 'ON' position.
• Check that the front panel power button cable is correctly connected to the motherboard.
• Confirm all internal power connections (24-pin ATX, 8-pin CPU, PCIe power) are firmly seated.

7. Spesifikasi

8. Waranti dan Sokongan

For warranty information and technical support, please refer to the official Chieftec website or contact your local retailer. Warranty terms and conditions may vary by region and product. Keep your proof of purchase for warranty claims.
