1. Maklumat Keselamatan Penting
Please read and understand all instructions before beginning installation. Failure to do so may result in electric shock, fire, or other injuries that could be hazardous or fatal. This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.
- AMARAN: Risiko renjatan elektrik. Putuskan sambungan kuasa pada pemutus litar atau kotak fius sebelum pemasangan atau servis.
- Semua sambungan elektrik mestilah mengikut kod tempatan, ordinan atau Kod Elektrik Kebangsaan (NEC).
- Rujuk juruelektrik bertauliah jika anda tidak pasti tentang prosedur pendawaian.
- Jangan melebihi wat maksimumtage dinyatakan untuk mentol.
- Perlengkapan ini bertujuan untuk kegunaan dalaman sahaja.
2. Kandungan Pakej
Carefully unpack your new fixture and lay out all parts on a clear area. Ensure all components listed below are present before discarding any packaging materials.
- A. Fixture Body (Chandelier)
- B. Mounting Hardware Kit (Crossbar, mounting screws, wire nuts, ground screw)
- C. Canopy and Collar Ring
- D. Chain and Quick Links
- E. Instruction Manual

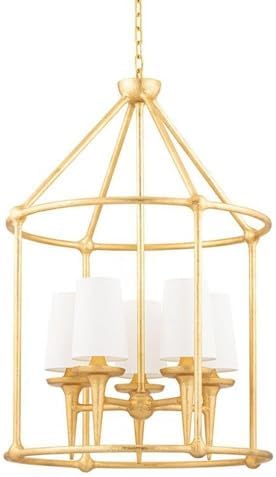

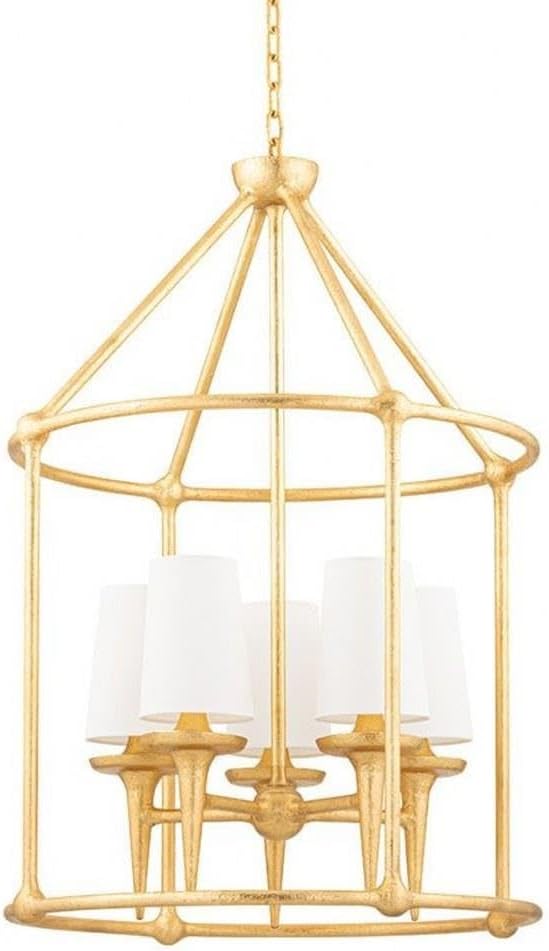

Image 1: The Hudson Valley Lighting 6625-GL Torch 5 Light Lantern, showcasing its gold leaf finish and five light sources within a decorative cage structure.
3. Persediaan dan Pemasangan
3.1 Alat Diperlukan (Tidak Termasuk)
- Pemutar Skru Kepala Phillips
- Pemutar Skru Kepala Rata
- Pelucut Kawat
- Tang
- Pita Elektrik
- Tangga
3.2 Langkah Pemasangan
- Matikan Kuasa: Sebelum memulakan, pastikan kuasa ke kotak simpang dimatikan pada pemutus litar atau kotak fius.
- Sediakan Pemasangan: Attach the mounting crossbar to the junction box using the provided mounting screws. Ensure the crossbar is securely fastened.
- Laraskan Panjang Rantaian: Determine the desired hanging height for your fixture. Use pliers to open and remove excess chain links. Attach one quick link to the top loop of the fixture and the other to the mounting loop on the canopy.
- Sambungan Wayar: Carefully connect the fixture's electrical wires to the corresponding wires from the junction box.
- Connect the bare copper (ground) wire from the fixture to the ground wire from the junction box (or to the green ground screw on the crossbar).
- Connect the ribbed or white fixture wire to the white (neutral) wire from the junction box.
- Connect the smooth or black fixture wire to the black (hot) wire from the junction box.
- Kanopi Selamat: Carefully push the canopy up against the ceiling, covering the junction box. Secure it in place using the collar ring, twisting it onto the threaded nipple on the crossbar until snug.
- Pasang Mentol: Insert five (5) E12 candelabra base bulbs (not included) into the sockets. Do not exceed the maximum wattage sebanyak 40 watt setiap mentol.
- Pulihkan Kuasa: Setelah pemasangan selesai dan semua sambungan selamat, pulihkan kuasa pada pemutus litar.
Imej 2: Ilustrasi view of typical mounting hardware and wiring connections for a ceiling fixture. Always refer to specific diagrams if provided with your product.
4. Arahan Operasi
The Hudson Valley Lighting 6625-GL Torch Lantern operates via a standard wall switch connected to the circuit. Ensure the wall switch is in the 'ON' position for the fixture to illuminate.
- Jenis Mentol: Uses E12 Candelabra base bulbs.
- Wat Maksimumtage: Do not exceed 40 watts per bulb. Using higher wattage bulbs can cause overheating and damage the fixture or create a fire hazard.
- Penggantian mentol: To replace bulbs, first turn off power at the wall switch and, if necessary, at the circuit breaker. Allow bulbs to cool before unscrewing and replacing them.
5. Penyelenggaraan
Proper care and maintenance will ensure the longevity and appearance of your lighting fixture.
- Pembersihan: Always disconnect power before cleaning. To clean the fixture, wipe it with a soft, dry cloth. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish.
- Pemeriksaan: Periodically inspect the fixture for any signs of wear, loose connections, or damage. If any issues are found, disconnect power and consult a qualified electrician or the manufacturer.
6. Penyelesaian masalah
If you experience issues with your fixture, refer to the following common problems and solutions:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Lekapan tidak menyala | Tiada kuasa untuk lekapan Sambungan wayar longgar Mentol rosak | Check circuit breaker/fuse. Ensure wall switch is ON. Sahkan semua sambungan wayar selamat (dengan kuasa dimatikan). Gantikan mentol dengan yang baru. |
| Lampu berkelip-kelip | Mentol longgar Sambungan wayar longgar Incorrect dimmer switch (if applicable) | Tighten bulb securely. Check wire connections (with power off). Ensure dimmer switch is compatible with incandescent bulbs. |
| Bunyi bising | Suis dimmer tidak serasi Komponen longgar | Replace dimmer with a high-quality, compatible model. Check for any loose parts within the fixture. |
7. Spesifikasi
| Ciri | Perincian |
|---|---|
| Nombor Model | 6625-GL |
| Jenama | Pencahayaan Lembah Hudson |
| Dimensi (L x W x H) | 25"L x 25"W x 36.75"H |
| Berat Barang | 23.1 paun |
| Selesai | Daun Emas |
| bahan | Alloy Steel, Linen (Shade) |
| Bilangan Lampu | 5 |
| Pangkalan Mentol | E12 Candelabra |
| Max Wattage setiap Mentol | 40 Watt |
| Sumber Kuasa | Elektrik Bertali |
| Perhimpunan Diperlukan | ya |
| Jenis Bilik | Living Room (Recommended) |
8. Waranti dan Sokongan
Hudson Valley Lighting products are manufactured to high standards and are backed by a manufacturer's warranty. For specific warranty details, please refer to the documentation included with your purchase or visit the official Hudson Valley Lighting webtapak.
For technical assistance, replacement parts, or any questions regarding your 6625-GL Torch Lantern, please contact Hudson Valley Lighting customer support directly. Contact information can typically be found on their official webtapak atau pada pembungkusan produk.
Sokongan dalam talian: www.hudsonvalleylighting.com
