Manual Pengguna Besi Pematerian Halus ersa 30S 30 Watt

1. Pengenalan

This manual provides essential instructions for the safe and effective use of your ersa Fine Soldering Iron 30S 30 Watt. This soldering iron is designed for precision work in radio, television technology, and general electronics. Please read this manual thoroughly before initial operation and retain it for future reference.

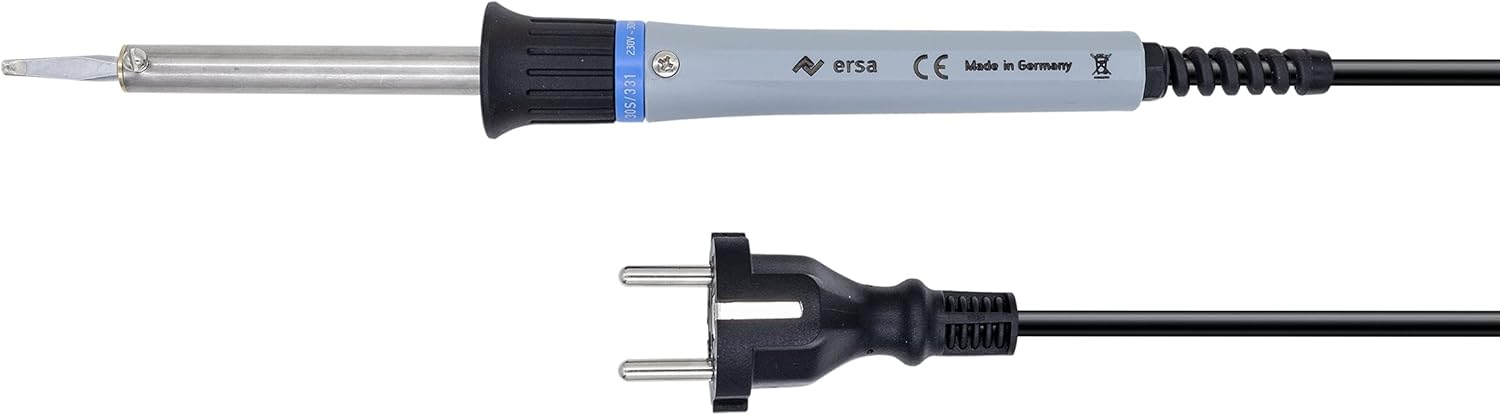

Image 1: The ersa Fine Soldering Iron 30S 30 Watt, showing the iron and its power plug.

2. Arahan Keselamatan

Always observe the following safety precautions to prevent injury or damage to the soldering iron:

• Pastikan vol operasitage of the soldering iron (230 Vac) matches your power supply.
• The soldering iron tip reaches temperatures up to 380 °C. Avoid direct contact with the tip.
• Use the soldering iron in a well-ventilated area to avoid inhaling solder fumes.
• Always place the hot soldering iron in a suitable, heat-resistant stand when not in use.
• Do not leave the soldering iron unattended when powered on.
• Jauhkan daripada kanak-kanak.
• Do not use the soldering iron near flammable materials.
• Disconnect the power plug from the outlet before cleaning or performing maintenance.
• Periksa kord kuasa untuk kerosakan sebelum setiap penggunaan. Jangan gunakan jika kord rosak.

3. Produk Lebihview

The ersa 30S is a reliable 30-watt hand soldering iron known for its robustness and durability. It features a comfortable pencil-style design for fine soldering tasks.

Image 2: Key features of the ersa 30S soldering iron, highlighting its 3.1 mm chisel-shaped tip, 120-second heat-up time, maximum temperature of 380°C, and flexible hybrid plug.

Ciri-ciri Utama:

• Kuasa: 30 Watt
• Vol Operasitage: 230 V/AC
• Suhu Maksimum: 380 °C
• Masa pemanasan: Approximately 2 minutes (120 seconds)
• Included Solder Tip: Chisel shape (3.1 mm, ERSA 0032KD)
• Reka bentuk: Pencil style, practical for fine work
• Berat: Approximately 80 g (without power lead)

Image 3: Dimensions of the ersa 30S soldering iron, showing an approximate total length of 240 mm and a cable length of 140 cm.

4. Persediaan

1. Bongkar: Carefully remove the soldering iron from its packaging. Retain packaging for storage or transport.
2. penempatan: Position a heat-resistant soldering stand on a stable, non-flammable surface. Ensure adequate ventilation in your workspace.
3. Sambungan Kuasa: Insert the power plug into a grounded 230 V/AC electrical outlet. The soldering iron will begin to heat immediately as it does not have an on/off switch.
4. Pemanasan Awal: Allow approximately 2 minutes for the soldering iron to reach its operating temperature of 380 °C.

5. Operasi

Ikuti langkah-langkah ini untuk pematerian yang berkesan:

1. Prepare the Tip: Before first use and periodically during operation, "tin" the soldering tip. Apply a small amount of solder to the hot tip to coat it evenly. This improves heat transfer and prevents oxidation.
2. Bersihkan Petua: Gunakan iklanamp sponge or brass wool to clean the tip of any excess solder or residue.
3. Sapukan Haba: Place the hot soldering tip against both the component lead and the PCB pad you wish to solder. Ensure good contact with both surfaces to transfer heat efficiently.
4. Guna Pateri: Once the component lead and pad are sufficiently heated (typically a few seconds), apply solder to the junction of the tip, lead, and pad. The solder should melt and flow smoothly, forming a shiny, concave joint. Do not apply solder directly to the iron tip.
5. Keluarkan Pateri dan Seterika: Remove the solder wire first, then lift the soldering iron away from the joint. Allow the joint to cool undisturbed.
6. Berehat: When not actively soldering, always return the iron to its heat-resistant stand.

Image 4: A hand demonstrating the ergonomic grip of the ersa 30S soldering iron during use.

6. Penyelenggaraan

Penyelenggaraan yang betul memastikan ketahanan dan prestasi besi pematerian anda.

• Petua Pembersihan: Regularly clean the soldering tip with a damp sponge or brass wool. For stubborn oxidation, use a tip tinner/cleaner compound.
• Petua Tinning: Always re-tin the tip after cleaning and before storing to protect it from oxidation.
• Penggantian Petua: The chisel-shaped tip (ERSA 0032KD) is replaceable. To replace, ensure the iron is unplugged and cool. Loosen the small screw holding the tip in place, remove the old tip, insert the new tip, and tighten the screw. Compatible tips are from the ERSA 0032 ERSADUR series.

Image 5: Illustration showing the process of replacing the soldering tip using a screwdriver to loosen the retaining screw.

Imej 6: Gambar jarak dekat view of the soldering iron tip and its connection point, illustrating the replaceable nature of the tip.

• Storan: Store the cooled soldering iron in a dry, safe place, away from moisture and dust.

7. Penyelesaian masalah

8. Spesifikasi

• Jenama: ersa
• model: 30S
• Nombor Model Item: 4000872354
• Kuasa: 30 Watt
• Vol Operasitage: 230 V/AC
• Sumber Kuasa: Elektrik Bertali
• gaya: Pensel
• Maks. Suhu: 380 °C
• Masa pemanasan: Approx. 2 minutes (120 seconds)
• Included Solder Tip Type: Chisel shape (3.1 mm, ERSA 0032KD)
• Compatible Tip Series: ERSA 0032 ERSADUR
• Berat: Approx. 80 g (without power lead) / 0.28 Kilograms (9.9 ounces)
• Dimensi Produk: 5.91 x 3.15 x 7.87 inci
• Panjang kabel: lebih kurang 140 sm
• Jenis Pembakar: Seramik
• GTIN: 04003008047004

Imej 7: Atas-bawah view of the ersa 30S soldering iron and its power plug, illustrating the complete unit.

9. Waranti dan Sokongan

For warranty information, technical support, or service inquiries, please refer to the official ersa website or contact your authorized ersa dealer. Keep your purchase receipt as proof of purchase.
