GAOMON 6x8FT Polycarbonate Greenhouse User Manual

1. Produk Lebihview

This manual provides instructions for the assembly, operation, and maintenance of your GAOMON 6x8FT Polycarbonate Greenhouse. This greenhouse is designed for outdoor garden planting, featuring an enhanced aluminum frame, polycarbonate panels, a sliding door, and an adjustable roof vent for year-round use.

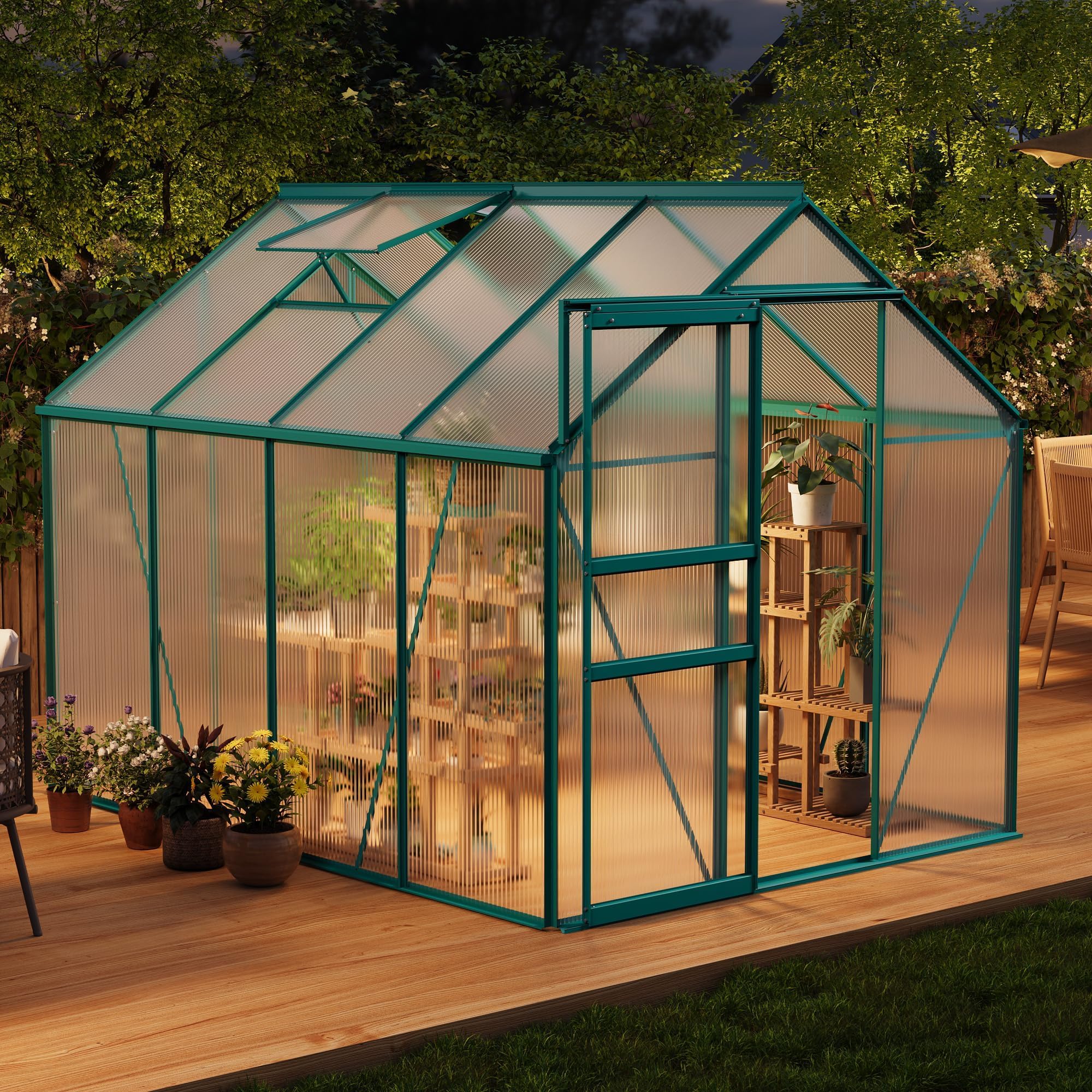

Rajah 1: Bahagian Luar view of the GAOMON 6x8FT Polycarbonate Greenhouse.

Rajah 2: Dalaman view of the GAOMON greenhouse, showcasing ample space for plants and shelving.

2. Persediaan dan Pemasangan

The GAOMON greenhouse kit includes all necessary tools and a detailed instruction manual for assembly. For optimal results and safety, assembly requires at least two people.

2.1 Senarai Semak Pra Perhimpunan

• Sahkan semua bahagian ada dan tidak rosak berdasarkan senarai pembungkusan.
• Pastikan anda mempunyai ruang yang mencukupi untuk pemasangan.
• Gather any additional tools not included, such as a level or measuring tape.

2.2 Langkah Perhimpunan

1. Pemasangan Bingkai: Begin by assembling the aluminum frame components. It is crucial to leave all nuts and bolts slightly loose during this stage. This allows for flexibility and easier alignment of the entire structure.
2. Pemasangan Panel: The polycarbonate panels feature a slide-in design, which simplifies installation. Carefully slide each panel into the designated frame channels.
3. Pemasangan Pintu dan Ventilasi: Install the sliding door and adjustable roof vent according to the diagrams.
4. Pengetatan Akhir: Once the entire frame is assembled and squared, proceed to tighten all nuts and bolts securely. This ensures the structural integrity and stability of the greenhouse.

Figure 3: Key dimensions and environmental resistance features of the greenhouse.

Rajah 4: Terperinci view of the greenhouse's construction, highlighting the slide-in PC panels and triangular support design.

Figure 5: Structural reinforcements including reinforced side supports, triangular structure, and anti-collapse features.

3. Arahan Operasi

3.1 Pengudaraan

The greenhouse is equipped with an adjustable roof vent to manage internal temperature and humidity. Open the vent during warmer periods to allow hot air to escape and fresh air to circulate. Close it during colder weather or when higher humidity is desired.

Figure 6: The push-open roof window for adjustable ventilation.

3.2 Pintu Gelangsar

The sliding door provides easy access to the greenhouse. Ensure the door slides smoothly along its track. Keep the track clear of debris to prevent obstruction.

3.3 Year-Round Use

The robust design and polycarbonate panels allow for extended growing seasons. Monitor internal temperatures and adjust ventilation or add supplemental heating/cooling as needed based on external conditions and plant requirements.

Figure 7: The greenhouse demonstrating its snow-bearing capacity in winter conditions.

4. Penyelenggaraan

4.1 Pembersihan

• Clean polycarbonate panels periodically with mild soap and water using a soft cloth or sponge. Avoid abrasive cleaners or brushes that could scratch the panels.
• Bilas bersih dengan air bersih.

4.2 Frame Inspection

• Regularly inspect the aluminum frame for any signs of damage, corrosion, or loose connections.
• Ketatkan sebarang bolt atau skru yang longgar mengikut keperluan.

4.3 Panel Integrity

• Check polycarbonate panels for cracks or damage. Replace damaged panels promptly to maintain insulation and structural integrity.

4.4 Persediaan Musim Sejuk

• In areas with heavy snowfall, regularly clear snow from the roof to prevent excessive load, despite its good bearing capacity.
• Ensure the greenhouse is properly sealed to minimize heat loss.

5. Penyelesaian masalah

5.1 Kesukaran Perhimpunan

• If the frame components do not align easily, ensure all bolts are loose. Slight adjustments to the frame's position may be necessary before final tightening.
• Refer to the assembly diagrams carefully for correct orientation of parts.

5.2 Panel Instability

• If panels feel loose or unstable, re-check that they are fully seated in their channels and that all frame connections are securely tightened.
• Ensure no debris is obstructing the panel channels.

5.3 Door Sticking

• Clean the door tracks to remove any dirt, leaves, or other obstructions.
• Apply a silicone-based lubricant to the tracks if necessary to improve sliding.

6. Spesifikasi Produk

7. Maklumat Waranti

For specific warranty details regarding your GAOMON Greenhouse, please refer to the documentation included with your purchase or contact GAOMON customer support directly. Warranty terms typically cover manufacturing defects and material flaws under normal use.

8. Sokongan Pelanggan

If you encounter any issues or have questions regarding your GAOMON Greenhouse, please contact GAOMON customer support. Have your model number (WWR-PPG_345CYR6KU-BY-EK) and purchase information ready for faster assistance.

For further assistance, please visit the official GAOMON webtapak atau hubungi bahagian perkhidmatan pelanggan mereka.
