Aoxun 10'x14' Hardtop Gazebo Instruction Manual

1. Pengenalan

Thank you for choosing the Aoxun 10'x14' Hardtop Gazebo. This manual provides essential information for the safe assembly, operation, and maintenance of your new gazebo. Please read these instructions thoroughly before beginning assembly and retain them for future reference.

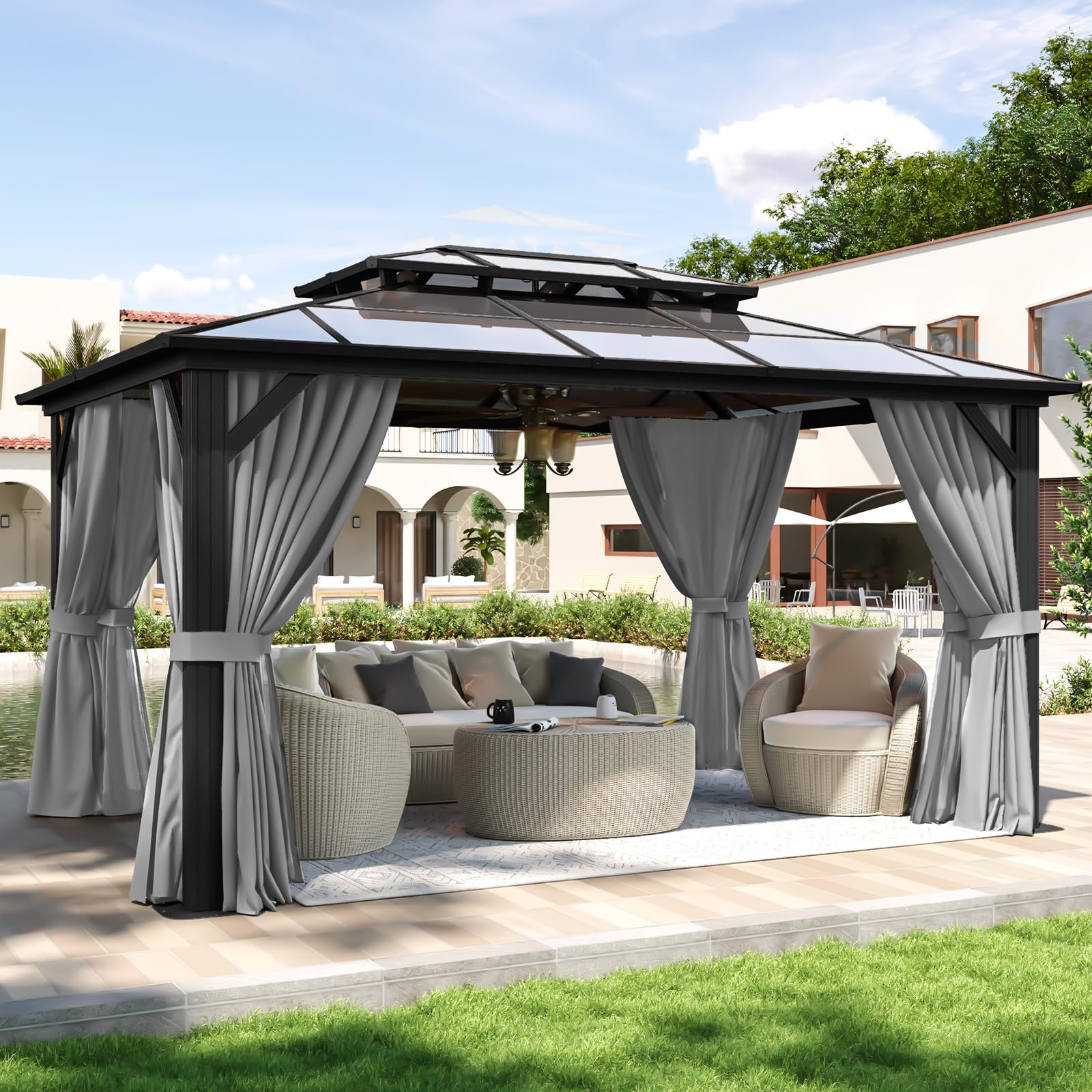

Image: The Aoxun 10'x14' Hardtop Gazebo provides a spacious outdoor living area, complete with curtains and netting for comfort and privacy.

2. Maklumat Keselamatan

Always follow the provided instructions for assembly and disassembly. Secure the gazebo to a stable foundation to prevent it from tipping over in windy conditions or during heavy use. Failure to do so may result in injury or damage to the product.

• Pastikan semua bahagian ada dan tidak rosak sebelum dipasang.
• Do not attempt to assemble the gazebo alone. A minimum of 3-4 people is recommended.
• Pakai peralatan keselamatan yang sesuai, seperti sarung tangan, semasa pemasangan.
• Pilih permukaan yang rata dan stabil untuk pemasangan.
• Anchor the gazebo securely to the ground using the provided hardware or suitable alternatives for your specific ground type.
• Remove accumulated snow from the roof to prevent structural damage.
• Jangan gantung objek berat dari rangka atau bumbung gazebo.

3. Ciri-ciri Produk

• Water Drainage System: The professional drainage design allows water to flow seamlessly from the edge of the gazebo roof through the poles and onto the ground, effectively preventing rain or snow buildup and minimizing maintenance concerns.


Image: Illustration of the gazebo's efficient drainage system, designed to prevent water accumulation on the roof.

• Dual-Layer Polycarbonate Roof: This hardtop gazebo features a double-layered polycarbonate roof that resists fading and aging. It promotes airflow, blocks harmful UV rays, and includes hooks for hanging fans, lights, or decorative items.


Image: The multifunctional top design includes a hook for hanging items like fans, lights, or other decorations.

• Bingkai Logam Teguh: Constructed with high-quality, powder-coated metal, the frame is resistant to scratches, peeling, corrosion, and rust, ensuring long-lasting durability. The triangular structure enhances overall stability and strength.


Imej: Terperinci view of the gazebo's robust construction, highlighting the triangular support structure, velcro straps for curtains, and secure anchoring points.

• Included Curtains & Netting: The patio gazebo comes with detachable curtains for protection against rain and harsh weather, as well as privacy. The zippered mesh netting and insect net keep insects out while maintaining proper ventilation.
• Penggunaan Semua Cuaca: Designed for year-round enjoyment, the gazebo offers UV protection, is waterproof, and snow-resistant.


Image: The gazebo is built for all-weather use, providing UV protection, waterproofing, and snow resistance.

4. Spesifikasi

Image: Detailed product size diagram indicating the 10ft x 14ft footprint and overall height of the gazebo.

5. Persediaan dan Pemasangan

The Aoxun Hardtop Gazebo is designed for straightforward assembly. Clear, step-by-step instructions and numbered parts are included in the packaging. The setup can typically be completed in 2-4 hours with the assistance of 3-4 people.

Petua Perhimpunan:

• Buka semua komponen dan sahkan dengan senarai alat ganti yang disediakan dalam pakej anda.
• Organize parts by their labels to streamline the process.
• Do not overtighten bolts until the entire section is assembled, then tighten all connections.
• Ensure the protective film is removed from polycarbonate panels before installation, with the film side facing up as indicated in the instructions.

Official Installation Guide Video:

6. Arahan Operasi

Langsir dan Jaring:

• The gazebo includes two sets of sidewalls: privacy curtains and mesh netting.
• Use the zippered mesh netting to keep insects out while allowing airflow.
• Deploy the privacy curtains for shade, protection from light rain, or increased privacy.
• Secure curtains and netting to the gazebo posts using the integrated velcro straps when not in use or during windy conditions to prevent damage.

Roof System:

• The dual-layer polycarbonate roof provides UV protection and allows for natural light while reducing heat buildup.
• Utilize the integrated hooks on the roof structure to hang outdoor fans, lighting fixtures, or decorative elements. Ensure any hung items do not exceed the weight capacity specified in the full product manual.
• The integrated drainage system channels rainwater away through the support posts. Regularly check that the drainage channels are clear of debris.

7. Penyelenggaraan

• Pembersihan: Clean the metal frame and polycarbonate roof panels with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the finish or materials. Rinse thoroughly with clean water.
• Penjagaan Fabrik: Langsir dan jaring boleh dibersihkan di tempat yang terkena dengan detergen lembut. Untuk pembersihan yang lebih mendalam, ikut arahan penjagaan pada fabrik. tags. Ensure they are completely dry before storing to prevent mildew.
• Pemeriksaan Bermusim: Periodically inspect all bolts and connections to ensure they remain tight. Re-tighten as necessary. Check for any signs of wear or damage to the frame, roof panels, or fabric.
• Musim sejuk: In areas with heavy snowfall, it is recommended to regularly clear snow from the roof to prevent excessive weight accumulation. Consider removing curtains and netting for storage during harsh winter months to prolong their lifespan.

8. Penyelesaian masalah

Bahagian ini menangani isu biasa yang mungkin anda hadapi dengan gazebo anda.

Isu Biasa:

• Pengumpulan Air di Atas Bumbung: Ensure all roof panels are correctly installed and seated. Verify that the drainage channels in the posts are clear of debris.
• Gazebo Terasa Tidak Stabil: Confirm that all frame connections are securely tightened. Ensure the gazebo is properly anchored to a solid, level surface.
• Curtains/Netting Not Closing Properly: Check for obstructions in the tracks or zippers. Ensure the fabric is not twisted or caught.

Frequently Asked Questions Video:

9. Waranti dan Sokongan

For specific warranty details, please refer to the documentation included with your product or contact Aoxun Direct. Keep your purchase receipt as proof of purchase for any warranty claims.

For further assistance, replacement parts, or technical support, please contact Aoxun Direct through their official channels. You can often find contact information on the seller's page or within the product packaging.

Lawati Aoxun Store untuk maklumat lanjut dan produk.
