pengenalan
Thank you for choosing the Glocusent Clip-On Reading Light, Model A108. This manual provides essential information for the safe and efficient operation of your new reading light. Please read these instructions carefully before use and retain them for future reference.

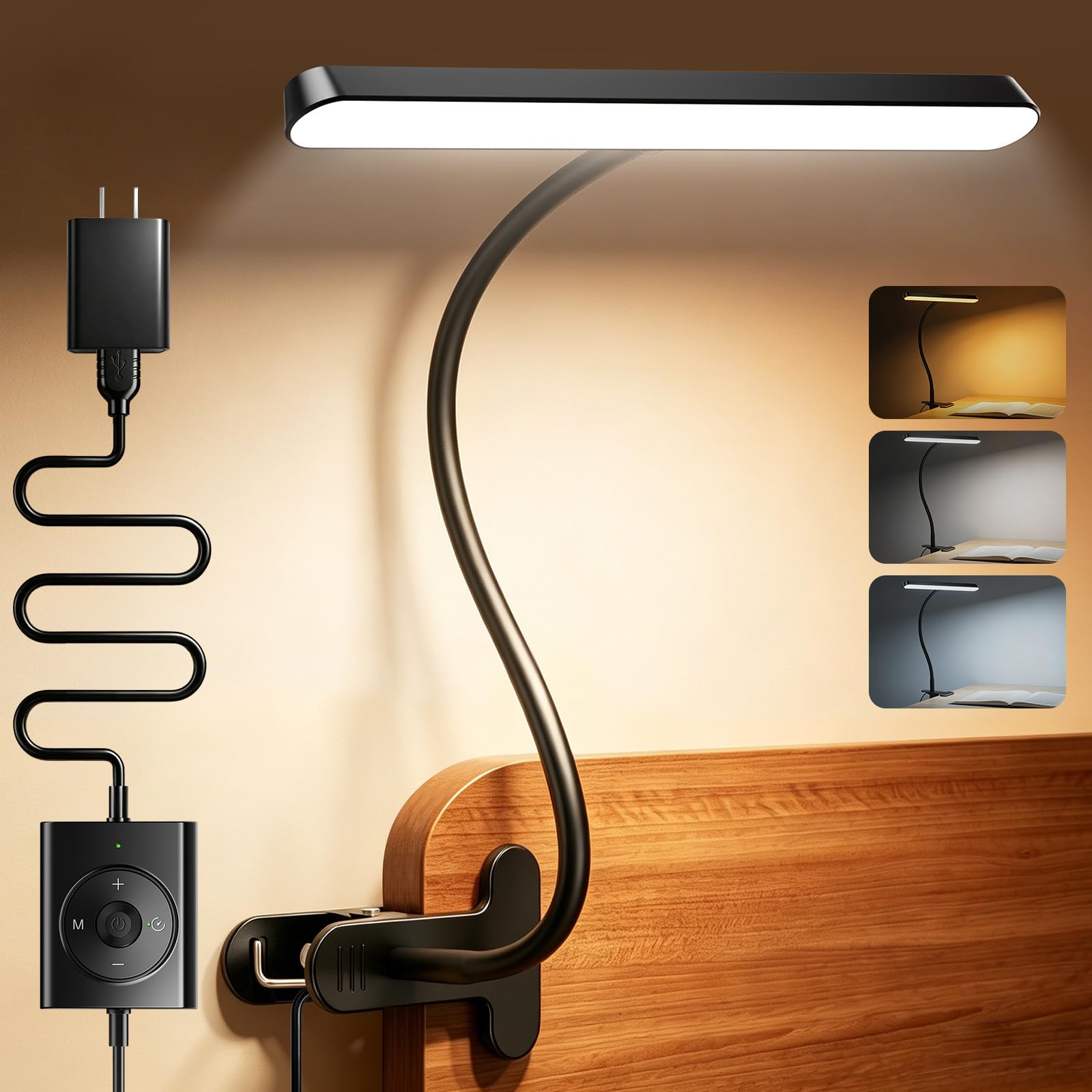

Image 1: Glocusent Clip-On Reading Light, Model A108, in use on a desk.
Ciri-ciri Produk
- Wide Beam Design: The horizontal lamp head (approximately 28.7 cm / 11.3 inches) provides uniform illumination over a wider area, covering two full pages of a book. Equipped with 57 high-quality LEDs, it offers soft, flicker-free light with reduced shadows, making it ideal for extended reading sessions.
- 5 Brightness Levels & 3 Color Modes: Adjust brightness from 10 to 340 lumens across 5 levels. Choose from 3 color temperatures: 1800K Amber for relaxing bedtime reading, 3400K Natural Light for daily reading and studying, and 6000K Cool Light for detailed tasks like crafting or drawing. Both brightness and color temperature can be smoothly adjusted to suit any environment.
- Strong Clip with Wide Opening: The clip features a maximum opening width of approximately 7 cm (2.75 inches) and a 60° flexible grip for secure attachment. Soft pads protect furniture surfaces from scratches. Easily attach the light to desks, bed frames, or shelves, saving space and offering versatile placement.
- Gooseneck Fleksibel 360°: The silicone gooseneck arm, approximately 45 cm (17.7 inches) long, allows for free angle adjustment. It maintains its position without sagging, directing light precisely where needed without having to move the base.
- 30-Minute Timer & USB Power: Features a 30-minute auto-off timer. The light is powered via USB with a standard 2-meter (78.7 inches) power cord, allowing connection to AC chargers, computers, or power banks. A small green indicator lamp shows the operating status.
Image 2: Illustration of the wide beam design providing broader illumination compared to traditional round lights.
Image 3: Visual representation of the adjustable brightness and color temperature settings.
Image 4: Detail of the secure clip with its maximum opening and protective pads.
Image 5: The flexible gooseneck allows for precise light positioning.
Image 6: The reading light in a bedroom, illustrating the timer and USB power features.
Kandungan Pakej
Ensure all items are present before discarding packaging materials:
- Glocusent Horizontal Clip-On Reading Light (Model A108)
- 2-Pin AC Adapter
- Manual Pengguna (dokumen ini)
- Penanda buku
Arahan Persediaan
- Buka bungkusan Cahaya: Carefully remove the reading light and all accessories from the packaging.
- Pilih Lokasi Pemasangan: Select a stable surface such as a desk, bed frame, or shelf. Ensure the surface thickness is within the clip's maximum opening of 7 cm (2.75 inches).
- Pasang Cahaya: Open the clip and firmly attach it to your chosen surface. The soft pads on the clip will protect your furniture.
- Sambungkan Kuasa: Insert the USB cable into the light's power port. Connect the other end of the USB cable to a compatible USB power source (e.g., AC adapter, computer USB port, power bank). The green indicator light on the controller will illuminate.
- Laraskan Gooseneck: Bend the flexible gooseneck to position the light head as desired. The gooseneck will hold its shape to direct light precisely.
Image 7: Connecting the USB power cable.
Arahan Operasi
The Glocusent Clip-On Reading Light is controlled via an inline remote on the power cord.
Image 8: The inline controller for the reading light.
- Hidupkan/Mati Kuasa: Tekan ke Butang Kuasa (central button) to turn the light on or off.
- Laraskan Kecerahan: Gunakan + dan - buttons to cycle through the 5 brightness levels (10LM to 340LM).
- Tukar Suhu Warna: Tekan ke Butang M (Mode button, usually next to the power button) to switch between the 3 color modes: 1800K Amber, 3400K Natural White, and 6000K Cool White.
- Tetapkan Pemasa: Tekan ke Butang Pemasa (clock icon) to activate the 30-minute auto-off timer. The light will automatically turn off after 30 minutes.
Penyelenggaraan
- Pembersihan: Disconnect the power before cleaning. Use a soft, dry cloth to wipe the light. Do not use abrasive cleaners or solvents.
- Storan: When not in use for extended periods, store the light in a cool, dry place away from direct sunlight and moisture.
- Penjagaan Kabel: Avoid bending or twisting the power cable excessively. Do not place heavy objects on the cable.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Cahaya tidak menyala. | Tiada sambungan kuasa atau punca kuasa rosak. | Ensure the USB cable is securely connected to both the light and a working power source. Try a different USB port or adapter. |
| Cahaya berkelip-kelip. | Bekalan kuasa tidak stabil. | Use a stable power source. Avoid connecting to USB hubs with multiple devices. |
| Cannot adjust brightness/color. | Kerosakan pengawal. | Ensure the light is powered on. If the issue persists, contact customer support. |
| Clip is not secure. | Surface too thick or unstable. | Ensure the surface thickness is within 7 cm (2.75 inches). Choose a stable, flat surface for attachment. |
Spesifikasi
| Ciri | Perincian |
|---|---|
| Dimensi Produk (D x W x H) | 51.5 x 11 x 28.7 cm (20.3 x 4.3 x 11.3 inci) |
| Berat Produk | 330 gram (0.73 lbs) |
| Lamp taip | Lampu Klip |
| Gaya | Minimalis |
| Jenama | Glocusent |
| Jenis Sumber Cahaya | LED |
| Bilangan Sumber Cahaya | 57 |
| Jenis Pemasangan | Desktop / Clip-on |
| Wattage | 7 W |
| Kaedah Pencahayaan | LED |
| Tanpa wayar | Tidak |
| warna | Hitam |
| Nombor Model | A108 |
| UPC | 850076165116 |
| ASIN | B0GQM58XNH |
| Negara Asal | China |
Waranti dan Sokongan
Glocusent is committed to providing high-quality products and excellent customer service.
- Jaminan Wang Dikembalikan 30 Hari: Jika anda tidak berpuas hati dengan pembelian anda, anda boleh mengembalikannya dalam masa 30 hari untuk bayaran balik penuh.
- 24-Month Product Warranty: This product is covered by a 24-month warranty from the date of purchase, covering manufacturing defects.
- Sokongan Pelanggan: For any questions, concerns, or technical assistance, please contact Glocusent customer support. We aim to provide 24/7 support and respond to inquiries within 2 hours.
