1. Pengenalan
Thank you for choosing the ZAFRO 10000 BTU Portable Air Conditioner. This unit is designed to provide efficient cooling, dehumidification, and fan functions for your indoor spaces. Please read this manual thoroughly before installation and operation to ensure proper use and maintenance. Keep this manual for future reference.
2. Maklumat Keselamatan
Untuk mengurangkan risiko kebakaran, kejutan elektrik atau kecederaan, sentiasa ikuti langkah berjaga-jaga keselamatan asas semasa mengendalikan perkakas ini:
- Pastikan bekalan kuasa sepadan dengan voltage requirements specified on the unit's label.
- Jangan kendalikan unit dengan kord atau palam yang rosak.
- Do not block air outlets or inlets. Maintain at least 12 inches (30 cm) clearance from walls and furniture.
- Jangan masukkan jari atau objek ke dalam gril saluran keluar udara.
- Sentiasa cabut plag unit sebelum membersihkan atau menservis.
- Jangan gunakan unit dalam persekitaran basah seperti bilik mandi atau bilik dobi.
- Keep the unit on a flat, stable surface to prevent tipping.
- Perkakas ini tidak dimaksudkan untuk digunakan oleh orang (termasuk kanak-kanak) yang kurang keupayaan fizikal, deria atau mental, atau kurang pengalaman dan pengetahuan, melainkan mereka telah diberi pengawasan atau arahan mengenai penggunaan perkakas oleh orang yang bertanggungjawab untuk keselamatan mereka.
3. Produk Lebihview
The ZAFRO Portable Air Conditioner is a versatile 3-in-1 unit offering cooling, fan, and dehumidification modes. It features smart control options, quiet operation, and a self-evaporating system for convenience.
Ciri-ciri Utama:
- Fungsi 3-dalam-1: Cooling, Fan, and Dehumidifier modes.
- Penyejukan Kuat: 10,000 BTU (6,000 BTU SACC) suitable for areas up to 250 sq. ft.
- Kawalan Pintar: Operate via ZAFRO app, Amazon Alexa, Google Home, or included remote control.
- Operasi senyap: Operates at a low noise level of 47 dB, ideal for bedrooms and living rooms.
- Pemasa 24 Jam: Program on/off times for energy efficiency and convenience.
- Self-Evaporating System: Reduces the need for frequent manual drainage under normal humidity conditions.
- Reka Bentuk Mudah Alih: Compact unit with built-in handles and 360° caster wheels for easy movement.
- Front Air Outlet: Delivers direct and powerful cooling airflow.

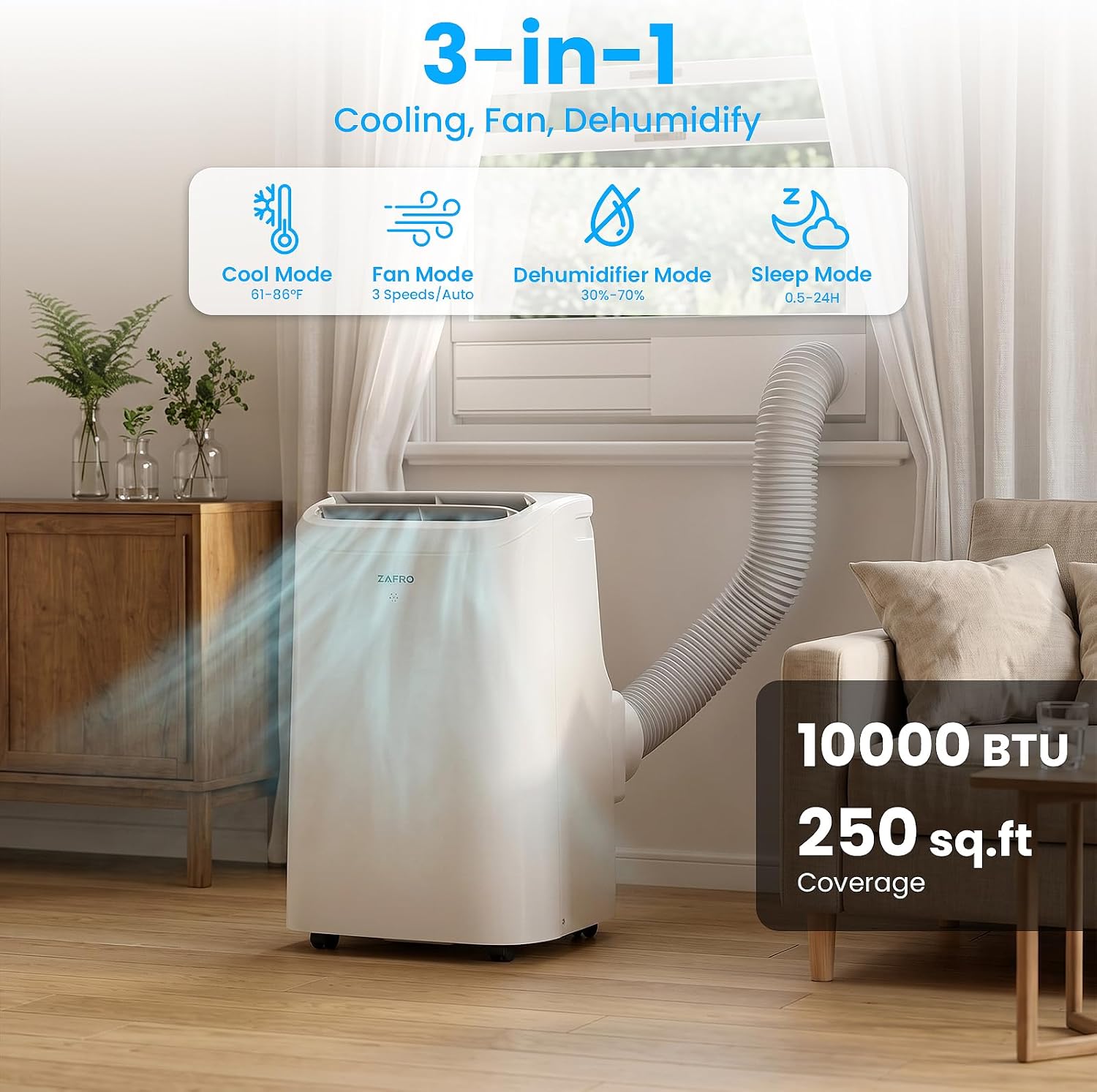

Figure 3.1: Unit displaying 3-in-1 modes and coverage area.
Figure 3.2: Portable design features including adjustable louver, handle, wheels, and filter.
4. Persediaan dan Pemasangan
The ZAFRO Portable Air Conditioner is designed for easy, tool-free installation. Follow these steps to set up your unit:
4.1 Membongkar
- Keluarkan unit dan semua aksesori dengan berhati-hati daripada pembungkusan.
- Biarkan unit berdiri tegak selama sekurang-kurangnya 24 jam sebelum beroperasi jika ia tidak disimpan tegak.
- Verify all included components: Air conditioner machine, Remote control, Air exhaust hose, Window panel, Drainage hose, Sealing foam, Window kit, User manual.
4.2 Pemasangan Kit Tingkap
The universal adjustable window kit is compatible with both double/single-hung and sliding windows.
- Assemble the window panel using the adjustable sections to fit your window opening. The kit supports window sizes from 20.47" to 69.29".
- Insert the exhaust hose into the window panel adapter and then connect the other end to the exhaust outlet on the back of the air conditioner unit.
- Secure the window panel in the open window, ensuring a tight seal with the provided sealing foam to prevent air leakage.
Figure 4.1: Window kit installation for horizontal and vertical windows.
5. Arahan Operasi
Your ZAFRO Portable Air Conditioner can be controlled via the LED touch panel, remote control, or the ZAFRO smartphone application.
5.1 Panel Kawalan Selesaiview
Figure 5.1: LED Touch Panel and Remote Control functions.
5.2 Operasi Asas
- Hidupkan/Mati Kuasa: Tekan ke Hidup/Mati butang pada panel kawalan atau alat kawalan jauh.
- Pemilihan Mod: Tekan ke Mod button to cycle through Cooling, Fan, Dehumidifier, and Sleep modes.
- Pelarasan Suhu: Dalam mod Penyejukan, gunakan + dan - buttons to set the desired temperature between 61°F (16°C) and 86°F (30°C).
- Kelajuan Kipas: Tekan ke Kelajuan Kipas button to select Low, Mid, High, or Auto fan speeds.
- Fungsi Pemasa: Tekan ke Pemasa button to set the desired operating duration (0.5-24 hours) for automatic shut-off or turn-on.
- Mod tidur: Tekan ke tidur button to activate sleep mode, which reduces noise and gradually adjusts temperature for comfortable rest.
- Fungsi Ayunan: Tekan ke Berayun button to activate or deactivate the automatic louver swing.
5.3 Smart Control (App/Voice)
The unit supports control via the ZAFRO app, Amazon Alexa, and Google Home.
- Tetapan Semula Wi-Fi: To connect to the app, hold the Mod butang selama 3 saat untuk menetapkan semula Wi-Fi.
- Muat turun Apl: Download the ZAFRO app from your smartphone's app store.
- Berpasangan: Ikut arahan dalam apl untuk memasangkan peranti anda.
- Kawalan Suara: Once paired with the app, link your ZAFRO account to Amazon Alexa or Google Home for voice commands.
Figure 5.2: ZAFRO App interface for intelligent control.
6. Penyelenggaraan
Regular maintenance ensures optimal performance and longevity of your ZAFRO Portable Air Conditioner.
6.1 Pembersihan Penapis
The unit features an easily detachable and washable filter. A "Filth Blockage Intelligent Reminder" will alert you when cleaning is recommended.
- Cabut plag penghawa dingin dari salur keluar kuasa.
- Tanggalkan penapis dari perumahnya.
- Basuh penapis dengan air suam dan sabun. Bilas sebersih-bersihnya.
- Benarkan penapis kering sepenuhnya sebelum memasang semula.
- After cleaning, you may need to reset the cleaning reminder via the app or control panel if applicable.
Figure 6.1: Filth Blockage Intelligent Reminder.
6.2 Saliran
This unit features an advanced self-evaporating system that typically eliminates the need for manual drainage by dispersing condensate water onto the condenser. However, in conditions of high humidity or when operating in Dehumidifier mode, manual drainage may be required.
- If the water tank becomes full, the unit will stop operating and display an error code (e.g., "FL").
- To drain, place a suitable container under the drainage outlet at the back of the unit.
- Tanggalkan palam longkang dan biarkan air mengalir keluar.
- Replace the drain plug securely once drainage is complete.
Figure 6.2: Zero-Drain Technology and drainage requirements.
7. Penyelesaian masalah
Sebelum menghubungi khidmat pelanggan, sila rujuk panduan penyelesaian masalah berikut untuk isu-isu biasa:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Unit tidak dihidupkan | No power supply; Power cord not plugged in; Fuse blown/Circuit breaker tripped. | Check power outlet; Ensure plug is fully inserted; Reset circuit breaker or replace fuse. |
| Unit sejuk tidak mencukupi | Window kit not properly sealed; Room too large; Air filter dirty; Exhaust hose blocked or bent; Doors/windows open. | Ensure window kit is sealed; Use in recommended room size (up to 250 sq. ft.); Clean air filter; Straighten exhaust hose; Close all doors and windows. |
| Unit bising | Unit not on a flat surface; Air filter dirty; Fan speed too high. | Place unit on a flat, stable surface; Clean air filter; Reduce fan speed. |
| Kebocoran air | Drain plug not secured; Unit tilted; Drainage hose (if used) not properly connected. | Ensure drain plug is tightly closed; Place unit on a level surface; Check drainage hose connection. |
| Error code displayed (e.g., "FL") | Tangki air penuh. | Drain the water tank as per Maintenance section. |
8. Spesifikasi
Detailed technical specifications for the ZAFRO Portable Air Conditioner Model YAC-06CPD/PL7:
| Ciri | Spesifikasi |
|---|---|
| Jenama | ZAFRO |
| Nombor Model | YAC-06CPD/PL7 |
| Kuasa Penyejukan | 10000 BTU (6000 BTU SACC) |
| Kapasiti | 1 tan |
| Dimensi Produk (D x W x H) | 12.99" x 14.80" x 23.23" |
| Berat Barang | 52 paun |
| Voltage | 115 volt |
| Wattage | 900 watt |
| Tahap Kebisingan | 47 dB |
| Liputan Keluasan Lantai | 300 square feet (recommended) |
| Kaedah Kawalan | Touch, Remote Control, App Control |
| Ciri Khas | Child Lock, Dehumidifier, Fast Cooling, Remote Controlled, Sleep Mode |
| Jenis Pemasangan | Window (with included kit) |
| Jenis Pemampat | Skrol Putar |
| Penggunaan Tenaga Tahunan | 675 kilowatt hours per year |
Rajah 8.1: Dimensi Produk.
9. Waranti dan Sokongan
9.1 Maklumat Waranti
The ZAFRO Portable Air Conditioner comes with a Waranti 1 Tahun from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, accident, unauthorized modification, or improper installation.
9.2 Sokongan Pelanggan
For technical assistance, warranty claims, or any questions regarding your ZAFRO Portable Air Conditioner, please contact our customer support team:
- Pengeluar: ZAFRO
- Webtapak: Visit the ZAFRO Store on Amazon
- Please have your model number (YAC-06CPD/PL7) and purchase date ready when contacting support.
