COSTWAY SF6824SZES Metal Garden Cart User Manual

pengenalan

Thank you for choosing the COSTWAY SF6824SZES Metal Garden Cart. This robust and versatile utility wagon is designed to assist with various outdoor tasks, including gardening, landscaping, and transporting materials. With a sturdy metal frame and a high load capacity, it offers reliable performance for both residential and commercial use. Please read this manual thoroughly before assembly and operation to ensure safe and efficient use of your new garden cart.

Arahan Keselamatan

Untuk mengelakkan kecederaan dan kerosakan pada produk, sentiasa ikuti garis panduan keselamatan ini:

• Baca Manual: Familiarize yourself with all assembly and operating instructions before use.
• Had Berat: Do not exceed the maximum load capacity of 408 kg (900 lbs). Overloading can cause damage to the cart and potential injury.
• Pemuatan yang betul: Distribute weight evenly across the cart bed. Secure loose items to prevent shifting during transport.
• rupa bumi: Exercise caution when operating on uneven, sloped, or slippery surfaces. Maintain a firm grip on the handle.
• Kanak-kanak dan Haiwan Kesayangan: Keep children and pets away from the cart during operation and assembly. This cart is not a toy.
• Penyelenggaraan: Regularly inspect the cart for loose bolts, damaged parts, or worn tires. Do not use if any components are compromised.
• Perhimpunan: Pastikan semua bahagian dipasang dan diketatkan dengan betul sebelum digunakan.

Kandungan Pakej

Sahkan bahawa semua komponen hadir sebelum memulakan pemasangan:

• 1 x COSTWAY Metal Garden Cart (disassembled)
• 1 x Manual Arahan
• Semua perkakasan yang diperlukan untuk pemasangan

Arahan Perhimpunan

Assembly is required for this product. Please follow the steps below carefully. It is recommended to have two people for assembly.

1. Buka Pembungkusan Komponen: Keluarkan semua bahagian dari pembungkusan dengan berhati-hati dan letakkannya di atas permukaan yang bersih dan rata. Semak pada senarai kandungan pakej.
2. Pasang Roda: Securely attach the four rubber wheels to the axle assemblies using the provided hardware. Ensure all nuts and bolts are tightened.
3. Assemble Cart Bed: Connect the base frame to the side mesh panels. The reinforced crossbars should be properly aligned and fastened to ensure stability.
4. Pemegang Pasang: Attach the adjustable handle to the front steering mechanism. Ensure the U-turn steering bar is correctly installed for full maneuverability.
5. Semakan Akhir: Before first use, double-check all connections, bolts, and nuts to ensure they are securely tightened.

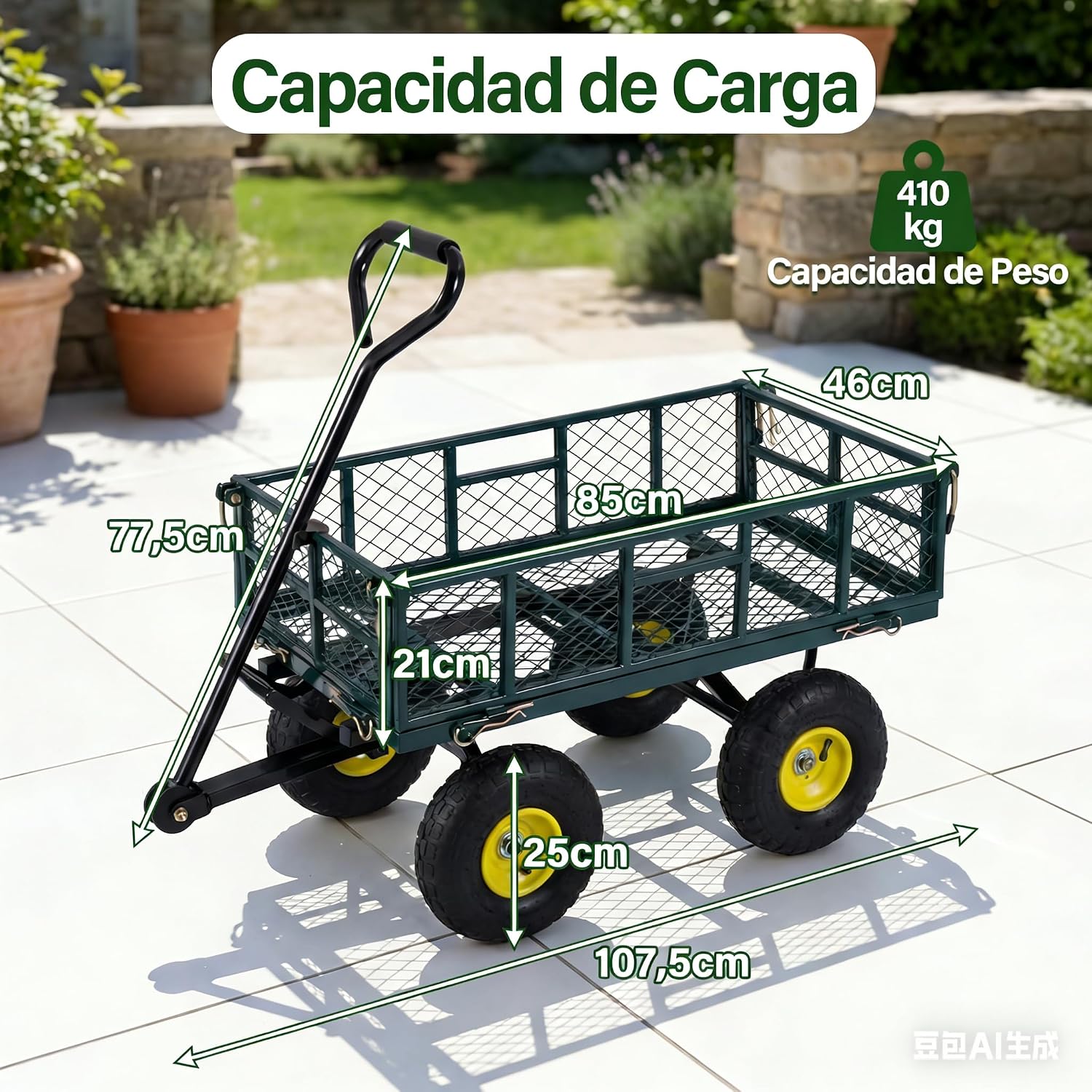

Rajah 1: This diagram provides the key dimensions of the garden cart: 107.5 cm length, 46 cm width, 77.5 cm height (including handle), and 21 cm mesh side height. It also highlights the impressive load capacity of 410 kg, which is approximately 900 lbs.

Arahan Operasi

Adjustable Handle and Steering

The cart features an ergonomic handle designed for comfortable use. The handle can be adjusted up to a 120-degree angle to suit your height and preference. The 270-degree U-turn steering bar allows for precise control and easy maneuvering in tight spaces or around garden paths.

Rajah 2: This image illustrates the ergonomic design of the garden cart's handle, which can be adjusted up to 120 degrees for comfortable pushing or pulling. The U-shaped steering bar allows for a 270-degree turn radius, enhancing maneuverability.

Memuatkan dan Kapasiti

The robust metal frame ensures reliable support for heavy loads, with a maximum capacity of 408 kg (900 lbs). When loading, distribute the weight evenly to maintain balance and stability. Avoid placing all weight on one side or end of the cart.

Rajah 3: The robust metal frame of the garden cart is designed for heavy-duty tasks, capable of supporting up to 410 kg. Reinforced crossbars ensure stability and durability, making it suitable for transporting various heavy materials like wood and soil bags.

Multifunctional 2-in-1 Design (Removable Sides)

The cart offers maximum flexibility with its four removable mesh side panels. These panels can be easily detached to convert the cart into a flatbed wagon, ideal for transporting oversized or irregularly shaped items that would not fit within the confines of the mesh sides. The flatbed dimensions are approximately 46 x 85 cm.

Rajah 4: This image demonstrates the cart's versatile 2-in-1 design. The four mesh side panels can be easily removed, transforming the cart into a flatbed wagon (46 x 85 cm) for transporting oversized or irregularly shaped items such as sacks of material.

Dumping Feature

For quick and efficient unloading of materials, the cart is equipped with a practical dumping handle. Simply pull the handle to release the locking mechanism and tilt the cart bed, allowing contents to slide out easily. This feature saves effort, especially when handling heavy or bulky items like logs or garden waste.

Rajah 5: The practical dumping handle allows for quick and efficient unloading of heavy materials. Simply pull the handle to tilt the cart bed, saving effort during tasks like moving logs or garden waste.

Tayar Semua Rupa Bumi

The cart is fitted with four wear-resistant rubber tires designed for smooth movement across various surfaces. These tires provide excellent shock absorption and operate with low noise, making them suitable for gravel, asphalt, grass, and even muddy ground. Ensure tires are properly inflated for optimal performance.

Rajah 6: Equipped with four wear-resistant rubber tires, the cart ensures smooth movement across diverse terrains such as grass, gravel, asphalt, and muddy ground. These tires offer excellent shock absorption and low noise operation.

Beg Simpanan Boleh Tanggal

A removable storage bag is included to help organize smaller items, garden tools, or waste. This bag easily attaches to the cart's frame, keeping contents secure and readily accessible. It is particularly useful when the mesh sides are in place.

Rajah 7: The removable storage bag provides an organized solution for carrying smaller items, tools, or garden waste. It easily attaches to the cart's frame, keeping contents secure and accessible.

Aplikasi Serbaguna

The COSTWAY garden cart is a versatile tool suitable for a wide range of environments and tasks. Its robust construction and adaptable design make it ideal for use in gardens, patios, farms, and even for transporting goods in settings like supermarkets or during campdalam perjalanan.

Rajah 8: The COSTWAY garden cart is highly versatile, suitable for a wide range of applications. It can be used for gardening tasks, moving items on patios, assisting with shopping at supermarkets, or transporting gear during campdalam perjalanan.

Penyelenggaraan

Regular maintenance will extend the life of your garden cart:

• Pembersihan: After each use, clean the cart with water and a mild detergent. Dry thoroughly to prevent rust.
• Pelinciran: Periodically lubricate moving parts, such as wheel axles and steering components, to ensure smooth operation.
• Pemeriksaan perkakasan: Regularly inspect all bolts, nuts, and fasteners. Tighten any loose hardware to maintain structural integrity.
• Tekanan Tayar: Check tire pressure periodically and inflate to the recommended level (refer to tire sidewall for specifications).
• Storan: Store the cart in a dry, covered area when not in use to protect it from weather elements.

Menyelesaikan masalah

If you encounter issues with your garden cart, consider the following common solutions:

• Kesukaran Memandu: Check if the steering mechanism is clear of debris. Ensure the handle and U-turn bar are correctly assembled and lubricated.
• Wobbly Wheels: Inspect wheel attachments and tighten any loose nuts or bolts. Check tire pressure.
• Cart Not Dumping Smoothly: Ensure the dumping handle mechanism is free of obstructions and lubricated. Do not overload the cart beyond its capacity.
• Bunyi Berlebihan: Lubricate moving parts. Check for any loose components or debris caught in the wheels or frame.

Spesifikasi

Waranti dan Sokongan

COSTWAY products are designed for quality and durability. For warranty information, product support, or to purchase replacement parts, please contact COSTWAY customer service. Keep your purchase receipt as proof of purchase.

Perkhidmatan Pelanggan: Please refer to the contact information provided on the COSTWAY official webtapak atau dokumentasi pembelian anda.
