Safecourt Kitchen Slowjuicer SJ500-BL Instruction Manual

1. Pengenalan

Thank you for choosing the Safecourt Kitchen Slowjuicer SJ500-BL. This premium cold press juicer is designed for efficient juice extraction, preserving nutrients and flavor. Please read this manual carefully before operating the appliance to ensure safe and optimal performance. Keep this manual for future reference.

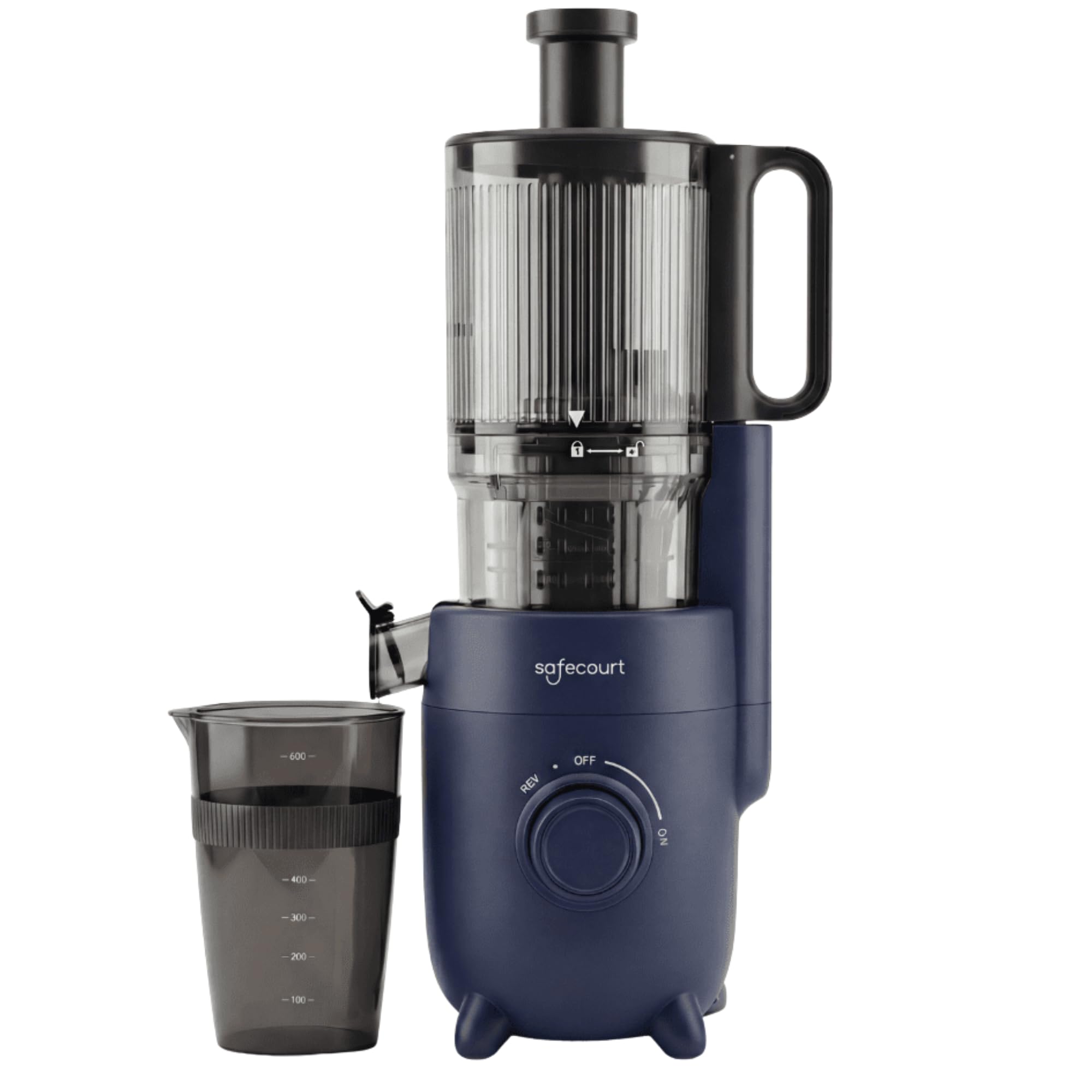

Image 1.1: The Safecourt Kitchen Slowjuicer SJ500-BL, fully assembled and ready for use.

2. Arahan Keselamatan Penting

Apabila menggunakan peralatan elektrik, langkah berjaga-jaga keselamatan asas hendaklah sentiasa diikuti untuk mengurangkan risiko kebakaran, kejutan elektrik dan kecederaan kepada orang.

• Baca semua arahan sebelum digunakan.
• Jangan rendam tapak motor dalam air atau cecair lain.
• Pastikan perkakas dicabut plag sebelum memasang, membuka atau membersihkan.
• Jauhkan tangan dan perkakas daripada bahagian yang bergerak semasa operasi untuk mengelakkan kecederaan.
• Never feed food into the chute with your fingers. Always use the provided safety pusher.
• Do not operate the juicer if any part is damaged or if the power cord is frayed.
• Perkakas ini adalah untuk kegunaan isi rumah sahaja. Jangan gunakan di luar rumah.
• Ensure all parts are correctly assembled before turning on the appliance.
• Do not overload the juicer. Process ingredients gradually.
• Jauhkan perkakas daripada kanak-kanak.

3. Kandungan Pakej

Sahkan bahawa semua item terdapat dalam pakej:

• 1 x Slow Juicer Motor Base
• 1 x Juicing Assembly (includes auger, strainer, and rotating brush)
• 1 x Feeding Chute Lid
• 1 x Juice Container (700 ml)
• 1 x Pulp Container (700 ml)
• 1 x Safety Pusher
• 1 x Berus Pembersih
• 1 x Manual Arahan (dokumen ini)

4. Perhimpunan

Follow these steps to assemble your slow juicer:

1. Letakkan tapak motor pada permukaan yang stabil dan rata.
2. Align the juicing assembly (which includes the auger, strainer, and rotating brush) with the motor base and gently push down until it clicks into place. Ensure it is securely locked.
3. Insert the auger into the center of the strainer.
4. Place the feeding chute lid onto the juicing assembly. Rotate it clockwise until it locks securely. You should hear a click. The juicer will not operate if the lid is not properly locked.
5. Position the juice container under the juice spout and the pulp container under the pulp spout.

5. Arahan Operasi

Before first use, wash all detachable parts thoroughly with warm soapy water and rinse well. Ensure all parts are dry before assembly.

5.1 Penyediaan Bahan

• Basuh semua buah-buahan dan sayur-sayuran dengan bersih.
• For most fruits and vegetables, pre-cutting is not necessary due to the 125 mm XL feeding chute. Whole apples, pears, or celery stalks can be inserted directly.
• Remove hard pits from fruits (e.g., peaches, plums, cherries) and large seeds.
• Peel citrus fruits (oranges, lemons, grapefruits) as their peels can impart a bitter taste.
• Cut fibrous ingredients like ginger or leafy greens into smaller pieces to prevent tangling.

5.2 Proses Jus

1. Ensure the juicer is correctly assembled and the juice and pulp containers are in place.
2. Palamkan kord kuasa ke salur keluar elektrik yang sesuai (230 Volt).
3. Putar suis kuasa ke kedudukan 'ON'.
4. Gradually feed prepared ingredients into the feeding chute. Use the safety pusher to gently guide ingredients down. Do not force ingredients.
5. Pemerah jus akan mengeluarkan jus ke dalam bekas jus dan memisahkan pulpa ke dalam bekas pulpa.
6. If ingredients become blocked, turn the switch to the 'REV' (Reverse) position for a few seconds to clear the blockage, then switch back to 'ON'.
7. Once juicing is complete, turn the power switch to 'OFF' and unplug the appliance.

5.3 Kegunaan Serbaguna

This slow juicer is also suitable for making fresh oat milk or almond milk. Follow similar steps, ensuring oats or almonds are properly soaked if required by your recipe.

6. Pembersihan dan Penyelenggaraan

Regular cleaning ensures the longevity and hygiene of your slow juicer.

1. Sentiasa cabut plag pemerah jus dari soket kuasa sebelum membersihkan.
2. Disassemble the juicer by rotating the feeding chute lid counter-clockwise and lifting it off. Then, remove the juicing assembly from the motor base.
3. Separate all detachable parts: feeding chute lid, auger, strainer, rotating brush, juice container, and pulp container.
4. Bilas semua bahagian yang boleh ditanggalkan di bawah air yang mengalir dengan segera selepas digunakan untuk mengelakkan pulpa daripada kering dan melekat.
5. Use the provided cleaning brush to remove any stubborn pulp from the strainer mesh and other components.
6. All detachable parts are dishwasher safe. Place them on the top rack of your dishwasher.
7. Lap tapak motor dengan iklanamp kain. Jangan sekali-kali merendam tapak motor di dalam air atau sebarang cecair lain.
8. Pastikan semua bahagian kering sepenuhnya sebelum memasang semula atau menyimpan pemerah jus.

7. Penyelesaian masalah

If you encounter issues with your slow juicer, refer to the following common problems and solutions:

8. Spesifikasi

Technical details for the Safecourt Kitchen Slowjuicer SJ500-BL:

• Nombor Model: SJ500-BL
• Jenama: Dapur Safecourt
• warna: Biru
• Kuasa: 220 Watt
• Voltage: 230 Volt
• Bilangan Kelajuan: 2
• Dimensi Produk: 15 cm (D) x 15 cm (W) x 47 cm (H)
• Pelongsor Pemakanan: 125 mm XL
• Bahan Bilah: Keluli Tahan Karat
• Bahan Binaan: BPA-free Tritan, Stainless Steel
• Arahan Penjagaan: Bahagian selamat untuk mesin basuh pinggan mangkuk
• Sumber Kuasa: Elektrik Bertali
• Fungsi Pemadaman Automatik: Tidak
• Tahap Bunyi: Operasi senyap

9. Waranti dan Sokongan

For warranty information and customer support, please refer to the warranty card included with your purchase or visit the official Safecourt Kitchen webtapak. Simpan bukti pembelian anda untuk sebarang tuntutan waranti.

If you experience any issues not covered in this manual, please contact Safecourt Kitchen customer service for assistance.
