Generic LE-0273 Type-C Earphones with Microphone

pengenalan

The Generic LE-0273 Type-C Earphones with Microphone are engineered for users demanding superior audio quality. These earphones feature a premium transparent design and a detachable structure, providing a professional audio experience with high fidelity (HiFi). Equipped with 10mm drivers, they deliver deep bass and clear treble across a frequency range of 20-20000Hz. The reinforced 1.2m cable ensures durability and a stable connection. The ergonomic design is crafted for comfortable wear during extended use. An integrated HD microphone with 42±3dB sensitivity and convenient in-line controls allows for easy volume management and playback control. Three sizes of silicone ear tips (Small, Medium, Large) are included to ensure a personalized and secure fit. With an impedance of 16Ω and sensitivity of 98±3dB, these earphones are suitable for various activities including music listening, podcasts, phone calls, studying, and gaming. They are compatible with Android devices via a Type-C connection.

Image: User experiencing immersive audio with LE-0273 earphones.

Produk Selesaiview

Ciri-ciri Utama

• Audio Kesetiaan Tinggi: 10mm drivers with 20-20000Hz frequency response for deep bass, balanced mids, and clear treble.
• Professional Detachable Design: Modern transparent structure with a reinforced 1.2m replaceable cable for easy maintenance and enhanced durability.
• Universal Type-C Connector: Ensures stable, interference-free audio connection with Android smartphones, tablets, and notebooks featuring USB Type-C input.
• Mikrofon HD Bersepadu: 42±3dB sensitivity and 100Hz-10kHz frequency for crystal-clear calls, complemented by in-line volume and play/pause controls.
• Keselesaan Ergonomik: Includes 3 ear tip sizes (S, M, L) for a perfect, comfortable fit, with 16Ω impedance and 98±3dB sensitivity for prolonged use without discomfort.
• Pembatalan Bunyi Pasif: Mengurangkan bunyi ambien untuk pengalaman mendengar yang lebih fokus.
• Bunyi Panorama 360°: Creates an immersive audio environment.
• Bahan Tahan Lama: Constructed from metal, plastic, and silicone for longevity.

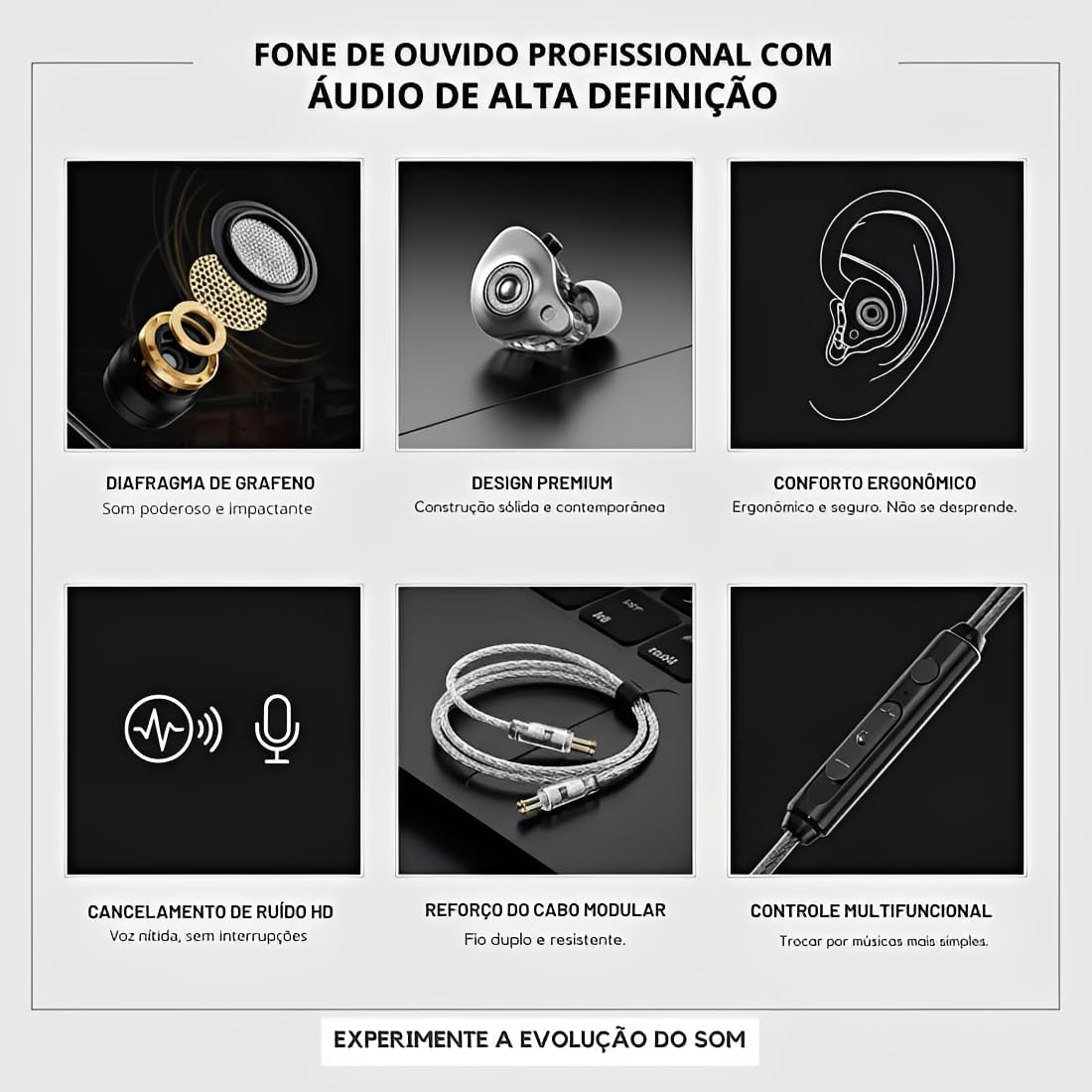

Image: Detailed features of the LE-0273 professional earphones.

Kandungan Pakej

• 1 x LE-0273 Type-C Earphones
• 1 x 1.2m Reinforced Detachable Cable
• 3 x Sepasang Petua Telinga Silikon (Kecil, Sederhana, Besar)

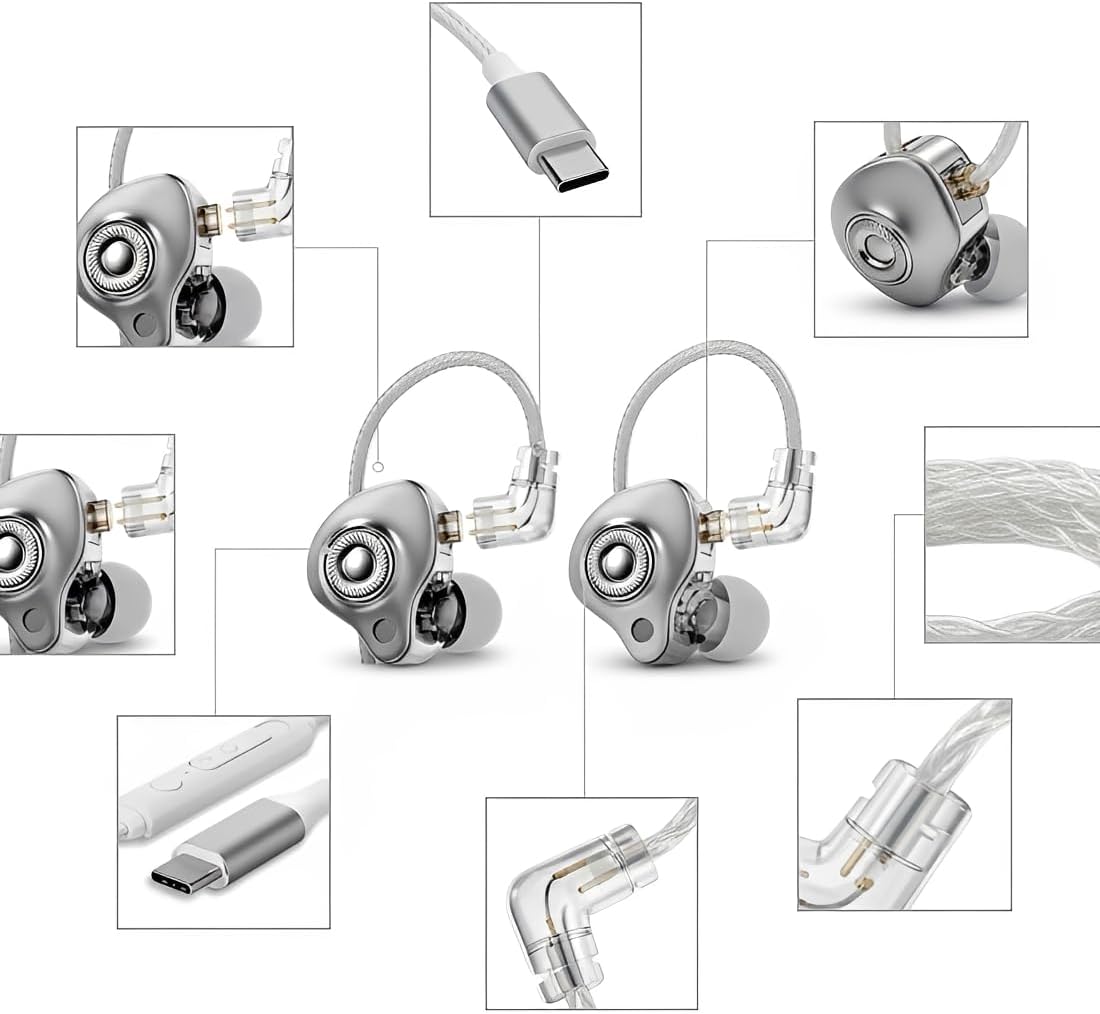

Image: Components and design elements of the LE-0273 earphones.

Persediaan

1. Memilih Petua Telinga yang Betul

The earphones come with three sizes of silicone ear tips (Small, Medium, Large). Selecting the correct size is crucial for optimal sound quality and comfort. Experiment with each size to find the pair that creates a snug seal in your ear canal without causing discomfort. A good seal enhances bass response and passive noise cancellation.

2. Menyambungkan Kabel

Align the Type-C connector of the earphone cable with the USB Type-C port on your compatible device (e.g., Android smartphone, tablet, notebook). Gently push the connector in until it is fully seated. Ensure the connection is firm to prevent audio interruptions.

Image: Detachable cable and Type-C connector for easy setup.

3. Memakai Fon Telinga

Insert the earphones into your ear canals. The ergonomic design is intended to fit securely. Adjust the earphones until they feel comfortable and stable. The cable is designed to loop over the top of your ear for added security and reduced microphonics (cable noise).

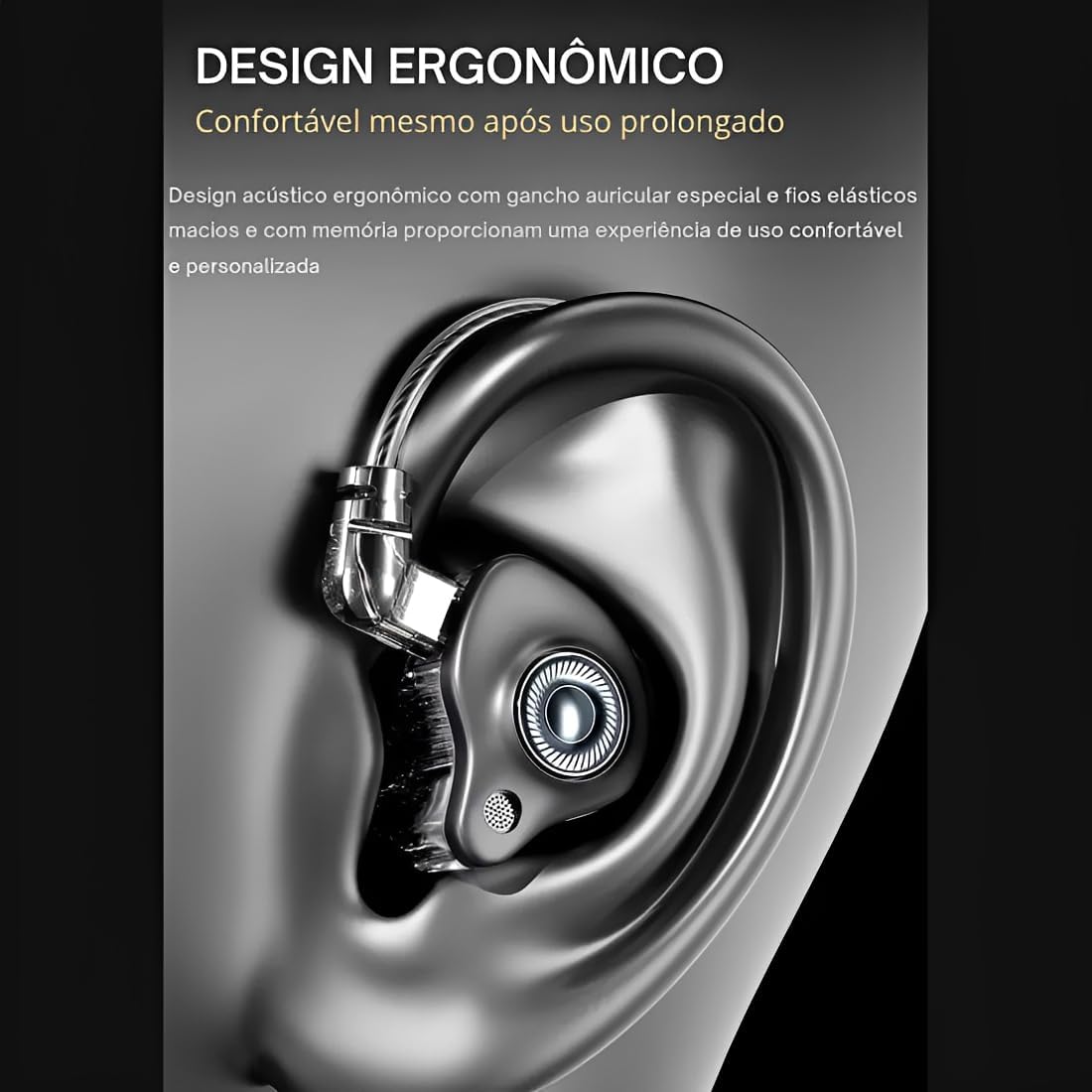

Image: Ergonomic design for comfortable and secure fit.

Arahan Operasi

Main Balik Audio

Once connected, your device should automatically recognize the earphones. Begin playing audio from your preferred application. The earphones will reproduce sound with high fidelity.

Using In-Line Controls

The LE-0273 earphones feature an integrated in-line control unit on the cable for convenient management of audio and calls.

• Kelantangan Naik/Turun: Gunakan butang '+' dan '-' untuk melaraskan kelantangan main balik.
• Main/Jeda: Press the central button once to play or pause audio.
• Lagu Seterusnya: Tekan dua kali butang tengah untuk melangkau ke trek seterusnya.
• Trek Sebelumnya: Tekan butang tengah tiga kali untuk kembali ke trek sebelumnya.
• Jawab/Tamatkan Panggilan: Press the central button once to answer an incoming call or end an ongoing call.
• Tolak Panggilan: Tekan dan tahan butang tengah selama lebih kurang 2 saat untuk menolak panggilan masuk.

Penggunaan Mikrofon

The integrated HD microphone allows for clear voice capture during calls or voice recordings. Ensure the microphone is positioned appropriately for optimal voice pickup. The passive noise cancellation helps to reduce background noise during calls.

Image: Earphones providing clear calls and Hi-Fi sound with noise reduction.

Penyelenggaraan

Cleaning the Earphones and Ear Tips

• Regularly clean the ear tips with a soft, dry cloth. For deeper cleaning, remove the silicone ear tips and wash them with mild soap and water. Ensure they are completely dry before reattaching.
• Gently wipe the earphone housings and cable with a soft, slightly damp kain. Elakkan menggunakan bahan kimia yang keras atau bahan yang melelas.
• Do not submerge the earphones or cable in water, as they are not water-resistant.

Penjagaan Kabel

• Avoid sharp bends or excessive pulling on the cable, especially near the connectors.
• When storing, coil the cable loosely to prevent tangles and damage.
• The cable is detachable and replaceable, which can extend the lifespan of your earphones. If the cable becomes damaged, a replacement can be acquired.

Penyimpanan

Store your earphones in a clean, dry place away from extreme temperatures and direct sunlight. Using a small pouch or case can protect them from dust and physical damage when not in use.

Menyelesaikan masalah

Tiada Bunyi atau Kelantangan Rendah

• Pastikan penyambung Jenis-C dimasukkan sepenuhnya ke dalam peranti anda.
• Check the volume level on your device and using the in-line controls.
• Verify that the audio output setting on your device is directed to the connected earphones.
• Test the earphones with another device to rule out a device-specific issue.
• Periksa kabel untuk sebarang kerosakan yang boleh dilihat.

Kualiti Bunyi Lemah

• Ensure the ear tips are correctly sized and form a good seal in your ear canal.
• Clean the ear tips and earphone nozzles to remove any debris that might be obstructing sound.
• Cuba mainkan audio yang berbeza fileatau sumber untuk menentukan sama ada isunya adalah pada kandungan.

Mikrofon Tidak Berfungsi

• Ensure the earphones are fully connected to your device.
• Check your device's privacy settings to ensure the application has permission to access the microphone.
• Uji mikrofon dengan aplikasi atau peranti lain.
• Ensure the microphone port on the in-line control is not obstructed.

In-Line Controls Not Responding

• Ensure the earphones are securely connected.
• Some older devices or specific applications may have limited compatibility with in-line controls. Test with a different device or application.

Spesifikasi

Waranti dan Sokongan

Maklumat Waranti

Produk ini dilindungi oleh a Waranti pengilang 30 hari from the date of purchase. This warranty covers manufacturing defects and faults under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear. Please retain your proof of purchase for warranty claims.

Sokongan Pelanggan

For any questions, technical assistance, or warranty claims, please contact the seller or manufacturer through the platform where the product was purchased. Provide your order details and a clear description of the issue to facilitate a prompt resolution.
