pengenalan
This manual provides detailed instructions for the assembly, operation, and maintenance of your CayugaCrekrd 3 Doors LED Wardrobe Closet. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

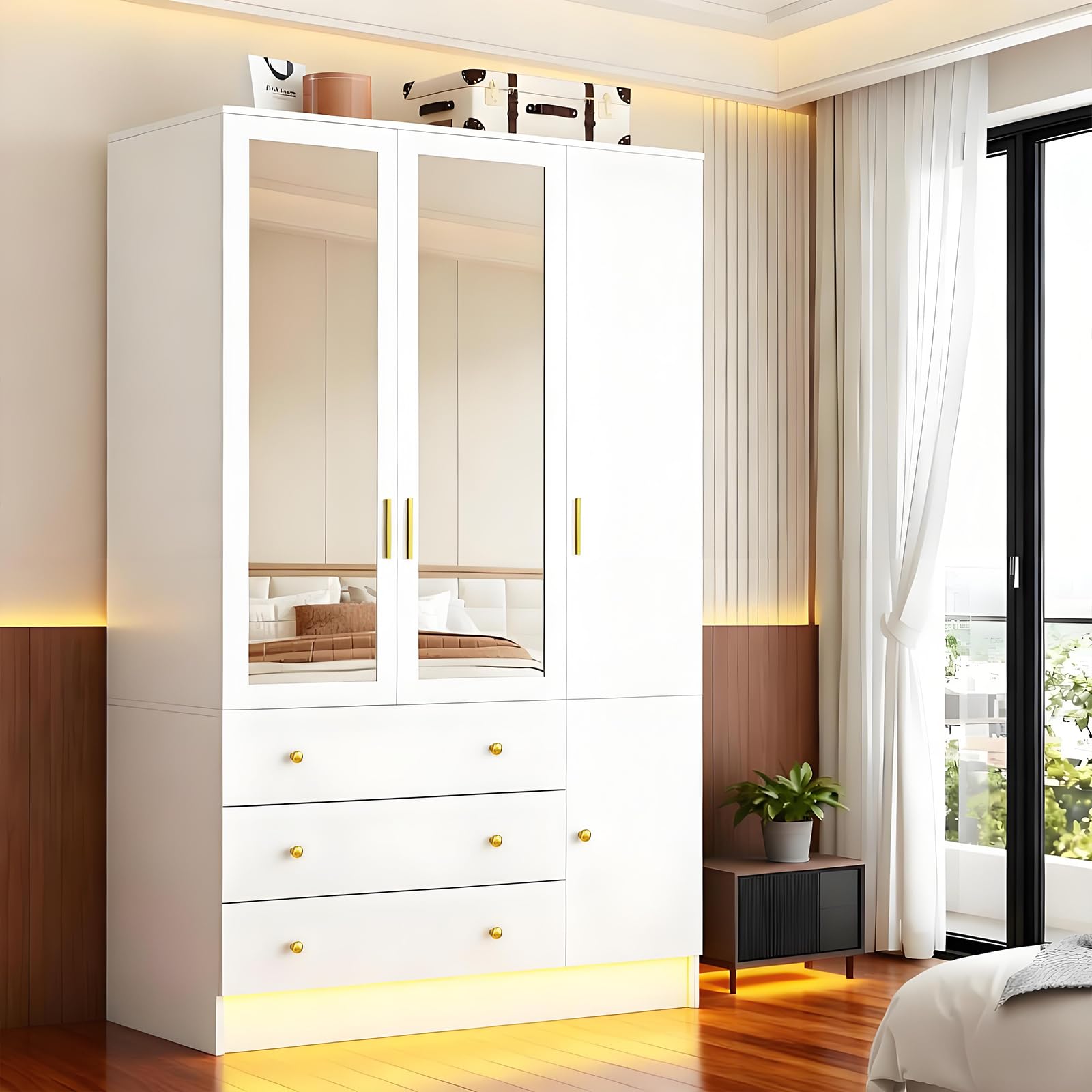

The CayugaCrekrd 3 Doors LED Wardrobe Closet is a modern storage solution featuring three doors, a half-length mirror, three deep drawers, a hanging rod, and multiple shelves. It also includes an integrated RGB LED lighting system for customizable ambiance.
Maklumat Keselamatan
- Sentiasa ikut arahan pemasangan dengan tepat. Pemasangan yang salah boleh menyebabkan ketidakstabilan dan potensi kecederaan.
- This item is shipped in two separate packages. Ensure both packages have arrived before starting assembly.
- Assembly requires two people for safety and ease.
- Utilize the included anti-tipping device to secure the wardrobe to a wall, preventing accidental tipping.
- Do not overload drawers or shelves. Distribute weight evenly.
- Jauhkan bahagian kecil dan bahan pembungkusan daripada kanak-kanak semasa pemasangan.
- Ensure all connections for the LED lighting system are secure before plugging into a power source.
Kandungan Pakej
Your CayugaCrekrd 3 Doors LED Wardrobe Closet will arrive in two separate boxes. Please verify all components are present before beginning assembly. The package includes:
- All necessary engineered wood panels for the wardrobe structure.
- 3 Doors, including one with a half-length mirror.
- 3 Drawers with smooth rails.
- Removable Hanging Rod.
- LED Lighting System (RGB LED light strip, remote control, power adapter).
- Gold-colored metal handles.
- Peranti anti-tip.
- Feet pads for floor protection.
- Soft-close hinges.
- All required assembly hardware (screws, dowels, cam locks, etc.).
- Detailed assembly instructions with numbered parts.
Figure 1: Product dimensions and packaging information. Note that the item ships in two boxes (Box A and Box B) which may arrive on different days.
Persediaan dan Perhimpunan
Assembly of the CayugaCrekrd 3 Doors LED Wardrobe Closet requires careful attention to detail. Please ensure you have ample space and a second person to assist.
- Buka bungkus dan Kenalpasti Bahagian: Carefully unpack all components from both boxes. Lay them out on a clean, soft surface to prevent scratches. Match each part to the numbered labels in the instruction manual.
- Pasang Pangkalan: Follow the step-by-step diagrams to construct the base frame of the wardrobe. Ensure all connections are tight and secure. Attach the feet pads to protect your floor.
- Construct Side Panels and Back Panel: Attach the side panels to the base. Carefully slide the back panel into its grooves, ensuring it is flush and secure.
- Install Internal Shelves and Hanging Rod: Insert the fixed and adjustable shelves into their designated positions. Secure the removable hanging rod in the left compartment.
- Pasang dan Pasang Laci: Follow the instructions to assemble the three drawers. Install the smooth rails onto the wardrobe frame and then slide the assembled drawers into place.
- Pasang Pintu: Mount the three doors using the soft-close hinges. Adjust the hinges as needed to ensure the doors align properly and close smoothly.
- Pasang Pemegang: Attach the gold-colored metal handles to the doors and drawers.
- Install LED Lighting System: Adhere the LED light strip to the designated area (typically along the bottom or inside the top panel). Connect the light strip to the control box and power adapter.
- Peranti Anti-Tipping Selamat: For safety, attach the anti-tipping device to the top rear of the wardrobe and secure it to a wall stud using appropriate hardware.
Figure 2: Details of metal handles, smooth drawer rails, and sturdy base construction.
Arahan Operasi
Organisasi Storan
Almari pakaian ini menawarkan pilihan penyimpanan yang serba boleh:
- Kawasan Gantung: The left compartment features a sturdy hanging rod, ideal for suits, dresses, and other garments requiring hanging.
- Stacking Area: The right compartment includes multiple shelves for folded clothes, bedding, or storage boxes.
- Private Storage Area: Three deep drawers provide concealed storage for smaller items, accessories, or personal belongings.
- Permukaan Atas: The top of the wardrobe can be used for rarely accessed items or decorative displays.
Figure 3: Internal storage layout with hanging, stacking, and drawer areas.
Figure 4: Key features including the removable hanging rod, large drawers, and mirror.
Sistem Pencahayaan LED
The integrated RGB LED lighting system can be controlled via the included remote control or a mobile application.
- Hidupkan/Mati Kuasa: Use the power button on the remote or app to turn the lights on or off.
- Pilihan Warna: Choose from 60,000 colors using the color wheel on the remote or app.
- Mod Dinamik: Select from 25 dynamic modes for various lighting effects.
- Penyegerakan Muzik: Sync the lights to music through the mobile application.
- Fungsi Masa: Set timers for the lights to turn on or off automatically.
Figure 5: Remote and mobile app control for the RGB LED lighting system.
Penyelenggaraan
Pembersihan
- Permukaan Kayu: Wipe engineered wood surfaces with a soft, damp kain. Elakkan pembersih yang kasar atau bahan kimia keras yang boleh merosakkan kemasan. Keringkan segera dengan kain bersih.
- Cermin: Clean the mirror with a glass cleaner and a lint-free cloth. Spray cleaner onto the cloth, not directly onto the mirror, to prevent liquid from seeping into edges.
- Lampu LED: Gently wipe the LED strip with a dry, soft cloth if dust accumulates. Ensure the power is off before cleaning.
Penjagaan Am
- Periksa semua skru dan pengikat secara berkala untuk memastikan ia kekal ketat. Ketatkan semula jika perlu.
- Avoid placing hot items directly on the wardrobe surface.
- Do not drag the wardrobe when moving it; always lift with assistance to prevent damage to the base and floor.
- Ensure the anti-tipping device remains securely fastened to the wall.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Almari pakaian goyah/tidak stabil. | Pengikat longgar; lantai tidak rata; peranti anti-tip tidak dipasang. | Check and tighten all screws. Ensure the wardrobe is on a level surface. Install or re-secure the anti-tipping device to the wall. |
| Drawers do not slide smoothly or are stuck. | Rel tidak sejajar; serpihan dalam rel; laci terlebih muatan. | Remove the drawer and check rail alignment. Clear any obstructions from the rails. Reduce the weight in the drawer. |
| Pintu tidak ditutup dengan betul atau tidak sejajar. | Engsel longgar atau tidak dilaraskan dengan betul. | Adjust the soft-close hinges according to the assembly instructions to ensure proper alignment and closure. Tighten hinge screws. |
| Lampu LED tidak berfungsi. | Power connection loose; remote battery dead; light strip damaged. | Check if the power adapter is securely plugged into the wall and the light strip. Replace remote control batteries. If issues persist, contact support. |
Spesifikasi
| Ciri | Perincian |
|---|---|
| Jenama | CayugaCrekrd |
| Nombor Model | B0GDZJQ2RG |
| warna | putih |
| bahan | Kayu Kejuruteraan |
| Dimensi Produk (D x W x H) | 19.6" x 47.2" x 74.8" |
| Bilangan Pintu | 3 |
| Bilangan Laci | 3 |
| Bilangan Rak | 4 (in right compartment) |
| Ciri-ciri Tambahan | Half-length Mirror, RGB LED Lights (60,000 colors, app/remote control, music sync, timing function), Hanging Rod, Soft-close hinges, Anti-tipping device, Feet pads |
| Jenis Pemasangan | Berdiri Bebas, Pemasangan Lantai |
| Perhimpunan Diperlukan | Ya (2 orang disyorkan) |
| Hardware Color | emas |
Waranti dan Sokongan
Maklumat Waranti
No specific warranty information is provided in the product details. Please refer to your purchase documentation or contact the retailer for details regarding warranty coverage.
Sokongan Pelanggan
For further assistance, missing parts, or technical support, please contact the retailer or manufacturer directly through their official customer service channels. Have your model number (B0GDZJQ2RG) and purchase date ready when contacting support.
