HELLA Edgeless Pro 1FJ 358 236-001 Slim LED Lightbar User Manual

1. Pengenalan

The HELLA Edgeless Pro Slim LED Lightbar is an advanced auxiliary lighting solution designed for vehicles operating on 12V to 24V systems. This lightbar features an edgeless design with an electrophoretic coating for enhanced corrosion resistance and durability. It offers versatile lighting functions including a powerful high beam, a position light available in white (ECE-R148 compliant) or yellow (for off-road use only), and an integrated welcome/goodbye light feature. The high-boost function provides increased luminous flux for optimal vision in demanding conditions. This manual provides essential information for the safe installation, operation, and maintenance of your HELLA Edgeless Pro Lightbar.

This image displays the HELLA Edgeless Pro Slim Lightbar in its packaging, alongside the lightbar unit itself and the included mounting brackets and hardware.

2. Maklumat Keselamatan

Please read and understand all safety instructions before installing or operating the lightbar. Failure to follow these instructions may result in injury, damage to the product, or vehicle damage.

• Pemasangan Profesional: Installation of this lightbar should be performed by qualified specialist personnel to ensure correct wiring and mounting, preventing electrical issues or improper light alignment.
• Keselamatan Elektrik: Disconnect the vehicle's battery before beginning any electrical work. Ensure all wiring connections are secure and properly insulated to prevent short circuits. The lightbar operates on 12-24V DC.
• Keselamatan Pemasangan: Securely mount the lightbar using the provided brackets and hardware. Ensure the mounting location is structurally sound and can support the weight of the lightbar, especially during vehicle movement and vibrations.
• Peraturan ECE: The yellow (amber) position light function is intended for off-road use only and does not have ECE approval for public road traffic. Use of the yellow position light on public roads may be restricted or prohibited by local regulations. The high beam function is ECE-R149 approved.
• Suhu Operasi: Avoid operating the lightbar outside its specified temperature range of -30 °C to 65 °C.

3. Persediaan dan Pemasangan

The HELLA Edgeless Pro Lightbar is designed for front installation via screw connection, offering both side and rear mounting options. Professional installation is recommended.

3.1 Komponen Selesaiview

• HELLA Edgeless Pro Slim LED Lightbar unit
• Kurungan pemasangan sisi
• Rear mounting brackets
• Mounting hardware (screws, washers, nuts)
• 2000mm cable with open ends

Satu jarak dekat view of the mounting brackets provided with the HELLA Slim Lightbar, showing their design for secure installation.

This image displays the complete set of mounting hardware, including various brackets and screws, for installing the HELLA Slim Lightbar.

3.2 Pilihan Pemasangan

The lightbar can be mounted using either the side or rear brackets, allowing for flexible positioning on the vehicle's front. Ensure the chosen mounting surface is flat and robust enough to support the lightbar securely.

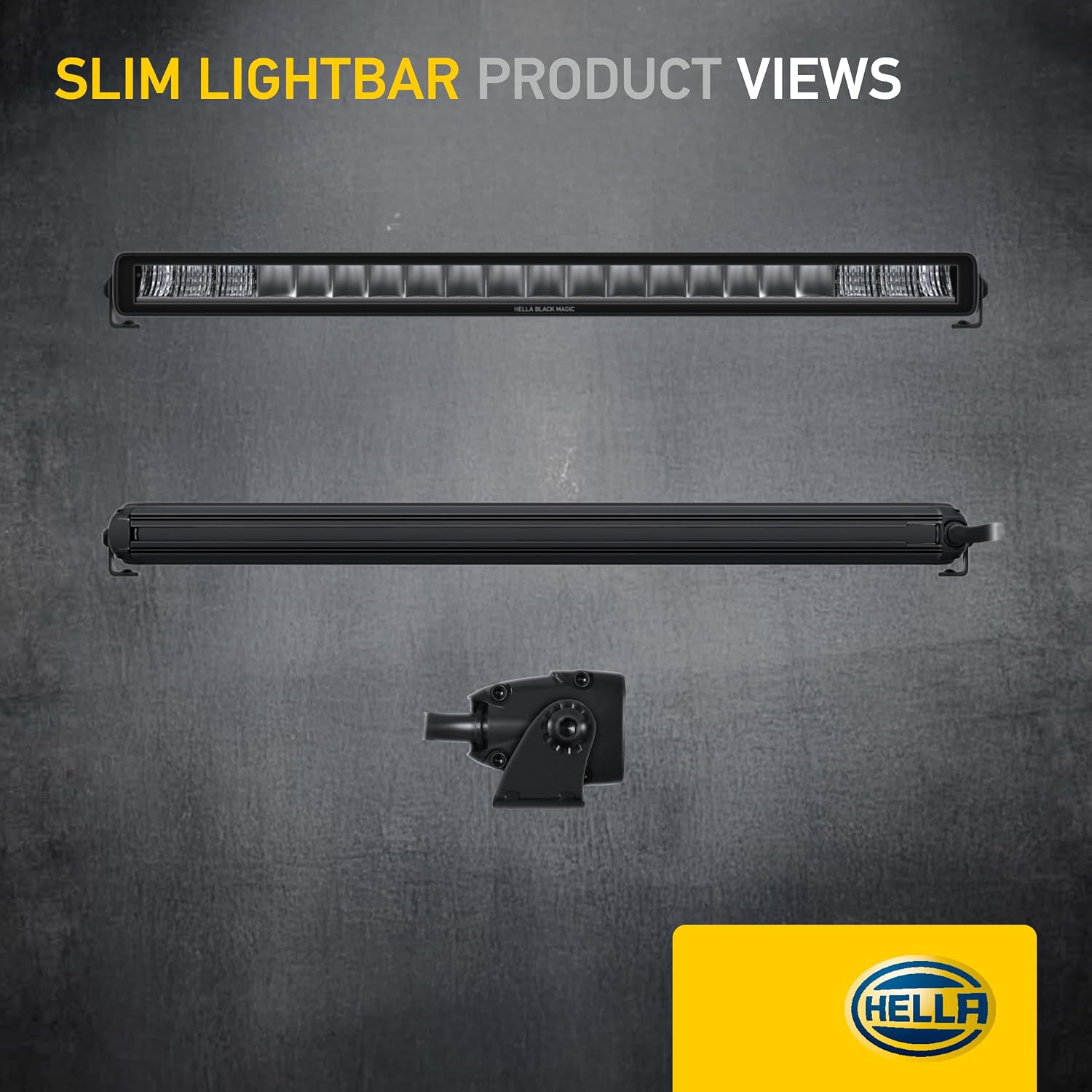

This image provides various views of the HELLA Slim Lightbar, including its top and bottom profiles, and a detailed view of the adjustable mounting bracket.

This diagram illustrates the precise dimensions of the HELLA Slim Lightbar, including length (522mm), height (47mm), and depth (54.4mm), along with mounting point measurements.

3.3 Sambungan Elektrik

The lightbar comes with a 2000mm cable with open ends for connection to the vehicle's electrical system. Consult a wiring diagram or a professional installer to ensure correct connection of the high beam, position light, and high-boost functions to appropriate switches and power sources (12-24V DC). Ensure proper grounding.

4. Arahan Operasi

The HELLA Edgeless Pro Lightbar offers multiple lighting functions for various driving conditions.

4.1 Fungsi Lampu

• High Beam (LED): Provides a powerful, focused light output of 3730 lumens for enhanced visibility. This function is ECE-R149 approved for public road traffic.
• High-Boost Function: When activated, this mode increases the luminous flux to 6332 lumens, providing maximum illumination. This function is intended for off-road use only.
• Position Light (LED): Available in two color options:
  • White Position Light: ECE-R148 approved for use on public roads.
  • Yellow (Amber) Position Light: Intended for off-road use only. Not ECE approved for public road traffic.
• Welcome and Goodbye-Light: An aesthetic feature that provides a temporary illumination sequence upon vehicle activation or deactivation.

This image illustrates the different lighting modes of the HELLA Slim Lightbar, showcasing the high beam, white position light, and amber position light functions.

This image shows the HELLA Slim Lightbar with its white position light illuminated, compliant with ECE-R148.

This image shows the HELLA Slim Lightbar with its amber position light illuminated, suitable for off-road use.

This image shows the HELLA Slim Lightbar mounted on an off-road vehicle, demonstrating its application in rugged environments.

5. Penyelenggaraan

Regular maintenance ensures optimal performance and longevity of your HELLA Edgeless Pro Lightbar.

• Pembersihan: Clean the lens and housing regularly with a soft cloth and mild soap solution. Avoid abrasive cleaners or solvents that could damage the lens or coating.
• Pemeriksaan: Periodically inspect the lightbar for any signs of damage, such as cracks in the lens or housing, loose mounting hardware, or frayed cables. Address any issues promptly.
• Integriti Kabel: Ensure the power cable remains securely connected and free from damage. Protect it from sharp edges or excessive heat.

6. Penyelesaian masalah

If you encounter issues with your lightbar, refer to the following common troubleshooting steps:

• Lightbar Not Illuminating:
  • Check all electrical connections for tightness and proper insulation.
  • Verify that the vehicle's battery has sufficient charge and the fuse for the lightbar circuit is intact.
  • Ensure the switch controlling the lightbar is functioning correctly.
• Cahaya Malap atau Berkelip:
  • Inspect wiring for corrosion or loose connections that might cause voltage jatuh.
  • Confirm the lightbar is receiving the correct voltage (12-24V).
• Moisture Inside Lens:
  • While the lightbar is IP68 and IP69K rated, extreme temperature changes can sometimes cause condensation. If persistent, inspect the housing for damage or improper sealing.

If these steps do not resolve the issue, contact HELLA customer support or a qualified automotive electrician.

7. Spesifikasi

Detailed technical specifications for the HELLA Edgeless Pro 1FJ 358 236-001 Lightbar.

This image presents detailed product specifications such as weight, number of LEDs, ECE approvals, color temperature, power consumption, IP rating, and cable length. An Isolux diagram illustrates the light distribution.

This image highlights key features and protective technologies of the lightbar, including Electromagnetic Compatibility (EMC), edgeless design, electrophoretic coating, clear lens, high-performance reflectors, aluminum housing, overvoltage protection, various mounting options, vibration resistance, anti-UV hard coating, and active thermal management.

This image provides technical details in German, including operating voltage (12-24V), light functions (high beam, position light, high boost), color temperature (5700K), luminous flux (3730 Lumen), and ECE R10, R148, R149 approvals.

8. Waranti dan Sokongan

HELLA products are manufactured to high-quality standards and are covered by a manufacturer's warranty against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the documentation included with your product or visit the official HELLA webtapak.

For technical assistance, troubleshooting, or warranty claims, please contact HELLA customer support through their official channels. When contacting support, please have your product model number (1FJ 358 236-001) and purchase information readily available.
