Perlindungan Penting
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons. Read all instructions carefully before using the appliance.
- Jangan merendam kord, palam, atau perkakas ke dalam air atau cecair lain.
- Pastikan voltage yang ditunjukkan pada perkakas sesuai dengan sumber listrik tempatan andatage sebelum menyambung.
- Jauhkan perkakas dan kordnya daripada jangkauan kanak-kanak.
- Jangan kendalikan sebarang perkakas dengan kord atau palam yang rosak, atau selepas perkakas tidak berfungsi atau rosak dalam apa jua cara.
- Jangan biarkan kord itu tergantung di tepi meja atau kaunter, atau menyentuh permukaan panas.
- Sentiasa cabut plag perkakas apabila tidak digunakan dan sebelum membersihkan. Biarkan ia sejuk sebelum dikendalikan.
- Jangan letakkan perkakas pada dinding atau pada perkakas lain. Tinggalkan sekurang-kurangnya 10 cm ruang kosong di bahagian belakang dan sisi dan 10 cm ruang kosong di atas perkakas.
- Jangan letakkan apa-apa di atas perkakas.
- Jangan gunakan perkakas untuk sebarang tujuan selain daripada yang diterangkan dalam manual ini.
- Hot air is released through the air outlet openings during hot air frying. Keep your hands and face at a safe distance from the steam and from the air outlet openings.
- Permukaan mungkin menjadi panas semasa digunakan.
Produk Selesaiview
The INALSA Tasty Fry CD4.5 is a 4.5-liter ceramic-coated air fryer designed for healthy cooking with minimal oil. It features a 1400W motor and 360° rapid air circulation technology for efficient and even cooking.

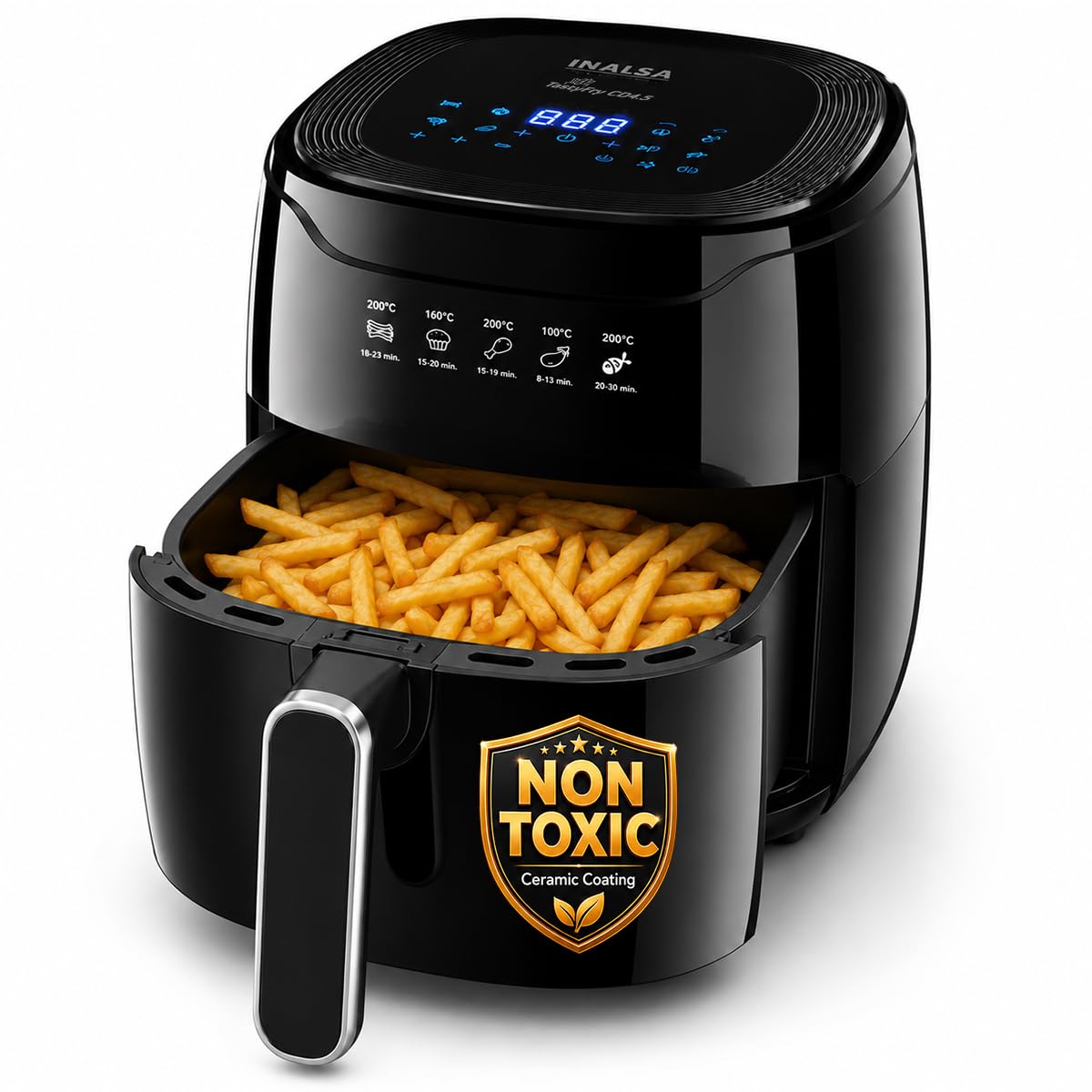

Imej: Depan view of the INALSA Tasty Fry CD4.5 Air Fryer.
Ciri-ciri utama termasuk:
- Toxin-Free Ceramic Coated Basket: Ensures healthy cooking without harmful chemicals like PFOA, PTFE, or PFAS.
- Motor 1400W berkuasa: Provides rapid heating and efficient cooking.
- 360° Rapid Air Circulation: Delivers crispy results with up to 99% less oil.
- Panel Sentuh Digital: Intuitive controls for easy operation.
- 8 Preset Cooking Functions: Simplifies meal preparation for various dishes.
- Kapasiti 4.5L: Suitable for families, allowing cooking of large batches or a whole chicken.
- Bonus Food Separator: Allows simultaneous cooking of two different food items without flavor mixing.
Image: Diagram highlighting the benefits of ceramic coating, including non-toxic, scratch-resistant, and no chemical leaching.
Image: Certifications for the air fryer's ceramic coating, showing it is PFOA/PFOS free, LFGB tested, and food safe.
Sebelum Penggunaan Pertama
- Keluarkan semua bahan pembungkusan, pelekat dan label daripada perkakas.
- Bersihkan bakul dan kuali dengan teliti dengan air panas, sedikit cecair pencuci pinggan mangkuk dan span yang tidak melelas.
- Lap bahagian dalam dan luar perkakas dengan kain lembap.
- Pastikan semua bahagian kering sepenuhnya sebelum digunakan.
Persediaan
- Letakkan penggoreng udara di atas permukaan yang stabil, mendatar dan tahan haba.
- Pastikan terdapat sekurang-kurangnya 10 cm ruang kosong di sekeliling perkakas untuk pengudaraan yang betul.
- Insert the power plug into a grounded wall outlet.
- Pull the pan out of the air fryer. Place the food separator (if desired) and then the food into the basket.
- Luncurkan kembali kuali ke dalam penggoreng udara.
Arahan Operasi
The INALSA Tasty Fry CD4.5 features a digital touch panel for easy control of cooking settings.
Image: Close-up of the digital touch panel, showing temperature, time, and preset icons.
Hidupkan/Mati Kuasa
- Tekan ikon kuasa (O / Saya) to turn the appliance on or off.
Menggunakan Pratetap
- After turning on, select one of the 8 preset icons (e.g., Fries, Chicken, Fish). The air fryer will automatically set the recommended temperature and time for that food type.
- Press the start/pause icon (▶/‖) untuk mula memasak.
Manual Temperature and Time Adjustment
- To manually set cooking parameters, press the temperature icon (°C) and use the plus (+) dan tolak (-) buttons to adjust the temperature (up to 200°C).
- Press the timer icon (min) and use the plus (+) dan tolak (-) buttons to adjust the cooking time.
- Press the start/pause icon (▶/‖) to begin cooking with your custom settings.
Semasa Memasak
- You can pull out the pan at any time to check or shake the food. The air fryer will automatically pause and resume cooking once the pan is reinserted.
- For even cooking, especially with larger quantities, it is recommended to shake the basket halfway through the cooking time.
Image: Illustration of the 1400W heating element and 360° hot air circulation cooking a whole chicken.
Cooking Guide / Presets
The 8-in-1 presets offer convenient cooking options for various dishes. The following table provides general guidelines; actual cooking times may vary based on food quantity and desired crispness.
Image: Visual representation of the 8-in-1 presets with examples of food items like fries, chicken, fish, and vegetables.
| Pratetap | Suhu yang disyorkan | Masa Disyorkan |
|---|---|---|
| kentang goreng | 200°C | 15-25 min |
| ayam | 180°C | 15-20 min |
| ikan | 160°C | 15-20 min |
| kek | 160°C | 13-18 min |
| sayur | 180°C | 10-15 min |
| udang | 160°C | 8-12 min |
| Bacon | 180°C | 10-15 min |
| Steak | 200°C | 10-15 min |
Penyelenggaraan dan Pembersihan
Pembersihan tetap memastikan prestasi optimum dan memanjangkan hayat penggoreng udara anda.
Image: The air fryer basket and food separator, highlighting the premium ceramic coating.
Membersihkan Bakul dan Kuali
- Sentiasa cabut plag penggoreng udara dan biarkan ia sejuk sepenuhnya sebelum dibersihkan.
- Remove the pan and basket. They are tidak selamat untuk mesin basuh pinggan mangkuk.
- Clean the pan and basket with hot water, dishwashing liquid, and a non-abrasive sponge. For stubborn residue, soak them in hot water for about 10 minutes.
- Do not use metal utensils or abrasive cleaning materials, as this may damage the ceramic non-stick coating.
Membersihkan Dalaman dan Luaran
- Lap bahagian luar penggoreng udara dengan iklanamp kain.
- Clean the interior with a non-abrasive sponge and warm soapy water.
- Untuk elemen pemanas, gunakan berus pembersih untuk mengeluarkan sebarang sisa makanan.
- Pastikan semua bahagian kering sepenuhnya sebelum disimpan atau digunakan seterusnya.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Penggoreng udara tidak dihidupkan. | Perkakas tidak dipalamkan. | Pastikan palam kuasa dimasukkan dengan kukuh ke dalam soket dinding yang dibumikan. |
| Makanan tidak dimasak sekata. | Terlalu banyak makanan di dalam bakul; makanan tidak digoncang. | Reduce food quantity. Shake the basket halfway through cooking. |
| Makanan tidak rangup. | Temperature too low; cooking time too short; food not properly oiled. | Increase temperature or cooking time. Lightly brush or spray food with oil. |
| Asap putih datang dari perkakas. | Sisa gris daripada penggunaan sebelumnya; makanan berlemak sedang dimasak. | Clean the pan and basket thoroughly. Remove excess oil from food before air frying. |
| Paparan menunjukkan kod ralat. | Kerosakan dalaman. | Cabut plag perkakas, tunggu 10 minit, kemudian pasangkannya semula. Jika ralat berterusan, hubungi khidmat pelanggan. |
Spesifikasi
| Ciri | Perincian |
|---|---|
| Nama Model | Tasty Fry CD4.5 |
| Kapasiti | 4.5 Liter |
| Wattage | 1400 Watt |
| Voltage | 240 Volt |
| Kaedah Kawalan | Sentuh |
| Tetapan Suhu Maks | 200 Darjah Celsius |
| Teknologi Penggorengan Udara | Peredaran Udara Cepat |
| bahan | Seramik (Bahan Dalaman) |
| Salutan nonstick | ya |
| Mesin basuh pinggan mangkuk selamat | Tidak |
| Dimensi Produk (D x W x H) | 25.5D x 33.5W x 28.3H Sentimeter |
| Berat Barang | 2950 Gram |
| Komponen yang Disertakan | 1 N Air Fryer Unit, 1 N Cooking pan, 1 N Food Separator, 1 N Instruction Manual Cum Warranty Card, 1 Recipe Booklet |
Waranti dan Sokongan
Your INALSA Tasty Fry CD4.5 Air Fryer comes with a warranty. Please refer to the included "Instruction Manual Cum Warranty Card" for detailed information regarding warranty terms, conditions, and duration.
For technical assistance, service, or any product-related queries, please contact the manufacturer:
Pengeluar: Tuareg Marketing Pvt. Ltd.
Alamat: Khasra No- 1189, Bhalswa, New Delhi-110033, India
Hubungi: 9773982065
