AZZUNO ACDC-200L AC/DC 200A TIG Welder Instruction Manual

1. Pengenalan

This manual provides essential information for the safe and effective operation, setup, and maintenance of your AZZUNO ACDC-200L AC/DC 200A TIG Welder. Please read this manual thoroughly before using the equipment to ensure proper function and to prevent injury or damage.

2. Maklumat Keselamatan

AMARAN: Kimpalan boleh berbahaya. Sentiasa ikuti langkah berjaga-jaga keselamatan untuk mengelakkan kecederaan serius atau kematian.

• Sentiasa pakai peralatan pelindung diri (PPE) yang sesuai, termasuk topi keledar kimpalan dengan pelindung matahari yang betul, pakaian tahan api, sarung tangan kimpalan dan kasut keselamatan.
• Pastikan pengudaraan yang mencukupi untuk mengelakkan terhidu asap kimpalan.
• Lindungi orang ramai daripada sinaran arka dan logam panas.
• Pastikan mesin kimpalan dibumikan dengan betul.
• Jangan kendalikan mesin kimpal diamp atau keadaan basah.
• Putuskan sambungan kuasa sebelum melakukan sebarang penyelenggaraan atau servis.
• Simpan alat pemadam api berdekatan.

3. Produk Lebihview dan Ciri

The AZZUNO ACDC-200L is a versatile AC/DC 200A TIG welder designed for a wide range of welding applications. It supports AC/DC HF TIG, AC/DC Pulse TIG, Spot TIG, and Cold TIG, making it suitable for welding aluminum, stainless steel, mild steel, and other materials.

Ciri-ciri Utama:

• Complete TIG Welding Functions: AC/DC HF TIG, AC/DC PULSE TIG, SPOT TIG, COLD TIG.
• Advanced AC Waveform Control: Square Wave, Sine Wave, and Triangle Wave options for precise aluminum welding.
• AC/DC Pulse & Cold Welding: Provides superior control for thin sheet welding, minimizing heat distortion.
• Fungsi Memori: Save and recall up to 10 custom welding parameter sets.
• Paparan LED Besar: For clear visibility and easy parameter adjustment.
• 5-Pin Foot Pedal Compatibility: Allows for remote current adjustment.

Image: The AZZUNO ACDC-200L TIG Welder highlighting its 10-in-1 welding capabilities, including AC HF TIG, AC Pulse TIG, AC/AC-P Spot TIG, Stick, DC HF TIG, DC Pulse TIG, DC/DC-P Spot TIG, and DC Cold TIG.

4. Pembongkaran dan Kandungan

Carefully unpack the welding machine and all accessories. Verify that all components are present and undamaged. If any items are missing or damaged, contact your dealer immediately.

Kandungan Pakej Standard:

• AZZUNO ACDC-200L TIG Welder Unit
• Obor TIG
• Tanah Clamp
• Electrode Holder (for Stick welding)
• Hos Gas
• Kord Kuasa
• 5-Pin Foot Pedal (if included in package)
• Consumables (collets, collet bodies, ceramic nozzles, tungsten electrodes)
• Manual Arahan

Image: The AZZUNO ACDC-200L TIG Welder displayed with its various accessories, including the TIG torch, ground clamp, electrode holder, gas regulator, foot pedal, and various consumables.

5. Persediaan

5.1 Sambungan Kuasa

The ACDC-200L supports both 110V and 220V input power. Ensure the correct power cord is used and connected to a suitable power outlet with proper grounding. The machine automatically detects the input voltage.

5.2 Sambungan Gas

1. Connect the gas hose from your inert gas cylinder (e.g., Argon) to the gas inlet on the rear of the welding machine.
2. Attach the other end of the gas hose to a gas regulator on your gas cylinder.
3. Pastikan semua sambungan ketat untuk mengelakkan kebocoran gas.

5.3 Obor dan Tanah Clamp Sambungan

1. Connect the TIG torch cable to the appropriate connector on the front panel of the welder.
2. Sambungkan tanah clamp cable to the ground terminal on the front panel.
3. Pasang tanah tanahamp securely to the workpiece or welding table.

5.4 Foot Pedal Connection

The 5-pin foot pedal allows for remote current adjustment. Connect the 5-pin plug of the foot pedal to the corresponding receptacle on the front panel of the welder.

Image: The AZZUNO ACDC-200L TIG Welder with a foot pedal connected via its 5-pin connector, illustrating remote current control.

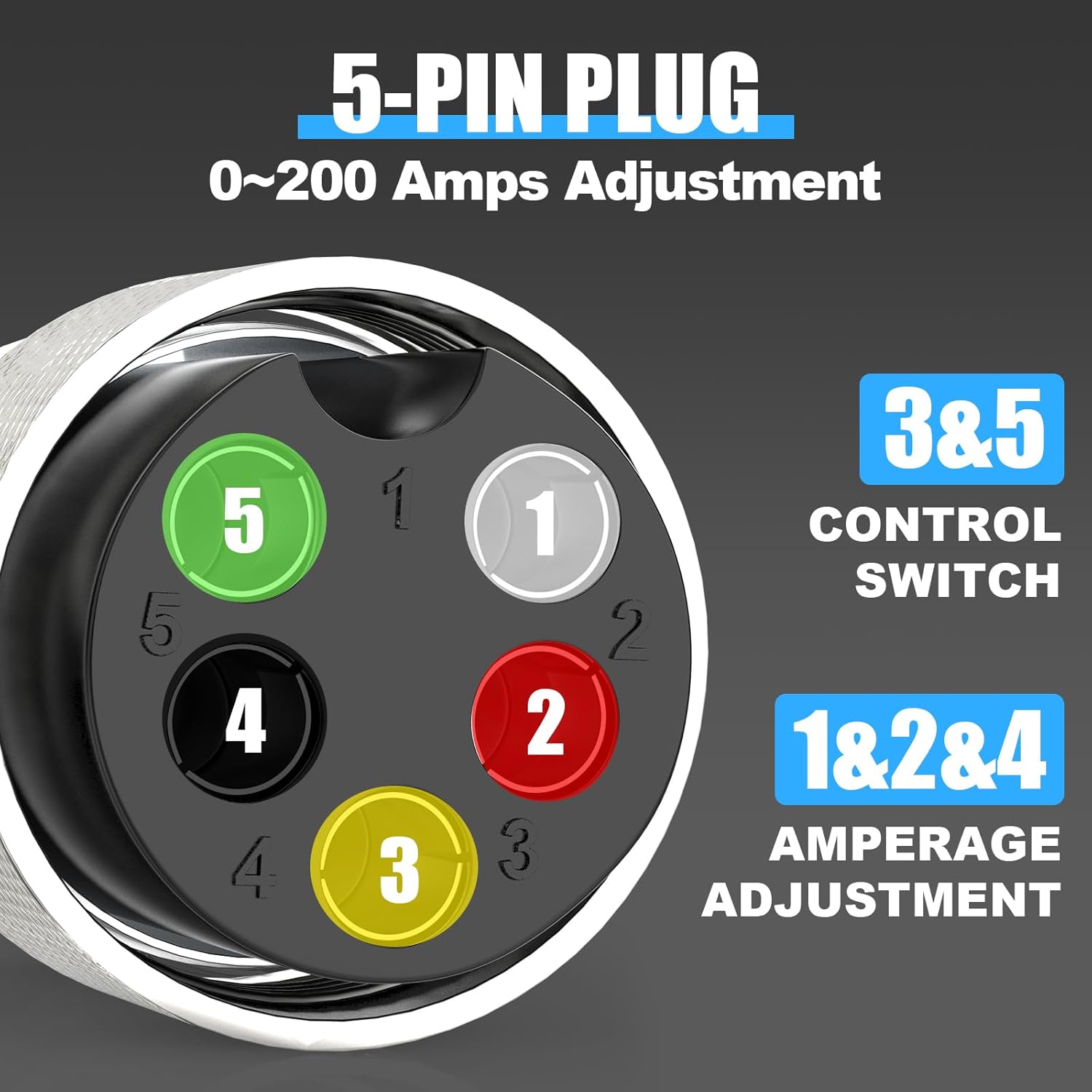

Imej: A terperinci view of the 5-pin plug for the foot pedal, indicating pins 3 & 5 for control switch and pins 1, 2 & 4 for amppelarasan era.

Image: The dimensions of the 5-pin foot pedal, showing its length, width, and height, along with its 10-foot cord.

6. Operating the Welder

6.1 Panel Kawalan Selesaiview

The large LED display and control knobs allow for precise adjustment of welding parameters. Familiarize yourself with the layout:

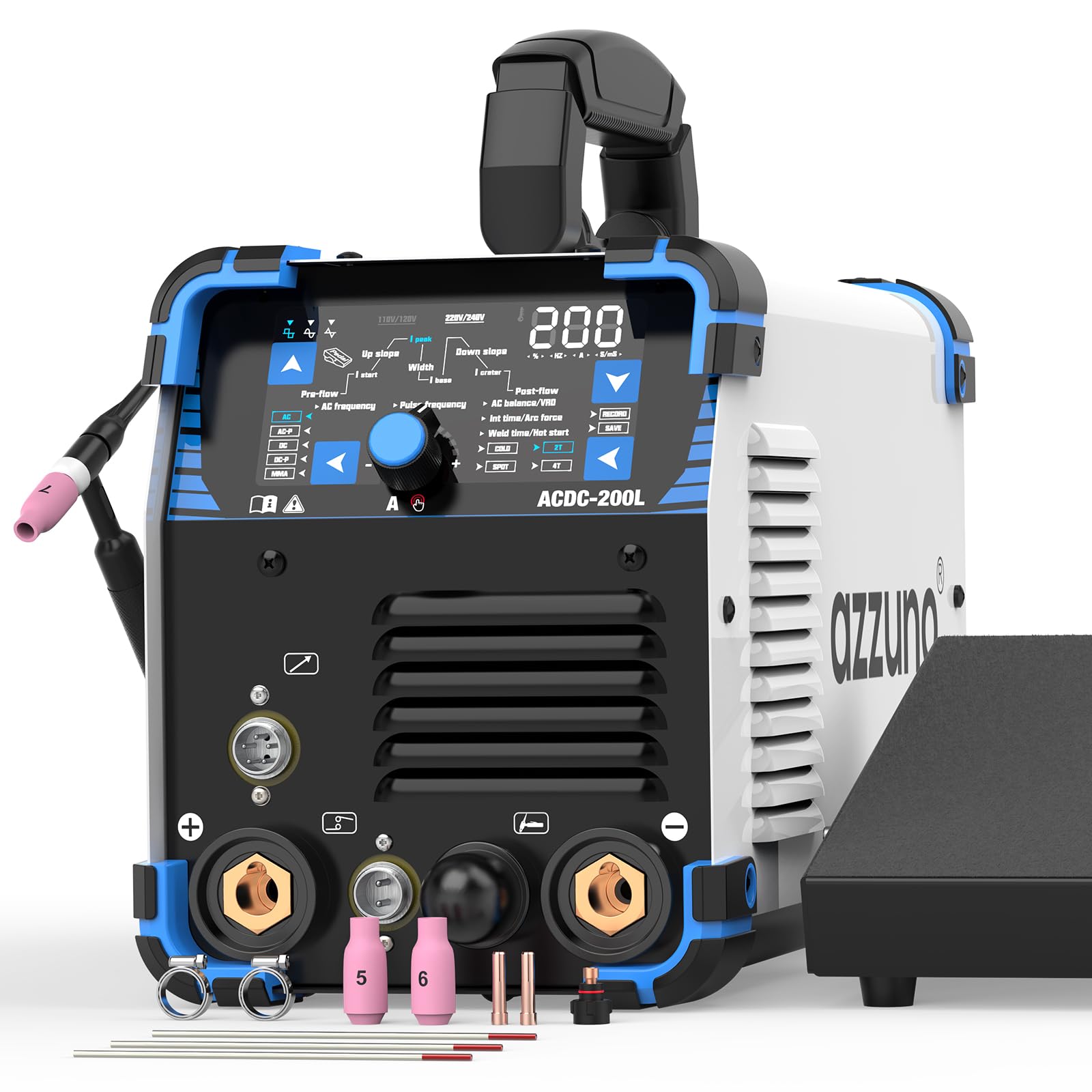

Imej: A terperinci view of the AZZUNO ACDC-200L TIG Welder's control panel, showing the large LED display, mode selection buttons (AC, DC, AC-P, DC-P, MMA), and various parameter settings like Pre-flow, Up slope, Width, Down slope, I crater, Post-flow, AC balance, Pulse frequency, Cold, Spot, 2T, and 4T.

6.2 Mod Kimpalan

Select the desired welding mode using the buttons on the control panel:

• AC HF TIG: For welding aluminum and magnesium alloys. Provides high-frequency arc starting.
• DC HF TIG: For welding stainless steel, mild steel, copper, and other DC weldable metals. Provides high-frequency arc starting.
• AC Pulse TIG: Offers enhanced control for thin aluminum, reducing heat input and distortion.
• DC Pulse TIG: Ideal for thin stainless steel and other DC weldable metals, providing precise heat control.
• Cold TIG: A low-heat input function for delicate or cosmetic welds, particularly useful for thin materials like stainless steel and aluminum.
• Spot TIG: For precise, timed spot welds.
• MMA (Kimpalan Kayu): For general-purpose stick electrode welding.

6.3 Tetapan Lanjutan

AC Waveform Control

The ACDC-200L offers multiple AC waveform options for aluminum welding:

• Gelombang Segiempat: Provides strong cleaning action and deeper penetration. Recommended for experienced welders.
• Gelombang Sinus: Suitable for traditional aluminum welding, offering smooth arc stability. Recommended for beginners and those seeking aesthetic welds.
• Triangle Wave: Ideal for applications requiring minimal heat input and precision welds, especially for thin aluminum.

Image: A comparison table detailing the characteristics of Square Wave, Sine Wave, and Triangle Wave AC waveforms, including cleaning action, penetration, heat input, arc stability, and best applications.

Tetapan Nadi

In Pulse TIG mode, adjust the pulse frequency and pulse width to control heat input and bead appearance. Higher frequency provides a tighter arc and finer ripple, while lower frequency allows for more penetration.

Fungsi Memori

The welder features a memory function to save and recall up to 10 custom welding parameter sets. This improves efficiency and consistency for repetitive tasks or different materials.

Image: The AZZUNO ACDC-200L TIG Welder's display showing the 'RECORD' and 'SAVE' options, illustrating the memory function for storing welding settings.

7. Penyelenggaraan

Penyelenggaraan tetap memastikan jangka hayat dan prestasi optimum mesin kimpalan anda.

• Pembersihan: Periodically clean the machine's exterior with a dry, soft cloth. Use compressed air to blow out dust from inside the machine, ensuring power is disconnected.
• Penyelenggaraan Obor: Inspect the TIG torch for wear and tear on consumables (tungsten, collet, collet body, ceramic nozzle). Replace as needed.
• Pemeriksaan Kabel: Check all cables (power, ground, torch) for cuts, cracks, or loose connections. Replace damaged cables immediately.
• Gas System: Regularly check gas hoses and connections for leaks.

8. Penyelesaian masalah

Rujuk jadual berikut untuk isu biasa dan penyelesaiannya.

9. Spesifikasi Teknikal

10. Waranti dan Sokongan

For warranty information and technical support, please refer to the warranty card included with your product or contact AZZUNO customer service directly. Keep your purchase receipt as proof of purchase.
