Chipolino Glory 2-Level Foldable Travel Cot

Maklumat Keselamatan Penting

Please read all instructions carefully before assembling and using the travel cot. Keep this manual for future reference. Failure to follow these instructions could result in serious injury or death.

• AMARAN: Never leave your child unattended in the travel cot.
• AMARAN: The travel cot is suitable for children from birth up to 15 kg.
• AMARAN: Ensure all locking mechanisms are engaged before placing a child in the cot.
• AMARAN: Do not use the travel cot if any parts are broken, torn, or missing. Contact Chipolino for replacement parts.
• AMARAN: Do not add an additional mattress to the travel cot. Use only the mattress provided by the manufacturer.
• AMARAN: Jauhkan katil bayi daripada nyalaan api terbuka, pemanas dan sumber haba yang kuat yang lain.
• AMARAN: Always use the safety straps when using the cot in co-sleeping mode, ensuring it is securely attached to the adult bed.

Kandungan Pakej

Sahkan bahawa semua komponen hadir sebelum memulakan pemasangan:

• Chipolino Glory Travel Cot Frame
• Foldable Mattress (2-level compatible)
• Bawa Beg
• Safety Straps (for co-sleeping mode)

Arahan Persediaan

Follow these steps to assemble your Chipolino Glory Travel Cot:

1. Buka bungkusan katil bayi: Remove the travel cot from its carry bag and unfasten any securing straps.
2. Panjangkan Bingkai: Stand the cot upright. Pull the two short sides upwards until they lock into place. Then, pull the two long sides upwards until they lock. You should hear an audible 'click' for each side. If a side does not lock, gently push the center of the base down slightly and try again.
3. Lock the Base: Push the center of the cot base downwards firmly until it lies flat and is fully locked.
4. Install the Mattress: Place the foldable mattress inside the cot. For newborns, use the second level insert. Secure the mattress to the cot base using the provided fasteners.

Image: The Chipolino Glory Travel Cot fully assembled, showing its mesh sides and sturdy frame.

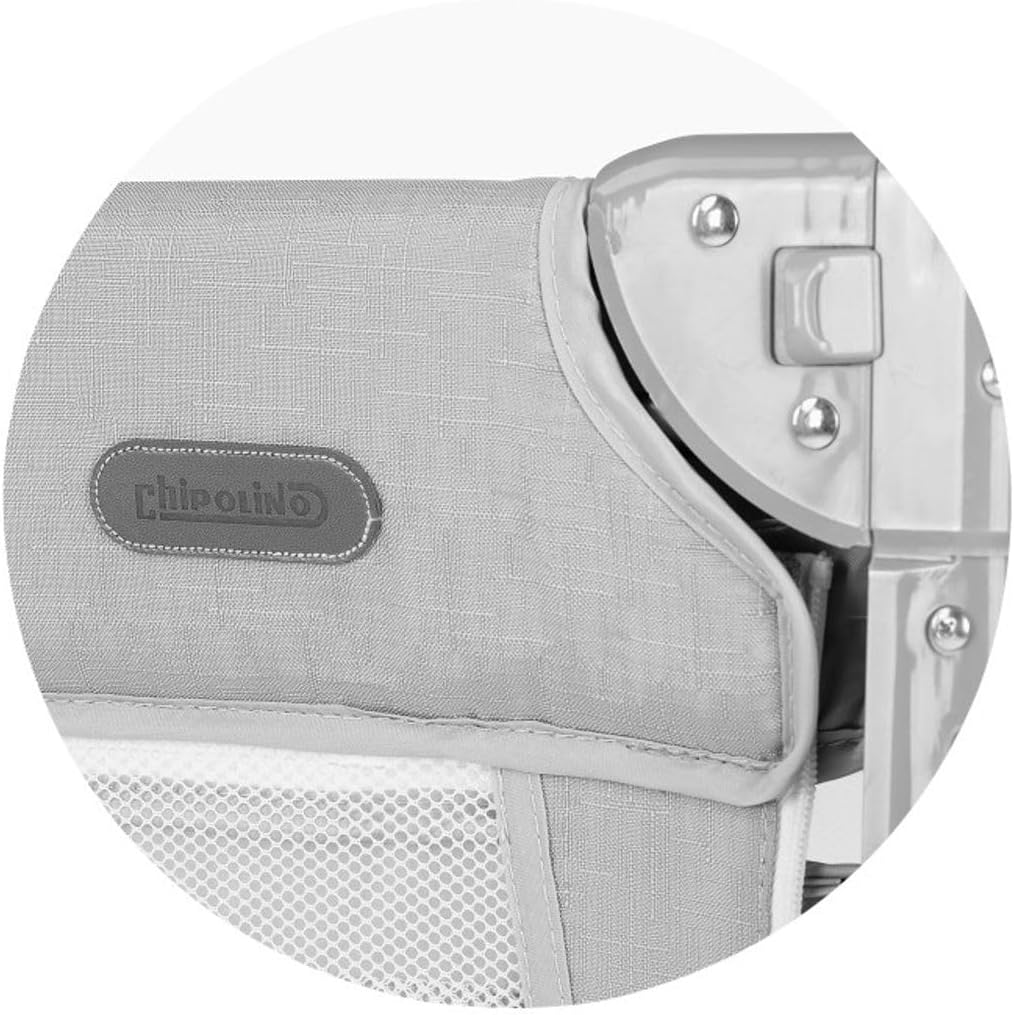

Imej: Dari dekat view of the corner locking mechanism, essential for ensuring the cot's stability during use.

Arahan Operasi

Adjusting Mattress Levels

The Chipolino Glory Travel Cot features two mattress levels:

• Upper Level: For newborns and infants who cannot push up on their hands and knees. This level provides easier access to your baby. To use, ensure the second layer insert is securely attached to the cot frame.
• Lower Level: For older infants and toddlers who can sit up, crawl, or pull themselves to a standing position. Always remove the upper level insert when your child reaches this developmental stage to prevent them from climbing out.

Using the Side Entrance

The cot includes a zippered side entrance for easy access for older children. Unzip the entrance completely to allow your child to enter or exit independently. Always ensure the zipper is fully closed when the child is sleeping or unattended.

Co-Sleeping Mode

To use the cot as a bedside sleeper:

1. Lower one side of the cot by releasing the designated locking mechanisms.
2. Position the cot next to the adult bed, ensuring there are no gaps between the cot and the bed.
3. Secure the cot to the adult bed using the provided safety straps. Follow the instructions on the straps for proper attachment.
4. Ensure the cot is stable and cannot move away from the adult bed.

Image: A close-up of the safety strap and buckle system, used to securely attach the travel cot to an adult bed for co-sleeping.

mobiliti

The travel cot is equipped with two wheels with brakes for easy movement. To move the cot, lift the end without wheels slightly and roll it to the desired location. To secure the cot, engage the brakes on both wheels.

Lipatan dan Penyimpanan

To fold the Chipolino Glory Travel Cot for transport or storage:

1. Remove Mattress: Take out the mattress and any accessories from the cot.
2. Release Base: Pull the strap in the center of the cot base upwards to release the locking mechanism.
3. Release Sides: Locate the release buttons on the middle of each of the four top rails. Press these buttons and gently push the rails downwards to unlock them. Start with the short sides, then the long sides.
4. Fold Cot: Bring all four corners towards the center, allowing the cot to collapse into a compact shape.
5. Selamat dan Simpan: Wrap the folded mattress around the collapsed cot and secure it with the attached straps. Place the entire unit into the carry bag for convenient transport and storage.

Image: Two detailed views illustrating the steps involved in releasing the cot's folding mechanism for compact storage.

Penyelenggaraan dan Pembersihan

Regular maintenance ensures the longevity and hygiene of your travel cot:

• Pembersihan Fabrik: The fabric parts of the cot can be cleaned with a damp cloth and mild soap. Do not use harsh detergents or abrasive cleaners. Allow to air dry completely.
• Pembersihan Bingkai: Lap bahagian logam dan plastik bingkai denganamp kain.
• Penjagaan Tilam: The foldable mattress can be wiped clean with a damp cloth. Ensure it is completely dry before placing it back in the cot or storing it.
• Pemeriksaan: Periodically check all screws, fasteners, and locking mechanisms to ensure they are secure and in good working order.
• Storan: When not in use, store the cot in its carry bag in a dry, cool place, away from direct sunlight and extreme temperatures.

Menyelesaikan masalah

If you encounter issues with your Chipolino Glory Travel Cot, refer to these common solutions:

• Cot Will Not Lock: Ensure the center of the base is not pushed down before attempting to lock the side rails. Lift the center slightly, lock all four side rails firmly, then push the center base down until it clicks.
• Cot Will Not Fold: Ensure the center of the base is pulled up completely before attempting to unlock the side rails. All four side rails must be unlocked for the cot to fold properly.
• Roda Tidak Bergolek Dengan Lancar: Check for any debris or hair caught in the wheel mechanisms. Clean as necessary. Ensure brakes are disengaged.
• Cot Feels Unstable: Double-check that all four side rails and the base are fully locked into position. If the issue persists, discontinue use and contact customer support.

Spesifikasi Teknikal

Waranti dan Sokongan

For warranty information, replacement parts, or customer support, please refer to the contact details provided with your purchase or visit the official Chipolino webtapak. Simpan bukti pembelian anda untuk tuntutan waranti.
