pengenalan
This manual provides comprehensive instructions for the Generic ET587 Smartwatch. Please read this guide carefully before using your device to ensure proper operation and to maximize its features. Keep this manual for future reference.
1. Persediaan
1.1 Mengecas Peranti
Before initial use, fully charge your ET587 Smartwatch. Connect the magnetic charging cable to the charging points on the back of the watch and to a USB power source. A full charge takes approximately 2 hours and provides 7-10 days of continuous use.

Image: The smartwatch connected to its magnetic charging cable, displaying charging status.
1.2 Pemasangan Apl dan Berpasangan
- Muat turun Apl: Cari untuk and download the "H Band" application from your smartphone's app store (compatible with Android 5.0+ and iOS 10.0+).
- Dayakan Bluetooth: Pastikan Bluetooth didayakan pada telefon pintar anda.
- Pasangkan Peranti: Open the "H Band" app, navigate to the device section, and follow the on-screen instructions to find and pair your ET587 Smartwatch. The watch uses Bluetooth 5.3 for stable and efficient connection.
2. Arahan Operasi
2.1 Navigasi Asas
The ET587 Smartwatch features a 1.96-inch HD touch screen. Navigate through menus and functions by swiping up, down, left, or right on the display. The side button can be used for power on/off and returning to the home screen.

Image: The 1.96-inch HD AMOLED display showcasing vibrant colors and the functional rotating crown.
2.2 Menyesuaikan Muka Jam
The smartwatch comes with 6 pre-installed watch faces. Through the "H Band" app, you can access over 50 additional watch faces or customize your own using personal photos of family, friends, or pets.

Image: Various customizable watch faces displayed on the smartwatch screen.
2.3 Ciri-ciri Komunikasi
- Fungsi Panggilan: After connecting via Bluetooth, the watch supports synchronized mobile communication. You can make and receive calls directly from your wrist using the built-in microphone and speaker. Call history is also saved.
- Pemberitahuan: Receive vibration alerts for incoming calls, SMS messages, and notifications from apps like Line, Facebook, and Twitter. View message content directly on the watch without needing to take out your phone.
- Pembantu Suara: The smartwatch supports voice assistant functionality, allowing you to initiate calls or perform other tasks without touching your phone.

Image: The smartwatch showing an incoming call and various app notification icons.
2.4 Pemantauan Kesihatan
The ET587 Smartwatch offers multiple health tracking functions. Data is stored on the watch and can be synchronized with the "H Band" app for detailed daily analysis.
- Penjejakan Tidur: Automatically monitors deep and light sleep durations, providing insights to improve sleep quality.
- Penjejakan Aktiviti: Measures calorie consumption, steps taken (pedometer), and activity levels.
- Vital Signs: Monitors BPM (beats per minute), BG (blood glucose - note: this is likely an estimation and not medical grade), HRV (Heart Rate Variability), and SpO2 (blood oxygen saturation).
- Tahap Tekanan: Provides an estimation of stress levels.
- Penjejakan Kitaran Haid: Menyokong pengesanan kitaran haid.

Image: The smartwatch screen showing detailed sleep monitoring data, including deep and light sleep durations.
2.5 Mod Sukan
The watch supports over 200 sport modes, allowing you to track various physical activities. Real-time data for calorie consumption, heart rate, and exercise duration can be viewed during workouts, making your exercise more efficient.

Image: The smartwatch interface showing multiple sport mode icons and real-time activity data.
2.6 Daily Life Support Functions
- Kawalan Muzik: Control your smartphone's music playback (play/pause, previous/next track, volume adjustment) directly from the watch.
- Ramalan cuaca: View keadaan dan ramalan cuaca semasa.
- Kawalan Kamera: Use the watch as a remote shutter for your smartphone camera.
- Penggera & Pemasa: Set alarms, use the stopwatch, and timer functions.
- Peringatan: Includes sedentary reminders for office workers and water intake reminders.
- Cari Telefon: Locate your paired smartphone by triggering an alert sound.
- Angkat untuk Bangun: Skrin secara automatik menyala apabila anda menaikkan pergelangan tangan anda.
- Fungsi SOS: In emergencies, long-press the designated button to quickly contact pre-set emergency contacts.

Image: A user controlling music playback via the smartwatch and another user swimming while wearing the watch, highlighting various convenient functions.
3. Penyelenggaraan
3.1 Tahan Air
The ET587 Smartwatch has an IP67 water resistance rating. This means it is protected against dust and can withstand immersion in water up to 1 meter for up to 30 minutes. It is suitable for daily use, such as washing hands or light rain. However, it is not recommended for swimming, diving, or hot showers/saunas, as steam and hot water can compromise the seal.
3.2 Pembersihan dan Penjagaan
To maintain your smartwatch, regularly clean the device and strap with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials. Ensure the charging contacts are clean and dry before charging.
4. Penyelesaian masalah
- Peranti tidak dihidupkan: Pastikan jam tangan dicas sepenuhnya. Sambungkannya ke pengecas selama sekurang-kurangnya 10 minit sebelum cuba menghidupkannya.
- Tidak boleh berpasangan dengan telefon pintar:
- Pastikan Bluetooth didayakan pada telefon pintar anda.
- Pastikan jam tangan berada dalam julat telefon pintar anda.
- Mulakan semula kedua-dua jam tangan pintar dan telefon pintar anda.
- Check if the "H Band" app is updated to the latest version.
- If previously paired, try unpairing and re-pairing the device through the app.
- Pemberitahuan tidak diterima:
- Verify that notifications are enabled in the "H Band" app settings.
- Semak tetapan pemberitahuan telefon pintar anda untuk memastikan aplikasi mempunyai kebenaran untuk menghantar pemberitahuan.
- Pastikan jam tangan disambungkan melalui Bluetooth.
- Data kesihatan tidak tepat:
- Pastikan jam tangan dipakai dengan kemas pada pergelangan tangan anda, tidak terlalu longgar atau terlalu ketat.
- Bersihkan penderia di belakang jam tangan.
- Note that health data from smartwatches is for reference only and should not be used for medical diagnosis.
- Hayat bateri pendek:
- Kurangkan kecerahan skrin.
- Disable unnecessary features or frequent monitoring.
- Pastikan jam tangan dicas sepenuhnya setiap kali.
5. Spesifikasi
Below are the technical specifications for the Generic ET587 Smartwatch:

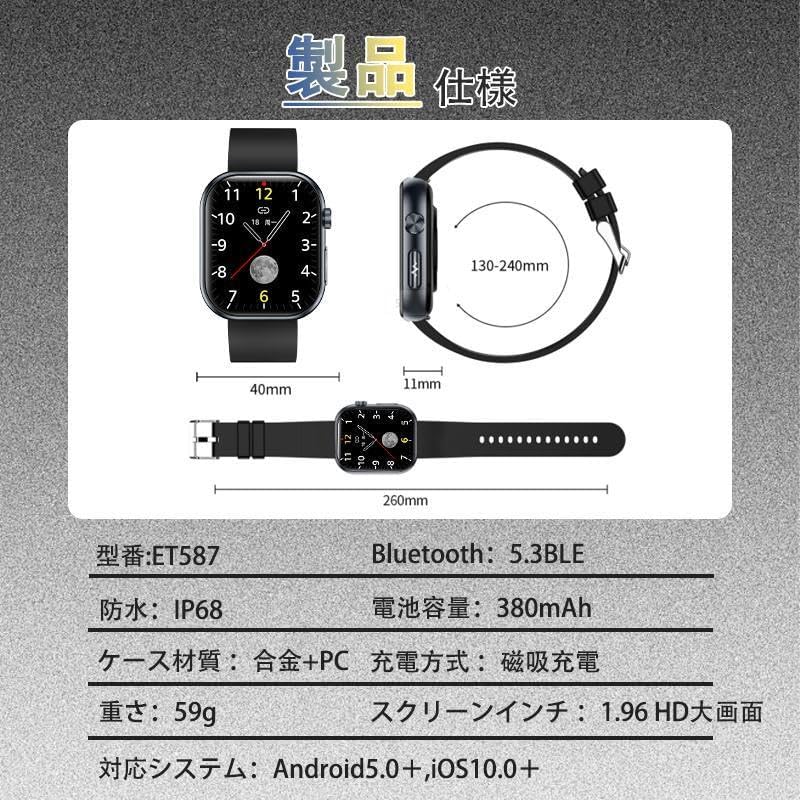

Image: A visual representation of the smartwatch's dimensions and core specifications.
| Ciri | Spesifikasi |
|---|---|
| Nombor Model | ET587 |
| Saiz Skrin | 1.96 inci |
| Jenis Paparan | AMOLED |
| Versi Bluetooth | 5.3 BLE |
| Kapasiti Bateri | 380 mAh |
| Kaedah Pengecasan | Pengecasan Magnet |
| Tahan Air | IP67 |
| Bahan Kes | Alloy + PC |
| Berat badan | 59 g |
| OS yang serasi | Android 5.0+, iOS 10.0+ |
| Termasuk Aksesori | Smartwatch body *1, Strap *1, Charging Cable *1, User Manual *1 |
6. Waranti dan Sokongan
Information regarding product warranty and customer support contact details is not provided in the available product data. Please refer to the packaging or the seller's webtapak untuk syarat jaminan dan pilihan sokongan tertentu.
