Generic 68V-GN670 5-in-1 Brushless Power Tool Kit User Manual

Pengenalan dan Maklumat Keselamatan

This manual provides essential instructions for the safe and effective use of your Generic 68V-GN670 5-in-1 Brushless Power Tool Kit. This kit includes a brushless drill/driver, impact wrench, hammer drill, angle grinder, and circular saw, all powered by a high-capacity 68V lithium-ion battery system. Please read this manual thoroughly before operating any tool in the kit to prevent injury and ensure optimal performance.

Amaran Keselamatan Am

• Sentiasa memakai peralatan pelindung diri (PPE) yang sesuai seperti cermin mata keselamatan, perlindungan pendengaran dan sarung tangan.
• Pastikan kawasan kerja anda bersih dan terang. Kawasan bersepah atau gelap mengundang kemalangan.
• Jangan kendalikan alatan kuasa dalam atmosfera yang mudah meletup, seperti di hadapan cecair mudah terbakar, gas atau habuk.
• Jauhkan kanak-kanak dan orang ramai semasa mengendalikan alat kuasa. Gangguan boleh menyebabkan anda hilang kawalan.
• Elakkan bermula secara tidak sengaja. Pastikan suis berada dalam kedudukan mati sebelum menyambung ke pek bateri, mengambil atau membawa alat.
• Use the correct tool for your application. Do not force a tool to do a job for which it was not designed.
• Simpan alatan dengan berhati-hati. Periksa untuk ketidakselarasan atau pengikatan bahagian yang bergerak, pecahan bahagian dan sebarang keadaan lain yang boleh menjejaskan operasi alat.
• Putuskan sambungan pek bateri daripada alat sebelum membuat sebarang pelarasan, menukar aksesori atau menyimpan alatan kuasa.

Produk Selesaiview

The Generic 68V-GN670 kit is a versatile 5-in-1 brushless power tool system designed for a wide range of professional and DIY applications. It features high-efficiency brushless motors for extended tool life and powerful performance, coupled with long-lasting 68V lithium-ion batteries.

Komponen yang Disertakan:

• 1 x Brushless Drill/Driver
• 1 x Brushless Impact Wrench
• 1 x Brushless Angle Grinder
• 1 x Cordless Hammer Drill
• 1 x Cordless Circular Saw
• 3 x 68V Lithium-Ion Batteries (2000mAh)
• 1 x Battery Charger (110V-240V / 50-60 Hz)
• 1 x Transport/Organization Case
• Various accessories (sockets, drill bits, grinding disc, saw blade, etc.)

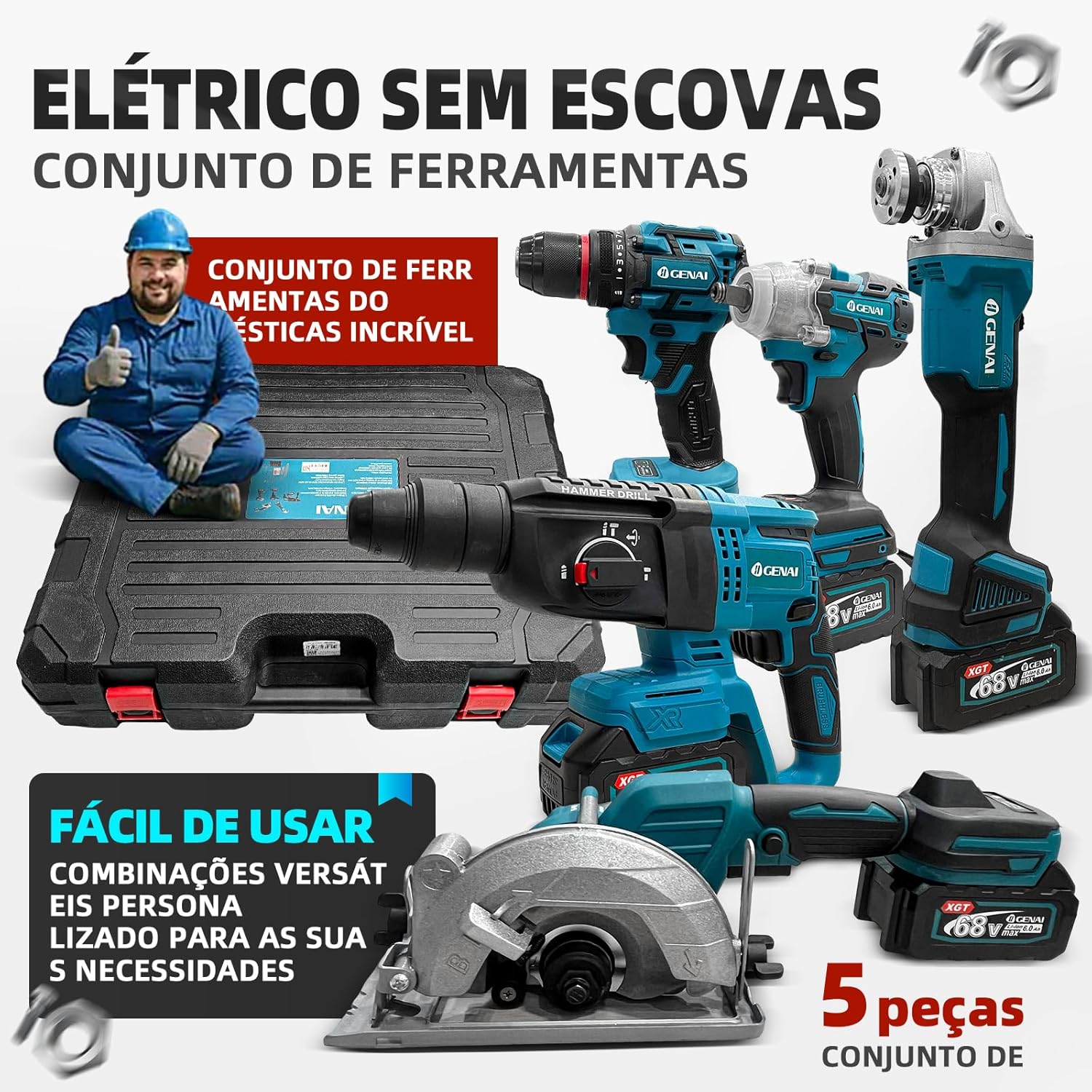

Image: The complete 5-in-1 Brushless Power Tool Kit, including the drill, impact wrench, angle grinder, hammer drill, circular saw, batteries, charger, and carrying case.

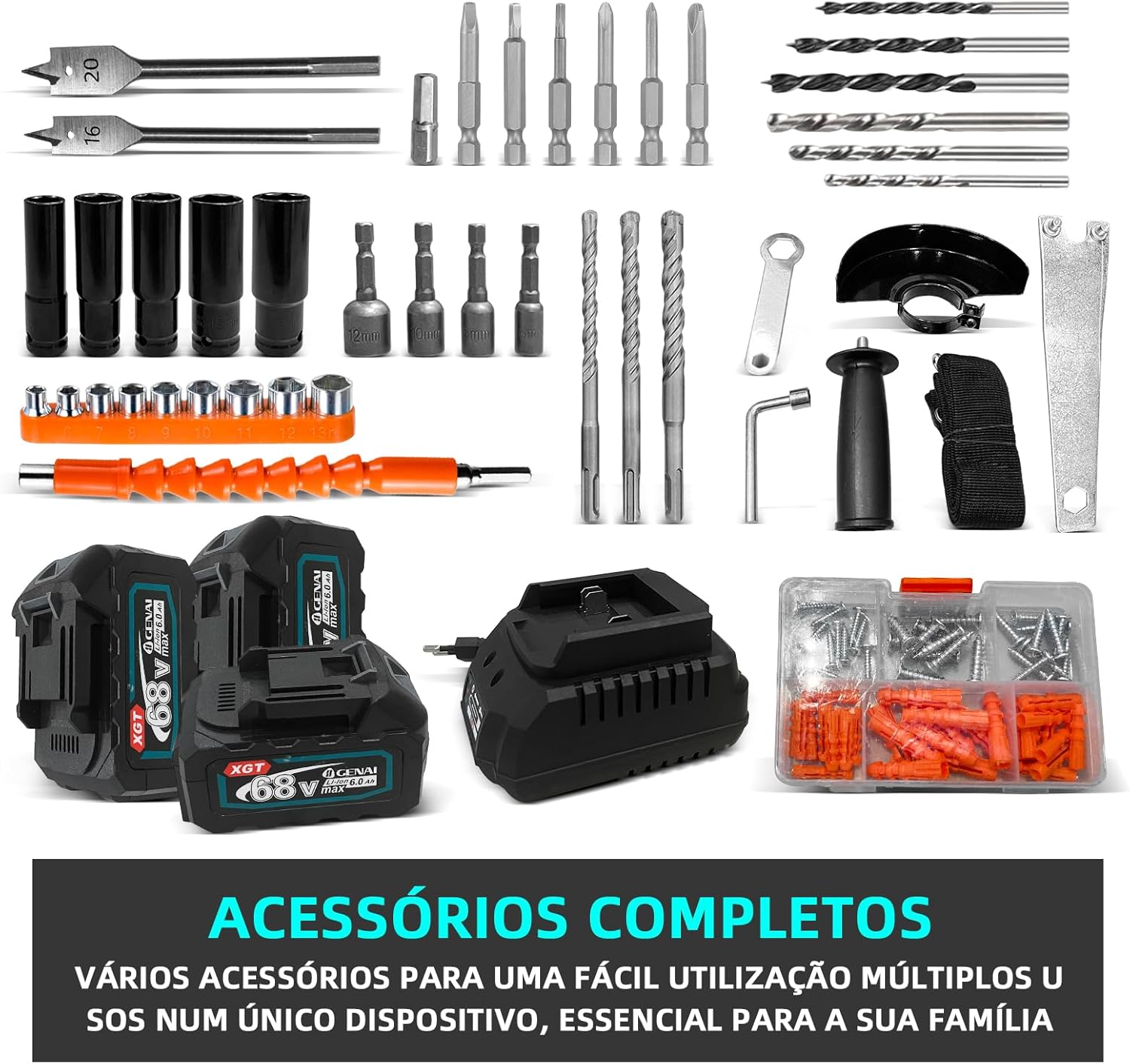

Image: A variety of accessories included with the kit, such as drill bits, screwdriver bits, sockets, grinding disc, and fasteners.

Persediaan

1. Mengecas Bateri

1. Connect the charger to a standard 110V-240V / 50-60 Hz power outlet.
2. Insert the 68V lithium-ion battery into the charger. Ensure it clicks securely into place.
3. Allow the battery to charge fully. The charger typically has an indicator light that changes color or turns off when charging is complete.
4. Do not overcharge batteries. Unplug the charger once the battery is fully charged.

2. Attaching and Detaching Batteries

• To attach: Align the battery with the tool's battery slot and slide it in until it clicks into place. Ensure it is firmly seated.
• To detach: Press the battery release button (usually located on the battery itself) and slide the battery out of the tool.

3. Accessory Installation (General Guidelines)

• Always ensure the battery is removed from the tool before installing or changing accessories.
• For drills: Open the chuck jaws by rotating the chuck collar. Insert the drill bit or screwdriver bit and tighten the chuck firmly.
• For impact wrenches: Select the appropriate socket. Push the socket onto the square drive anvil until it locks.
• For angle grinders: Refer to the specific instructions for mounting grinding or cutting discs, ensuring the correct flanges and tightening nut are used.
• For circular saws: Follow instructions for mounting the saw blade, ensuring the blade is oriented correctly for cutting direction and the arbor nut is securely tightened.

Arahan Operasi

1. Brushless Drill/Driver

Image: The Brushless Drill/Driver, showing its chuck, torque settings, and battery attachment.

• Fungsi: Drilling holes and driving screws.
• Kawalan Kelajuan: The trigger controls the speed. Pressing further increases speed.
• Suis Arah: Located near the trigger, allows for forward (drilling/driving) and reverse (removing screws) operation.
• Tetapan Tork: Adjust the collar behind the chuck to select the desired torque for driving screws. Higher numbers provide more torque. Use the drill symbol for drilling.
• Operasi: Select appropriate bit, adjust torque/mode, hold firmly, and press the trigger. Apply steady pressure.

2. Brushless Impact Wrench

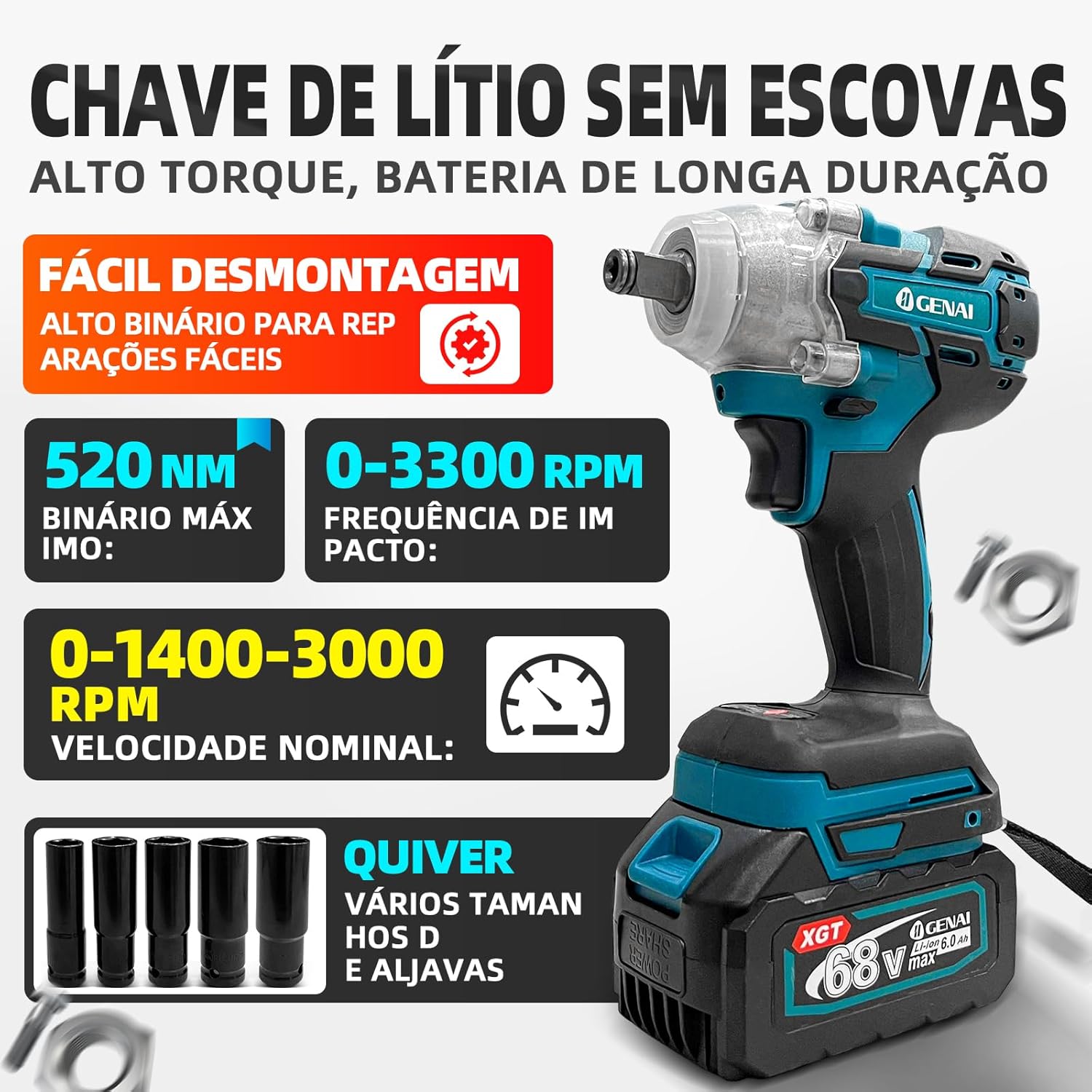

Image: The Brushless Impact Wrench, featuring its square drive anvil and battery connection. Sockets are shown alongside.

• Fungsi: Driving and removing large fasteners, nuts, and bolts with high torque.
• Speed/Impact Control: The trigger controls the speed and impact frequency. Some models may have mode selectors for different torque levels.
• Suis Arah: Use the switch near the trigger for forward (tightening) and reverse (loosening).
• Operasi: Attach the correct socket. Hold the tool firmly against the fastener. Press the trigger to operate.

3. Brushless Angle Grinder

Image: The Brushless Angle Grinder, showing its disc guard, side handle attachment point, and battery.

• Fungsi: Cutting, grinding, and polishing various materials (metal, stone, tile).
• Pemasangan Cakera: Ensure the correct disc type and size (125mm) is used. Always use the disc guard.
• Pemegang sisi: Attach the side handle for better control and safety.
• Operasi: Hold the grinder firmly with both hands. Allow the disc to reach full speed before contacting the workpiece. Apply light, even pressure.
• Keselamatan: Always wear eye protection, hearing protection, and heavy-duty gloves. Be aware of sparks and debris.

4. Cordless Hammer Drill

Image: The Cordless Hammer Drill, highlighting its robust chuck and mode selector for drilling and hammer drilling.

• Fungsi: Drilling into masonry, concrete, and other hard materials with a hammering action, as well as standard drilling.
• Pemilih Mod: Switch between drill mode (for wood, metal) and hammer drill mode (for masonry).
• Pemasangan Bit: Use appropriate masonry bits for hammer drilling.
• Operasi: Select the correct mode. Hold the tool firmly. Apply steady, forward pressure while drilling.

5. Gergaji Pekeliling Tanpa Kord

Image: The Cordless Circular Saw, showing its blade guard, base plate, and battery connection.

• Fungsi: Making straight cuts in wood, plastic, and other sheet materials.
• Pemasangan Bilah: Ensure the correct 150mm blade is installed with teeth pointing in the direction of rotation.
• Pelarasan Kedalaman: Laraskan kedalaman pemotongan mengikut ketebalan bahan.
• Pelarasan Serong: The base plate can be angled for bevel cuts (0-45°).
• Operasi: Support the workpiece securely. Hold the saw firmly with both hands. Allow the blade to reach full speed before starting the cut. Guide the saw smoothly along the cutting line.
• Keselamatan: Always keep hands clear of the blade. Ensure the blade guard operates freely.

Penyelenggaraan

• Pembersihan: Regularly clean the tools with a soft, damp kain. Jangan gunakan bahan kimia yang keras atau pembersih yang kasar. Pastikan bukaan pengudaraan bersih daripada habuk dan serpihan.
• Penjagaan Bateri: Store batteries in a cool, dry place away from direct sunlight and extreme temperatures. Do not store fully discharged batteries for extended periods. Charge them periodically if not in use.
• Motor Tanpa Berus: The brushless design reduces maintenance requirements compared to brushed motors, as there are no carbon brushes to replace.
• Pemeriksaan Aksesori: Regularly inspect drill bits, saw blades, grinding discs, and sockets for wear or damage. Replace worn accessories promptly.
• Storan: Store the tools and accessories in the provided carrying case in a dry, secure location, out of reach of children.

Menyelesaikan masalah

Spesifikasi

Waranti dan Sokongan

Specific warranty terms and conditions for the Generic 68V-GN670 5-in-1 Brushless Power Tool Kit may vary by region and retailer. Please refer to the warranty card included with your purchase or contact your point of sale for detailed information regarding warranty coverage and claims.

For technical support, spare parts, or service inquiries, please contact the retailer where you purchased this product. They will be able to provide assistance or direct you to the appropriate service center.
