1. Pengenalan
Thank you for choosing the Fire-Boltt Aero TWS Earbuds. These earbuds are designed to provide a superior audio experience with advanced features like custom EQ, Bluetooth 5.4 connectivity, long playtime, and low latency for gaming. This manual will guide you through the setup, operation, and maintenance of your new earbuds.
2. Apa yang ada di dalam Kotak
Upon opening your Fire-Boltt Aero package, you should find the following items:
- Fire-Boltt Aero TWS Earbuds (Left and Right)
- Kes Pengecasan
- Kabel Pengecas USB
- Manual Pengguna
- Eartips Tambahan (pelbagai saiz)
Image: The Fire-Boltt Aero TWS Earbuds, charging case, and included accessories.
3. Produk Lebihview & Ciri-ciri utama
The Fire-Boltt Aero TWS Earbuds are engineered for performance and convenience. Key features include:
- Crystal-Clear Calls with Quad Mic ENC: Equipped with 4 advanced microphones and Environmental Noise Cancellation (ENC) for precise voice capture and reduced background noise during calls.
- FirePods App Customization: Personalize your audio experience with custom EQ settings, theme switching, remapping touch controls, and real-time battery status checks via the dedicated FirePods App.
- Masa Main Dilanjutkan: Enjoy up to 50 hours of total playtime with the robust 400mAh charging case and 40mAh earbuds.
- FireCharge Fast Charging: A quick 5-minute charge provides 300 minutes of playback, ensuring your earbuds are ready when you are.
- Ultra-Low 50ms Game Mode: Experience real-time, lag-free audio for gaming with ultra-low 50ms latency.
- Tahan Air IPX4: Direka bentuk untuk menahan percikan dan peluh, menjadikannya sesuai untuk senaman dan aktiviti luar.
- Bluetooth 5.4: Memastikan sambungan wayarles yang stabil dan cekap.
Image: A visual summary of the Fire-Boltt Aero's key features.
Imej: Terperinci view of the 13mm dynamic drivers, emphasizing enhanced bass and build quality.
Image: Illustration of Quad Mic with ENC technology for superior call clarity.
4. Persediaan dan Bermula
4.1 Caj Permulaan
Before first use, fully charge your Fire-Boltt Aero earbuds and charging case. Connect the charging case to a USB power source using the provided USB cable. The indicator light on the case will show charging status.
4.2 Berpasangan dengan Peranti Anda
- Buka bekas pengecas. Fon telinga akan memasuki mod berpasangan secara automatik, ditunjukkan oleh lampu LED berkelip pada fon telinga.
- Pada telefon pintar atau peranti berdaya Bluetooth anda, pergi ke tetapan Bluetooth.
- Cari untuk available devices and select "Fire-Boltt Aero" from the list.
- Sebaik sahaja disambungkan, penunjuk LED pada fon telinga akan berhenti berkelip.
The earbuds will automatically reconnect to the last paired device when taken out of the case, if Bluetooth is enabled on your device.
Image: The earbuds in their case, illustrating fast pairing capabilities.
5. Arahan Operasi
5.1 Kawalan Sentuhan
The Fire-Boltt Aero earbuds feature intuitive touch controls for easy management of music, calls, and voice assistant:
- Main/Jeda: Ketik sekali pada salah satu fon telinga.
- Lagu Seterusnya: Ketik dua kali pada fon telinga kanan.
- Trek Sebelumnya: Ketik dua kali pada fon telinga kiri.
- Jawab/Tamatkan Panggilan: Ketik sekali pada salah satu fon telinga.
- Tolak Panggilan: Tekan lama pada kedua-dua fon telinga.
- Aktifkan Pembantu Suara: Ketik tiga kali pada salah satu fon telinga.
- Mod Permainan Hidup/Mati: Tekan lama fon telinga kanan selama 2 saat.
Image: Smart Touch Control functionality on the earbuds.
5.2 FirePods App Control
Enhance your experience by downloading the FirePods App. The app allows for advanced customization:
- Custom EQ Profiles: Adjust sound frequencies to your preference.
- Theme Switcher: Change the app interface theme.
- Pengurangan Bunyi: Manage Environmental Noise Cancellation settings.
- Status Bateri: Monitor real-time battery levels of both earbuds and the case.
- One-Tap Controls Customization: Remap touch controls to suit your usage.
Image: The FirePods App interface for customizing EQ and other settings.
5.3 Pembantu Suara
The earbuds support integrated voice assistants like Siri and Google Assistant. Triple tap on either earbud to activate your device's voice assistant and issue commands.

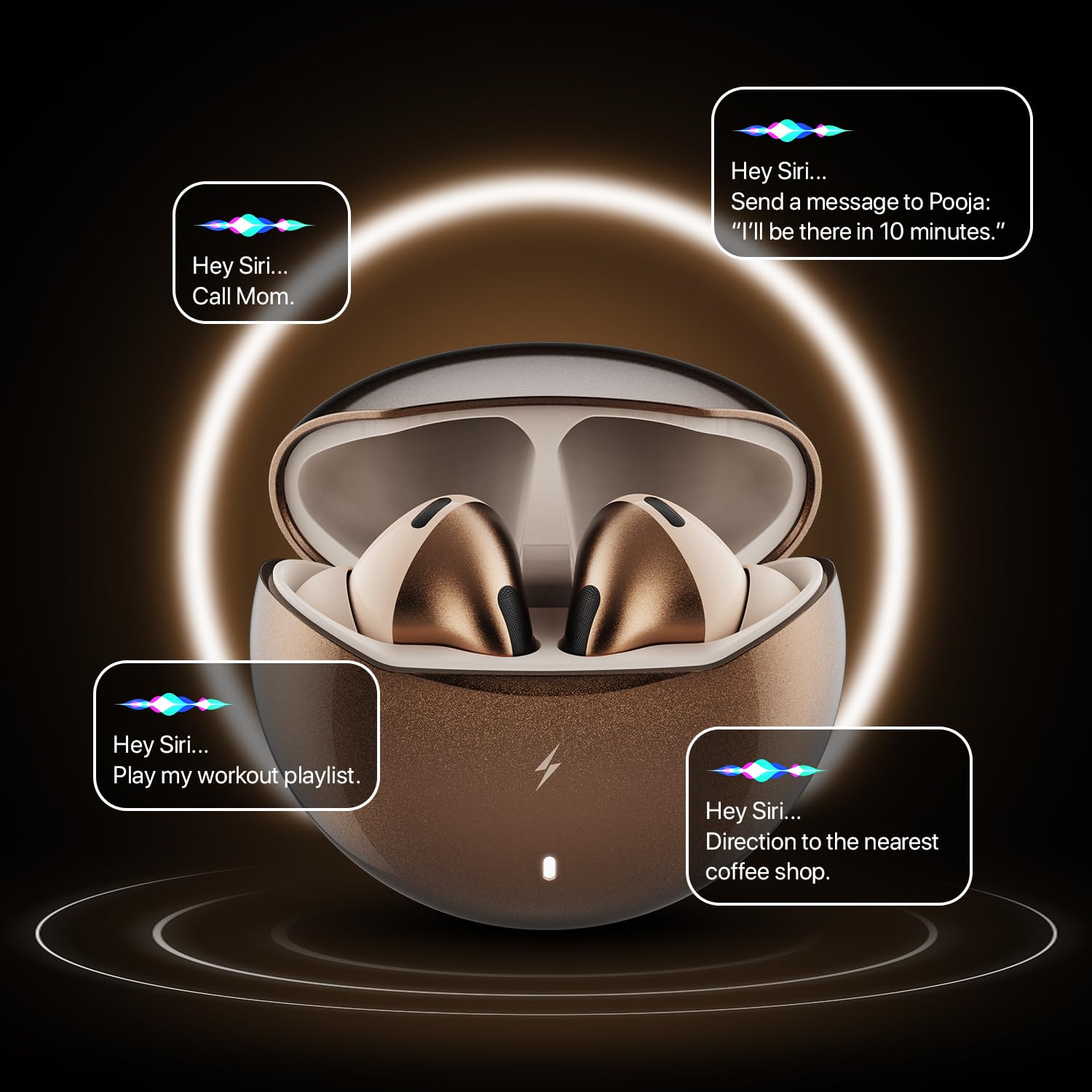

Image: Demonstrating voice assistant functionality with the earbuds.
5.4 Mod Permainan
Activate the Ultra-Low 50ms Game Mode for a seamless and responsive gaming audio experience. This mode minimizes audio lag, providing a competitive edge in fast-paced games. To activate/deactivate, long press the right earbud for 2 seconds.
Image: The earbuds in a gaming context, emphasizing zero lag and pure play.
6. Bateri dan Pengecasan
The Fire-Boltt Aero earbuds offer impressive battery life and fast charging capabilities:
- Jumlah Waktu Main: Up to 50 hours with multiple charges from the charging case.
- Bateri Earbud: 40mAh per earbud.
- Mengecas Bateri Kes: 400mAh.
- Pengecasan Cepat: FireCharge Technology provides 300 minutes of entertainment from just 5 minutes of charging.
- Masa Pengecasan Penuh: Approximately 3 hours for the charging case.
Image: The earbuds and case, highlighting the 50-hour playtime and fast charging feature.
7. Penyelenggaraan dan Penjagaan
To ensure the longevity and optimal performance of your Fire-Boltt Aero TWS Earbuds, follow these care instructions:
- Pembersihan: Bersihkan fon telinga dan bekas pengecas secara berkala dengan kain yang lembut, kering dan tidak berbulu. Elakkan menggunakan bahan kimia yang keras atau bahan yang melelas.
- Tahan Air: The earbuds are IPX4 water resistant, meaning they are protected against splashing water from any direction. Do not submerge them in water or expose them to heavy rain. Ensure they are dry before placing them back in the charging case.
- Storan: Simpan fon telinga di dalam bekas pengecas apabila tidak digunakan untuk melindunginya daripada habuk dan kerosakan. Simpan di tempat yang sejuk dan kering, jauh daripada suhu yang melampau.
- mengecas: Use only the provided charging cable or a certified equivalent. Avoid overcharging.
Image: The earbuds demonstrating their IPX4 water resistance.
8. Penyelesaian masalah
If you encounter any issues with your Fire-Boltt Aero TWS Earbuds, please refer to the following common solutions:
| Masalah | Penyelesaian |
|---|---|
| Fon telinga tidak berpasangan | Ensure earbuds are charged. Turn off and on Bluetooth on your device. Forget "Fire-Boltt Aero" from your device's Bluetooth list and re-pair. |
| Hanya satu fon telinga berfungsi | Place both earbuds back in the charging case, close the lid, wait a few seconds, then open and try again. Ensure both earbuds are charged. |
| Kelantangan rendah atau kualiti bunyi yang lemah | Adjust volume on your device and through the earbuds' touch controls. Ensure eartips provide a snug fit. Clean any debris from the earbud speakers. Check EQ settings in the FirePods App. |
| Kes pengecas tidak dicas | Ensure the charging cable is securely connected to both the case and the power source. Try a different USB cable or power adapter. |
| Kawalan sentuhan tidak bertindak balas | Ensure your fingers are clean and dry. Restart the earbuds by placing them in the case and taking them out again. Check touch control settings in the FirePods App. |
9. Spesifikasi
Here are the detailed specifications for your Fire-Boltt Aero TWS Earbuds:
- Jenama: Fire-Boltt
- Nama Model: Aero
- Nombor Model: BE1700
- Peletakan Telinga: Di Telinga
- Faktor Bentuk: Wayarles Benar
- Versi Bluetooth: 5.4
- Saiz Pemacu Audio: 13 Milimeter (Pemacu Dinamik)
- Impedans: 32 ohm
- Kawalan Bunyi: Pembatalan Kebisingan Alam Sekitar (ENC)
- Hayat Bateri (Earbud): 40mAh
- Battery Life (Charging Case): 400mAh
- Jumlah Waktu Main: Sehingga 50 Jam (dengan kes pengecasan)
- Pengecasan Cepat: FireCharge Technology (5 mins charge = 300 mins playtime)
- Tahan Air: IPX4
- Kaedah Kawalan: Sentuh, Kawalan Apl
- Latensi Rendah: 50ms (Mod Permainan)
- Peranti Serasi: TVs, gaming consoles (via adapter), Bluetooth speakers, Windows PCs/laptops, MacBooks/iMacs, Chromebooks, iPads, Android tablets, iPhones, Samsung Galaxy, OnePlus, Google Pixel, Xiaomi, Oppo, Vivo, and more.
- Berat Barang: 30 Gram
- Bahan: logam
10. Waranti dan Sokongan
Your Fire-Boltt Aero TWS Earbuds come with a Waranti Jenama 1 Tahun. For warranty claims, technical support, or further inquiries, please contact Fire-Boltt customer service or visit the official Fire-Boltt webtapak.
For additional product details and support, you can also refer to the product page on Amazon.in.
11. Video Produk Rasmi
Watch these official videos to learn more about your Fire-Boltt Aero TWS Earbuds:
Fire-Boltt Aero TWS Earbuds Overview
Video: Satu tinjauan menyeluruhview of the Fire-Boltt Aero TWS Earbuds, highlighting key features and design. This video provides a quick introduction to the product's capabilities.
Fire-Boltt Aero TWS Earbuds - Features Demo
Video: This demonstration showcases the custom EQ profiles and other customizable features of the Fire-Boltt Aero TWS Earbuds through the FirePods App, along with the ANC functionality.
