Tayama 3-Tier Electric Food Steamer (Model TFS-003) - Instruction Manual

1. Pengenalan

The Tayama 3-Tier Electric Food Steamer (Model TFS-003) is designed to provide a convenient and healthy way to prepare a variety of foods. With its 24-liter capacity and three removable BPA-Free trays, you can steam multiple dishes simultaneously. Key features include an adjustable timer, delay start function, keep warm function, and dry-boil protection for safe and efficient cooking.

Image: The Tayama 3-Tier Electric Food Steamer, fully assembled and filled with various foods being steamed.

2. Maklumat Keselamatan Penting

AMARAN: Untuk mengurangkan risiko kebakaran, kejutan elektrik atau kecederaan, sentiasa ikuti langkah berjaga-jaga keselamatan asas ini:

• Baca semua arahan sebelum menggunakan perkakas.
• Jangan sentuh permukaan panas. Gunakan pemegang atau tombol.
• Untuk melindungi daripada bahaya elektrik, jangan rendam kord, palam atau perkakas dalam air atau cecair lain.
• Pengawasan rapi diperlukan apabila sebarang perkakas digunakan oleh atau berhampiran kanak-kanak.
• Cabut plag dari soket apabila tidak digunakan dan sebelum membersihkan. Biarkan sejuk sebelum memakai atau menanggalkan bahagian, dan sebelum membersihkan perkakas.
• Jangan kendalikan sebarang perkakas dengan kord atau palam yang rosak, atau selepas perkakas tidak berfungsi atau rosak dalam apa jua cara.
• Penggunaan lampiran aksesori yang tidak disyorkan oleh pengilang perkakas boleh menyebabkan kecederaan.
• Jangan gunakan di luar rumah.
• Jangan biarkan kord itu tergantung di tepi meja atau kaunter, atau menyentuh permukaan panas.
• Jangan letakkan pada atau berhampiran gas panas atau penunu elektrik, atau dalam ketuhar yang dipanaskan.
• Berhati-hati yang melampau mesti digunakan apabila menggerakkan perkakas yang mengandungi minyak panas atau cecair panas lain.
• Sentiasa pasangkan palam pada perkakas terlebih dahulu, kemudian palamkan kord ke alur keluar dinding. Untuk memutuskan sambungan, matikan mana-mana kawalan kepada "mati", kemudian tanggalkan palam daripada alur keluar dinding.
• Jangan gunakan perkakas untuk kegunaan selain daripada yang dimaksudkan.

3. Bahagian dan Komponen

Familiarize yourself with the components of your Tayama Electric Food Steamer:

1. Unit Asas: Contains the heating element, water reservoir, and control panel.
2. Takungan Air: Located within the base unit, with a 1.5-liter capacity. Features a clear water level indicator.
3. Steaming Trays (3): Removable, BPA-Free, and stackable for multi-tier steaming.
4. Tudung: Transparent cover to retain steam and allow monitoring of food.
5. Panel Kawalan: Features an LCD display, adjustable timer, delay start, and keep warm functions.

Imej: Depan view of the steamer, highlighting the control panel and water level indicator.

Imej: Sisi view of the steamer, illustrating the three transparent steaming trays.

4. Persediaan

1. Bongkar: Keluarkan semua komponen dari pembungkusan dengan berhati-hati. Simpan pembungkusan untuk penyimpanan atau pengangkutan masa hadapan.
2. Bersih: Before first use, wash the steaming trays, lid, and any accessories in warm, soapy water. Rinse thoroughly and dry. The base unit should only be wiped with a damp kain.
3. penempatan: Place the steamer base on a stable, heat-resistant, and level surface. Ensure adequate ventilation around the unit.
4. Isi takungan air: Fill the water reservoir in the base unit with fresh water up to the 'MAX' line. The reservoir has a 1.5-liter capacity. Do not exceed the 'MAX' fill line.
5. Pasang Dulang: Place the desired number of steaming trays onto the base unit. The trays can be stacked or dismantled to accommodate different food sizes and quantities.
6. Tudung Tempat: Securely place the transparent lid on the top steaming tray.

Imej: Belakang view of the steamer, showing the water reservoir and power cord connection.

5. Arahan Operasi

1. Tambah Makanan: Place your food items into the steaming trays. For optimal results, ensure food is arranged to allow steam to circulate freely.
2. Hidupkan kuasa: Plug the steamer into a 110V electrical outlet. The LCD display will illuminate.
3. Tetapkan Masa Memasak: Use the control panel to set the desired steaming time. The adjustable timer allows for precise cooking. Refer to the 'Cooking Guide' section for recommended times.
4. Fungsi Mula Kelewatan: To delay the start of cooking, set the desired delay time (up to 24 hours) before setting the cooking time. The steamer will begin steaming automatically after the delay period.
5. Fungsi Kekal Panas: After the cooking cycle is complete, the steamer will automatically switch to a 'Keep Warm' mode for up to 2 hours, keeping your food at an ideal serving temperature.
6. Auto Shut-off & Dry-Boil Protection: The steamer is equipped with an auto shut-off feature that activates when the cooking cycle is complete or if the water reservoir runs dry. This prevents damage to the unit and ensures safety.
7. Memantau Paras Air: The clear water level indicator allows you to monitor the water level during operation. If water levels drop too low, the dry-boil protection will activate.

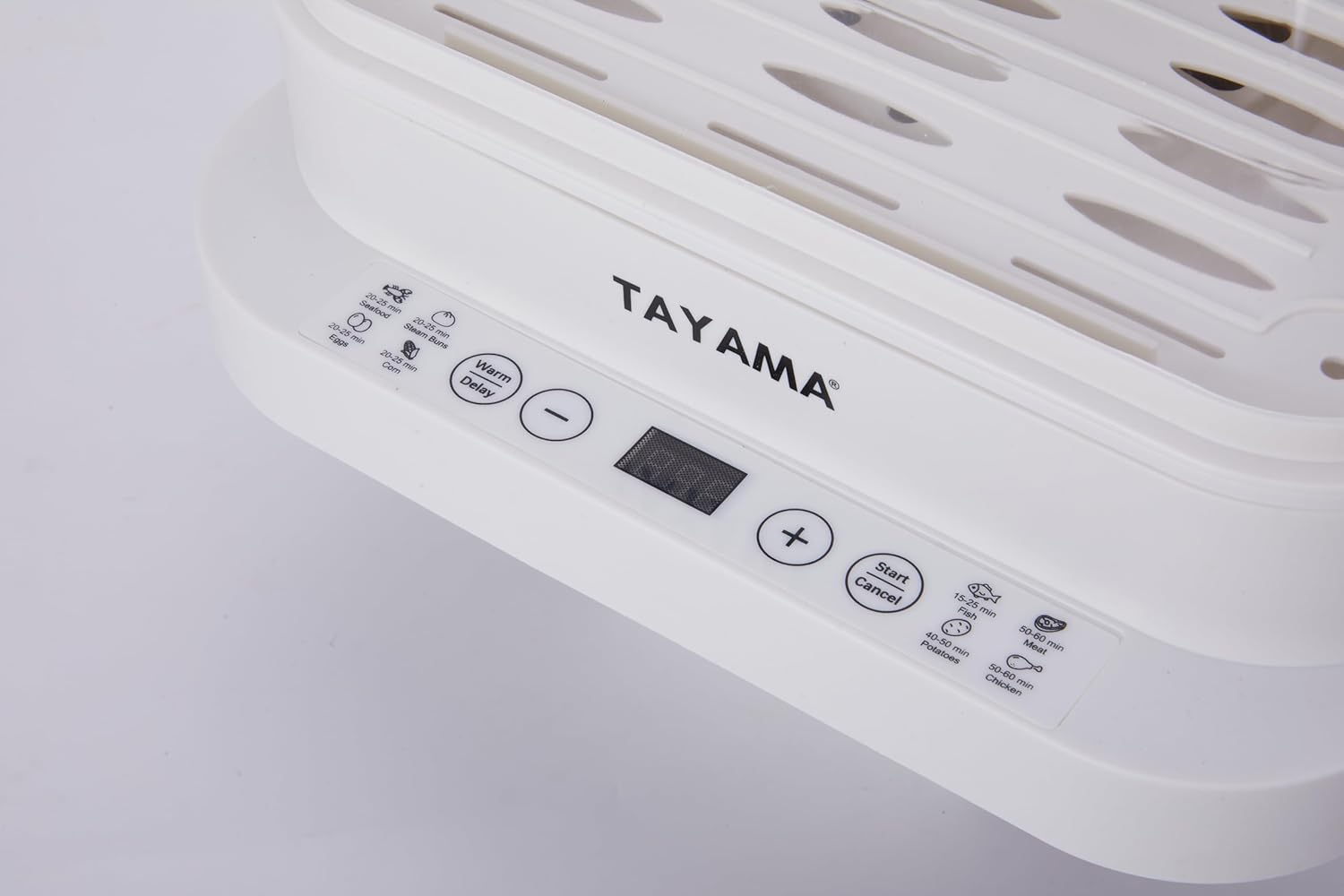

Image: Close-up of the control panel, showing the LCD display and function buttons.

6. Panduan Memasak

Steaming times may vary based on food quantity, density, and desired doneness. The following are general guidelines:

The 3-tier design allows for steaming different foods simultaneously. Place items requiring longer cooking times or more intense steaming closer to the water reservoir (bottom tray). Foods that cook faster or require less steam can be placed in the upper trays.

Image: Steamer with corn and sweet potatoes in the lower tray, demonstrating food placement.

Image: Steamer with steamed buns in the middle tray, showing versatility for different food types.

Image: Steamer with fish, broccoli, and eggs in different trays, illustrating multi-tier cooking.

7. Penyelenggaraan dan Pembersihan

Proper cleaning and maintenance will ensure the longevity and optimal performance of your steamer.

1. Cabut dan Sejukkan: Sentiasa cabut plag pengukus dari salur keluar kuasa dan biarkan ia sejuk sepenuhnya sebelum dibersihkan.
2. Bahagian Selamat Pencuci Pinggan: The steaming trays and lid are BPA-Free and dishwasher safe. They can also be washed by hand with warm, soapy water.
3. Unit Pangkalan Bersih: Lap bahagian luar unit asas dengan iklanamp kain. Jangan rendam unit asas dalam air atau sebarang cecair lain.
4. Mengurangkan: Over time, mineral deposits may accumulate in the water reservoir. To descale, fill the reservoir with a mixture of equal parts water and white vinegar. Run the steamer for 20-30 minutes, then rinse thoroughly. Repeat if necessary.
5. Storan: Ensure all parts are clean and dry before storing. The trays can be nested for compact storage.

8. Penyelesaian masalah

If you encounter any issues with your steamer, refer to the following common problems and solutions:

• Steamer not producing steam:
  • Periksa sama ada unit dipasang dengan betul ke alur keluar yang berfungsi.
  • Ensure the water reservoir is filled to at least the 'MIN' level.
  • Verify that the timer is set correctly and the unit is powered on.
• Makanan tidak masak sama rata:
  • Rearrange food in the trays to allow for better steam circulation.
  • Cut food into uniform sizes for consistent cooking.
  • Ensure the lid is properly sealed.
• Steamer automatically shuts off prematurely:
  • This is likely due to the dry-boil protection. Check the water level and refill if necessary.
  • Ensure the steamer is placed on a level surface.
• Water leaking from the unit:
  • Ensure the water reservoir is not overfilled.
  • Check that all trays and the lid are correctly assembled and seated.

9. Spesifikasi

• model: TFS-003
• Jenama: TAYAMA
• kapasiti: 24 Liters / Quarts
• Kuasa Dinilai: 110V / 500-Watts
• Dimensi Produk: 11"L x 9"W x 16"H
• Berat Barang: 6 paun
• Bahan: Plastic (BPA-Free trays)
• warna: putih
• ciri-ciri: 3-Tier steaming, adjustable timer, 24-hour delay start, keep warm function, auto shut-off, dry-boil protection, dishwasher safe trays.

10. Waranti dan Sokongan

For warranty information, product registration, or customer support, please refer to the warranty card included with your product or visit the official TAYAMA webtapak. Simpan resit pembelian anda sebagai bukti pembelian.
