COWSAR 28-Inch 4-Burner Built-In Propane Gas Grill Instruction Manual

1. Pengenalan

Thank you for choosing the COWSAR 28-Inch 4-Burner Built-In Propane Gas Grill. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new outdoor cooking appliance. Please read all instructions carefully before installation and use to ensure optimal performance and safety.

Image: The COWSAR 28-Inch 4-Burner Built-In Propane Gas Grill seamlessly integrated into an outdoor kitchen island, showcasing its sleek stainless steel design.

2. Maklumat Keselamatan

AMARAN: Untuk kegunaan luar sahaja. Jangan simpan atau gunakan petrol atau wap dan cecair mudah terbakar lain di sekitar ini atau mana-mana perkakas lain.

BAHAYA: Jika anda terhidu gas:

1. Matikan gas pada perkakas.
2. Padamkan sebarang nyalaan terbuka.
3. Buka penutup.
4. Jika bau berterusan, jauhkan daripada perkakas dan segera hubungi pembekal gas atau bomba anda.

Always ensure proper ventilation. Keep children and pets away from the grill during operation. Always wear protective gloves when handling hot surfaces.

3. Kandungan Pakej

Your COWSAR Built-In Gas Grill package includes the following main components:

• Grill Head Assembly
• 4 Main Burners
• 2 Cast 304 Stainless Steel Grates
• 1 Griddle Plate
• 1 Pemanasan Rak
• Manual Pengguna dan Panduan Pemasangan

Imej: A terperinci view of the grill's interior, highlighting the durable cast 304 stainless steel cooking grates, griddle plate, and warming rack.

4. Persediaan dan Pemasangan

The COWSAR Built-In Gas Grill is designed for seamless integration into outdoor kitchen islands. Most components come pre-assembled to simplify the installation process. Detailed installation instructions and diagrams are provided in the separate installation guide.

4.1 Penyediaan Tapak

Ensure the outdoor kitchen island or countertop opening meets the required dimensions for a secure fit. Refer to the product dimensions for precise measurements.

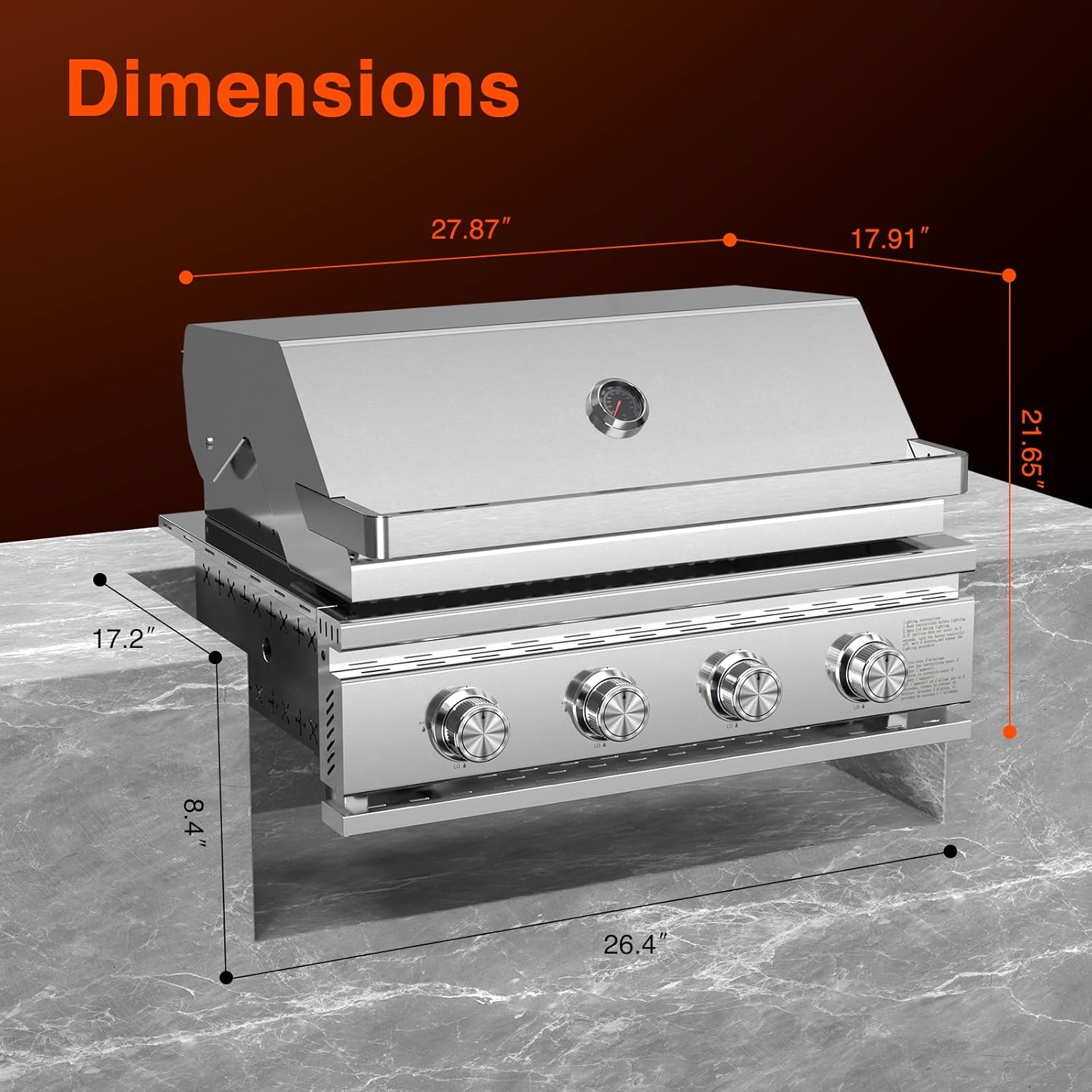

Image: A technical diagram illustrating the precise dimensions of the COWSAR 28-Inch Built-In Gas Grill, including width, depth, and height for proper installation.

4.2 Sambungan Gas

This appliance uses propane gas. All gas connections must be performed by a qualified professional in accordance with local codes and ordinances. Ensure all connections are leak-tested before initial use.

4.3 Pilihan Penempatan

The grill can be installed as an embedded unit within a countertop or used as a countertop appliance. Choose the installation method that best suits your outdoor kitchen design.

Image: Visual representation of the grill's versatile installation options, showing it both embedded into an outdoor kitchen island and placed as a freestanding unit on a countertop.

5. Arahan Operasi

Your COWSAR grill features four powerful main burners, each rated at 8000 BTU, ensuring quick preheating and even heat distribution across the cooking surface.

5.1 Menyalakan Pembakar

1. Open the grill lid before lighting.
2. Pastikan bekalan gas dihidupkan.
3. Push and turn a control knob to the HIGH position. You should hear an ignition click.
4. If the burner does not light within 5 seconds, turn the knob to OFF, wait 5 minutes, and repeat the lighting procedure.
5. Setelah menyala, laraskan api ke suhu memasak yang diingini.

Imej: Dari dekat view of the grill's stainless steel control knobs, indicating 'HI' and 'LO' settings for flame adjustment.

5.2 Cooking Surface Utilization

The grill offers a total cooking surface of 509.46 sq.in., including 244.68 sq.in. for grates roasting, 122.34 sq.in. for the griddle plate, and a 142.44 sq.in. warming rack. This versatile setup allows for grilling, searing, and cooking various items simultaneously.

Image: The grill's expansive cooking area, featuring different foods like steaks, skewers, corn, and sausages distributed across the grates, griddle, and warming rack.

Imej: Dari dekat view of the robust stainless steel cooking grates, designed for even heat distribution and durability.

Imej: Dari dekat view of the integrated griddle plate, suitable for cooking smaller items or breakfast foods.

6. Penyelenggaraan

Pembersihan dan penyelenggaraan yang kerap akan memanjangkan hayat gril anda dan memastikan operasi yang selamat.

6.1 Cleaning the Cooking Grates and Griddle

After each use, once the grill has cooled, clean the cooking grates and griddle plate with a grill brush. For stubborn residue, use warm soapy water and a non-abrasive scrubber. Rinse thoroughly and dry.

6.2 Cleaning the Stainless Steel Surfaces

Wipe exterior stainless steel surfaces with a soft cloth and a stainless steel cleaner. Avoid abrasive cleaners or pads that can scratch the finish. For best results, wipe in the direction of the grain.

6.3 Penyelenggaraan Penunu

Periodically inspect the burner ports for blockages (e.g., insect nests). Clean with a wire brush or a stiff wire if necessary. Ensure the burner tubes are properly aligned with the valve orifices.

Imej: Dari dekat view of the grill's four stainless steel burners, showing the even blue flames during operation, indicating proper gas flow.

7. Penyelesaian masalah

Jika anda menghadapi masalah dengan gril anda, rujuk kepada masalah dan penyelesaian biasa berikut:

For issues not listed or if problems persist, contact COWSAR customer support.

8. Spesifikasi

9. Waranti dan Sokongan

9.1 Maklumat Waranti

COWSAR offers a Waranti terhad 5 tahun on the main burner and structure of this gas grill. This warranty covers defects in materials and workmanship under normal use and service. Please retain your proof of purchase for warranty claims.

9.2 Sokongan Pelanggan

For technical assistance, replacement parts, or warranty inquiries, please contact COWSAR customer support. Refer to the contact information provided with your purchase documentation or visit the official COWSAR webtapak.
